5083 aluminum plate, an AL-Mg alloy, is the most widely used rust-proof aluminum. It features high strength, strong fatigue resistance, excellent plasticity, and corrosion resistance. Strength can be enhanced by work hardening without heat treatment. It also resists marine and atmospheric corrosion well and offers good weldability.
Instant QuoteClick below to view detailed specifications and properties of 5083 Aluminum plate ↓
Chalco maintains a substantial in-stock inventory of 5083 Aluminum plate for immediate availability and fast delivery. Our ASTM B209,EN 485 compliant products are ready to meet your project's demands promptly.[Click to download 5083 Aluminum plate stock.pdf]
Hot selling 5083 aluminum plate products of Chalco
5083 aluminium plate
5083 aluminum plates is mainly used for applications requiring high plasticity and good weldability, such as ships, LNG ships, pressure vessels, refrigeration devices, television towers, drilling equipment, transportation equipment, etc. that require strict fire protection.
5083 H116/H321 marine aluminum plate
The 5083 H116/H321/H111 aluminum marine plate offers high strength, lightweight, and corrosion resistance, making it ideal for manufacturing large ships and small yachts. It is commonly used for side panels, outer plating, and decks on a variety of vessels.

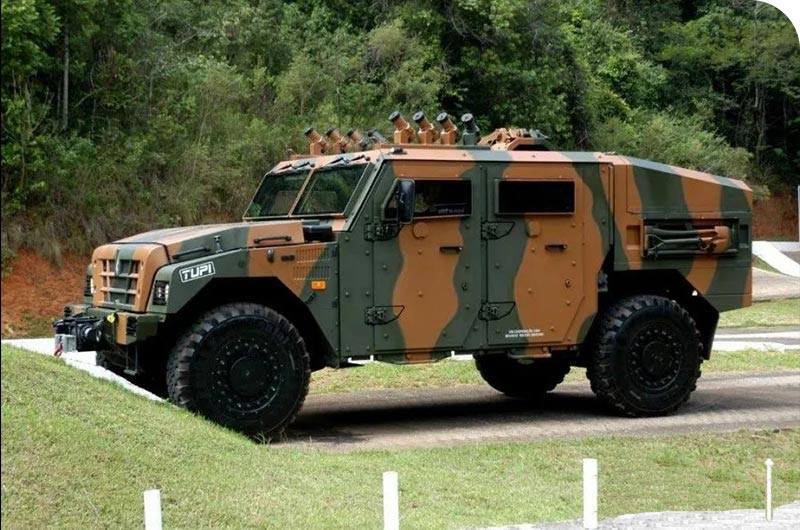

5083 H131 armor aluminum plate
5083 H131 aluminum armor plate has resistance to the projectile, good corrosion resistance, and especially good weldability. It is used for armor plates, armored personnel carriers, and other military products.
Contact us now

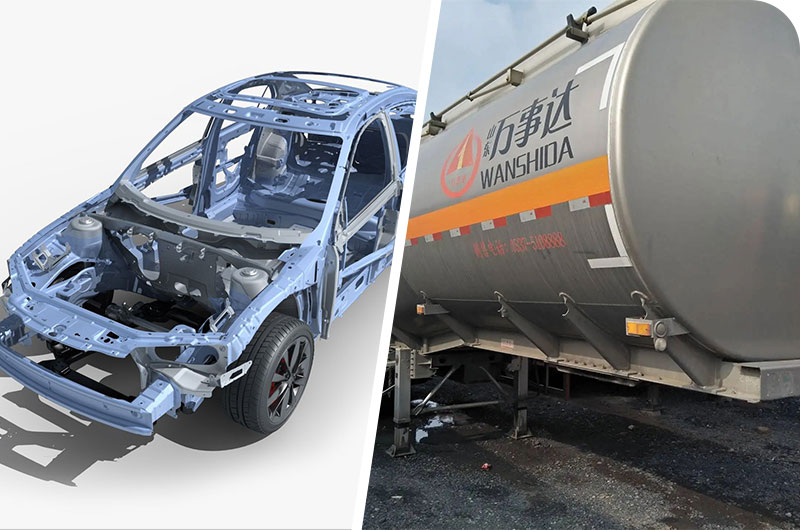

5083 aluminum plate for automobile
It is used for aluminum alloy tank car body/tank body, car fuel tank, air reservoir, bus skin, C82 coal carrier, roof/bottom guard board, etc.

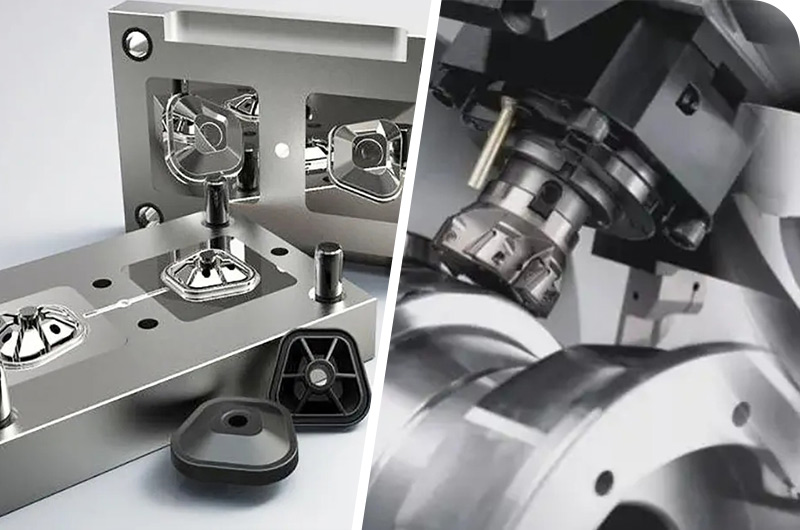

Contact us nowIt is used for moulds, LNG tanks, flange materials, GIS high-voltage switch shells, precision machining, etc.
Contact us now
5083 aluminum tread checkered plate
Thickness rank in 0.8-8.0mm, 5083 aluminum tread checkered sheet has anti-skid, rust proof functions and strong corrosion resistance.It is used for refrigerated vehicles, car floors, stairs, floor decoration, and anti-skid subway.
Contact us nowChalco 5083 aluminum plate size chart
Hot-Selling Size Chart for 5083 O Aluminum Sheet Plate(Imperial)
Specification: ASTM B209, EN 485, AMS 4056, AMS-QQ-A-250/6
Application:Cryogenic Storage Tanks,LNG Storage Tanks,Pressure Vessels
| Description | Thickness/in | Size/in | Description | Thickness/in | Size/in |
| 5083 O aluminum plate | 0.1250" | 60"x144" | 5083 O aluminum plate | 0.6250" | 96"x288" |
| 5083 O aluminum plate | 0.2500" | 96"x240" | 5083 O aluminum plate | 0.7500" | 96"x288" |
| 5083 O aluminum plate | 0.3750" | 96"x288" | 5083 O aluminum plate | 0.7500" | 96"x240" |
| 5083 O aluminum plate | 0.3750" | 120"x240" | 5083 O aluminum plate | 0.7500" | 72"x96" |
| 5083 O aluminum plate | 0.3750" | 60"x144" | 5083 O aluminum plate | 1.0000" | 120"x240" |
| 5083 O aluminum plate | 0.3750" | 72"x190" | 5083 O aluminum plate | 1.0000" | 96"x288" |
| 5083 O aluminum plate | 0.5000" | 96"x288" | 5083 O aluminum plate | 1.0000" | 72"x240" |
| 5083 O aluminum plate | 0.5000" | 120"x240" | 5083 O aluminum plate | 1.0000" | 96"x240" |
| 5083 O aluminum plate | 0.5000" | 72"x240" | 5083 O aluminum plate | 1.2500" | 60"x144" |
| 5083 O aluminum plate | 0.5000" | 120"x288" | 5083 O aluminum plate | 1.5000" | 120"x240" |
| 5083 O aluminum plate | 0.6250" | 96"x288" | 5083 O aluminum plate | 1.7500" | 96"x288" |
| 5083 O aluminum plate | 0.7500" | 96"x288" | 5083 O aluminum plate | 2.0000" | 96"x288" |
Hot-Selling Size Chart for 5083 H116/H321 Marine Grade Aluminum Plate (Imperial)
Specification:ASTM B928, EN 485, AMS-QQ-A-250/6
Standard Thicknesses: 0.125", 0.25", 0.375", Thicker aluminum plates provide better durability for hulls.
Standard Dimensions: 60" x 120", suitable for various applications.
Typical Ship Plate Dimensions: 96" x 240" and 96" x 288", meeting the demand for longer specifications in marine aluminum plates.
5083 H116/H321 aluminum plates offer superior corrosion resistance, making them highly suitable for marine underwater environments and a typical choice for marine-grade aluminum plates.
Certification is available from classification societies such as CCS, BV, LR, ABS, KR, DNV, RINA, and PC.
| Description | Thickness/in | size/in | Description | Thickness/in | size/in |
| 5083 H116 aluminum plate | 1/8" | 96"x240" | 5083 H321 aluminum plate | 1" | 96"x240" |
| 5083 H116 aluminum plate | 3/16" | 96"x240" | 5083 H321 aluminum plate | 1 1/4" | 96"x240" |
| 5083 H116 aluminum plate | 1/4" | 96"x240" | 5083 H321 aluminum plate | 1 1/2" | 96"x240" |
| 5083 H116 aluminum plate | 5/8" | 96"x240" | 5083 H321 aluminum plate | 2" | 96"x240" |
| 5083 H116 aluminum plate | 3/4" | 96"x240" | 5083 H321 aluminum plate | 2 1/2" | 96"x240" |
| 5083 H116 aluminum plate | 1" | 96"x240" | 5083 H321 aluminum plate | 3" | 96"x240" |
| 5083 H116 aluminum plate | 1 1/4" | 96"x240" | 5083 H321 aluminum plate | 3 1/4" | 96"x240" |
| 5083 H116 aluminum plate | 1 1/2" | 96"x240" | 5083 H321 aluminum plate | 3 1/2" | 96"x240" |
| 5083 H116 aluminum plate | 2" | 96"x240" | 5083 H321 aluminum plate | 4" | 60"x120" |
| 5083 H321 aluminum plate | 1/4" | 96"x240" | 5083 H321 aluminum plate | 4 1/4" | 60"x120" |
| 5083 H321 aluminum plate | 5/8" | 96"x240" | 5083 H321 aluminum plate | 4 1/2" | 60"x120" |
| 5083 H321 aluminum plate | 3/4" | 96"x240" | 5083 H321 aluminum plate | 6" | 60"x120" |
Hot-selling size chart for 5083 H131/H32 aluminum armor plate (Imperial)
Specification:MIL-DTL-46027, ASTM B209, AMS-QQ-A-250/6
Application: Naval Vessels, Tank Armor Plates, Armored Personnel Carriers (APC)
For 5083 H131 aluminum armor plates with thicknesses exceeding 0.499", ballistic reports can be provided upon customer request.
| Description | Temper | Thickness/in | Size/in | Spec |
| 5083 H131 Aluminum Armor Plate | H131 | 1.25" | 72"X144" | MIL – DTL – 46027k |
| 5083 H131 Aluminum Armor Plate | H131 | 1.5" | 72"X144" | MIL – DTL – 46027k |
| 5083 H131 Aluminum Armor Plate | H131 | 1.75" | 72"X144" | MIL – DTL – 46027k |
| 5083 H131 Aluminum Armor Plate | H131 | 2" | 72"X144" | MIL – DTL – 46027k |
| 5083 H131 Aluminum Armor Plate | H131 | 2.25" | 72"X144" | MIL – DTL – 46027k |
| 5083 H131 Aluminum Armor Plate | H131 | 2.5" | 72"X144" | MIL – DTL – 46027k |
| 5083 H131 Aluminum Armor Plate | H131 | 3" | 72"X144" | MIL – DTL – 46027k |
| 5083 H32 Aluminum Armor Plate | H32 | 0.25" | 48"X144" | ASTM B209 |
| 5083 H32 Aluminum Armor Plate | H32 | 0.5" | 48"X144" | ASTM B209 |
| 5083 H32 Aluminum Armor Plate | H32 | 0.75" | 48"X144" | ASTM B209 |
| 5083 H32 Aluminum Armor Plate | H32 | 1" | 48"X144" | ASTM B209 |
| 5083 H32 Aluminum Armor Plate | H32 | 1.25" | 48"X144" | ASTM B209 |
| 5083 H32 Aluminum Armor Plate | H32 | 1.5" | 48"X144" | ASTM B209 |
| 5083 H32 Aluminum Armor Plate | H32 | 1.75" | 48"X144" | ASTM B209 |
| 5083 H32 Aluminum Armor Plate | H32 | 2" | 48"X144" | ASTM B209 |
| 5083 H32 Aluminum Armor Plate | H32 | 2.25" | 48"X144" | ASTM B209 |
| 5083 H32 Aluminum Armor Plate | H32 | 2.5" | 48"X144" | ASTM B209 |
| 5083 H32 Aluminum Armor Plate | H32 | 3" | 48"X144" | ASTM B209 |
| 5083 H32 Aluminum Armor Plate | H32 | 3.25" | 48"X144" | ASTM B209 |
| 5083 H32 Aluminum Armor Plate | H32 | 3.5" | 48"X144" | ASTM B209 |
| 5083 H32 Aluminum Armor Plate | H32 | 4" | 48"X144" | ASTM B209 |
Stock inventory chart for 5083 H111 aluminum sheet plate (Metric)
Specification: EN 485, AMS-QQ-A-250/6
Application: Tank Car Heads/Bodies/Baffles, LNG storage tanks
| Description | Thickness(mm) | size/mm | Description | Thickness(mm) | size/mm |
| 5083 H111 sheet | 1 | 1250x2500 | 5083 H111 sheet | 6 | 1250x2500 |
| 5083 H111 sheet | 1 | 1500x3000 | 5083 H111 sheet | 6 | 1500x3000 |
| 5083 H111 sheet | 1.5 | 1250x2500 | 5083 H111 plate | 16 | 2000x4000 |
| 5083 H111 sheet | 1.5 | 1500x3000 | 5083 H111 plate | 18 | 2000x4000 |
| 5083 H111 sheet | 2 | 1250x2500 | 5083 H111 plate | 30 | 2000x4000 |
| 5083 H111 sheet | 2 | 1500x3000 | 5083 H111 plate | 35 | 2000x4000 |
| 5083 H111 sheet | 2.5 | 1500x3000 | 5083 H111 plate | 40 | 2000x4000 |
| 5083 H111 sheet | 2.95 | 1500x3000 | 5083 H111 plate | 45 | 2000x4000 |
| 5083 H111 sheet | 3 | 1250x2500 | 5083 H111 plate | 55 | 2000x4000 |
| 5083 H111 sheet | 3 | 1500x3000 | 5083 H111 plate | 65 | 2000x4000 |
| 5083 H111 sheet | 4 | 1250x2500 | 5083 H111 plate | 70 | 2000x4000 |
| 5083 H111 sheet | 4 | 1500x3000 | 5083 H111 plate | 80 | 2000x4000 |
| 5083 H111 sheet | 5 | 1250x2500 | 5083 H111 plate | 90 | 2000x4000 |
| 5083 H111 sheet | 5 | 1500x3000 | 5083 H111 plate | 110 | 2000x4000 |
Stock inventory chart for 5083 H112 aluminum sheet plate (Metric)
Specification:ASTM B209, EN 485, AMS-QQ-A-250/6
| Description | Thickness(mm) | Size(mm) | Description | Thickness(mm) | Size(mm) |
| 5083 H112 sheet | 4 | 1500x3000 | 5083 H112 plate | 50 | 2000x4000 |
| 5083 H112 sheet | 5 | 1500x3000 | 5083 H112 plate | 50 | 1500x3000 |
| 5083 H112 sheet | 6 | 1500x3000 | 5083 H112 plate | 55 | 1500x3000 |
| 5083 H112 plate | 8 | 1500x3000 | 5083 H112 plate | 55 | 2000x4000 |
| 5083 H112 plate | 10 | 1500x3000 | 5083 H112 plate | 60 | 1500x3000 |
| 5083 H112 plate | 12 | 1500x3000 | 5083 H112 plate | 65 | 2000x4000 |
| 5083 H112 plate | 14 | 1500x3000 | 5083 H112 plate | 65 | 1500x3000 |
| 5083 H112 plate | 15 | 1500x3000 | 5083 H112 plate | 70 | 2000x4000 |
| 5083 H112 plate | 16 | 1500x3000 | 5083 H112 plate | 70 | 1500x3000 |
| 5083 H112 plate | 18 | 1500x3000 | 5083 H112 plate | 75 | 2000x4000 |
| 5083 H112 plate | 20 | 2000x4000 | 5083 H112 plate | 75 | 1500x3000 |
| 5083 H112 plate | 20 | 1500x3000 | 5083 H112 plate | 80 | 2000x4000 |
| 5083 H112 plate | 22 | 1500x3000 | 5083 H112 plate | 80 | 1500x3000 |
| 5083 H112 plate | 25 | 1500x3000 | 5083 H112 plate | 85 | 1500x3000 |
| 5083 H112 plate | 28 | 1500x3000 | 5083 H112 plate | 90 | 1500x3000 |
| 5083 H112 plate | 30 | 2000x4000 | 5083 H112 plate | 95 | 1500x3000 |
| 5083 H112 plate | 30 | 1500x3000 | 5083 H112 plate | 100 | 1500x3000 |
| 5083 H112 plate | 32 | 1500x3000 | 5083 H112 plate | 100 | 2000x4000 |
| 5083 H112 plate | 35 | 1500x3000 | 5083 H112 plate | 110 | 2000x4000 |
| 5083 H112 plate | 35 | 2000x4000 | 5083 H112 plate | 120 | 2000x4000 |
| 5083 H112 plate | 40 | 2000x4000 | 5083 H112 plate | 130 | 2000x4000 |
| 5083 H112 plate | 40 | 1500x3000 | 5083 H112 plate | 140 | 2000x4000 |
| 5083 H112 plate | 45 | 2000x4000 | 5083 H112 plate | 150 | 2000x4000 |
| 5083 H112 plate | 45 | 1500x3000 | 5083 H112 plate | 160 | 2000x4000 |
If the above stock size chart for 5083 aluminum plates does not have the specifications you need, please contact our sales manager for customization.
Instant QuoteSpecification of Chalco aluminum 5083 aluminium plate
| name | 5083 aluminum plate | |
| Hot selling temper | O,H111,H112,H321,H116,H131 | |
| Equivalent name | A95083, AlMg4,5Mn,DIN 3.3547,EN AW-5083,GM41,Al Mg4.5 Mn0.7 | |
| 5083 aluminum sheet | thickness: 0.01"-0.24" (0.2mm-6mm) | Width: 35.4"-104" (900mm-2650mm) |
| 5083 aluminum plate | thickness: 0.24"-9.84" (6mm-250mm) | Width: 35.4"-149.6" (900mm-3800mm) |
| 5083 Ultra wide aluminum sheet | Thickness: 0.24"-9.84" (6mm-250mm) | Width: 35.4"-104" (900mm-2650mm) |
| 5083 cast aluminum plate | Thickness: 0.24"-15.75" (6mm-400mm) | Width: 52"-73.2" (1320mm-1860mm) |
| 5083 aluminum armor plate | Thickness: 0.32"-9.84" (8mm-250mm) | Width: 35.4"-78.7" (900mm-2000mm) |
| 5083 marine aluminum plate | Thickness: 0.12"-9.84" (3mm-250mm) | Width: 35.4"-104" (900mm-2650mm) |
| length | Max 6m, Fix; Cut Length or Customized | |
| surface treatment | Mill finish,Bright, polished, hair line, brush, sand blast, checkered, embossed, etching, etc. | |
| Lamination type | Blue film, transparent film, black and white film, paper (film thickness: 50 microns, 80 microns) | |
| standard | ASTM B209,ASTM B928,MIL DTL46027,QQ-A-250/6 | |
Chemical composition of 5083 aluminium plate
| Element | Composition % |
| Al | REM |
| Si | ≤0.4 |
| Cu | ≤0.10 |
| Mg | 4.0-4.9 |
| Zn | ≤0.25 |
| Mn | 0.40-1.0 |
| Ti | ≤0.15 |
| Cr | 0.05-0.25 |
| Fe | ≤0.40 |
| Note: Single≤0.05; Total≤0.15 | |
Mechanical properties of 5083 alloy aluminum plate
| Tensile strength (σb) | 110-136MPa |
| Yield strengthσ0.2 (MPa) | ≥110 |
| Elongationδ10 (%) | ≥20 |
| Elastic modulus (E) | 69.3～70.7Gpa |
| Annealing temperature | 415℃ |
Chalco other hot selling aluminum plates in stock
1050 aluminum sheet
1060 aluminum sheet
2024 aluminium sheet
3003 aluminium sheet
5052 aluminum sheet
5083 aluminum plate
5086 aluminum plate
5182 aluminum plate
5454 aluminum plate
5754 aluminum plate
6013 aluminum sheet
7075 aluminum plate
Main features of Chalco Aluminum 5083 aluminum metals plate
- Light weight, outstanding advantages of lightweight;
- Superior antirust performance and good corrosion resistance to marine atmosphere;
- Clean and tidy surface and good flatness of products;
- Excellent anodizing quality and excellent mechanical performance;
- The strength is higher than that of Series 1 and 3 aluminum plates, belonging to medium and high strength aluminum alloy, with good fatigue and welding performance;
- The best welding characteristics of all aluminum alloys; High tensile strength and elongation;
- Good formability and corrosion resistance during processing;
- It can cover the aluminum surface and provide good packaging;
- It has good welding performance, good fatigue resistance and other superior properties, becoming a high-quality aluminum alloy material for automobiles, ships and liquefied natural gas (LNG) ships;
- Compared with ordinary aluminum plate, 5083 anti rust aluminum plate has a longer service life;
- The materials can be recycled, energy saving and environmental protection.
Other 5083 Products You Might Be Interested In
5083 O/H32/H111 Aerospace Aluminum Plate
5083 O H321 Oil Tanker Aluminum Plate
IL-DTL-46027 5083 H131 Aluminium Armor Plate
5083 H32 Aluminum Sheet for Auto Body
5083 Aluminum Pipe
5083 Aerospace Grade Aluminum Tube
5083 5383 O H112 Marine Grade Aluminum Round Bars
5083 5383 O H112 Marine Aluminum Square Bar
5083 5383 Marine Grade Aluminum Hexagon Bar
Aluminum Sheet Plate Procurement Guide
1. 5083 Aluminum Sheet Plate Weight
The weight of an aluminum sheet is calculated based on its length, width, and density. For instance, the density of 5083 aluminum alloy is 2.8g/cm³. The formula to calculate weight is:
Weight = Length (mm) × Width (mm) × Thickness (mm) × Density (2.8g/cm³)
This formula allows for accurate estimation of the aluminum sheet's weight, helping customers determine logistics costs and container space requirements.
2. 5083 Aluminum Sheet Plate Price
The FOB price of an aluminum sheet is typically based on the daily LME aluminum ingot price plus processing fees, adjusted according to exchange rates. We offer pricing in USD, EUR, or CNY as per the customer's preference. Customers can choose to customize aluminum sheets based on their specific needs or make quick purchases from our available inventory.
3.Complete Documentation Reports
Ensuring the completeness of documentation is essential for quality tracking and assurance during the procurement process. We provide a full set of detailed quality reports, including raw material certificates, lab test reports, fumigation certificates, specification guides, commercial invoices, and warranties, ensuring transparency and traceability of the product's quality.
4. Detailed Export Packaging
To ensure the integrity of aluminum sheets during international shipping, we use high-standard export packaging such as fumigation wooden crates and wooden pallets to prevent issues like rust, corrosion, scratches, deformation, or other damage during transit. Our packaging undergoes rigorous testing, with a damage rate of only one-third of the industry average, guaranteeing the product's safe arrival at its destination.
5. Professional Container Loading Solutions
Our experienced team offers flexible container loading solutions based on customer requirements. Whether opting for a 20ft, 40ft container or bulk cargo shipment, we provide optimized loading plans. Our professional loading design can save up to 15% of container space, significantly reducing logistics costs.
Chalco can provide you the most comprehensive inventory of aluminum products and can also supply you customized products. Precise quotation will be provided within 24 hours.
Get a quote
