Honeycomb core is widely used in aerospace, automotive, and engineering structures because of its low weight, high strength, and controlled energy absorption. Under impact loading, its hexagonal cells collapse progressively, absorbing energy and reducing force transmission. This makes honeycomb core a key energy-absorbing material for safety-critical applications such as aircraft cabin panels, automotive crumple zones, and transportation protection systems.
Chalco supplies aluminum, stainless steel, and aramid (Nomex) honeycomb cores. Cell size, wall thickness, and density can be customized to suit project requirements and provide different levels of energy absorption and protection. By optimizing the combination of material and structure, we provide stable solutions for a range of impact protection applications.
Energy Absorption Applications of Honeycomb Core
With controlled energy absorption and structural stability, honeycomb core is widely used in impact protection and safety engineering. Optimized structural design and material selection enable stable energy absorption and controlled force transmission under different impact loads, supporting the combined safety and lightweight requirements of aerospace, transportation, and industrial applications.
Aerospace Energy Absorption and Cushioning Systems
Used in aircraft landing cushions, reusable rocket recovery systems, and structural protection areas. Under high-impact loads, the honeycomb structure collapses predictably to absorb landing impact energy and reduce loads transferred to the primary structure.
Landing cushion device
Rocket recovery cushioning structure
Aerospace crash protection component
To address the stringent aerospace requirements for low weight, high energy absorption, and structural reliability, Chalco honeycomb materials combine optimized mechanical properties with structural design to provide stable energy absorption and impact response. Typical technical characteristics include:
| Parameter | Technical Specification |
| Impact Capacity | > 400 J |
| Density | < 7 kg/m³ |
| Strength Range | 0.15 – 40 MPa |
| Energy Absorption | Stable-plateau energy absorption (constant-force response) |
Rail Transit Crash Protection and Safety Systems

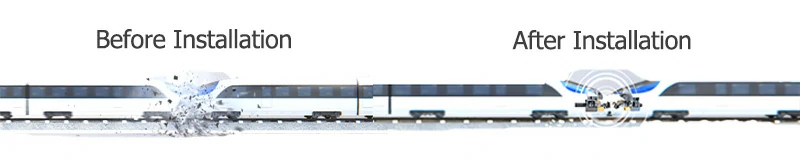

Rail transit crash protection and safety systems are used in train collision protection and passive safety structures. Their multi-stage energy-absorbing design progressively absorbs collision energy, helps prevent train overriding, and releases impact loads in a controlled manner, thereby reducing harm to vehicle structures and occupants.
Anti-climber energy absorber
Primary energy absorber
Obstacle deflector energy absorber
Drawing on project experience and system design capabilities, Chalco classifies the multi-stage energy absorption mechanisms of rail transit crash structures to provide a reference for different collision conditions. Typical stages and parameters are shown below:
| Energy Absorption Stage | Energy-Absorbing Component | Energy Absorption Mode | Typical Collision Speed Range |
| S1 | Coupler buffer | Elastic energy absorption | < 8 km/h |
| S2 | Coupler structure | Plastic deformation energy absorption | 8 – 15 km/h |
| S3 | Anti-climber energy absorber | Structural energy absorption | 15 – 25 km/h |
| S4 | Primary energy absorber (honeycomb structure) | Efficient progressive crushing | 25 – 36 km/h |
| S5 | Carbody structure | System-level energy absorption | > 36 km/h |
New Energy Vehicle Battery Protection Systems
Used beneath traction batteries and in other critical protection areas, the honeycomb structure converts concentrated impact loads into distributed loads to improve the impact protection and safety of the battery system.
Battery underbody guard
Bottom-impact protection structure
Battery pack energy-absorbing layer
To address the protection requirements of new energy vehicle battery systems under different impact conditions, Chalco honeycomb battery guards balance efficient energy absorption with lightweight construction through structural design and material optimization:
| Parameter | Technical Specification |
| Impact Capacity | > 400 J |
| Areal Density | 8.0 kg/m² |
| Thickness | 8 mm |
| Energy Absorption | High-efficiency energy absorption |
Crash Protection Structures for Passenger and Commercial Vehicles
Used in crash protection structures for passenger cars and engineering vehicles, honeycomb core disperses impact energy and protects the structure during a collision, improving overall vehicle safety.
Crash box
Bumper energy-absorbing structure
TMA crash cushion system
Automotive Crash Testing and Simulation Systems
For standardized crash testing and safety validation, honeycomb core provides a stable, repeatable mechanical response, enabling accurate crash simulation and controlled energy absorption.
Crash test barrier (MDB, ODB, etc.)
Dummy calibration honeycomb
Impact test and simulation system
Chalco can provide honeycomb materials and structural configurations matched to different applications, supporting the optimization of crash protection and energy-absorbing designs. Contact us to discuss your project and material selection requirements.
Chalco Energy-Absorbing Honeycomb Project Examples
Chalco honeycomb core materials have been used in safety-critical aerospace, rail transit, and new energy vehicle projects. Under high-impact loads, they provide stable energy absorption and structural reliability to meet the consistency and controllability requirements of critical safety systems.

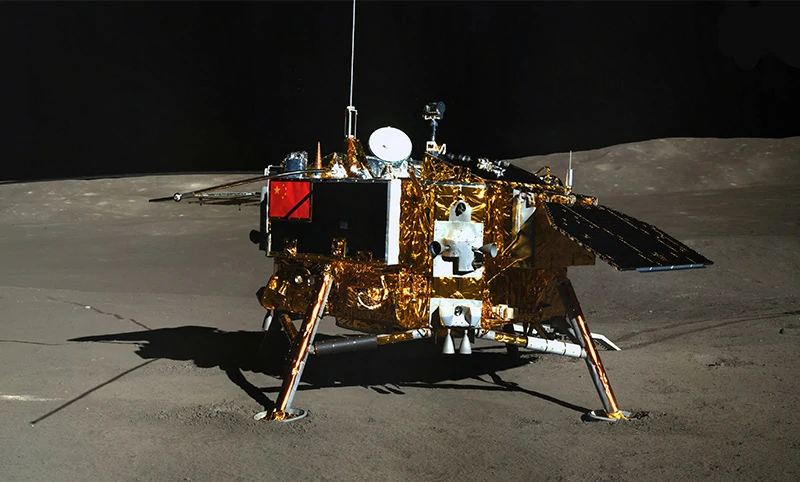

Participated in the Chang'e lunar probe series and crewed lunar exploration projects, developing high-strength honeycomb materials for high-energy impact absorption and use in extreme high- and low-temperature environments.

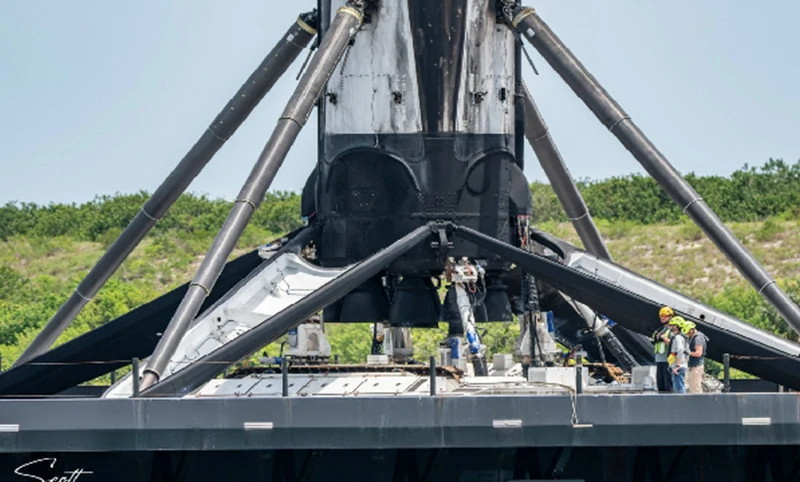

- Participated in the development of landing cushion systems for reusable rockets, using high-strength metal honeycomb as the primary energy-absorbing structure for high-impact cushioning applications.
- Used in the crash protection systems of Fuxing high-speed trains and high-speed maglev trains to provide staged collision energy absorption.
- Used in train anti-climber energy absorbers to improve rail transit safety protection.
- Supplied BYD and CATL battery projects to improve impact safety.
- Used in high-performance guards for new energy vehicle traction batteries, combining lightweight construction with enhanced protection.

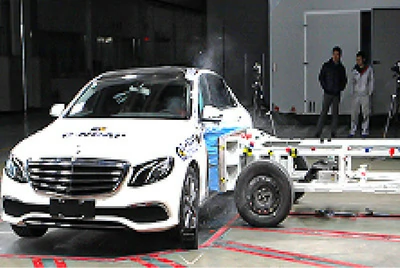

- Used in crash testing by CATARC and CAERI to maintain test consistency.
Chalco Crashworthy Honeycomb Core Material Selection
To meet different engineering requirements, Chalco provides several honeycomb core material options, each offering distinct energy absorption and crash protection characteristics:
Aluminum Honeycomb Core
Lightweight with controlled energy absorption for aerospace, automotive, and crash protection.
Aramid Honeycomb Core
Heat-resistant and energy-absorbing for aerospace and high-temperature protection.
Aramid Honeycomb Core
Heat-resistant and energy-absorbing for aerospace and high-temperature protection.
Chalco Crashworthy Honeycomb Core Types
To meet different crash protection and energy absorption requirements, Chalco provides several honeycomb core types, each with distinct structural and energy absorption characteristics:
-

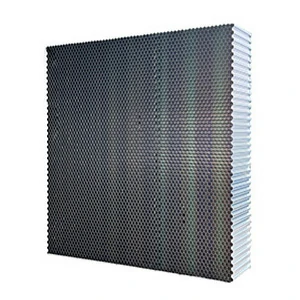

High-Density Honeycomb Core
High density and energy absorption for automotive crumple zones, rail transit crash zones, and high-impact industrial protection structures.
-

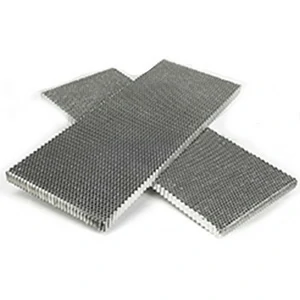

Microcell Honeycomb Core
Smaller cells provide a more uniform and predictable energy absorption response for critical crash protection areas and precision cushioning structures.
-

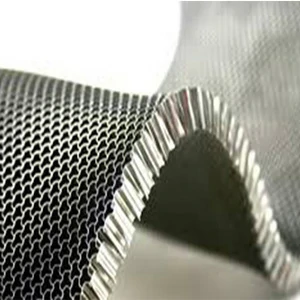

Flexible Honeycomb Core
Good formability enables adaptation to curved structures such as aircraft cabin doors and complex contoured components.
-
Corrugated / Serrated Honeycomb Core
A specialized geometry increases local energy absorption for concentrated high-impact loads and directional protection structures.
Chalco can also provide thermal insulation honeycomb core, composite honeycomb core, and other specialty products for high-temperature, combined energy absorption, and other specialized requirements. Contact us for product options, custom solutions, and quotations.

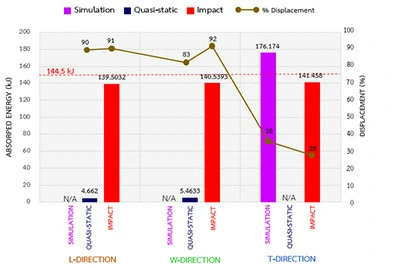

Energy Absorption and Crash Protection Advantages of Honeycomb Core
Chalco aluminum honeycomb core offers strong energy absorption and crash protection together with low weight, high strength, and structural stability. It is widely used in aviation, automotive, transportation safety, and related applications. Key advantages include:
Controlled energy absorption and a stable force plateau: During impact, the honeycomb structure maintains a stable compression plateau for continuous and predictable energy absorption, making it suitable for high-impact cushioning and crash protection designs.
Lightweight and configurable structure: Density can be as low as <7 kg/m³. Cell size, wall thickness, and density can be adjusted to optimize weight while meeting different strength requirements.
High strength and engineering adaptability: Strength can range from 0.15 to 40 MPa. Large structures (≥5 m) can be produced with dimensional accuracy of ±2.5% to support complex structures and engineering assembly requirements.
Adaptability to multiple applications and extreme environments: Suitable for high-speed impact and complex environments, including referenced impact conditions at approximately 600 km/h, with corrosion, heat and humidity tolerance and long-term service stability.
By combining cell geometry and structural parameters, honeycomb core provides adjustable, controlled energy absorption. Crash protection and energy-absorbing solutions can be matched to different impact conditions and structural requirements.
Honeycomb Core Performance and Technical Specifications
Honeycomb core combines low weight, high strength, and structural stability for energy absorption and crash protection applications. Its performance is primarily influenced by cell size, wall thickness, density, and material type. Together, these parameters determine energy absorption and structural stability under impact loads.
Key Honeycomb Core Structural Parameters and Their Effects
| Parameter | Typical Range | Engineering Significance | Effect on Crash Protection / Energy Absorption |
| Cell Side Length | Microcell honeycomb <1 mm; Conventional: 1–5 mm | Controls structural compactness | Smaller cells → greater energy absorption |
| Wall Thickness | Aluminum honeycomb: 0.04–0.15 mm; Steel honeycomb: up to 0.381 mm | Determines structural strength | Greater wall thickness → higher impact capacity |
| Equivalent Density | Aluminum honeycomb: >150 kg/m³; Steel honeycomb: up to 2917 kg/m³ | Overall performance indicator | Higher density → greater energy absorption per unit volume |
| Compressive Strength | Up to 12–50 metric tons/m² | Load-bearing and impact capacity | Determines whether the structure absorbs collision energy stably |
High-Density Honeycomb Core Crash Test
| Test Item | Test Condition / Requirement | Test Result | Crash Protection Relevance |
| Honeycomb Density | 192 kg/m³ ±15% | 195 kg/m³ | High density provides high energy absorption per unit volume and directly affects impact cushioning capacity |
| Room-Temperature Static Compressive Strength | >13 MPa | 15 MPa | Withstands high impact forces and maintains structural stability |
| High-Temperature Static Compressive Strength | 175℃/220℃/250℃ | 175°C: 30% reduction; 220°C: 48% reduction; 250°C: 55% reduction | Maintains predictable crash protection performance at high temperatures |
| Room-Temperature Delamination Strength | >0.22 kN | 1.32 kN | Prevents honeycomb delamination during impact and maintains overall energy absorption |
| High-Temperature Delamination Strength | 150~175℃ | 150°C: 0.69 kN; 175°C: 0.32 kN | Maintains crash protection performance at high temperatures |
| Boil-Test Delamination Strength | >0.04 kN after boiling in water for 2 h | 1.23 kN | Maintains crash protection capability under wet and high-humidity conditions |
Compressive Strength of Aluminum Honeycomb Core (5052/5056)
| Density (kg/m³) | Cell Size (mm / in) | Foil Thickness (mm) | Flatwise Compressive Strength (MPa) | L-Direction Shear Strength (MPa) | W-Direction Shear Strength (MPa) |
| 27 | 8.47 / 1/3 | 0.03 | 0.53 | 0.44 | 0.24 |
| 39 | 6.35 / 1/4 | 0.04 | 0.98 | 0.75 | 0.43 |
| 61 | 6.35 / 1/4 | 0.06 | 2.07 | 1.48 | 0.86 |
| 108 | 4.24 / 1/6 | 0.06 | 4.00 | 2.80 | 1.60 |
Notes / Technical Guidance:
- Smaller cell size → denser honeycomb structure → higher energy absorption per unit volume
- Greater foil thickness → higher flatwise compression and shear strength → suitable for high-impact protection applications
- Higher density → greater energy absorption per unit volume, but also greater weight
- The data above is for reference only. Cell size, foil thickness, and density can be adjusted to suit project requirements.
- Other materials, such as 3003 and 3104 aluminum alloys, stainless steel, high-strength steel, aramid, Nomex, and Kevlar, provide different strength levels.
Cell size, foil thickness, and density can be adjusted to meet specific energy absorption and crash protection requirements. Contact us for a custom solution.
Chalco Custom Energy-Absorbing Honeycomb Core Capabilities
- Custom structural parameters: Cell size, wall thickness, and density can be adjusted to match performance levels ranging from lightweight to high-density, high-energy-absorption designs.
- Material options: Aluminum alloys (including 5052 and 5056), stainless steel, high-strength steel, and aramid materials (Nomex and Kevlar) are available for different crash protection and energy absorption requirements.
- Structural configurations: Flat, curved, highly contoured, and flexible honeycomb structures are available for aircraft nacelles, cabin doors, and complex curved components.
- Surface treatment capabilities: Honeycomb cores can be combined with aluminum sheet or composite facings in sandwich structures. Anodizing, protective coatings, sealing, and fire- and high-temperature protection options are available to improve overall environmental suitability.
- Bonding and interface processes: CR III conversion coating, phosphoric acid anodizing (PAA), and several protective and interface-enhancement processes are available.
- Machining and forming capabilities: Precision cutting, slotting, splicing, and forming support batch production of large honeycomb cores and complex structural components.
- Performance engineering: Energy absorption, crash protection, vibration damping, and acoustic insulation can be optimized for the application, with recommendations for matching structural parameters.
Honeycomb Core Design and Selection Guide
Aluminum honeycomb core:Lightweight, high-strength, and controlled energy absorption; suitable for crash protection applications such as aircraft cabin panels and automotive crumple zones.
Aramid / Nomex / Kevlar honeycomb core: High-temperature capability, high energy absorption, and strong crash protection; suitable for aerospace protection and energy-absorbing components.
Stainless steel / high-strength steel honeycomb core: High density, high energy absorption, and very high load capacity; suitable for rail transit and industrial protection structures.
| Structural Parameter | Recommended Range | Engineering Significance | Effect on Energy Absorption / Crash Protection |
| Cell Side Length | Microcell: <1 mm; conventional: 1–5 mm | Controls structural compactness | Smaller cells → higher energy absorption per unit volume |
| Wall Thickness | Aluminum honeycomb: 0.04–0.15 mm; steel honeycomb: up to 0.381 mm | Determines structural strength | Greater wall thickness → higher impact capacity |
| Equivalent Density | Aluminum honeycomb: >150 kg/m³; steel honeycomb: up to 2917 kg/m³ | Overall performance indicator | Higher density → greater energy absorption, but also greater weight |
Recommended Structural Combinations
- Honeycomb core + aluminum/composite facing: Provides rigid protection and impact cushioning.
- Honeycomb core + composite layer: Improves high-temperature capability, corrosion protection, and structural integrity.
- High-density honeycomb core + steel plate: For rail transit crash protection.
- Aramid honeycomb core + composite layer: For aerospace protection.
Materials can be combined based on the application and crash protection requirements. Chalco can provide custom structural combinations. Contact us for recommendations and a quotation.
Ordering and Project Support
Chalco provides custom production and engineering support for crashworthy honeycomb core materials to meet the energy absorption and protection requirements of different applications.
Available Services
- Custom cell size, wall thickness, density, and material type
- Multiple structural combinations (honeycomb core + facing / composite layer)
- Product options including high-density and microcell honeycomb core
- Volume supply and project-level delivery support
Typical Procurement Applications
- Aerospace structures and protective components
- Rail transit crash protection and cushioning systems
- Automotive energy-absorbing structure design
- Industrial equipment and transportation protection solutions
Submit your project requirements to Chalco for a custom solution and quotation.
