Sectional drawing of aluminum extruded profiles for main load-bearing structures of aluminum bridges
NO.1 Cross section view of aluminum profiles for floor beam, pressed-on bracket, pile driver, floating bridge connection terminal, groove for pontoon buckle
NO.2 Cross section view of grooved aluminum profiles for chord member
NO.3 Cross section view of grooved aluminum profile for main beam

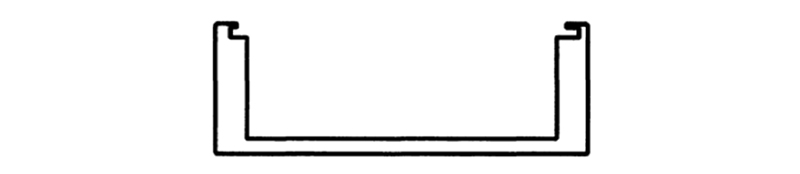

NO.4 Cross section view of channel guide aluminum profile
NO.5 Cross section view of beams, crossbars, cross braces, Upright post, Stair handrail post, Pile driver for pile holders
NO.6 Cross section view of three-span beam aluminum profile
NO.7 Cross section view of Three-span irregular lower beam aluminum profile
NO.8 Cross section view of three-span main beam (girder) aluminum profile

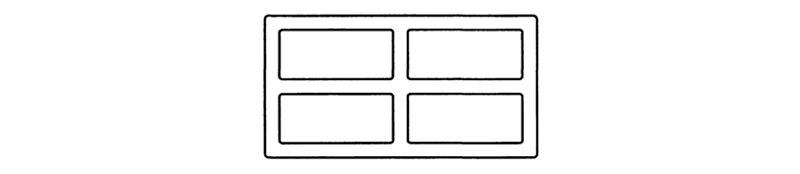

NO.9 Cross section view of four-hole rectangular tube aluminum profile on the upper crossbar
NO.10 Cross section view of the five-hole aluminum profile of the upper crossbar
NO.11 Cross section view of six-hole crossbeam aluminum profile

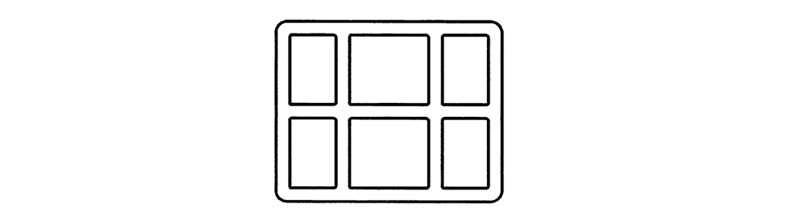

NO.12 Cross section view of equal six-hole frame aluminum profile

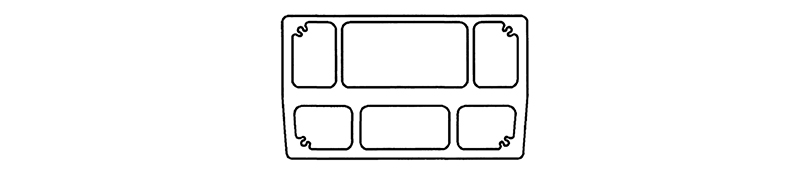

NO.13 Cross section view of six-hole irregular frame aluminum profile
NO.14 Cross section view of internal longitudinal beam aluminum profile
NO.15 Cross section view of primary pontoon aluminium profiles
NO.16 Cross section view of supporting bracket aluminium profiles
NO.17 Cross section view of bridge expansion joint aluminium profiles
Cross section view diagram of aluminum extruded profiles for other structures of aluminum bridges

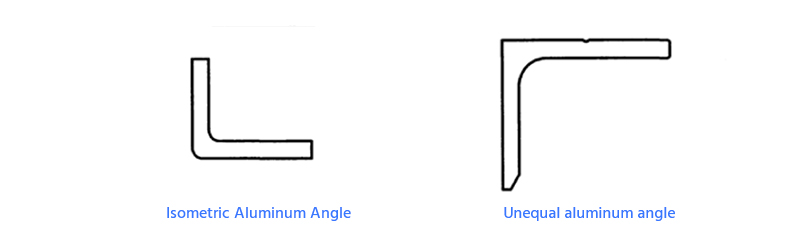

NO.18 Cross section view of angle aluminum profile
NO.19 Cross section view of single hole decking panel aluminum profile
NO.20 Cross section view of double hole decking panel aluminum profile
NO.21 Cross section view of three-holes decking panel aluminum profile

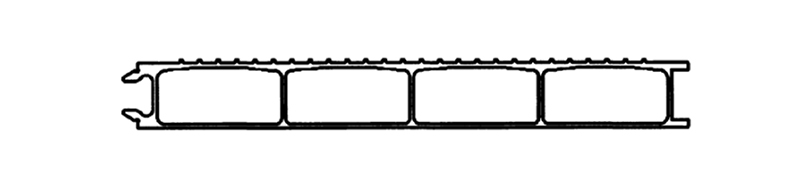

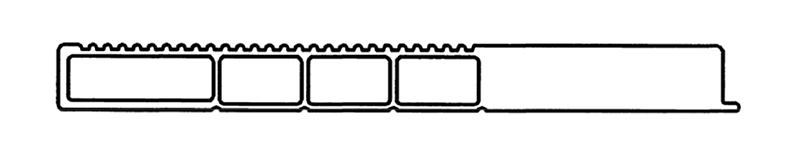

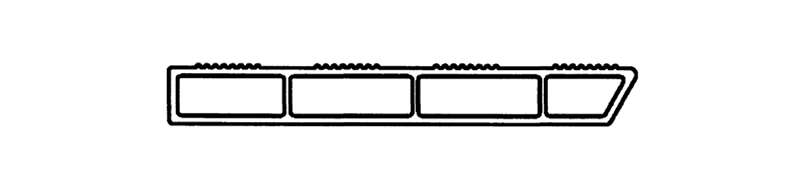

NO.22 Cross section view of four-holes decking panel aluminum profile
NO.23 Cross section view of five-holes decking panel aluminum profile
NO.24 Cross section view of three-hole linking decking panel(stairway tread) aluminum profile
NO.25 Cross section view of four-hole Linking decking panel (stairway tread) aluminum profile
NO.26 Cross section view of three-hole linking decking panel aluminum profile
NO.27 Cross section view of bridge parapet aluminum profile
NO.28 Cross section view of bridge left side edge closure aluminum profile
NO.29 Cross section view of bridge right side edge closure aluminum profile
NO.30 Cross section view of bridge deck covering aluminum profile
NO.31 Cross section view of bridge main girder trim cover panel aluminum profile
NO.32 Cross section view of bridge decorative panel connecting aluminum profile
NO.33 Cross section view of handrail cover panel connecting aluminum profile
NO.34 Cross section view of handrail cover panel aluminum profile
NO.35 Cross section view of connecting decking panel aluminum profile
NO.36 Cross section view of stair handrail aluminum profile
