2024 O/T4/T3/T351 Aluminium Sheet Plate

2024 aluminum plate is a typical hard aluminum alloy in the aluminum-copper-magnesium system. Its composition is relatively reasonable and its comprehensive performance is good. It is the alloy with the largest amount of hard aluminum. The main alloy component copper makes it easy to corrode. Many items in this alloy have a cladding surface to protect the underlying material.

Common commercial types of 2024 alloy

UNS A92024, Al2024-O, Alclad 2024-O, AA2024-T3, Al2024-T3, Alclad 2024-T3, UNS A82024, Alclad 2024-T4/T351, Al2024-T4, UNS A82024, Alclad 2024-T851.

Chalco can produce ASTM B209 2024 T4 aluminum sheet, AMS-QQ-A-250/4 2024 aluminum plate, AMS4037 2024 T351 T3 aluminum sheet, the biggest feature of this alloy is high strength and certain heat resistance, it can be used as 150 Working parts below ℃. This is a great option if you need strong, durable aluminum.

Chalco - 2024 aluminum sheet product specifications

Aircraft hardware aluminium alloy 2024 aluminium sheet and 2024 clad aluminium plate
Temper T4, T42, T3, T351, T451, H112, O, T1, T6, T851
Thickness (mm) 0.5mm-500mm
Dimensions (mm) 1220*2438mm/1250*2500mm, 1500mm*3000mm/1500mm*3600

Chalco - 2024 aluminium sheet plate stock list

Alloy/Temper Thickness (mm) Width(mm) * Length (mm)
2024 -H112 8.0-190 1500*3000
10-260 2000*4000
280 1520*3020
2024 - O 0.8-6.0 1500*3000
0.6-1.0 2500*3000
2.0-3.0 1250*2500
2024 - T1 10-160 1500*3000
2024 -T351 12-16.0 1500*3000
0.5-160 1500*3000
12-230 2000*4000
2024 -T6 0.8-160 1500*3000
20-80 2000*4000
2024 -T4 0.8-4.0 1000*2000
14-20 1520*3020
0.5-6.0 1250*2500
16-200 2000*4000

2024 aluminium sheet chemical composition

Chemical Element Present (%)
Silicon 0.5
Iron 0.5
Copper 3.8-4.9
Manganese 0.3-0.9
Magnesium 1.2-1.8
Chromium 0.10
Zinc 0.25
Titanium 0.15
Other 0.15
Aluminium Balance

2024 aluminium sheet plate physical properties

Physical property Value
Tensile strengthMpa 470
0.2% yield strength Mpa 325
Elongation (%) 10
Fatigue strength 105
Conductivity 20℃ 30
20℃ resistivity nΩ.m 48
Elastic modulus GPa 68

2024 Aluminum plate hardness HB

Physical property Value
2024 H112 aluminum sheet plate HB 85
2024 T4 aluminium sheet plate HB 120~145
2024 T351 aluminium sheet plate HB 120~145
2024 0 aluminium sheet HB 40

2024 Aluminum sheet plate application

2024 T42 aluminum plate is used for bulletproof plate, 2024 T4 military aluminum plate, thickness: 5mm, ballistic limit speed under the impact of 25.4mm diameter spherical steel bullet is 151.7m/s, with good bulletproof performance.

2024 T42 aluminum plate is used for bulletproof plate

2024 T351 aircraft aluminum sheet is a high-strength aviation aluminum alloy material, T351 surface and internal residual stress, and good explosion impact resistance. It is one of the aviation aluminum alloys. It is widely used in skins, bulkheads and structural parts that need to withstand high cyclic loads on various aircraft.

2024 T351 aircraft aluminum sheet

2024 O/H112 aluminum sheet plates are widely used in molds, precision parts, electronic decoration, hardware, hydraulic equipment, cameras and other fields. The heat treatment strengthening effect is remarkable, but the heat treatment process requires strict requirements, good fatigue resistance, and long service life.

2024 O /H112 aluminum sheet plates

ALclad 2024 T3 aluminum plate is rolled with pure aluminum clad surface, which can improve the corrosion resistance of 2024 aluminum plate.

2024 T652 forged aluminum plate, used for aviation aluminum plate, aluminum flange, customized aviation forged aluminum parts, etc.

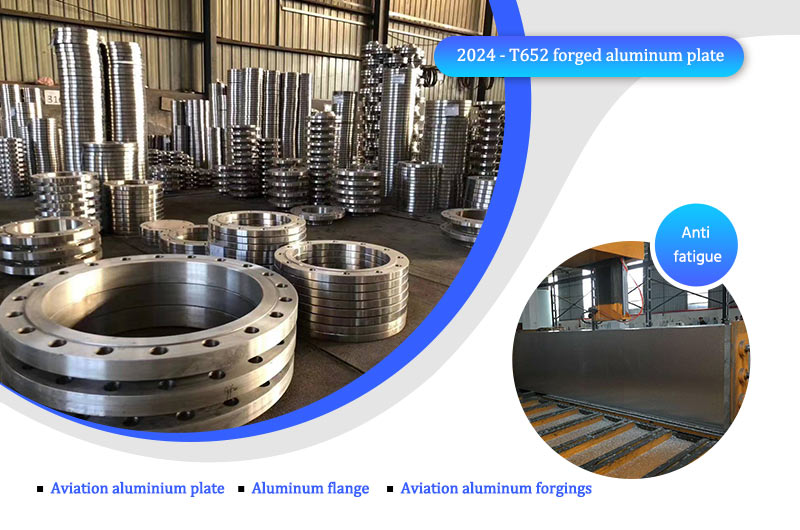

2024 T652 forged aluminum plate

2024 aluminium sheet weight

2024 aluminum alloy with a density of 2.85 g/cm3.

Aluminum plate weight calculation: length (mm) x width (m) x density 2.85g/cm3

2024 aluminium sheet price

(LME ingot price + processing fee) * weight + packaging fee + transportation fee

Price composition

Please contact Chalco aluminum to inquire about the price, and how much is the processing fee per ton for the relevant type of aluminum square rod. The processing fee for 2024 aluminum sheets of different sizes varies greatly, and we will provide you with the best quotation.

In addition to 2024 aluminum plate, Chalco also produces 2024 T4 aluminum bar, 2024 T652 aluminum forged aluminum plate, 2024 T4 tube, etc.

2024 aluminum plate packaging and transportation

  1. The products are packed in export wooden boxes or wooden pallets, fumigated wooden tray with fumigation certificate.
  2. During transportation, it is not allowed to mix aluminum plate with active chemical products and wet materials. The carriage and cabin should be kept in a dry, clean and pollution-free condition.
  3. Aluminum plates are generally shipped in closed carriages or warehouses, and ultra-long plates or gondola cars in special cases. The waterproof cloth shall be tightly covered and tied to ensure that water, rain and snow will not enter the packaging box and aluminum products.
  4. Aluminum plates are generally stored in the warehouse during transshipment. If it needs to be stored in the open air under special circumstances, it must be tightly covered and tied with rainproof cloth. At the same time, the bottom aluminum plate shall be padded not less than 100mm.
  5. During transportation, moisture-proof packaging measures shall also be taken to avoid water ingress into the aluminum plate packaging. In the process of loading and unloading, collision shall be avoided and aluminum plates shall be safely transported to the user's warehouse.

Chalco aluminum plate packaging and delivery

Why choose Chalco?

Chalco provides excellent quality aerospace materials, as well as the best technical services in the market, and has a deep knowledge base on how to support customers in meeting future challenges.

We have a complete set of domestic advanced aerospace materials research and development, testing and analysis instruments, which guarantee the efficiency of new product research and development and accelerate the transformation of scientific and technological achievements. In addition, our R&D & innovation and verification capabilities can help enhance customers' competitiveness by saving time and cost in new product development and marketing.

We have passed the AS9100 certification required by the aviation industry, providing a strong guarantee for the quality of aerospace materials produced by our company.

The Chalco brand stands for quality, delivery and a solid reputation. With leading technology and globally competitive products, we can continue to develop together with our customers in the future.

2014 aluminum plate aviation certification

2024 Aluminum Sheet Inventory List

Alloy Temper Thickness (mm) Width (mm) Length (mm)
2024 H112 8 1500 3000
2024 H112 10 2000 4000
2024 H112 16 1500 3000
2024 H112 16 2000 4000
2024 H112 18 1500 3000
2024 H112 20 2000 4000
2024 H112 22 2000 4000
2024 H112 30 1500 3000
2024 H112 30 2000 4000
2024 H112 55 1500 3000
2024 H112 55 2000 4000
2024 H112 60 2000 4000
2024 H112 70 2000 4000
2024 H112 75 2000 4000
2024 H112 80 1500 3000
2024 H112 85 2000 4000
2024 H112 115 1500 3000
2024 H112 130 2000 4000
2024 H112 150 1500 3000
2024 H112 150 2000 4000
2024 H112 160 2000 4000
2024 H112 170 2000 4000
2024 H112 180 2000 4000
2024 H112 190 1500 3000
2024 H112 210 2000 4000
2024 H112 220 2000 4000
2024 H112 230 2000 4000
2024 H112 250 2000 4000
2024 H112 300 1520 3020
2024 O 0.6 1200 3500
2024 O 1 1200 2000
2024 O 3 1250 2500
2024 T1 18 1500 3000
2024 T1 40 1500 3000
2024 T1 55 1300 3995
2024 T1 70 1500 3000
2024 T1 75 1500 3000
2024 T1 90 1500 3000
2024 T1 135 1330 2940
2024 T1 135 1500 3000
2024 T351 12 2000 4000
2024 T351 16 2000 4000
2024 T351 20 2000 4000
2024 T351 25 2000 4000
2024 T351 35 2000 4000
2024 T351 140 2000 4000
2024 T351 220 2000 4000
2024 T4 0.6 1250 2500
2024 T4 0.8 1000 2000
2024 T4 2 1500 3000
2024 T4 4 1200 2000
2024 T4 12 1520 3020
2024 T4 14 1520 3020
2024 T4 16 1520 3020
2024 T4 16 2000 4000
2024 T4 25 2000 4000
2024 T4 45 1520 3020
2024 T4 45 2000 4000
2024 T4 50 2000 4000
2024 T4 60 2000 4000
2024 T4 130 1500 3000
2024 H112 10 1500 3000
2024 H112 12 1500 3000
2024 H112 14 1500 3000
2024 H112 15 1500 3000
2024 H112 15 2000 4000
2024 H112 18 2000 4000
2024 H112 22 1500 3000
2024 H112 35 1500 3000
2024 H112 35 1500 2000
2024 H112 60 1500 3000
2024 H112 65 1500 3000
2024 H112 80 2000 4000
2024 H112 85 1500 3000
2024 H112 90 2000 4000
2024 H112 100 2000 4000
2024 H112 110 2000 4000
2024 H112 120 2000 4000
2024 H112 130 1500 3000
2024 H112 140 2000 4000
2024 H112 170 1500 3000
2024 H112 180 1500 3000
2024 H112 190 2000 4000
2024 H112 200 2000 4000
2024 H112 240 2000 4000
2024 H112 260 2000 4000
2024 O 0.8 1500 3000
2024 O 1 1500 3000
2024 O 1.2 1500 3000
2024 O 1.5 1500 3000
2024 O 2 1500 3000
2024 O 2.5 1500 3000
2024 O 3 1500 3000
2024 O 5 1500 3000
2024 O 6 1500 3000
2024 T1 10 1500 3000
2024 T1 12 1500 3000
2024 T1 16 1500 3000
2024 T1 22 1500 3000
2024 T1 35 1500 3000
2024 T1 55 1500 3000
2024 T1 65 1500 3000
2024 T1 110 1500 3000
2024 T1 120 1500 3000
2024 T1 140 1500 3000
2024 T351 12 1500 3000
2024 T351 15 1500 3000
2024 T351 30 2000 4000
2024 T351 45 2000 4000
2024 T351 55 2000 4000
2024 T351 60 2000 4000
2024 T351 70 2000 4000
2024 T351 80 2000 4000
2024 T351 90 2000 4000
2024 T351 100 2000 4000
2024 T351 110 2000 4000
2024 T351 120 2000 4000
2024 T351 130 2000 4000
2024 T351 170 2000 4000
2024 T351 180 2000 4000
2024 T351 230 2000 4000
2024 T4 0.5 1250 2500
2024 T4 0.5 1500 3000
2024 T4 0.8 1500 3000
2024 T4 1 1250 2500
2024 T4 1 1500 3000
2024 T4 1.2 1250 2500
2024 T4 1.2 1500 3000
2024 T4 1.5 1500 3000
2024 T4 2 1250 2500
2024 T4 2.5 1500 3000
2024 T4 3 1250 2500
2024 T4 3 1500 3000
2024 T4 3.5 1500 3000
2024 T4 4 1250 2500
2024 T4 4 1500 3000
2024 T4 5 1250 2500
2024 T4 5 1500 3000
2024 T4 6 1250 2500
2024 T4 6 1500 3000
2024 T4 8 1500 3000
2024 T4 12 1500 3000
2024 T4 14 1500 3000
2024 T4 15 1500 3000
2024 T4 15 1520 3020
2024 T4 16 1500 3000
2024 T4 18 1500 3000
2024 T4 20 1500 3000
2024 T4 22 1500 3000
2024 T4 25 1500 3000
2024 T4 30 1500 3000
2024 T4 35 1500 3000
2024 T4 40 1500 3000
2024 T4 45 1500 3000
2024 T4 50 1500 3000
2024 T4 55 1500 3000
2024 T4 60 1500 3000
2024 T4 65 1500 3000
2024 T4 70 1500 3000
2024 T4 75 1500 3000
2024 T4 80 1500 3000
2024 T4 80 2000 4000
2024 T4 90 1500 3000
2024 T4 90 2000 4000
2024 T4 100 1500 3000
2024 T4 110 1500 3000
2024 T4 120 1500 3000
2024 T4 150 1500 3000
2024 T4 160 1500 3000
2024 T4 200 2000 4000
