Chalco 2024 aerospace aluminum wire meets a number of certifications and standards, such as AMS-QQ-A-250/4, AMS 4120, and ASTM B21, EN 573-3, NADCAP AC 7110/5. It has good corrosion resistance, weldability, heat resistance and conductivity. It is mainly used in spacecraft structural components, engine components, aerospace spacecraft joints such as rivets and fasteners, as well as aerospace electrical equipment and aviation refrigeration equipment and other systems.Quick Quote
Chalco high-quality 2024 aerospace aluminum wire
Standard of Chalco 2024 aerospace aluminum wire
AMS 4120, AMS 4040
ASTM B211, ASTM B221
EN 573-3, EN 5154, EN 485-2
MIL-DTL-25995, MIL-DTL-25998
NADCAP AC 7110/5
Certification of Chalco 2024 aerospace aluminum wire
AS 9100
AMS 4165
ISO 9001, ISO14001
NADCAP
Production requirement for Chalco 2024 aerospace aluminum wire
Selection of raw materials: Chalco selects high-purity aluminum alloy materials that meet relevant standards to ensure good quality of materials.
Production process: 2024 aerospace aluminum wire production includes material processing, extrusion, stretching, winding, etc. Chalco adopts advanced production technology in the production process to ensure stable product quality and meet relevant certification and standard requirements.
Quality control: Chalco controls the quality of 2024 aviation aluminum wire through strict control of production links and quality inspection of each link. The test includes chemical composition analysis, tensile test, hardness test, metallographic examination, etc.
Surface treatment: in order to further improve the corrosion resistance, electrical insulation and decoration of 2024 aerospace aluminum wire products, Chalco can provide sandblasting, polishing, oxidation and other surface treatment methods.Quick Quote
Packaging and identification: the produced 2024 aluminum wire needs to be well packaged and identified to ensure the integrity and traceability of the product.
Specification of Chalco 2024 aerospace aluminum wire
| Chalco 2024 aerospace aluminum wire specification | |||||||
| Grade | Alloy 2024 (UNS A92024) | ||||||
| Temper | T3/T4/T351/T851/O | ||||||
| Diameter of Wire | 2mm-30mm(0.08''- 1.1'') | ||||||
| Tolerance | +/- 0.03mm(+/- 0.0012'') | ||||||
| Wire gauge (SWG) | 8 SWG, 10 SWG, 20 SWG, 30 SWG, 32 SWG, etc. | ||||||
| Length | 1000mm-6000mm | ||||||
| Shape | Shaped, flat, square, round, thin wire, plated and unplated wire, continuous coil, fixed length cutting, precision cutting, etc. | ||||||
| Treatment | Cold forming, heat treatment, stress relief and welding | ||||||

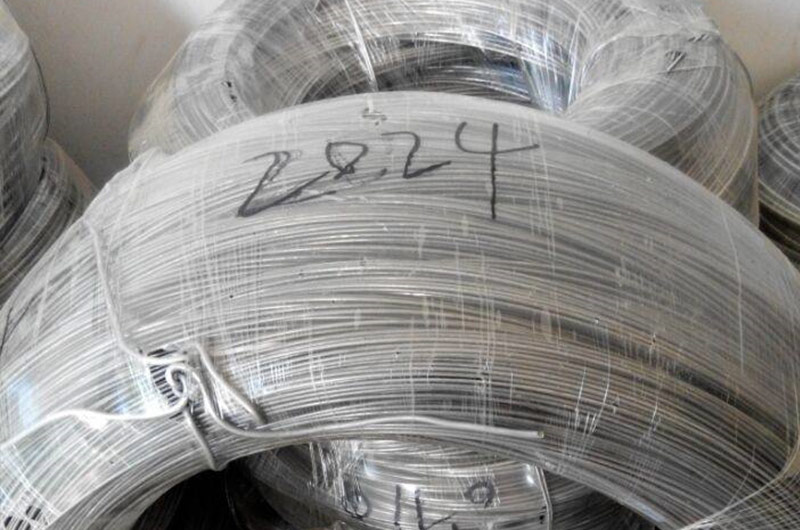

| Packing | Loose coil/tight coil (spool) | ||||||
| 2024 wires equivalent grades | |||||||
| European Standard | OLD | WNr | UNS | ISO | USA (AA) | GERMANY (DIN) | |
| AW-AlCu4Mg1 | AU4G1 | 3.1355 | A92024 | AlCu4Mg1 | 2024 | AlCuMg2 | |
Guide for purchasing Chalco 2024 aerospace aluminum wire
Features of Chalco 2024 aerospace aluminum wire
The alloy composition meets the standard: the alloy composition of 2024 aerospace aluminum wire produced by Chalco meets the standard to ensure that it has good strength, toughness, corrosion resistance and other properties to meet the strict requirements in the aerospace field.
High strength and lightweight: Chalco 2024 aviation aluminum wire has the characteristics of high strength and lightweight to reduce the weight of aircraft, improve fuel efficiency and range.
Surface finish and flatness: the 2024 aerospace aluminum wire produced by Chalco has high surface finish and flatness to meet the performance and appearance requirements of the aerospace field.
Reliability and stability: in the field of aerospace, safety and reliability are the most important. The 2024 aluminum wire provided by Chalco has reliability and stability, and can be used for a long time without failure in harsh environment.
Chalco 2024 aerospace aluminum wire delivery capacity and price
The aluminum wire provided by Chalco meets the international certification standards and can be strict with the product quality in the production process. In addition, Chalco relies on its well-equipped production line as technical support to ensure the timely delivery of products and the stability and consistency of the products it produces.Quick Quote
The 2024 aerospace aluminum wire provided by Chalco is a first-hand supply with stable price. For specific prices, please contact our customer service personnel to obtain quotations and free samples. We look forward to cooperating with you.
Performance advantages of Chalco 2024 aerospace aluminum wire
High strength: 2024 aluminum wire has high strength, good tensile strength and corrosion resistance, making it one of the commonly used materials in the aerospace field.
Light weight: compared with traditional metal materials, 2024 aluminum wire has low density and light weight, which can effectively reduce the weight of aircraft and improve its fuel efficiency.
Machinability: 2024 aluminum wire is easy to process and can be made into various shapes by various processing methods, which is applicable to aircraft components with various complex structures.
Heat treatment property: 2024 aluminum wire has good heat treatment property, which can be strengthened by heat treatment and other methods to improve its strength and hardness.Quick Quote
Corrosion resistance: 2024 aluminum wire has good corrosion resistance, can be used for a long time in harsh aviation environment, and is not susceptible to corrosion and oxidation.
Chemical composition of Chalco 2024 aerospace aluminum wire
| element | % |
| Al | 90.0%-95.0% |
| Cu | 3.8%-4.9% |
| Mn | 0.3%-0.9% |
| Mg | 1.2%-1.8% |
| Si | 0.5%-0.9% |
| Cr | 0.10% |
| Zr | 0.25% |
| Ti | 0.15% |
| Other | ≤0.05% |
Mechanical and physical properties of Chalco 2024 aerospace aluminum wire
| Mechanical properties of 2024 aerospace aluminum wire | |
| tensile strength | 470-505 MPa |
| yield strength | 325-470 MPa |
| elongation | 10-12% |
| hardness | 120-140 HB |
| Physical properties of 2024 aerospace aluminum wire | |
| density | 2.78 g/cm3 |
| Linear expansion coefficient | 23.5×10-6/K |
| Thermal conductivity | 120-130 W/(m·K) |
| conductivity | 30-34 MS/m |
| resistivity | 0.058 Ω·mm2/m |
| Elastic modulus | 73.1 GPa |
| Poisson's ratio | 0.33 |
Chalco 2024 aluminum wire other hot selling products
2024-aluminium-sheet-plate
2024-aluminum-round-tube
2024-square-tube
2024-round-bar
2024-aluminum-bar
2024-auto-profile
2024-profile
2024-foil
2024-aerospace-bar
2024-aerospace-aluminu-tube
2024-aircraft-aluminum-sheet
differences-2024-7075-aluminum
Chalco 2024 aerospace aluminum wire hot selling products and applications

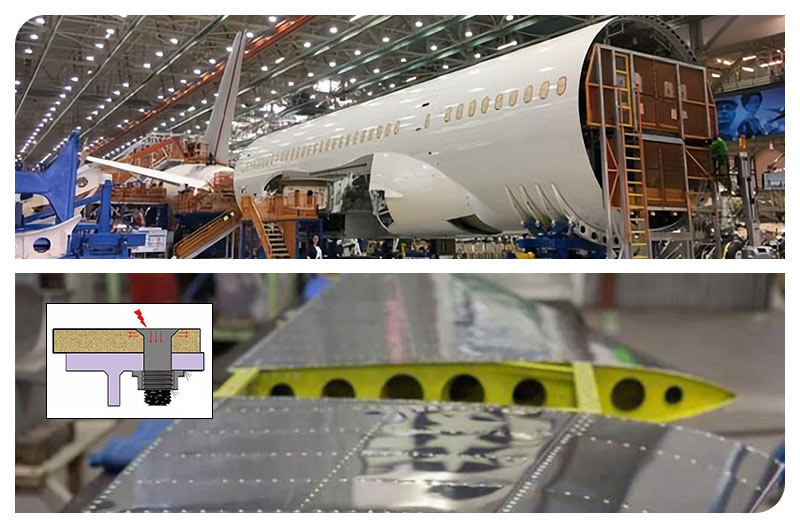

2024-T3 aerospace aluminum wire application field
T3 is the most commonly used temper of 2024 aluminum wire in the aerospace field. Because of its good strength and toughness, as well as good corrosion resistance, it can be used for a long time in harsh environment. The specific application of 2024 T3 aluminum wire in the aerospace field is as follows:
Cable: 2024 T3 aluminum wire is widely used in aircraft cables as a conductor for transmitting signals and power. Its high strength and excellent conductivity make its transmission efficiency in the cable higher.Quick Quote
Aerospace electrical connectors: 2024 T3 aluminum wire is also widely used in aerospace electrical connectors, such as cables, plugs, sockets, etc. Its advantages lie in its high conductivity, good corrosion resistance and good machinability.
Aerospace fasteners: 2024 T3 aluminum wire is also used in aerospace fasteners, such as screws, nuts, washers, etc. Its advantages lie in its high strength, high yield strength and corrosion resistance, as well as its good machinability and weldability.
Aerospace parts: 2024 T3 aluminum wire is also used in aerospace parts, such as supports, connectors, etc. Its advantages lie in its high strength, high yield strength and corrosion resistance, as well as its good machinability and weldability.
2024-T4 aerospace aluminum wire application field
In 2024 T4 temper, aluminum wire has high strength, hardness and good heat resistance, but poor toughness, so it is not suitable for structural parts requiring tensile and bending resistance and other loads. It is mainly used for parts requiring high mechanical performance, such as aircraft wing ribs, aero-engine components, turbine blades, guide vane rings, etc.
2024-T351 aerospace aluminum wire application field
The aluminum wire in T351 temper has excellent corrosion resistance, good weldability, high strength and toughness, and can withstand large impact load and cyclic load. 2024 T351 aluminum wire is widely used in the aerospace field, mainly for manufacturing high-strength and high-toughness structural parts, such as aircraft fuselage, wing rib, propeller, body frame, fuel tank and throttle lever.Quick Quote
2024-T851 aerospace aluminum wire application field
The aluminum wire in T851 temper has high strength and excellent high temperature performance, and can be used for a long time in high temperature environment. At the same time, the aluminum wire in T851 temper also has good corrosion resistance and fatigue strength, which is suitable for structural parts that are used for a long time in harsh environment.
2024 T851 aluminum wire is mainly used for manufacturing parts working under high temperature in the aerospace field, such as aviation engine parts, rocket engine propulsion system, high-speed aircraft structural parts and aerospace instrument and equipment parts.
2024-O aerospace aluminum wire application field
As the material of the cable, the O temper aluminum wire can withstand high temperature, high pressure, vibration and other environments, and can also resist corrosion and oxidation. Because of the good conductivity of 2024 O aluminum wire, it is widely used in aerospace electrical systems. And because of its good corrosion resistance and high temperature resistance, 2024 O aluminum wire is also widely used in aerospace fuel system to manufacture fuel pipes, fuel pumps and other components.Quick Quote
