Why choose chalco aluminum poIyesterimide enameIIed round aluminum wire?
Production standards
GBT 23312.5-2009
IEC 60317-15-2010
Certification
Chalco products are manufactured in our advanced factory using a strict quality and environmental management system, and have passed ISO certification.
Production strength
Production and management comply with the international power quality system, ensuring the best quality with long service life, high mechanical strength, high conductivity, and high-temperature softening resistance.
Power customer reference
SIEMENS, ABB, TOSHIBA, LEGRAND, EATON, HITACHI
The scratch resistance of aluminium polyesterimide enamelled aluminium round wire
| Nominal diameter of conductor MM | Grade 1 | Grade 2 | ||
| Minimum mean scratch force N | Minimum scratch force in each test N | Minimum mean scratch force N | Minimum scratch force in each test N | |
| 0.4 | 1.95 | 1.65 | 3.15 | 2.65 |
| 0.45 | 2.1 | 1.75 | 3.4 | 2.85 |
| 0.5 | 2.25 | 1.9 | 3.6 | 3.05 |
| 0.56 | 2.4 | 2.05 | 3.85 | 3.25 |
| 0.63 | 2.55 | 2.2 | 4.15 | 3.5 |
| 0.71 | 2.75 | 2.35 | 4.45 | 3.75 |
| 0.8 | 2.95 | 2.5 | 4.75 | 4.05 |
| 0.9 | 3.15 | 2.7 | 5.1 | 4.3 |
| 1 | 3.4 | 2.9 | 5.45 | 4.6 |
| 1.12 | 3.7 | 3.1 | 5.8 | 4.9 |
| 1.25 | 3.95 | 3.35 | 6.25 | 5.25 |
| 1.4 | 4.25 | 3.6 | 6.65 | 5.45 |
| 1.6 | 4.6 | 3.9 | 7.15 | 5.85 |
| 1.8 | 7.7 | 6.5 | ||
| 2 | 8.2 | 6.95 | ||
| 2.24 | 8.75 | 7.4 | ||
| 2.5 | 9.3 | 7.9 | ||
| Note: For the middle size of the nominal diameter of the conductor, the value of the larger nominal diameter of the conductor should be taken. | ||||

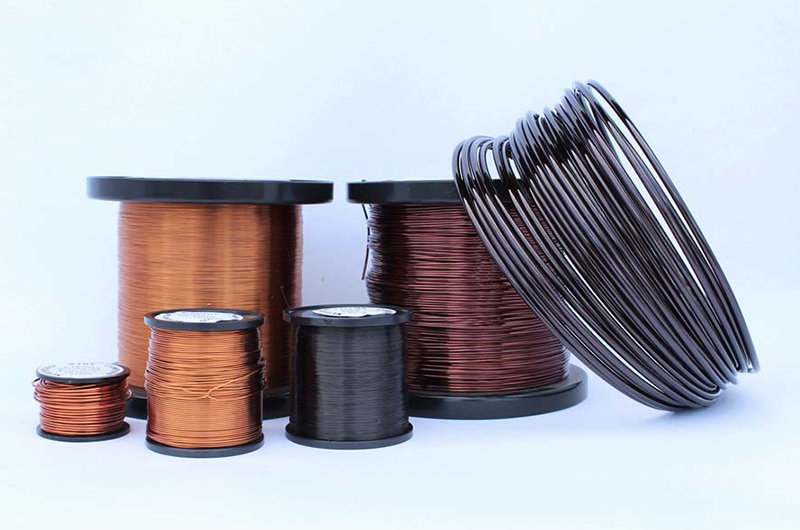

The specification for poIyesterimide enameIIed aluminum wire
| Wire diameter | 0.25mm - 5mm |
| Temperature Class(℃) | 180 |
| Standard | GBT 23312.5-2009, IEC 60317-15-2010 |
| Bobbin | 30/50kg wooden spool, plastic spool, we can customize the length according to customer demand. Special size can be made with discuss. |
Elongation rate of poIyesterimide enameled aluminum magnet wire
| Nominal conductor diameter mm | Elongation minimum | Tensile strength minimum | |
| Over | Up to and including | % | N⋅mm–2 |
| – | 0, 400 | 10 | 90 |
| 0, 400 | 1, 000 | 12 | 90 |
| 1, 000 | 2, 000 | 15 | 80 |
| 2, 000 | 5, 000 | 15 | 70 |
Breakdown voltage of poIyesterimide enameIIed round aluminum wire
| Nominal conductor diameter mm | Minimum breakdown voltage (r.m.s. value) V | |||
| Grade 1 and grade 1B | Grade 2 and grade 2B | |||
| Room temperature | Elevated temperature | Room temperature | Elevated temperature | |
| 0.250 | 2100 | 2100 | 3900 | 2900 |
| 0.280 | 2200 | 2200 | 4000 | 3000 |
| 0.315 | 2200 | 2200 | 4100 | 3100 |
| 0.355 | 2300 | 2300 | 4300 | 3200 |
| 0.400 | 2300 | 2300 | 4400 | 3300 |
| 0.450 | 2300 | 2300 | 4400 | 3300 |
| 0.500 | 2400 | 2400 | 4600 | 3500 |
| 0.560 | 2500 | 2500 | 4600 | 3500 |
| 0.630 | 2600 | 2600 | 4800 | 3600 |
| 0.710 | 2600 | 2600 | 4800 | 3600 |
| 0.80o | 2600 | 2600 | 4900 | 3700 |
| 0.900 | 2700 | 2700 | 5000 | 3800 |
| 1.000up to andincluding2, 500 | 2700 | 2700 | 5000 | 3800 |
Features of chalco high heat resistant poIyesterimide enameIIed round aluminum wire
Advantages
- Having good paint film toughness and scratch resistance, suitable for automatic wire winding and embedding.
- It has good Thermal shock and excellent softening breakdown performance, and is suitable for high temperature, overload and heavy load motor and electrical products.
- In addition to strong acids, chloride ion salts, and organic compounds, it has good resistance to acids, alkalis, and most organic solvents.
- Direct soldering polyester imide enameled wire does not require removing the paint film and can be directly welded at a welding temperature of 450-500 ℃.
- The polyamide outer composite coating is generally 2-5um, which further improves the elasticity and scratch resistance of the paint film and can also reduce salt water pinholes.
Limitations
- Easy to hydrolyze in aqueous sealing systems (attention should be paid when sealing motors and electrical appliances).
- Incompatible with PVC, Neoprene and other chlorine containing polymer compounds.
- Slightly poor adhesion of paint film.
- In water containing chloride ions, a significant decrease in voltage is generated and the brittleness of the paint film increases.
- Poor conductivity of aluminum wire.
- Excellent electrical insulation properties: Polyesterimide coating provides high electrical insulation properties, so that the coated aluminum round wire can operate safely in high voltage and high electric field environments.

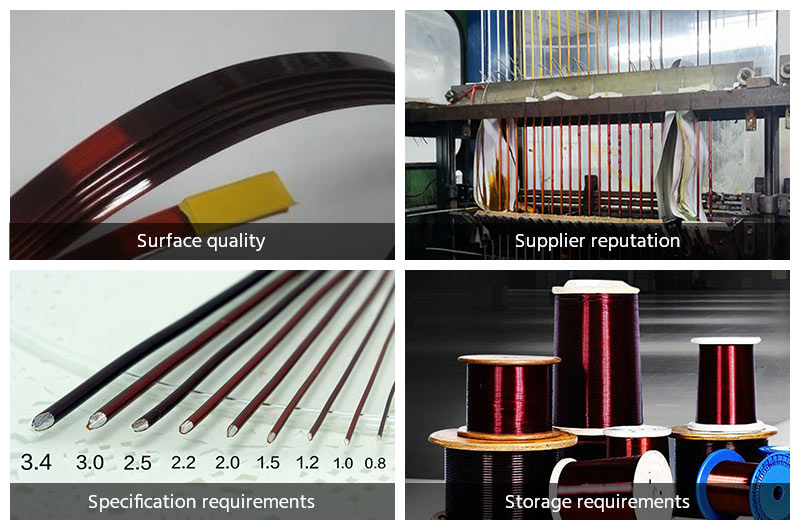

Precautions for purchasing poIyesterimide enameIed round aluminum wire
Application environment: Consider your application environment. If your application requires corrosion resistance or specific high temperature resistance, be sure to select polyesterimide enamelled aluminium round wire that meets the relevant requirements.
Cost effectiveness: Weigh the price/performance ratio. Compare the price and quality of different suppliers or brands and look for products with good performance and reasonable prices.
Customer support: Understand the supplier's customer support and after-sales service. Ensure that suppliers are able to provide technical support, product consultation and after-sales support.
Order quantity: Determine the appropriate order quantity based on your needs. Sometimes you can get better prices and discounts by ordering in bulk.

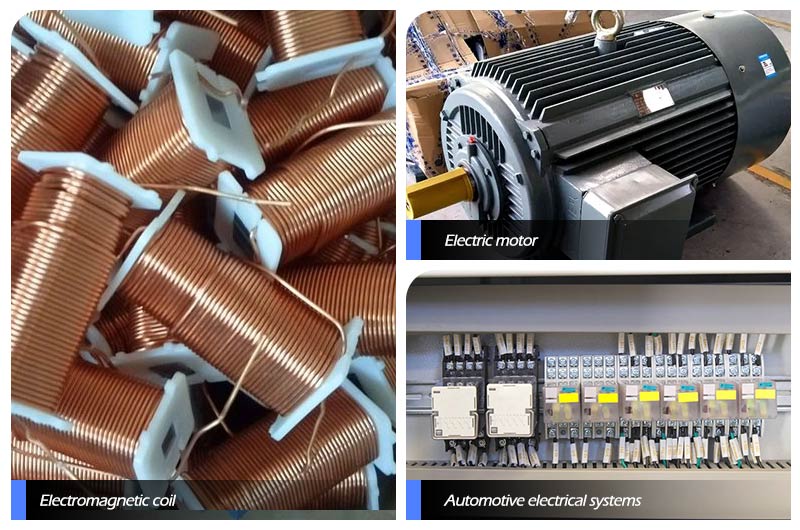

Applications of poIyesterimide enameled round wire
Various industrial motors, especially suitable for high-temperature and heavy-duty industrial motor coils.
Electric tools, unsealed household appliance motors, dry transformers, electronic transformers and power supplies, instrument coils in high-temperature environments.
PoIyesterimide aluminum enameled wire is only suitable for small and micro motors, instrument coils, ballast coils, etc.
These are just some common applications of polyester imide enameled aluminum round wires. In fact, they are widely used in various electrical and electronic equipment that require high temperature resistance, electrical insulation performance, and good conductivity.
