Why choose Chalco 5083 5456 7039 armored aluminum forging plate
Production standard
MIL-DTL-45225F
Certified
chalco products are manufactured in our state-of-the-art facilities using a rigorous quality and environmental management system and are ISO certified.
Production strength
Production and management conform to the quality system of aluminum profiles for armor, ensuring high strength and mechanical properties, as well as the best quality for corrosion resistance.Quick Quote
Clients reference
UKROBORONPROM, ASELSAN, HEAVY INDUSTRIES TAXILA, Raytheon Company, SF Enginnering etc.
The specs of 5083 5456 7039 forged aluminium alloy armor sheet
| Alloy | 5083 /5456/7039 |
| Thickness | 0.75-4.0 inches |
| Width | 500-3000 |
| Length | 500-3000 |
| Standard | MIL-DTL-46027 /ASTM B209/EN 485-2 |
The chemical composition of 5083 5456 7039 aluminium forgings for armored plate
| Elements | Composition (%) | ||
| 5083 | 5456 | 7039 | |
| Silicon | 0.40 | 0.25 | 0.30 |
| Iron | 0.40 | 0.40 | 0.40 |
| Copper | 0.10 | 0.10 | 0.10 |
| Manganese | 0.40-1.0 | 0.50-1.0 | 0.10-0.40 |
| Magnesium | 4.0-4.9 | 4.7-5.5 | 2.3-3.3 |
| Chromium | 0.05-0.25 | 0.05-0.20 | 0.15-0.25 |
| Zinc | 0.25 | 0.25 | 3.5-4.5 |
| Titanium | 0.15 | 0.20 | 0.10 |
| Other, max. Each | 0.05 | 0.05 | 0.05 |
| Other, max. Total 3/ | 0.15 | 0.15 | 0.15 |
| Aluminum | Remainder | Remainder | Remainder |
The mechanical properties of 5083 5456 7039 forged aluminium armor sheet
| Alloy | Thickness Inches | Tensile strength, Ksi | Yield strength, 0.2% Offset, Ksi | Elongation percent A | ||
| No less than | ||||||
| 5083 5456 | 0.75-3.0 inches | 42 | 33 | 7 | ||
| 0.75-3.0 inches | 40 | 32 | 4 | |||
| 7039 | 0.75-4.0 inches | 57 | 48 | 8 | ||
| 0.75-4.0 inches | 54 | 45 | 4 | |||
Minimum ballistic limits (protection at 0 o obliquity) for using 5083 5456 7039 forged aluminium armor sheet caliber .50 FSP.
| Thickness inches | Required BL(P) fps | Thickness inches | Required BL(P) fps | Thickness inches | Required BL(P) fps |
| 0.650 | 1290 | 0.820 | 1910 | 0.990 | 2585 |
| 0.660 | 1325 | 0.830 | 1950 | 1.000 | 2625 |
| 0.670 | 1360 | 0.840 | 1985 | 1.010 | 2670 |
| 0.680 | 1395 | 0.850 | 2025 | 1.020 | 2710 |
| 0.690 | 1430 | 0.860 | 2065 | 1.030 | 2755 |
| 0.700 | 1465 | 0.870 | 2105 | 1.040 | 2795 |
| 0.710 | 1500 | 0.880 | 2140 | 1.050 | 2840 |
| 0.720 | 1540 | 0.890 | 2180 | 1.060 | 2885 |
| 0.730 | 1575 | 0.900 | 2220 | 1.070 | 2930 |
| 0.740 | 1615 | 0.910 | 2260 | 1.080 | 2970 |
| 0.750 | 1650 | 0.920 | 2300 | 1.090 | 3015 |
| 0.760 | 1685 | 0.930 | 2340 | 1.100 | 3060 |
| 0.770 | 1725 | 0.940 | 2380 | 1.110 | 3100 |
| 0.780 | 1760 | 0.950 | 2420 | 1.120 | 3140 |
| 0.790 | 1800 | 0.960 | 2460 | 1.130 | 3180 |
| 0.800 | 1835 | 0.970 | 2500 | 1.140 | 3220 |
| 0.810 | 1875 | 0.980 | 2545 | 1.150 | 3260 |
Nominal design thickness for Ballistic test 5083 5456 7039 forgings sheets
| 5083 | 5456 | 7039 | Projectile to be used |
| 0.705-1.100 | 0.705-1.100 | 0.705-1.030 | Cal. .50 FSP |
| 1.101-1.700 | 1.101-1.700 | 1.031-1.500 | Cal. .30 APM2 |
| 1.101-1.700 | 1.101-1.700 | 1.031-1.500 | 20mm FSP |
| 1.701-3.000 | 1.701-3.000 | 1.501-3.000 | Cal. .50 APM2 |
| - | - | 3.001-3.425 | Cal. .57 AP |

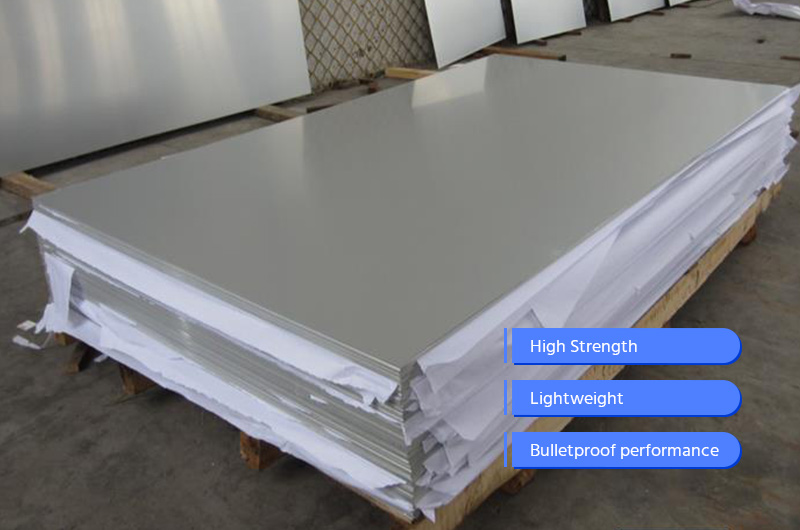

Characteristics of 5083 5456 7039 forging armor plates
High strength: 5083 5456 7039 aluminum alloy forging armor plate has a high strength, can provide good impact and deformation resistance. This allows it to provide better protection against extreme conditions such as external shocks and explosive shocks.
Lightweight: compared to other metal materials, aluminum alloy has a lower density, so that 5083 5456 7039 aluminum alloy forging armor provides good protection while reducing the overall weight. This has a positive impact on increased mobility, reduced energy consumption and reduced load.Quick Quote
Corrosion resistance: 5083 5456 7039 aluminum alloy forging armor plate has good corrosion resistance in Marine environment, high humidity environment or chemical corrosion environment. This makes it widely used in naval ships, offshore platforms and other applications where corrosion resistance is required.
Machinability: aluminum alloy has good machinability, 5083 5456 7039 aluminum alloy forging plate can be formed by forging process, can meet the complex structure and design requirements. This machinability helps to create armor plates that meet the needs of specific applications.
Bulletproof performance: aluminum alloy forgings are properly designed and machined to provide a degree of bulletproof capability to protect occupants and equipment from shrapnel, bullets and shells.
Applications of 5083 5456 7039 forging armor plates
Body armor: forged armor plates are often used on the bodies of military vehicles, armored vehicles and tanks. These armor plates provide anti-ballistic and protective functions to protect the occupants and critical equipment inside the vehicle from enemy fire and explosions.
Turret armor: 5083 5456 7039 forged armor plates are widely used in the turrets of tanks, self-propelled guns and armored vehicles. The turret is an important part of these vehicles and requires excellent protection to protect the gunner and fire control equipment.
Chassis armor: the chassis is the bottom structure of the armored vehicle and an important part of the vehicle. Forged armor plates can be used in various parts of the chassis to provide additional strength and protection against mines, bombs and other underside attacks.
Side armor: the side is one of the areas where the vehicle is vulnerable to attack. Forged armor plates can be used to reinforce side structures, providing better impact and explosion resistance and increasing vehicle survivability.
Blast plates and bulletproof plates: 7039 Forged armor plates can also be used to manufacture blast plates and bulletproof plates for the protection of buildings, safety vehicles and other applications that require bulletproof and explosion-proof properties.
