Why Chalco 6061 aluminum forgings?
Quality could full meet world wide aviation standard
BS L112 Alloy 6082 Forging Stock and Forgings.
We meet international aviation certification
AS9100
OHSAS 18001
ISO14001
ISO 9001
NADCAP HT
NADCAP NDT
IATP16949
Chalco can ensure that our 6082 aluminum forgings have sufficient strength, toughness, corrosion resistance and reliability in aerospace applications.
Specification of 6082 T6/T4 aluminum forgings
| Forging | Types | Max Weight | Max Measurement |
| Open Die Forge | cube | ≤5T |
Length≤7000mm; width≤2000mm; height≤500mm |
| disc | ≤5T | diameter≤2500mm | |
| ring | ≤5T |
Outer diameter of quenching parts≤2500mm; outer diameter of non-quenching parts≤4000mm; height≤500mm |
|
| cylinder | ≤5T |
Out diameter 200 to 800mm; Length≤2000mm; outer diameter 801 to 2000mm; length≤1500mm |
|
| axle | ≤8T |
length≤7000mm, diameter≤800mm |
|
| Closed Die Forge | PVA≤3.0 (Diameter≤1950mm) | ||
| Complicated closed die forge parts | PVA≤1.5㎡\ (Diameter≤1400mm) |
Chemical composition of 6082 aluminum forgings
| Element | Weight Percentage |
| Si | 0.70-1.30 |
| Fe | 0.5 |
| Cu | 0.1 |
| Mn | 0.40-1.00 |
| Mg | 0.60-1.20 |
| Cr | 0.25 |
| Zn | 0.2 |
| Ti | 0.1 |
| Other Each | 0.05 |
| Other Total | 0.15 |
| Al | Balance (Aluminum) |
Typical material properties for 6082 aluminium forging
| Condition | T4 | T6 |
| Tensile Strength UTS (MPa) | ≥240 | ≥310 |
| Yield Strength YS (MPa) | ≥105 | ≥275 |
| Elongation EL (%) | ≥8 | ≥8 |
| Heat Treatment | Natural Cooling | Artificial Aging |
Guarantee of Chalco promise
The size and geometry of 6082 aluminum forgings comply with relevant standards, including requirements for length, width, thickness, diameter, flatness, straightness, roundness, etc.
Chalco conducts quality control on materials, including the control of raw material selection, production process, testing methods, etc., to ensure that the quality of products meets relevant standards and regulations.
Our products should have clear marks and logos, and the logos include information such as material type, specification, production batch number, etc.

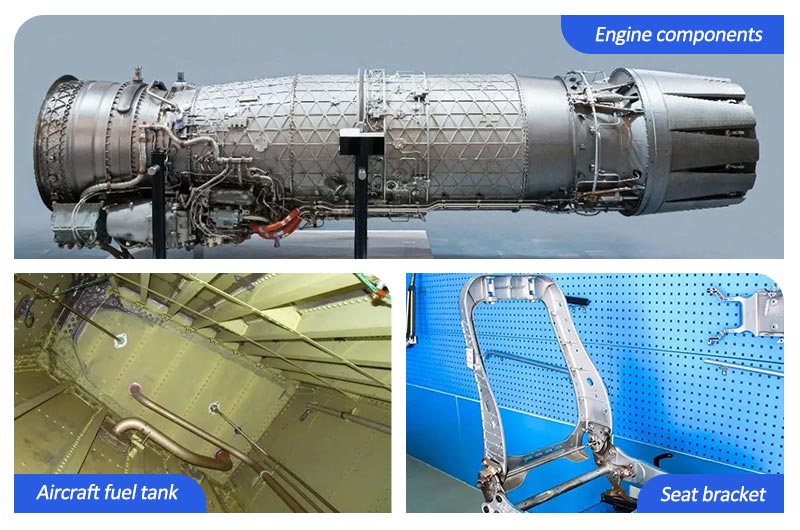

Application of 6082 aviation aluminum forgings
6082 T6 aluminum forgings
- Aircraft structural components: wing, skin panel, fuselage and other parts.
- Engine components: air intakes, turbine blades, housings, etc.
- Aerospace components: missiles, satellites, rockets, etc.
6082 T4 aluminum forgings
- Interior decorative parts: seat brackets, fasteners, handles, etc.
- Fuel system components: fuel tanks, fuel pipelines, etc.
- Aerospace electronic equipment components: instruments, control panels, etc.
