Insulation Aluminum Coil

Aluminum jacketing coil is mainly used to make thermal insulation equipment. It makes the thermal insulation material closely combined with the decorative surface material, which is not easy to fall off and loosen, and enhances the wind pressure resistance and flatness of the decorative surface material.It has good thermal insulation effect, good durability and is not easy to damage.

Specifications of Chalco Aluminum's insulation aluminum coil

Alloy 1100, 1050, 1060, 3003, 3105, 5005, 5052, etc.
Standard ASTM, B209, EN573-1
Temper H14, H16, H24, H26
Thickness 0.4mm - 1.5mm
Width 914mm, 1000mm, 1200mm, 1219mm and other available widths.
Length 50' (15 meters), 100' (30 meters), 200' (60 meters), 300' (90 meters), Coil (specify lengths), Flat Sheets (cut to length), Cut&Rolled (to specific lengths)
Surface smooth, orange peel embossed, corrugated, polysurlyn moisture barrier aluminium Jacketing, composite kraft paper, etc.
Inner diameter 75mm, 150mm, 305mm, 405mm, 505mm with or without paper core
Outer diameter according to coil weight or customer requirements
Quantity roll with the most common thickness is available in stock and can be ordered in small quantities.

Alloys of Chalco Aluminum's insulation aluminum roll

According to the classification of alloys, insulation aluminum coils can generally be divided into high-purity insulation aluminium sheet and alloy aluminum jacketing coils: 1000 series, 3000 series and 5000 series .

Pure aluminum aluminum insulation roll is suitable for engineering use with low requirements and no corrosive liquid, and the cost is relatively low.

The alloy aluminum insulation coil has corrosion resistance, and is more suitable for use in some highly demanding environments. It has also been used in some corrosive gas and liquid pipelines.

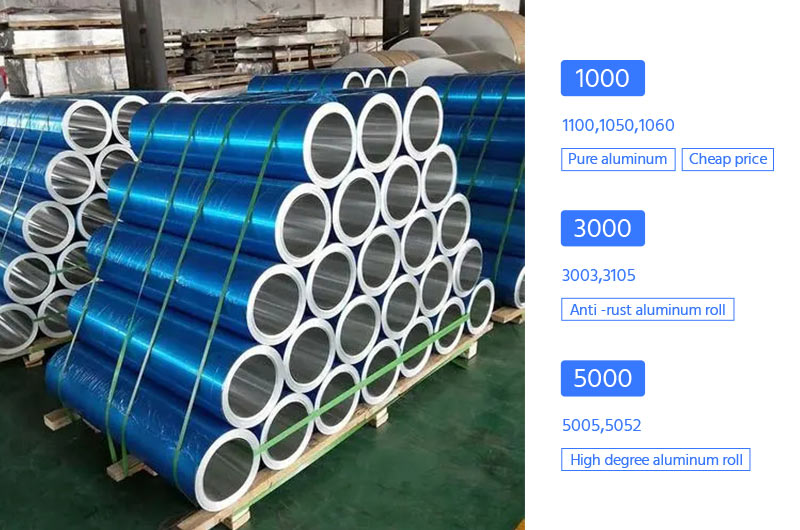

Alloys of Chalco Aluminum's insulation aluminum roll

1100/1050/1060 aluminum insulation panels belongs to pure aluminum, which is relatively cheap, and its application scope is relatively wide, such as ordinary building waterproof, pipeline thermal insulation and rust prevention works. However, 1000 series aluminum coils are not resistant to acid, alkali and corrosion. 3003 and 3105 aluminum coils are recommended for insulation of equipment and pipes in power plants and chemical plants.

3003 3105 aluminum jacketing sheet is made of aluminum manganese aluminum alloy. 3003 thermal insulation aluminum coil, also known as anti rust aluminum coil, is a representative product of 3000 series aluminum manganese alloy. It is mainly used in the fields of thermal insulation materials for pipes, building roofs and walls. Compared with 1100/1060/1050 insulation aluminum coil, 3003 3105 insulationed aluminum plate has a certain anti rust treatment effect and will be more durable in use. It is mainly used for insulation of refrigeration equipment, storage tanks, pressure vessels and pipelines, heat sinks, etc.

5005 5052 aluminum metal jacketing has high strength, good plasticity and corrosion resistance, and can be welded. It is considered as a promising thermal insulation aluminum coil. Series 5 thermal insulation aluminum coil is used in occasions with strict requirements on the performance of aluminum coil, such as height, fatigue resistance, corrosion resistance, etc. It is widely used in nuclear power, aviation, and aerospace fields.

Application of Chalco Aluminum's aluminum coil for insulation materials

Aluminum coil for insulated pipe

Insulation pipes are often used in industry and buildings. Insulation pipes are required to have low thermal conductivity, low density, high flexibility, fire and water resistance and other characteristics.

Aluminum alloy materials are often used in the production of pipe insulation materials, especially in chemical enterprises. Common materials are 1060 insulation aluminum strip, 3003 insulation aluminum strip, 3104 insulation aluminum roll. 3105 insulation aluminum roll are not common, but they can also be applied to pipeline thermal insulation.

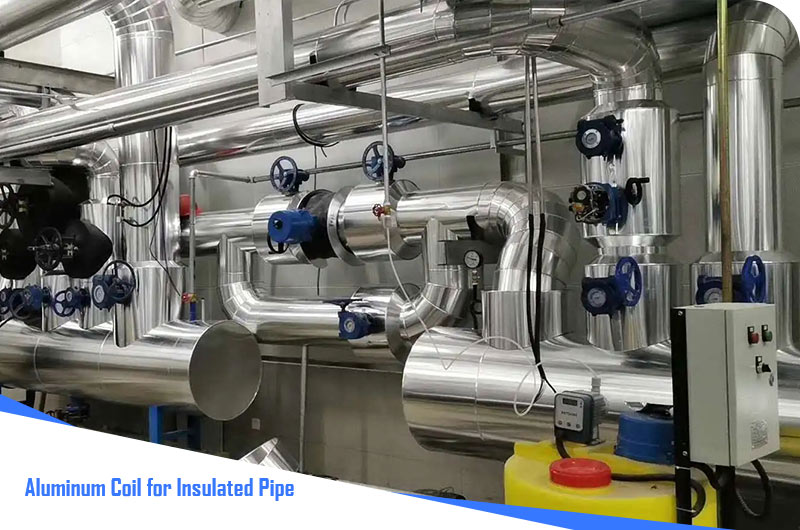

Aluminum coil for insulated pipe

Advantage of aluminum pipe insulation jacketing:

  • Its own weight is light, which can save a lot of raw materials for enterprises and reduce costs.
  • With strong corrosion resistance, it is suitable for special environment and can maintain a long service life.
  • It has the functions of fire insulation and fire resistance.
  • It is convenient for construction. Aluminum has high plasticity and can be easily bent and wound. It greatly improves the working efficiency.

Aluminum roll for equipment insulation

Thermal insulation and energy conservation are of great significance in industrial production and life. Many industries such as iron and steel industry, chemical industry, petroleum, and electric power need to take thermal insulation measures for pipes and equipment. Generally, metal plates for equipment thermal insulation are made of iron sheet, aluminum sheet, etc and because of the good corrosion resistance of aluminum materials, aluminum is more widely used.

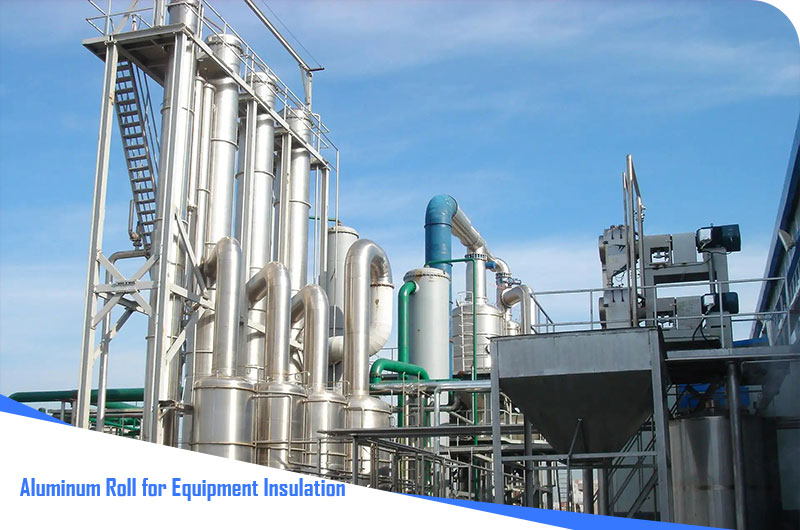

Aluminum roll for equipment insulation

1060 aluminum coils and 3003 aluminum coils are commonly used for jacket insulation, which are often used in equipment insulation and pipeline insulation projects. An additional layer of aluminum sheet is added outside the thermal insulation material to reduce heat loss and bring better thermal insulation effect.

Advantage of aluminum jacket equipment insulation :

  • Aluminum insulation system can reduce the impact of external low-temperature environment on equipment.
  • Reduce energy consumption and loss, thus bring higher economic benefits.
  • It is not easy to oxidize in the air and has a long service life.
  • As the aluminum skin has the characteristics of aluminum, it has bright and clean surface and has a certain aesthetic effect.

Aluminum roll for building insulation

The metal building insulation rolls has various colors, beautiful appearance and strong decorative power. As a new type of thermal insulation material, 3003 aluminum coil is often used as an aluminum manganese alloy series. Due to the presence of manganese element, this material has excellent rust resistance, also known as rust proof aluminum coil. Its corrosion resistance is stronger than that of Series 1 pure aluminum, and it is suitable for a variety of special environments. 3003 metal building insulation coils plays a leading role in building engineering.

Aluminum roll for building insulation

Unlike other thermal insulation raw materials, the building insulation aluminum plate is not very easy to fall off and loose, and can be closely bonded with exterior building decoration materials. In addition, the coating can protect the buildings against acid rain and corrosion. It also has the reasonable resistance to ultraviolet light, can be used for a long time.

Advantages of 3003 Aluminum Insulation for Metal Buildings:

  • The strength is higher than that of Series 1 pure aluminum, with good processability and formability, meeting various processing requirements.
  • It is rainproof, anti-collision and has a long service life.
  • It is non flammable, has excellent fire resistance and is safe to use.
  • High comprehensive utilization value and high recyclability.

The surface of Chalco Aluminum's aluminum metal jacket coil products

Mill finish aluminum jacket insulation

It is very popular for many end users who like this clean appearance.

Mill finish aluminum jacket insulation

This surface treatment minimizes rainwater. This smooth surface easily shows surface damage. It also shows more dust/dirt than other surfaces. Because of its smoothness, THE reflectivity is better than other surfaces, and the surface will be bright and beautiful.

For example, 3003 mill finish aluminum jacket insulation roll is widely used, especially in pipeline engineering. The general living environment of the pipeline is relatively humid, and ordinary raw materials cannot meet this setting. The appearance of 3003 aluminium jacket sheet solves this problem. In addition to pipes, it can also be used for external packaging, mechanical parts, refrigerators, air-conditioning ventilation pipes, curtain wall panels for decoration, and aluminum ceiling for indoor use.

Aluminum embossed insulation jacketing roll

This is another popular finish for aluminum sheaths. After embossing, the surface concave convex pattern can increase the surface area. In addition, the embossed thermal insulation aluminum roll surface texture hides small scratches and defects caused by physical damage during or after installation.

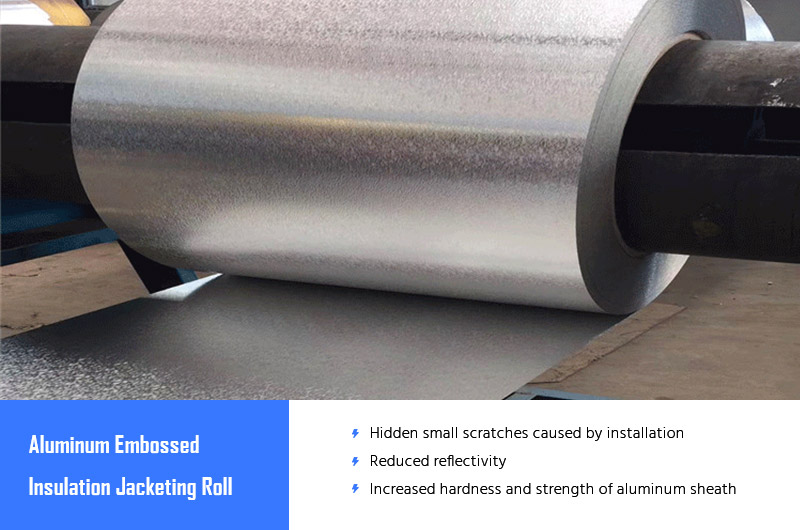

Aluminum embossed insulation jacketing roll

This surface treatment also reduces reflectivity and looks very professional. The use of embossed finish slightly increases the hardness and strength of the aluminum sheath.

Stucco embossed aluminum insulation coils is mainly used in refrigerator, air conditioner, pipe insulation, liner insulation and other industries.

Corrugated aluminum jacketing

This finish consists of parallel grooves or crimps spaced approximately 3/16 inch along the length of the pipe. This surface treatment also hides small damage and scratches on the jacket and reduces sunlight reflection.

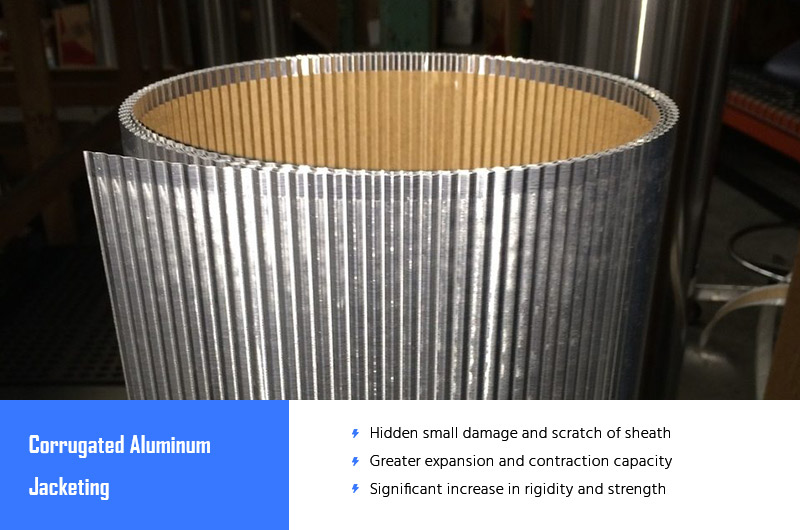

Corrugated aluminum jacketing

In addition, the nature of this surface treatment enables the aluminum sheath to have greater expansion and contraction capacity to adapt to the insulation movement caused by changes in pipe or ambient temperature. Finally, the 3/16 inch corrugated finish has significantly improved rigidity and strength, making it ideal as a jacket for large diameter pipes and vessels up to 8 feet in diameter. The maximum thickness of this finish is 0.024 inch.

Corrugated metal roof jacks is widely used to cover the insulating sheaths of storage tanks, heat exchangers, acid storage tanks, liquefied petroleum gas storage tanks and food processing plants.

Polysurlyn Moisture Barrier Aluminum Coils

Aluminum roll jacketing with polyfilm moisture barrier refers to the exposed outer surface of the aluminum roll, which is equipped with a 3 mil thick polymembrane moisture-proofayer as standard, and is hot laminated to the inner surface to help prevent the corrosion of the sheath and the metal pipes, containers or equipment below.

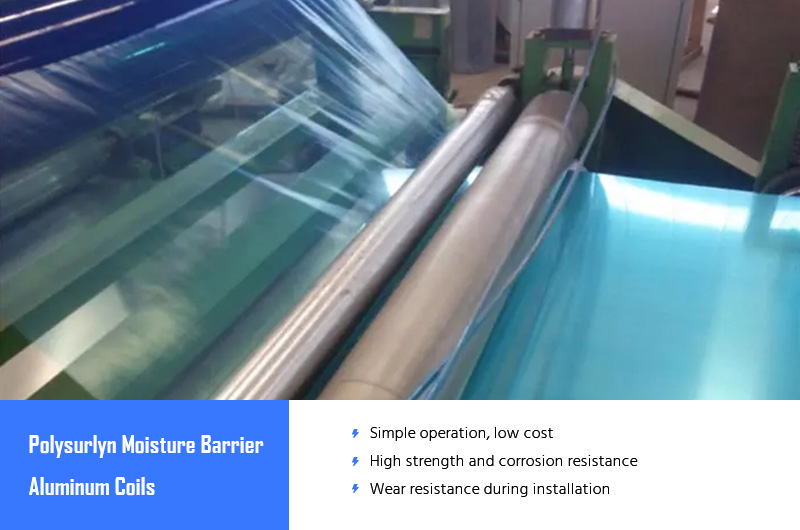

Polysurlyn Moisture Barrier Aluminum Coils

Polysurlyn Moisture Barrier Aluminium Jacketing are recommended to use insulated aluminum coils with a protective layer of sarin film on insulated pipes, tanks and vessels. The service life of aluminum coil insulated by high-strength and corrosion-resistant sarin film can reach 7 years without any maintenance and has excellent corrosion resistance.

Advantages of Aluminum Jacket with Polysurlyn Moisture Barrier:

  • Simple, low cost, and effective resistance to metal jacket and pipe corrosion;
  • Provide a barrier to crevice or pitting corrosion on the inner jacket surface in cold and hot pipe/tank applications;
  • Provide a barrier to galvanic corrosion of jacket or pipe in hot applications;
  • Minimal water absorption compared to kraft paper;
  • Will not deteriorate, discolor or shred when exposed to water;
  • Provide abrasion resistance during installation;
  • Long term durability and resistance to a wide range of environmental contaminants.

PolyKraft paper aluminum jacketing coils

Aluminium Sheet With Polykraft Paper is a kind of thermal insulation material mainly used for large-scale anti-corrosion and thermal insulation engineering packaging pipeline, which has good anti-corrosion, thermal insulation and rust prevention effect.

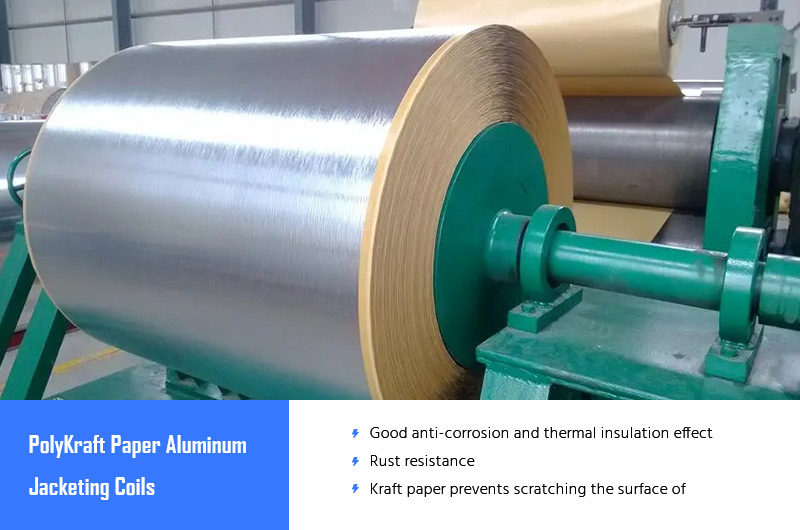

PolyKraft paper aluminum jacketing coils

Aluminum cladding coil with polykraft paper is covered with a layer of kraft paper on one side of the aluminum coil. It is a good way to prevent the scratching on the surface of the aluminum coil during packaging, transportation and use, and the aesthetic effect is also very good. It is also used for pipeline insulation in power plants and chemical plants. It is a kind of insulation material widely used .

Common alloy: 1060 3003 kraft paper aluminum insulation roll, with a thickness range of 0.3-1.5mm, and the packaging pipeline has the functions of thermal insulation, anti-corrosion, moisture resistance, etc.

Do you know the aluminum jacketing sheet price?

The price of aluminum insulation cladding of Chalco Aluminum is not expensive. There are many models and specifications, can be customized according to needs, and has a wide range of options. Please consult Chalco Aluminum at any time for the specific price of aluminum jacket for insulation, and the actual price shall prevail.

Because different customers have different use environments and requirements, we will recommend the most suitable and cost saving materials according to their purposes.Generally, our pricing model is as follows:

Shanghai nonferrous metal price SMM+processing cost+transportation cost

How to protect aluminium jacketing installation during transportation?

In order to avoid damage after purchase, it is important to protect the aluminum coil during packaging and transportation. If it is not done properly, the use of customers will be affected. Therefore, Chalco Aluminum will pay special attention to the following points during transportation:

Packing of aluminum metal jacketing

First of all, we need to package aluminum coils. Generally, there are two packaging methods for thermal insulation aluminum coils, one is full roll packaging, and the other is small roll packaging.

When dividing small rolls, we should pay attention to prevent deformation of small rolls, so paper cores can be lined during packaging to prevent aluminum rolls from deformation or bending due to extrusion.

In addition, the aluminum coil shall be sealed with plastic cloth and transparent tape to prevent water vapor from entering and causing corrosion and discoloration of the aluminum coil. A layer of kraft paper is added between the plastic cloth and the paper shell to increase the protection effect.

The outer package is tightly packed with thick paper shell, and then place the packed aluminum coil on the wooden pallet and reinforce it with steel strip.

Loading and Transportation Protection

After packaging, we can load the car for transportation. The purpose of packaging is to facilitate better protection during transportation. Similarly, when we load the car, we should not allow aluminum coils to be squeezed, especially small coils, which are prone to bending or collapse, affecting normal use;

Pay attention not to water the aluminum coil to avoid water ingress into the aluminum coil;

Do not place anything on the aluminum roll, especially the small roll without paper core, which is easily deformed and affects the construction.

Packing reinforcement

In order to achieve a firm and safe packing and reinforcement, Chalco Aluminum specially find a packing and reinforcement team with 20 years of experience.Put each trailer of thermal insulation aluminum coil into the container as required, and firmly fix it with wooden frame and reinforcement belt to avoid damage to the goods due to movement. Before sealing, Chalco Aluminum will send all the photos of packing reinforcement to customers for review.

Problems for storing insulation aluminium coils

Aluminum jacketings has the characteristics of low density, long service life and beautiful appearance. It is an indispensable product for pipeline insulation in power plants and chemical plants. In order to better use the aluminum coil and prolong its service life, there are strict requirements for the storage environment of aluminum coil.

Ensure that the storage environment is ventilated and dry

Never put it in a damp place. Everyone knows that aluminum coils belong to nonferrous metals. If they are touched with water, oxidation reaction will occur, so the surface of aluminum coils will be damaged and a protective film will be formed on the surface. Exactly, white oxidation marks will be formed one by one, which will affect the appearance. Therefore, a dry environment is a necessary condition for storing aluminum coils.

The sealing of the package

Generally speaking, when the aluminum coil leaves the factory early, it will have a waterproof package. The appearance will be wrapped with a layer of plastic cloth, and several bags of desiccant will be placed inside to prevent oxidation due to moisture or rainy weather during transportation. Generally speaking, customers are not advised to open or damage the package. This kind of package is suitable for long-term storage.

The product still needs to be sealed after unpacking

Even if it needs to be used, the remaining aluminum coils should be wrapped on the basis of the original packaging after use and placed in a dry and ventilated place. Generally speaking, if the above two points are realized, the aluminum coil will not be oxidized when it is stored. The aluminum coil can be well preserved for a long time.

Aluminum roll jacketing manufacturer and best service

Chalco Aluminum specializes in the production of 1100/1050/1060/3003/3105/5005/5052 insulation aluminum coil, which reserves and manufactures various insulation and anti-corrosion materials for the construction, chemical, industrial and other industries.

We have rich production experience, professional research and development, and a perfect after-sales system, which can fully combine your actual production needs to reasonably configure the production plan, with fast production cycle and more timely delivery.
