Cigarette packaging aluminum foil is primarily used as lining paper for cigarette boxes, often combined with paper. It includes calendered aluminum foil paper and aluminized paper. The tobacco foil has a smooth, seamless surface, flat plate shape, minimal pinholes, stable chemical properties, and is cost-effective.Quick Quote
Why choose Chalco aluminum foil for cigarette packaging?
High reputation
Chalco has provided cigarette packaging materials for PMI, BAT and other internationally renowned tobacco companies for a long time, and has achieved long-term cooperative relations.
Professional
Chalco provides a variety of aluminum foil solutions for cigarette packaging, including different colors, different printing patterns, laser Aluminium foil and transfer Aluminium foil, with different sizes and thicknesses to choose from. In addition to strong tensile strength and beautiful appearance, environmental protection is also our advantage.
Chalco aluminum foil specifications for cigarette packaging
| Alloy | Temper | Specification /mm | |||
| Thickness | Width | Die inner diameter | Roll outer diameter | ||
| 1235 1145 8011 8111 8021 8079 | O | 0.0060 - 0.0090 | <1700 | 75, 76.2 | 320~450 |
| 150, 152.4 | 450~800 | ||||
Chemical composition of aluminum foil for Chalco cigarette packaging
| Elements | Composition /% | |||||
| 1235 | 1145 | 8011 | 8111 | 8021 | 8079 | |
| Si | 0-0.65 | Si+Fe 0.55 | 0.50-0.90 | 0.30-1.10 | 0-0.15 | 0.05-0.30 |
| Fe | 0-0.65 | - | 0.60-1 | 0.40-1 | 1.20-1.70 | 0.70-1.30 |
| Cu | 0-0.05 | 0.05 | 0-0.10 | 0-0.10 | 0-0.05 | 0-0.05 |
| Mn | 0-0.05 | 0.05 | 0-0.20 | 0-0.10 | - | - |
| Mg | 0-0.05 | 0.05 | 0-0.05 | 0-0.05 | - | - |
| Cr | - | - | 0.05 | 0-0.05 | - | - |
| Zn | 0-0.1 | 0.05 | 0-0.10 | 0-0.10 | - | 0-0.10 |
| Ti | 0-0.06 | 0.03 | 0-0.08 | 0-0.08 | - | - |
| V | 0-0.05 | 0.05 | - | - | - | - |
| Al | Rem | Rem | Rem | Rem | Rem | Rem |
Mechanical properties of Chalco aluminum foil for cigarette packaging
| Alloy | Temper | Thickness /mm | Tensile strength /MPa | elongation after break /%, (not less than) | |
| A50mm | A100mm | ||||
| 1145 1235 | O | 0.0060 - 0.0090 | 45-95 | 0.5 | |
| 8011 8111 8021 8079 | 50-105 | 1.0 | |||
Chalco aluminum foil size tolerance for cigarette packaging
Local thickness tolerance
| Thickness (T)/mm | local thickness tolerance /mm |
| 0.0060-0.0090 | ±5%T |
Average thickness tolerance
| Coil quantity /t | Average thickness tolerance/mm |
| ≤3 | ±5%T |
| >3-10 | ±4%T |
| >10 | ±3%T |
Width tolerance
| Width/mm | Width tolerance/mm | ||
| Positive and negative symmetry deviation | Unidirectional positive deviation | Unidirectional negative deviation | |
| ≤1200 | ±1 | +1 0 | 0 -1 |
| >1200 | ±2 | +2 0 | 0 -2 |
Allowable deviation of length or roll outer diameter
| Outer diameter of the coil /mm | Length tolerance (L) /mm | Allowable deviation of coil outer diameter /mm | ||
| Not less than 80% foil coils in each batch | Not more than 20% foil coils in each batch | Not less than 80% foil coils in each batch | Not more than 20% foil coils in each batch | |
| ≤450 | ±2%L | ±5%L | - | |
| >450 | - | ±10 | ±20 | |
Staggered layer and tower shaped aluminum foil end face for Chalco cigarette packaging
The staggered layer on the end face of the aluminum foil is not more than 1mm, and the tower shape is not more than 2mm.
Number of pinholes in aluminum foil for Chalco cigarette packaging
| Thickness/mm | Total number of pinholes/m2, not more than | Number of pinholes with a diameter greater than 0.2mm/m2, not more than | Number of pinholes with a diameter greater than 0.3mm/m2 |
| 0.0060 | 1500 | 150 | O |
| 0.0060-0.0065 | 1000 | 100 | |
| 0.0065-0.0070 | 500 | 50 | |
| 0.0070-0.0090 | 200 | 20 |
Adhesion of aluminum foil for Chalco cigarette packaging
| Width/mm | Adhesion test results/m |
| ≤1000 | <=1.0 |
| >1000 | <=1.5 |
Number of connectors for Chalco cigarette packaging aluminum foil
| Outer diameter of the coil/mm | 80% of the coil allow for the number of joints (not more than) | 20% of the coil allow for the number of joints (not more than) |
| 320-360 | 0 | 1 |
| 360-450 | 1 | 2 |
| 450-650 | 2 | 4 |
| >650 | 3 | 5 |

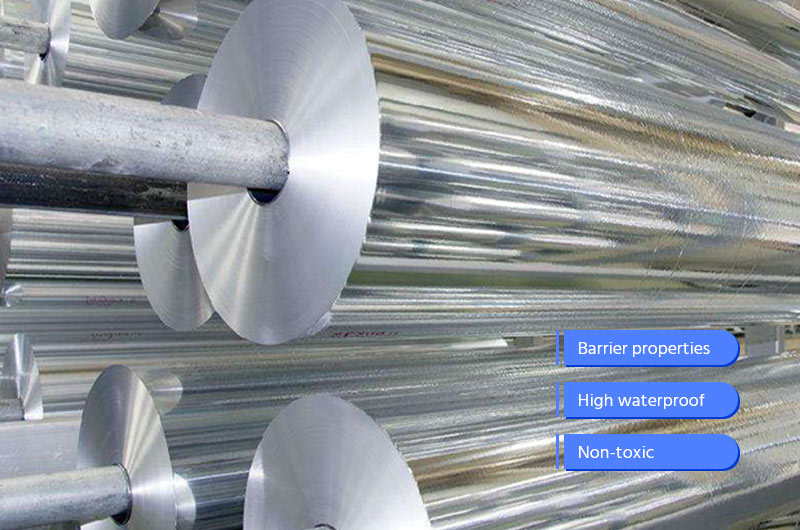

Characteristics of Chalco aluminum foil for cigarette packaging
Barrier properties: Aluminum foil has excellent barrier properties, which can maintain the aroma of smoke and prevent the smell of smoke from corroding other items.
High waterproof: Aluminum foil can block moisture, effectively prevent moisture, and prevent cigarettes from becoming moldy in a humid environment and affecting the quality of cigarettes.
Non-toxic: Aluminum foil is a non-toxic packaging material, which can directly pack cigarettes and is harmless to human health.
Environmentally friendly and recyclable: Aluminum foil is a recyclable material that can be recycled to reduce resource consumption and environmental burden.

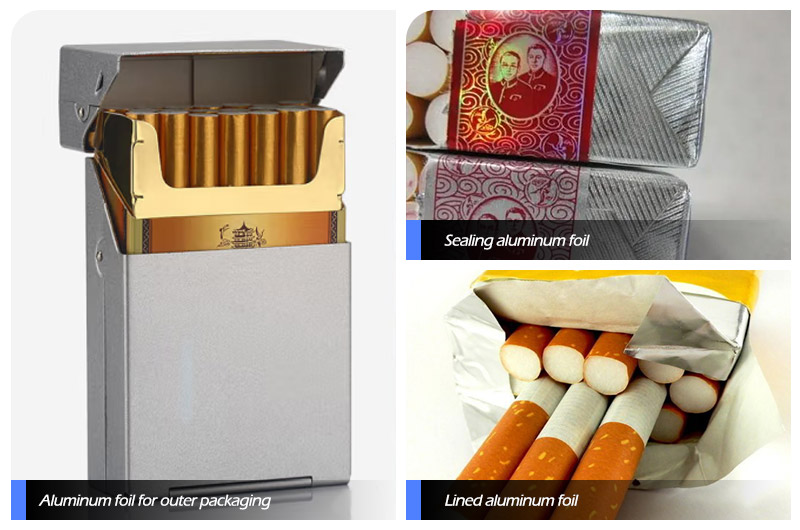

Chalco product classification of aluminum foil for cigarette packaging
Lined aluminum foil: Lined aluminum foil is a kind of aluminum foil material used to pack the inside of cigarettes. It has good barrier properties and can block the influence of external factors such as oxygen, moisture and light on tobacco. Lined with aluminum foil to help maintain the freshness and quality of the tobacco.Quick Quote
Aluminum foil for outer packaging: Aluminum foil for outer packaging is used to cover the outside of cigarette packages for protection and decoration. It can have different patterns, patterns and colors to increase the attractiveness and recognition of the packaging.
Sealing aluminum foil: Sealing aluminum foil is used to close the opening of cigarette packaging boxes or bags to ensure the airtightness of the product and maintain the freshness of the tobacco. It usually has good sealing properties, preventing moisture and odors from entering the package.
FAQ
Q1: Are you factory or trading company?
A1: Industry and trading company.
Q2: Wonder if you accept small orders?
A2: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener, we accept small order.
Q3: Can you send products to my country?
A3: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q4: When can I get the quotation?
A4: We usually quote you within 24 hours after we get your inquiry. If you are very
urgent to get the quotation. Please call us or tell us in your mail, so that we could
regard your inquiry priority.
Q5: Do you have after sale service?
A5: Yes. Any quality problem occurs within one year, pls take photos, we will be responsible.
Q6: How do you guarantee the quality of the product?
A6: Aluminum imports Achenbach Buschhutten wide rolling mill, OPTIFOILR slitting machine and coiler. With those advanced equipment and technology, we can ensure best cigarette aluminum foil for you.
