AA5A06 aluminum plate is an aluminum magnesium alloy with (Mg) 5.8% ~ 6.8%, and its magnesium content is the highest. It has high strength and plasticity, is easy to weld, and has good corrosion resistance. It is an aluminum alloy plate widely used in aviation, aerospace, and national defense industries.
Product advantages of Chalco 5A06 aluminum sheets
Chalco 5A06 aluminum plates has high strength and stability.
Chalco 5A06 aluminum sheets has good corrosion resistance and will not corrode in most applications.
Chalco 5A06 aluminum alloy plate sheet has good plasticity, good formability and good machinability.
Chalco 5A06 alloy metal aluminum sheet plate has good weldability and is easy to carry out argon arc welding, resistance welding, electron beam welding, plasma arc welding, friction stir welding, etc. The strength of the welded joint is 90~95% of the strength of the matrix.
The Chalco 5A06 aluminum alloy sheet has a beautiful appearance after anodizing treatment. The surface of the aluminum plate has no oil spots, no waves, no scratches, no roller marks, neat trimming, and no burrs.
Specifications of Chalco 5A06 aluminum sheet
Alloy | 5A06 |
Temper | F, O, H12, H14, H16, H18, H19, H22, H24, H26 H28, H32, H34, H36, H38, H111, H112, H114, H116, H321 etc, |
Thickness | 1.0-600mm |
Width | 100-2800mm |
Length | 500-16000mm |
Standard | ASTM B209,EN573,EN485 etc |
Equivalents of AA 5AO6 | UNS A95AO6, ISO AlMg6, Aluminium 5AO6,AA5AO6,Al5AO6 |
Test certificate | As per EN 10204 3.1, third party inspection, buyer inspection, mill test certificate. |
The properties of 5A06 H112 aluminum plates
Thickness | 4.5-10mm |
Tensile strength Rm/MPa | 315 MPa |
Yield strength Rp0.2/MPa | 155 MPa |
Elongation % | 16% |
Hardness | 85HB |
Properties of 5A06 O aluminum plates
Thickness | 0.5-4.5mm |
Tensile strength Rm/MPa | 315 MPa |
Yield strength Rp0.2/MPa | 155 MPa |
Elongation % | 16% |
Hardness | 85HB |
Chemical composition of Chalco 5A06 aluminum sheet
Si | 0.40 |
Fe | 0.40 |
Cu | 0.10 |
Mn | 0.50~0.8 |
Mg | 5.8~6.8 |
Zn | 0.20 |
Be | 0.0001~0.005 |
Ti | 0.02~0.10 |
Other | 0.15 |
Al | Remainder |
Application of 5A06 aluminum plate

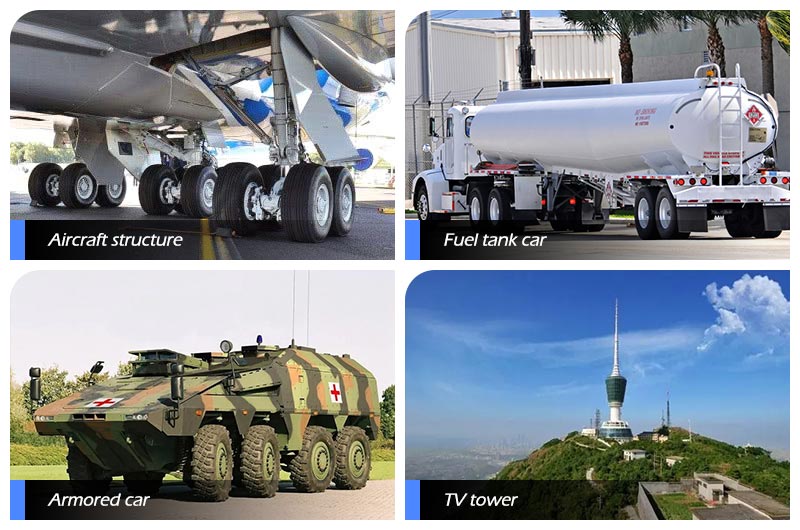

5A06 anti-rust aluminum alloy plate belongs to the Al-Mg series aluminum alloy, which is often used to manufacture rocket body structures of launch vehicles, and is a widely used structural material in the aerospace industry.
5A06 aluminium plate contains high Mg and Mn elements, has excellent corrosion resistance. It can be widely used in marine applications such as ships, automobiles, aircraft weldments, subway light rails, liquid containers, and pressure vessels that require strict fire protection (such as Liquid tank trucks, refrigerated trucks, refrigerated containers), refrigeration units, TV towers, drilling equipment, transportation equipment, missile parts, armor, etc.

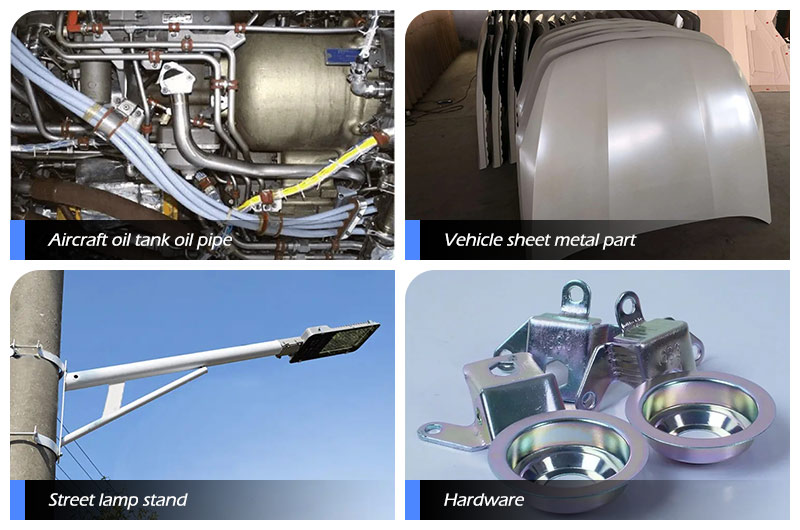

5A06 aluminum plate has excellent weldability, good cold workability, and has high strength. It can be used to manufacture aircraft fuel tanks, oil pipes, and sheet metal parts of transportation vehicles and ships, instruments, street lamp brackets and rivets, hardware products, electrical shells, etc.
5A06 aluminum sheet plate is the most widely used antirust aluminum. This alloy has high strength, especially fatigue strength, high plasticity and corrosion resistance, and cannot be strengthened by heat treatment. Low plasticity when hardened, good corrosion resistance, good weldability, poor machinability, and can be polished.
It can be used for low-load parts that require high plasticity and good weldability, working in liquid or gaseous media, such as fuel tanks, gasoline or lubricating oil conduits, various liquid containers and other small-load parts made by deep drawing, etc.
5A06 forged aluminum plate block
Alloy | 5A06 |
State | O, F, H112, etc. |
Production standards | GBn223, YS/T479, ASTM B247, AMS, etc. |
Maximum weight | ≤9 tons |
Length | ≤7000mm |
Width | ≤2000mm |
Height | ≤500mm |
5A06 forged aluminum block can be used to produce refrigeration units, TV towers, drilling equipment, transportation equipment, missile parts, armor, etc.
The price composition of Chalco 5a06 aluminum sheet
FOB price of 5A06 aluminum plate = SMM A00 aluminum ingot price on the day of inquiry + processing fee / exchange rate
Notes:
Aluminum ingot price is SMM A00 aluminum ingot price
FOB price can be US dollar price, Euro price, or Renminbi price, according to customer requirements.
Chalco has ultra-wide and ultra-thick aluminum plate production lines, we can customize according to needs, some products are in stock, and will be shipped immediately after ordering, looking forward to cooperating with you!

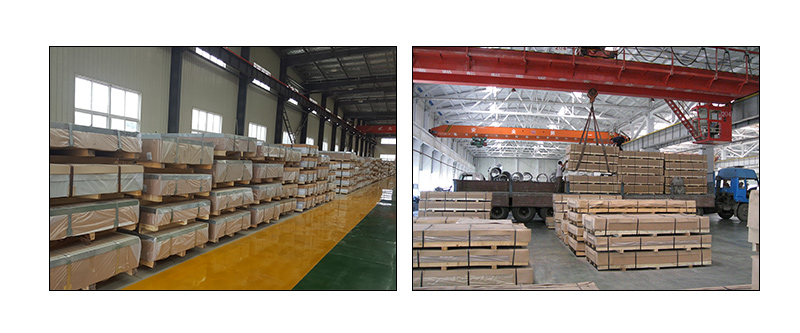

5A06 aluminum plate packaging and transportation
- The products are packed in export wooden boxes or wooden pallets, fumigated wooden tray with fumigation certificate.
- During transportation, it is not allowed to mix aluminum plate with active chemical products and wet materials. The carriage and cabin should be kept in a dry, clean and pollution-free condition.
- Aluminum plates are generally shipped in closed carriages or warehouses, and ultra-long plates or gondola cars in special cases. The waterproof cloth shall be tightly covered and tied to ensure that water, rain and snow will not enter the packaging box and aluminum products.
- Aluminum plates are generally stored in the warehouse during transshipment. If it needs to be stored in the open air under special circumstances, it must be tightly covered and tied with rainproof cloth. At the same time, the bottom aluminum plate shall be padded not less than 100mm.
- During transportation, moisture-proof packaging measures shall also be taken to avoid water ingress into the aluminum plate packaging. In the process of loading and unloading, collision shall be avoided and aluminum plates shall be safely transported to the user's warehouse.
Chalco-high quality 5A06 aluminum plate suppliers
Chalco has focused on research, development and production of aluminum panels for more than 20 years. As one of the most professional suppliers of aluminum products, we can provide high-quality 5A06-O, 5A06-H112, etc. aluminum plates. The product is free of oil spots, waves, scratches, rolling marks, trimming, burrs, etc.
Chalco has always adhered to the principle of quality first and customer first. We have won the trust of customers by relying on advanced scientific research technology and excellent equipment quality.
5A06 Aluminum Sheet Inventory List
Alloy | Temper | Thickness (mm) | Width (mm) | Length (mm) |
5A06 | H112 | 5 | 1250 | 2500 |
5A06 | H112 | 5 | 1500 | 3000 |
5A06 | H112 | 6 | 1500 | 3000 |
5A06 | H112 | 8 | 1500 | 3000 |
5A06 | H112 | 8 | 2000 | 4000 |
5A06 | H112 | 10 | 1500 | 3000 |
5A06 | H112 | 12 | 1500 | 3000 |
5A06 | H112 | 14 | 1500 | 3000 |
5A06 | H112 | 15 | 1500 | 3000 |
5A06 | H112 | 16 | 1500 | 3000 |
5A06 | H112 | 18 | 1500 | 3000 |
5A06 | H112 | 20 | 1500 | 3000 |
5A06 | H112 | 25 | 1500 | 3000 |
5A06 | H112 | 30 | 1500 | 3000 |
5A06 | H112 | 30 | 2000 | 4000 |
5A06 | H112 | 35 | 1500 | 3000 |
5A06 | H112 | 35 | 2000 | 4000 |
5A06 | H112 | 40 | 1500 | 3000 |
5A06 | H112 | 40 | 2000 | 4000 |
5A06 | H112 | 45 | 1500 | 3000 |
5A06 | H112 | 50 | 1500 | 3000 |
5A06 | H112 | 50 | 2000 | 4000 |
5A06 | H112 | 60 | 2000 | 4000 |
5A06 | H112 | 65 | 1500 | 3000 |
5A06 | H112 | 65 | 2000 | 4000 |
5A06 | H112 | 70 | 1500 | 3000 |
5A06 | H112 | 70 | 2000 | 4000 |
5A06 | H112 | 75 | 1500 | 3000 |
5A06 | H112 | 80 | 1500 | 3000 |
5A06 | H112 | 80 | 2000 | 4000 |
5A06 | H112 | 90 | 1500 | 3000 |
5A06 | H112 | 90 | 2000 | 4000 |
5A06 | H112 | 100 | 1500 | 3000 |
5A06 | H112 | 100 | 2000 | 4000 |
5A06 | H112 | 110 | 1500 | 3000 |
5A06 | H112 | 110 | 2000 | 4000 |
5A06 | H112 | 120 | 1500 | 3000 |
5A06 | H112 | 130 | 1500 | 3000 |
5A06 | H112 | 140 | 2000 | 4000 |
5A06 | H112 | 150 | 1500 | 3000 |
5A06 | H112 | 160 | 1500 | 3000 |
5A06 | H112 | 170 | 1500 | 3000 |
5A06 | H112 | 180 | 1500 | 3000 |
5A06 | H112 | 190 | 2000 | 4000 |
5A06 | H112 | 200 | 1500 | 3000 |
5A06 | H112 | 210 | 2000 | 4000 |
5A06 | O | 0.8 | 1500 | 3000 |
5A06 | O | 1 | 1250 | 2500 |
5A06 | O | 1 | 1500 | 3000 |
5A06 | O | 1.5 | 1500 | 3000 |
5A06 | O | 2 | 1500 | 3000 |
5A06 | O | 2.5 | 1500 | 3000 |
5A06 | O | 3 | 1500 | 3000 |
5A06 | O | 4 | 1500 | 3000 |
5A06 | O | 5 | 1500 | 3000 |
