Aluminum honeycomb cores are widely used in lightweight sandwich structures and high-strength panels where a high strength-to-weight ratio is required. However, expanded cores can limit transport efficiency, storage, and process control in manufacturing.
Unexpanded aluminum honeycomb cores are supplied in a compact form for easier transportation and storage, while allowing flexible expansion, lamination, and processing based on project requirements. Chalco provides customized unexpanded honeycomb cores with stable quality and mass production capability for industrial processing and panel manufacturing.
Aluminum Honeycomb Core Unexpanded Forms & Supply Types
Chalco offers unexpanded aluminum honeycomb cores to support flexible processing and customized panel manufacturing needs. Compared to unfolded honeycomb cores, unexpanded honeycomb cores are delivered in a more compact structural form, offering greater flexibility in transportation, storage, and subsequent processing, and are suitable for various industrial processing and composite structure production scenarios.
Unexpanded honeycomb core slice
Pre-cut to a specified thickness, this method is suitable for production scenarios with high requirements for dimensional consistency and processing efficiency. Compared to block form, slicing reduces front-end processing steps, helping to improve production efficiency and optimize material utilization.
Typical dimensions and processing: Can be customized to thickness to suit different panel structures and automated processing needs.
Applicable scenarios: Panel composite production lines ; automated processing systems ; precision structural component manufacturing.

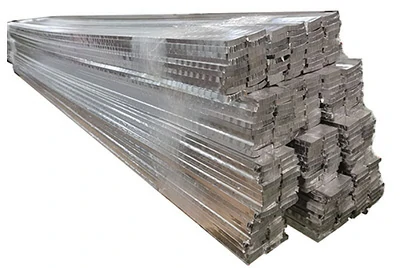

Unexpanded honeycomb core block
Supplying in block form is the most basic and original form of honeycomb core material, suitable for production scenarios requiring independent control over unfolding and subsequent processing. Compared to pre-cut materials, block form has advantages in transportation and warehousing, while also facilitating flexible cutting and processing according to project needs.
Typical dimensions and processing: Supports customization of different thicknesses and block sizes, suitable for subsequent unfolding, slitting and composite panel production.
Applicable scenarios: Mass production of composite panels ; autonomous production lines ; manufacturing of industrial structural components.
Custom-cut honeycomb core material
Customized cutting and structural matching are available to meet specific project needs, suitable for applications with high requirements for size, unfolding ratio, and structural performance. Integrated processing support can be provided based on drawings or technical requirements, reducing subsequent processing steps for customers.
Customization capabilities include:
- Custom sizes available (length/width/thickness)
- Matching the unfolding ratio with the unit structure
- Perforated/non-perforated structure (for ventilation or weight reduction)
- Different densities and alloy configurations (e.g., 3003 , 5052 , 5056 )
Unexpanded aluminum honeycomb cores allow for flexible control of unfolding and unit structure during subsequent production processes, offering greater advantages in processing adaptability and structural design freedom compared to pre-expanded honeycomb materials.
Aluminum Honeycomb Core Specifications & Custom Options
Cellular aperture: 3 mm – 25 mm (after unfolding)
Aluminum foil thickness: 0.03 mm – 0.1 mm
Density range: 20 – 130 kg/m³
Cellular core thickness: The unfolded thickness is typically 5 mm – 200 mm (customizable).
Supply dimensions and cutting methods: Supports cutting of different sized blocks and custom cutting.
Alloy selection: Commonly used alloys are 3003 aluminum honeycomb core, 5052 aluminum honeycomb core, and 5056 aluminum honeycomb core (other alloys can be provided upon request).
Chalco can provide customized specifications to meet customer project requirements, achieving the best match between cellular structure performance and processing technology.
Aluminum honeycomb core processing and unfolding capabilities
Chalco offers post-processing and unfolding support for un-unfolded aluminum honeycomb cores, covering key technological steps from raw materials to structural components, meeting diverse panel manufacturing and industrial processing needs. Through systematic management of unfolding processes, dimensional control, and composite processing, a stable match between the honeycomb structure and the performance of the end product can be achieved.
Cellular core unfolding process: The unfolding ratio and unit structure are controlled according to design requirements to ensure the consistency of cell size and structure.
Size cutting and precision machining: Supports fixed-length cutting and precision size control to meet different panel structures and assembly requirements.
Composite and panel manufacturing support: It can meet the requirements of panel composite process and support the matching and processing of cell core and panel materials.
Customized processing capabilities: We provide solutions for structural customization, size adjustment, and process optimization based on project requirements.
Mass production and stable delivery capabilities: Supports mass production and project-based supply, ensuring product consistency and delivery stability.
Chalco's comprehensive processing and supply system provides stable material support and process assurance for the manufacturing of honeycomb structural components and sandwich panels.
Applications of Unexpanded Aluminum Honeycomb Core
Unexpanded aluminum honeycomb cores are widely used in sandwich structures and lightweight engineering applications, especially where further expansion, lamination, and structural processing are required. Compared with pre-expanded cores, the unexpanded form improves transportation and storage efficiency while allowing flexible control of expansion and structural design based on application needs, making it suitable for processes requiring both manufacturing flexibility and structural performance..

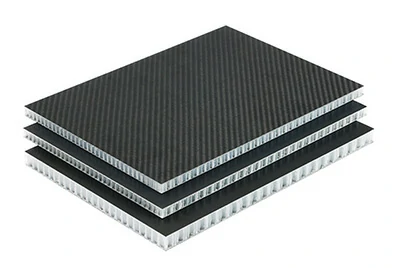

Sandwich panels
Used in aluminum honeycomb panels, decorative composite panels, and industrial panel systems. Unexpanded cores allow controlled expansion and lamination during production, helping match different panel structures and ensure consistent performance.
Aerospace structures
Used in aircraft interiors, partitions, and lightweight structural components. Unexpanded cores enable precise control of structure and dimensions during processing, supporting strict requirements for weight reduction and structural accuracy.
Rail and transportation equipment
Used in vehicle body structures, flooring systems, and interior panels. Unexpanded cores can be expanded and processed based on structural requirements, supporting flexible design and manufacturing needs.
Marine Applications
Used in hull structures and interior panels. The unexpanded form allows flexible post-processing for complex geometries, improving structural adaptability and manufacturing efficiency.

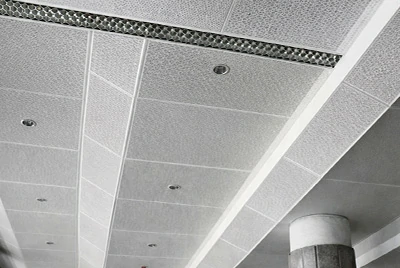

Architectural panels
Used in curtain walls, ceilings, and decorative panel systems. Unexpanded cores support customized expansion during panel production, suitable for large-size panels and diverse structural designs.
Used in equipment protection structures, platforms, and lightweight support systems. Unexpanded cores support multiple processing methods, adapting to various structural and functional requirements.
Unexpanded honeycomb core materials can be flexibly adapted to different application requirements during subsequent processing, making them an important basic material in various sandwich structures and lightweight designs.
Unexpanded vs expanded honeycomb core
In practical applications of honeycomb core materials, un-expanded and unfolded forms are suitable for different production processes and usage scenarios. Choosing the appropriate supply method helps improve processing efficiency and optimize the overall cost structure.
| Project | Unexpanded Core | Expanded core |
| Supply Form | Compact blocks or slices | The honeycomb structure has been deployed. |
| Transportation and storage | Small size, high transportation efficiency | It takes up a lot of space and has high transportation costs. |
| Processing flexibility | Autonomous control over deployment and structural design | Fixed structure, low processing flexibility |
| Production process | Suitable for manufacturers with processing capabilities | Suitable for direct use or simple processing |
| Cost control | Reduce transportation and intermediate losses | High initial processing costs |
| Application methods | Further development and integration are needed. | Can be used directly in panels or structures |
Unfolded honeycomb cores are more suitable for production scenarios that require flexible processing and cost control, while unfolded honeycomb cores are suitable for occasions with lower processing requirements and a pursuit of rapid application.
FAQ
What is an unexpanded aluminum honeycomb core?
Unexpanded aluminum honeycomb core refers to the compact supply form before the honeycomb structure is unfolded. It is usually provided in block or slice form, which facilitates subsequent unfolding, cutting and composite processing according to project requirements.
What is the difference between an undeployed honeycomb core and a deployed honeycomb core?
Unfolded honeycomb cores are smaller in size, making them easier to transport and store, and allowing for flexible control over unfolding and structural design during subsequent processing; while unfolded honeycomb cores can be used directly, but their processing flexibility is relatively limited.
Do unexpanded honeycomb cores need to be processed or unfolded by the customer?
Yes, undeveloped honeycomb cores are usually used as raw materials and need to be developed, cut, or composited according to production needs. They are suitable for manufacturing companies with processing capabilities.
What are the common specifications for aluminum honeycomb cores?
Common parameters include honeycomb pore size, aluminum foil thickness, density, and unfolded thickness, all of which can be customized according to specific application requirements.
Does the manufacturer support custom aluminum honeycomb cores?
Chalco offers a variety of customization options, including size, density, alloy (such as 3003, 5052), and processing methods, to meet the needs of different projects and structural designs.
Chalco — Professional Cellular Material Supplier
Chalco offers comprehensive cellular material solutions covering cellular cores, cellular panels, and sandwich structures, supporting a systematic supply from raw materials to structural components to meet the needs of various engineering projects and industrial applications.
- Covering aluminum honeycomb cores, honeycomb panels, honeycomb sandwich structures, brazed honeycomb panels, and other custom honeycomb structural components.
- Supports long-term orders and project-based procurement needs, ensuring delivery stability.
- Supports flexible customization of size, density, alloy, and structural form.
- Provides support for unfolding, cutting, laminating, and structural processing to adapt to different production processes.
- A comprehensive quality control system covering the entire process from raw materials to finished products.
- Provide stable supply and project support to the international market
Regardless of the industry or structural scenario, if you have relevant project needs or custom processing requirements, please contact Chalco for matching cellular material solutions.
