Why choose Chalco?
As an aluminum materials company, we are proud to collaborate with renowned partners such as Guala Colosures, Nippon Colosures, CSI Colosures, Herti, Mala Colosures, and Federfin tech. The selection of these partners validates our exceptional capabilities in terms of quality, reliability, and innovation.
Chalco's aluminum sheets for closures comply with US FDA and European directives regarding to use of aluminum which comes into contact with food, drinks, cosmetics and pharmaceuticals.

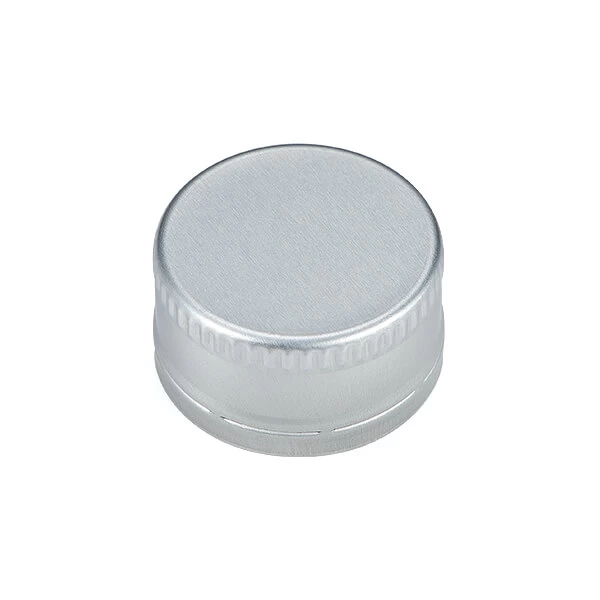

Popular sizes of 8011 bottle caps
Aluminum bottle caps are a standard option for many applications, including alcoholic beverages, soft drinks and mineral waters. Aluminum covers are available in different colors and designs, with logoed covers and custom covers also available. All caps are safe for food contact.
Bottle caps can be shipped in bulk to anywhere in the world. All offered products are in stock so delivery will be timely and smooth. We are always ready to help you choose or recommend the best product for your specific use. If you have any questions or need assistance, please contact us via email:Quick Quote
18.2 * 12.2mm Aluminum Cap
19.8 * 12.4mm Aluminum Cap
22.4 * 15.2mm Aluminum Cap
38.6 * 17.8mm Aluminum Cap
28mm Aluminum Cap
28.7 * 31.9mm Aluminum Cap
30 * 35mm Aluminum Cap
30 * 60mm Aluminum Cap
31.5 * 44mm Aluminum Cap
Aluminum cap for Injection bottle

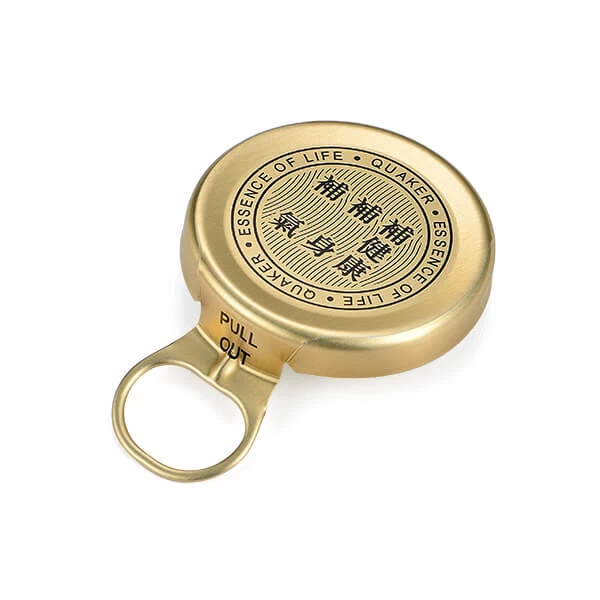

Pull ring cap
Tinplate Screw Cap
Specifications of 8011 aluminum sheet strip and foil
| Temper | Specifications mm | ||||
| Thickness | Width | Thickness | Coil ID | ||
| Sheet | Strip and Foil | ||||
| H14, H24, H16, H26 | 0.150-0.500 | 500.0-1500.0 | 50.0-1500.0 | 500.0-2000.0 | 75.0, 150.0, 200.0, 300.0, 350.0, 405.0, 505.0 |
| H18 | 0.200-0.500 | ||||
Earring of 8011 aluminum sheet strip and foil
| Temper | Earring |
| H14, H24, H16, H26, H18 | ≤3% |
Unevenness of 8011 aluminum sheet strip and foil
| Thickness mm | Longitudinal unevenness | Horizontal unevenness | ||
| Wave height mm | Wave per meter length | Wave height mm | Wave height mm | |
| not more than | ||||
| 0.150-0.250 | 2.0 | 4 | 1.5 | 2 |
| >0.250-0.500 | 3.0 | 3 | 1.5 | 2 |
Mechanical properties of 8011 aluminum sheet strip and foil
| Temper | Thickness mm | Mechanical properties | |
| Tensile strength MPa | Elongation % | ||
| Not less than | |||
| H14, H16 | 0.150-0.500 | 130-165 | 1 |
| H24 | 0.150-0.200 | 125-165 | 2 |
| >0.200-0.500 | 3 | ||
| H26 | 0.150-0.200 | 130-165 | 1 |
| >0.200-0.500 | 2 | ||
| H18 | 0.200-0.500 | ≥165 | 1 |
Camber and layering of 8011 aluminum sheet strip and foil
Layering of strip and foil≤1.0 mm, Camber≤5.0 mm.
Thickness tolerance of 8011 aluminum sheet strip and foil
| Thickness mm | Thickness tolerance mm |
| 0.150-0.250 | ±0.005 |
| >0.250-0.500 | ±0.010 |
Width tolerance of 8011 aluminum sheet strip and foil
| Width mm | Width tolerance mm |
| ≤800.0 | +0.5 0 |
| >800.0 | +1 0 |
Chemical composition of 8011 aluminum sheet strip and foil
| Element | Content (%) |
| Aluminum, Al | 97.3 - 98.9 |
| Iron, Fe | 0.60 - 1 |
| Silicon, Si | 0.50 - 0.90 |
| Manganese, Mn | ≤ 0.20 |
| Zinc, Zn | ≤ 0.10 |
| Copper, Cu | ≤ 0.10 |
| Titanium, Ti | ≤ 0.080 |
| Chromium, Cr | ≤ 0.050 |
| Magnesium, Mg | ≤ 0.050 |
| Remainder (each) | ≤ 0.050 |
| Remainder (total) | ≤ 0.15 |

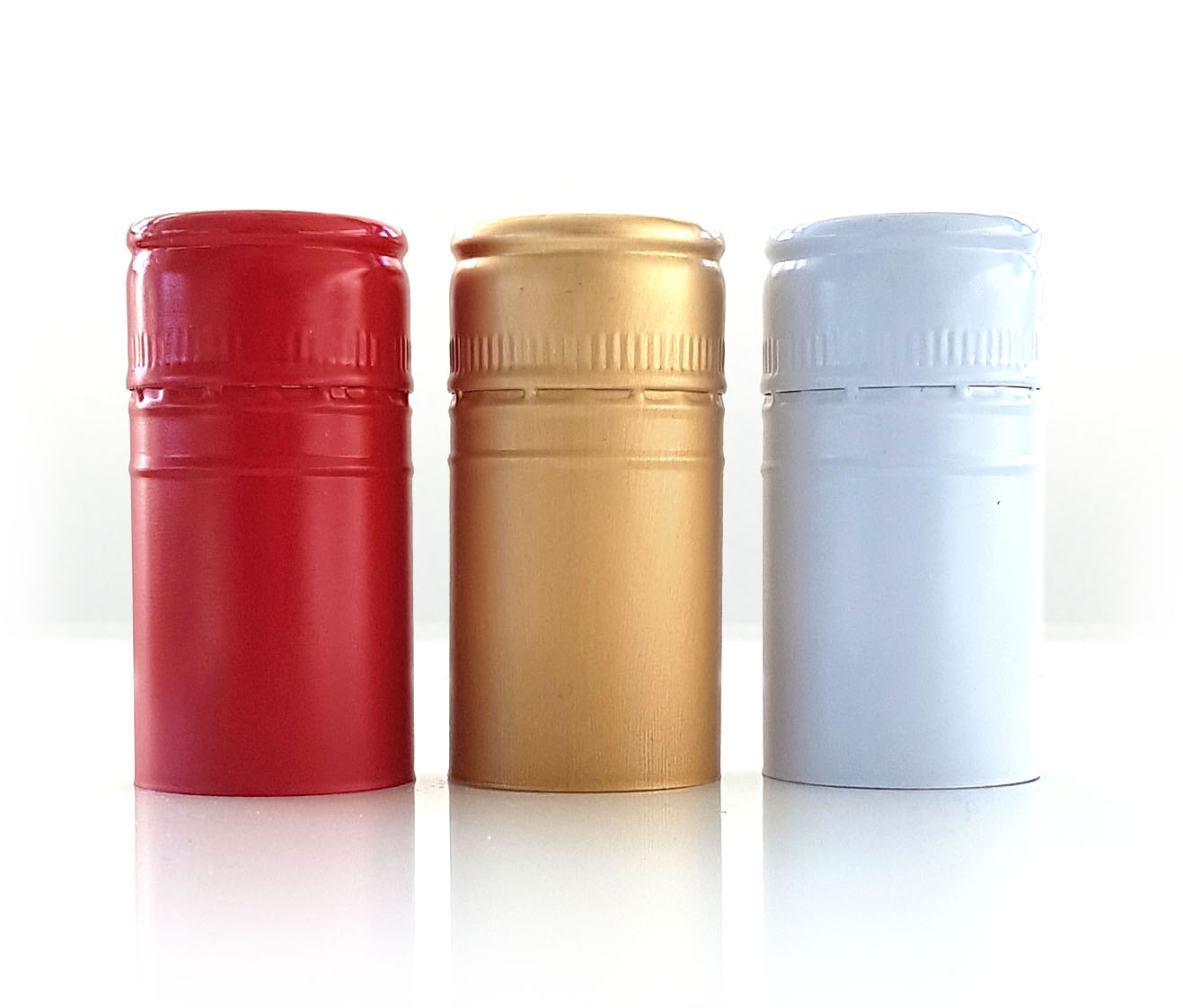

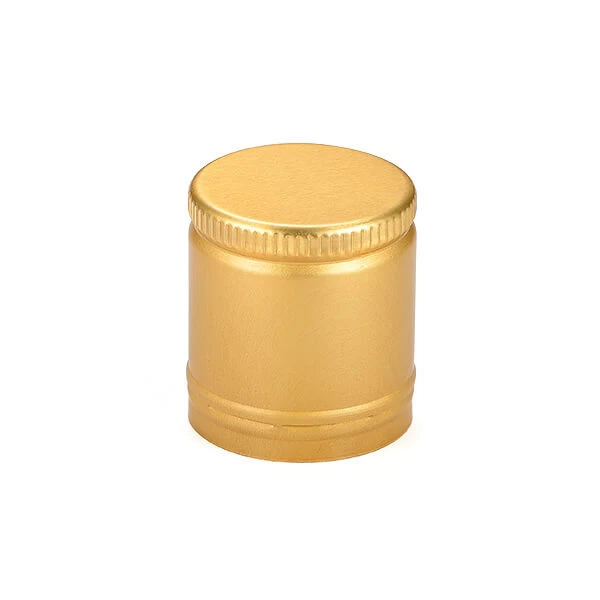

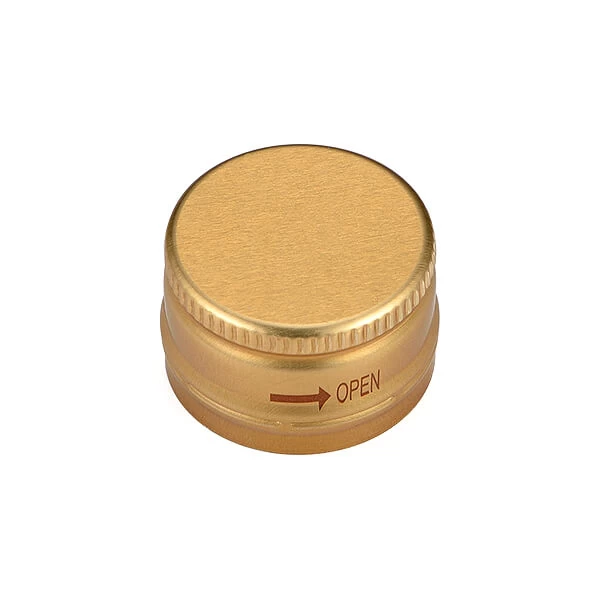

8011 H14, H16, H44, H46 aluminum closure sheet for ROPP caps
8011 aluminum closure shee has good formability, good earring rate and flatness, so as to make sure the long cap deep drawing. It often used as ROPP caps for wine bottles, and other beverage bottles.Quick Quote

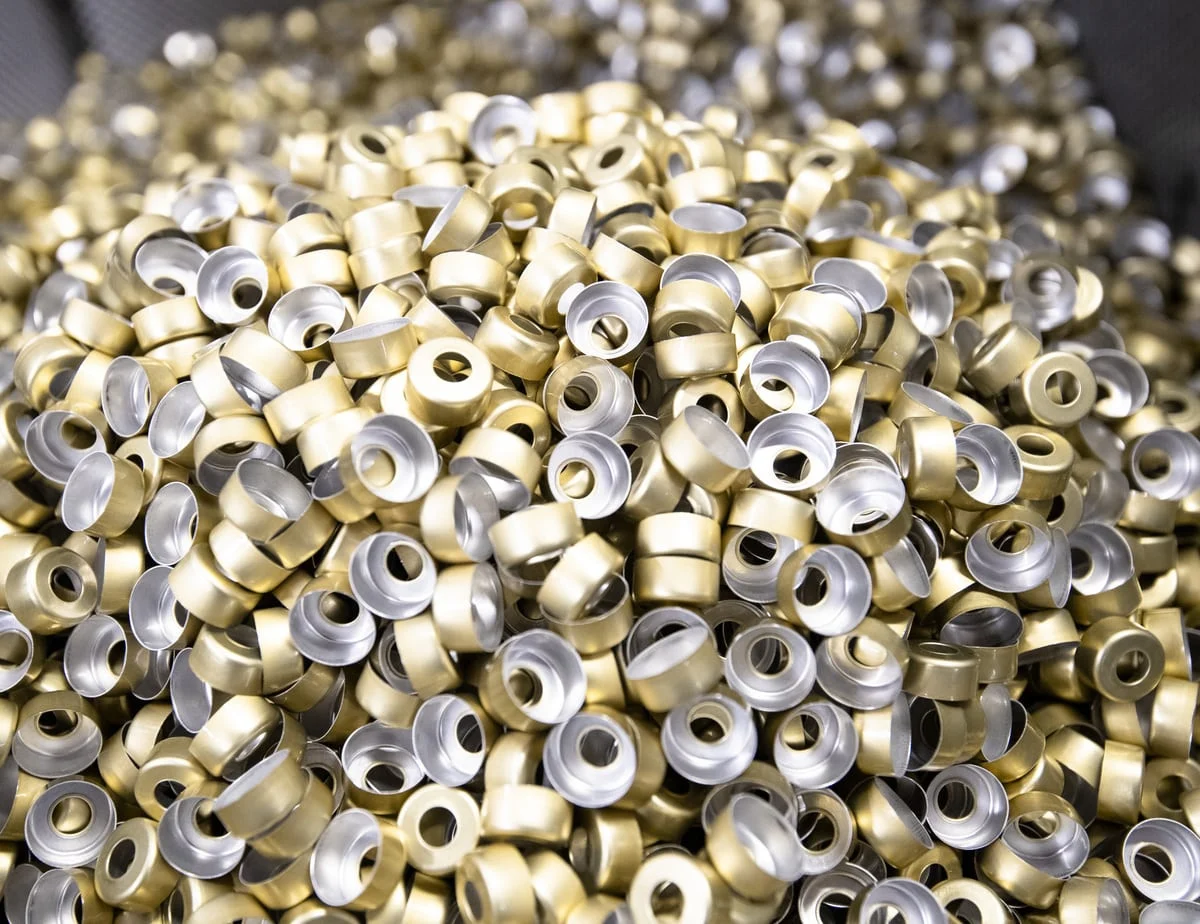

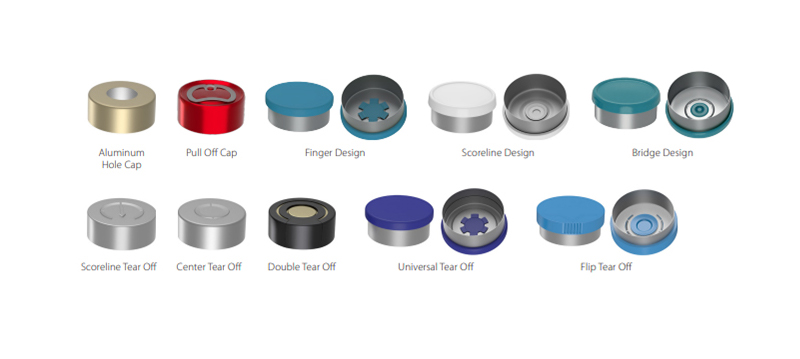

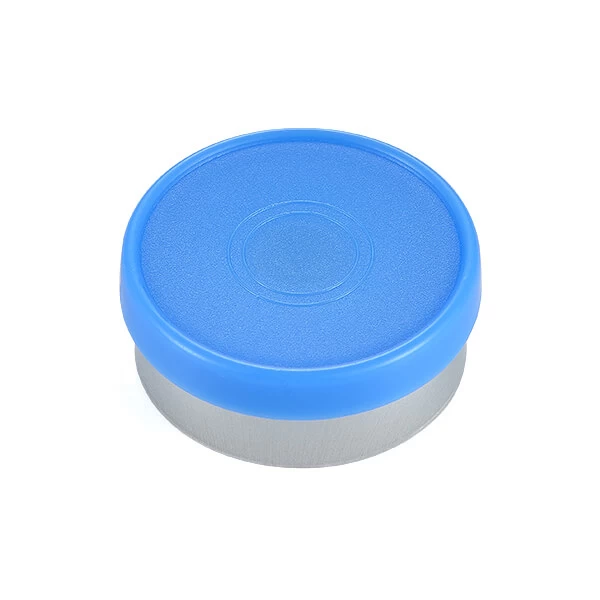

8011 H16 H14 aluminum sheet strip and foil for vial seals
Nowadays aluminum vial cap is normally use 8011 H16/H14 to make it, then lacquered by epoxy clear varnish, or lacquered in different colors, normally in yellow color, golden color, red color, blue color and black color.
- Both sides clear epoxy varnish.
- One side clear epoxy varnish, the other side color coated.
- Golden color /yellow color: both sides coating 5-6g/m2, one side coating 2-3g/m2.
- White/red/black/blue color: Both sides coating 10-13g/m2.

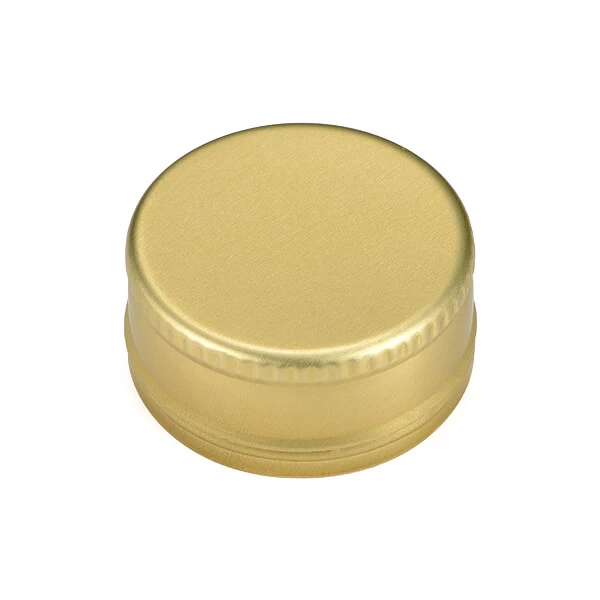

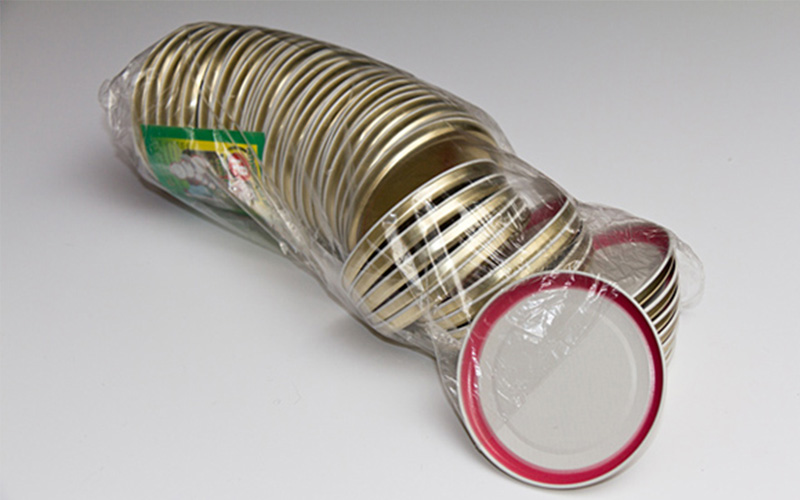

8011 aluminum sheet for omnia twist off lid
The Omnia aluminum cap is relatively shallow, and is generally made of one time annealed 8011 cast rolled aluminum. In order to maintain good seal quality, 8011 aluminum sheet is varnish coated on the inner surface to maintain the perfect combination of the omina cap and the inner plastic pad.
Available Surface types:
- Plain mill finish aluminum sheet for jar cap
- One side golden/white/red/blue/black, etc. other side protective lacquered
- Both sides clear/transparent lacquered

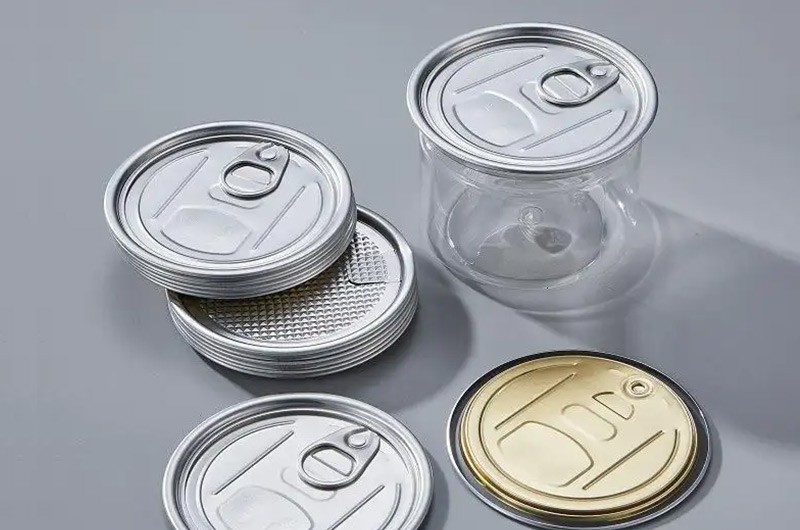

Clear lacquer aluminum sheet for aluminum easy peel off end lid top, is organic coating on both sides, which is ideal materials for dry and non-processed foods.
Clear lacquer aluminum foil sheet coating:
- Both sides clear epoxy varnish;
- One side clear epoxy varnish, the other side color coated.
Clear lacquer aluminum foil sheet coating thickness:
- Golden color /yellow color: both sides coating 5-6g/m2, one side coating 2-3g/m2.
- White/red/black/blue color: Both sides coating 10-13g/m2.
-
Clear lacquer aluminum foil sheet coating quality
Boiling Resistant: Boiling 121 degrees for half an hour, the paint does not fall off, do not change color.Quick Quote
Resistance to acetone and mercuric chloride: repeatedly wiping 20 times without significant stripping
Typical closure application: Aluminum easy open ends, easy open can lid, easy open can parts, aluminum ring pull.
