In LED lighting, optical systems, and high-efficiency energy applications, material reflectivity directly impacts light utilization and overall system performance. Conventional mirror aluminum typically offers 80%–86% reflectivity, which can lead to light loss in high-power or precision optical applications.
Chalco high-reflectivity aluminum sheet uses a PVD vacuum coating process to achieve up to 99% reflectivity, significantly improving light efficiency under the same conditions. With high specular reflectance and stable performance, it is suitable for LED lighting, optical systems, and industrial applications requiring high luminous efficiency.
Product Overview—Specification of Reflective Aluminum Sheet
Base alloy types: High-purity aluminum alloys such as 1050, 1060, 1070, and 1085, as well as aluminum alloys such as 3003 and 5052 that balance strength and machinability.
Reflectivity: V96 (approximately 96% total reflectivity); V98 (up to 99%); UV reflectivity scheme (optimized for the ultraviolet band).
Dimensions: Thickness (0.25 mm – 3.0 mm); Width (100 mm – 1250 mm)
Length and form: rolls, sheets, custom-made
Surface treatment: Multi-layer PVD vacuum coating structure; UV reflective surface treatment (UV ANO)
Processing and Customization: We offer processing methods such as slitting, cutting, length cutting, and lamination, supporting project-based customization needs.
Reflective Aluminum Sheet Product Types
Chalco high-reflectivity aluminum panels offer different grades to suit various application needs, from high-efficiency lighting to optical applications.
- V96 (Standard High Reflectivity): Suitable for general lighting and industrial reflective applications, balancing high reflectivity with cost advantages.
- V98 (Ultra-high Reflectivity): Optical-grade high-reflectivity aluminum with a reflectivity of up to 99%, suitable for high-efficiency and precision optical applications.
- UV reflective aluminum mirrors (UV application solutions): provide a dedicated surface treatment solution (UV ANO) for UV application scenarios, which has higher reflection efficiency in the UV band and maintains long-term stable performance.

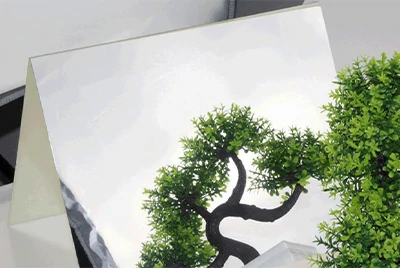

V96 reflective aluminum panel (standard high-reflectivity solution)
Total reflectivity: Up to 96%
Specular reflection: High
Applications: LED lighting, general optical structures
Features: Stable performance, high cost-performance ratio

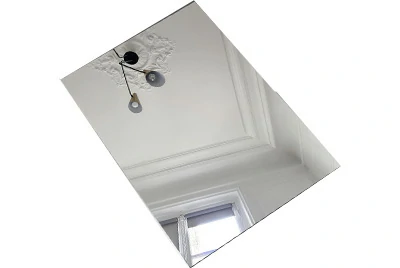

V98 Ultra-High Reflectivity Aluminum Plate (Optical Grade Solution)
Total reflectivity:Up to 99%
Coating structure:Multi-layer PVD coating
Specular reflection:Ultra-high
Features: High efficiency, long-term stability

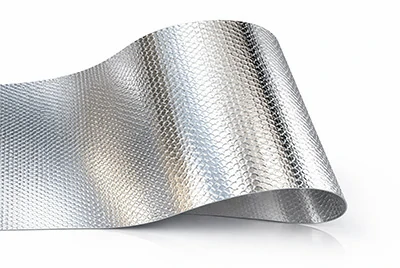

UV-reflective aluminum plate (UV optimized)
UV reflectance: High performance in UV range
Stability: Long-term stable reflectivity
Structure: Multi-layer coating with protective layer
Applications: UV curing, sterilization, medical, photochemical systems
*The appropriate product grade can be selected according to reflectivity requirements and application scenarios, supporting project customization and bulk supply.
Coating Technology & Manufacturing Capability
The performance stability of Chalco's high-reflectivity aluminum panels stems from its mature coating system and mass production capabilities. In high-efficiency lighting and optical applications, materials are required not only to have high reflectivity but also to maintain consistent performance over long-term use and in large-scale supply.
Development of non-silver reflective coating systems
The design employs a non-silver-based reflective coating system to avoid the problems of blackening and performance degradation that occur with traditional silver-plated materials during use.

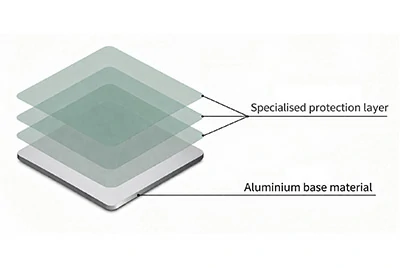

Multi-layer PVD coating structure design
It supports the development and optimization of multi-layer coating structures to achieve a comprehensive improvement in both high reflectivity and specular reflection ratio.
Surface quality and coating uniformity control
improves surface consistency, reduces scattering effects, and ensures stable optical performance through process control.
High reflectivity precision control
allows for control of reflectivity levels during the production process, achieving a stable output of up to 99%.

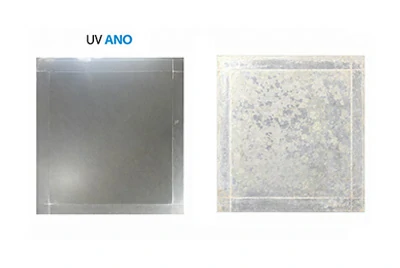

UV band reflection optimization (UV treatment)
is designed to meet the needs of UV applications by optimizing the coating structure to enable the material to have higher reflection efficiency in the UV band and maintain long-term stable performance.
The core advantages of high-reflectivity aluminum plates
- With a reflectivity of up to 99%, it significantly improves light output and reduces light loss under the same light source conditions.
- It has a high specular reflection ratio, which effectively reduces energy loss caused by scattering during the reflection process.
- It maintains stable reflectivity during long-term use, making it suitable for continuous operation and demanding applications, and can meet the stability requirements of ultraviolet application environments.
- It has good corrosion resistance and is not prone to blackening, making it suitable for long-term applications in complex environments and outdoor conditions.

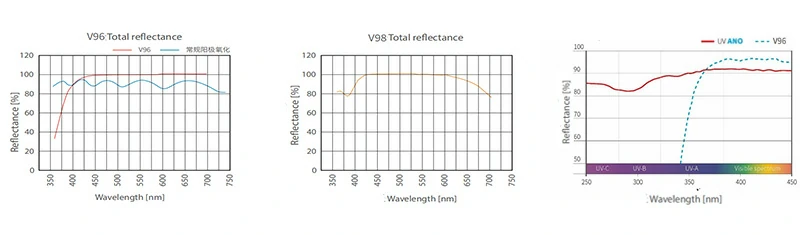

Comparison and parameter description of the reflective performance of high-reflectivity aluminum plates
In lighting and optics applications, the reflective properties of materials directly affect light utilization and system efficiency. Different types of reflective materials exhibit significant differences in total reflectivity, specular reflection ratio, and stability.
Compared to traditional mirror aluminum and anodized materials, high-reflectivity aluminum plates outperform traditional aluminum plates in terms of reflectivity and optical performance, effectively reducing light loss and improving overall light output, making them suitable for applications with higher requirements for efficiency and performance.
| Material type | Total reflectance | Diffuse reflection | Specular reflection | Performance characteristics |
| Ordinary mirror aluminum | 80%–86% | — | medium | Mirror-like appearance, limited reflectivity |
| Anodized mirror aluminum | ≈85% | — | Medium to low | It has good stability, but its reflectivity is somewhat reduced. |
| High reflectivity aluminum (V96) | ≈96% | ≤4% | ≥92% | Improved light efficiency, suitable for general lighting |
| High reflectivity aluminum (V98) | 98–99% | ≤4% | ≥94% | Optical-grade performance, suitable for high-efficiency applications |
Application areas of high reflectivity aluminum plates
Chalco offers high-reflectivity aluminum panel solutions for various application scenarios, combining reflectivity levels, stability, and environmental requirements to achieve material matching and project-based supply, meeting the diverse needs of lighting, optics, and energy systems.

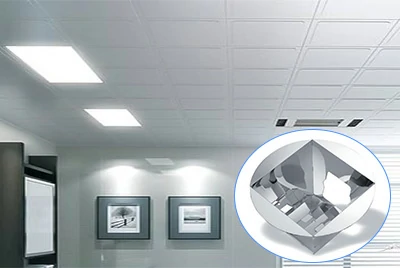

LED lighting system solutions
High-reflectivity aluminum for LED reflectors and optical components, improving light output and reducing loss. Suitable for industrial and commercial lighting with stable supply and material matching.

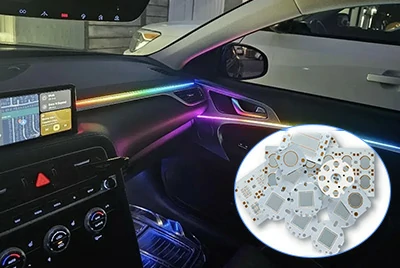

COB Packaging Application Solutions
Optimizes light distribution in COB and high-power LED modules. Reduces internal light loss, improves efficiency, and supports bulk supply with customization based on package structure.

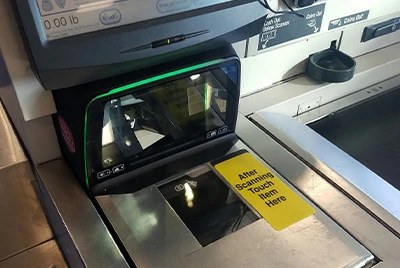

Optical and Precision Equipment Application Support
High-reflective aluminum for optical systems requiring stable reflection paths and low loss. Suitable for light guides, inspection equipment, and precision optical applications.

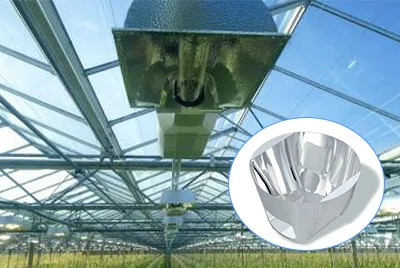

Plant lighting and energy system applications
Improves light utilization and system efficiency in plant lighting and energy systems. Supports different structures with stable supply and project-based matching.

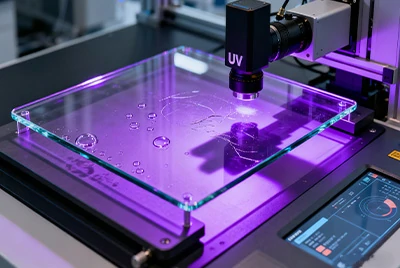

UV reflection applications
Stable high reflectivity in UV range for curing, disinfection, and medical use. Ensures durability under long-term operation with project-based supply support.
FAQ
What is a high-reflectivity aluminum plate? How does it differ from ordinary mirror aluminum?
High-reflectivity aluminum panels are aluminum materials that achieve high reflectivity and a high specular reflection ratio through special surface treatments (such as PVD coating). Compared with ordinary mirror aluminum, they have higher reflection efficiency, lower light loss, and maintain more stable performance over long-term use, making them suitable for high-efficiency lighting and optical applications.
What are the differences between V96 and V98 high-reflectivity aluminum plates?
The main difference between V96 and V98 lies in their reflectivity rating and specular reflection ratio. V96 has a reflectivity of approximately 96%, making it suitable for general lighting and industrial applications; V98 has a reflectivity of up to 99%, offering a higher specular reflection ratio, making it suitable for high-efficiency lighting and precision optical systems.
How to choose the appropriate reflectivity level?
The choice of reflectivity grade depends primarily on application requirements and cost considerations. For general lighting or industrial reflective applications, V96 can meet most needs; for systems with higher requirements for light efficiency, such as high-end lighting or optical equipment, V98 is recommended for higher performance.
Can high-reflectivity aluminum plates be used for ultraviolet (UV) applications?
Yes. For UV applications, Chalco offers dedicated UV reflective surface treatment solutions that offer higher reflectivity in the UV band and maintain stable performance over long-term use, suitable for applications such as UV curing, disinfection, and medical equipment.
What alloys and specifications are available?
Chalco offers high-purity aluminum alloys such as 1050, 1060, 1070, and 1085, as well as alloy materials such as 3003 and 5052. The thickness range is typically 0.25–3.0 mm, and the width is 100–1250 mm. It supports sheet, coil, and custom length processing.
Do you support customized processing and project supply?
Yes. Chalco can provide slitting, cutting, length setting, and lamination services according to project needs, and supports bulk supply and specification customization to meet the needs of different application scenarios.
Ordering and Quotation
Need to confirm reflectivity ratings or find the right specifications? Chalco offers fast quotes and a stable supply of high-reflectivity aluminum panels to meet bulk purchasing and project delivery needs.
- Submit your requirements (specifications, dimensions, quantity, or application scenario).
- Confirm product specifications (reflectivity grade, alloy, and processing method).
- Get a quote and delivery time (price, delivery time and packaging options).
- Confirm order and arrange production and shipment
We welcome your technical inquiries and project collaborations. We will provide you with professional support and stable supply solutions.
