Aluminum Mirror Sheet

What is aluminum mirror sheet?

Mirror aluminum sheet roll refers to the aluminum sheet coil with mirror effect on the surface of the sheet by rolling, polishing and other methods.

The reflectivity of aluminum mirror sheet produced by Chalco can reach more than 86%, and the reflectivity of high reflective mirror aluminum sheet can reach more than 95%.

The surface is free of scratches, easy to clean, and the edge is free of burrs. It can be coated on one or both sides according to the customer's requirements, and can be leveled to a certain length.

aluminum mirror sheet

Common alloys for aluminum mirror sheet coil

The commonly used alloys for mirror aluminum sheet coil include 1000 series, 3000 series and 5000 series aluminum alloy, and some mirror aluminum sheet coil will also use 8000 series aluminum sheet coil such as 8011.

1000 series aluminum mirror sheet coil

1000 series aluminum sheet coil is the most commonly used alloy in mirror aluminum sheet coil, such as 1050, 1070, 1085, etc. The aluminum content can reach more than 99.00%. Because the production process is relatively simple, the price is relatively cheap.

1050/1060/1070 aluminum mirror sheet coil

Thickness(mm): 0.1-3.5

Width(mm): 10-1700

Length(mm): 500-16000

Reflectivity: 80%, 86%, 95%

Temper: O/H12/H14/H16/H18/H24

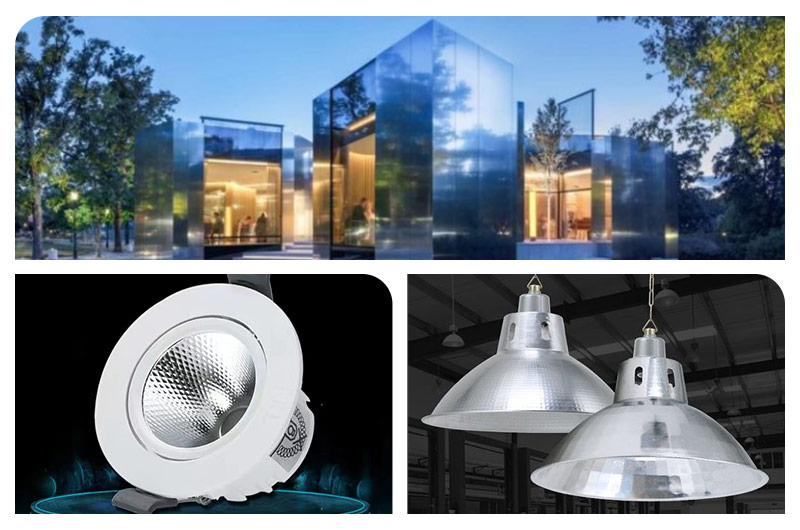

Application: building decoration, lighting fixtures, solar reflective equipment, electronic product shell.

1080/1085/1090 aluminum mirror sheet coil

Thickness: 0.1-1.0mm

Width: 10-1700

Length(mm): 500-16000

Temper: O

Reflectivity: 80%, 86%, 95%

Application: lighting fixtures, solar reflective equipment, special purpose.

application of 1000 series aluminum mirror sheet

3000 series aluminum mirror sheet coil

The 3000 series alloys commonly used for mirror aluminum plate include 3003, 3004, 3005, 3104, 3105. Compared with 1000 series aluminum alloy, 3000 series alloy has high strength and good bending performance. The reflectivity can reach 85%-90%.

3003 aluminum mirror sheet coil

3003 mirror aluminum sheet roll is a common product of aluminum manganese alloy series. Due to the manganese alloy element, this product has excellent anti-rust characteristics.

Thickness(mm): 0.15-10

Width(mm): 10-1700

Length(mm): 500-16000

Temper: O, H12, H14, H18, H19

Total reflectivity: 80%, 86%, 95%

3105 aluminum mirror sheet coil

3105 mirror aluminum sheet and 3003 series high-purity aluminum base ensure that the purity of aluminum is more than 99.8%, the reflectivity of mirror is more than 85%, and the transparency is more than 94%.

Thickness(mm): 0.15-10

Width(mm): 10-1700

Length(mm): 500-16000

Temper: O, H12, H14, H18, H19

Total reflectivity: 80%, 86%, 95%

5000 series aluminum mirror sheet

The common 5000 series mirror aluminum sheet alloys are 5454, 5182, 5183, 5754. The main alloy is magnesium, which has high strength and tensile strength. Widely used in pressure vessels, marine facilities, pipelines, car wheels, tank bodies, etc.

Thickness(mm): 2-8

Width(mm): 1200-2600

Length(mm): 2000-16000

Temper: O, H22, H32, H111, H112

Total reflectivity: 80%, 86%, 95%

Classification of aluminum mirror sheet

According to different surface treatment, mirror aluminum plate can be divided into embossed mirror aluminum sheet coil, anodized mirror aluminum, color coated mirror aluminum, etc.

According to different raw materials, it can be divided into cast-rolled and hot-rolled mirror aluminum. The hot-rolled mirror aluminum sheet has better ductility and bending capacity. But the price of hot-rolled mirror aluminum sheet is slightly higher, the ductility and the bending performance is good, and the subsequent anodizing can be done. Cast-rolled mirror aluminum plate has a high-cost performance ratio. Cast-rolled mirror aluminum plate has a slightly lower price, high strength, and cannot be bent by 90 degrees.

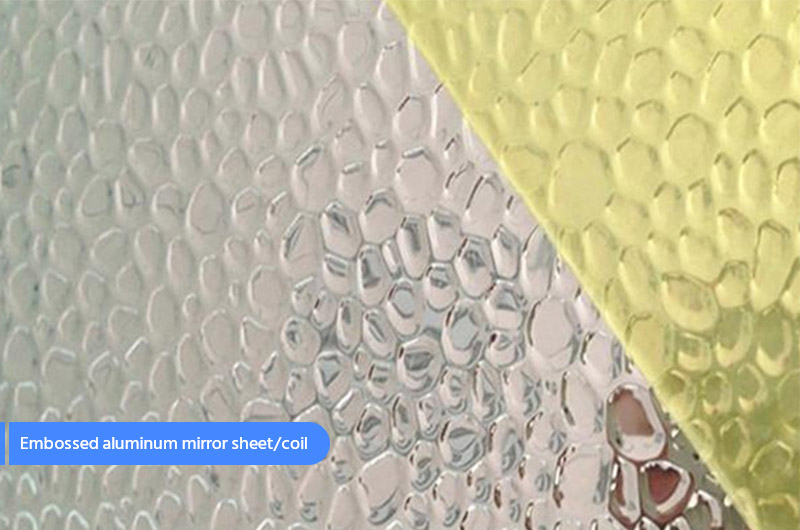

Embossed aluminum mirror sheet/coil

Embossed aluminum mirror sheet/coil is aluminum mirror sheet with concave and convex patterns. It can increase the surface area of the aluminum plate and play a good heat dissipation effect. At the same time, the strength of the aluminum mirror sheet will also increase after embossing.

embossed aluminum mirror sheet

Chalco can provide orange peel embossed aluminum mirror sheet, spherical pattern embossed aluminum mirror sheet, diamond pattern embossed aluminum mirror sheet, pebble embossed aluminum mirror plate and five-rib embossed aluminum mirror plate, etc. The thickness specifications are complete, and customized sizes are available.

Orange peel embossed aluminum mirror sheet

Alloy: 1050, 1060, 3003, 3105

Thickness: 0.01-3.0(mm)

Width: 800-1220(mm)

Spherical embossed aluminum mirror sheet

Alloy: 1050, 1060, 3003, 3105

Thickness: 0.1-1.0(mm)

Width: 800-1220(mm)

Diamond embossed aluminum mirror sheet

Alloy: 1050, 1060, 3003, 3105

Thickness: 0.1-2.0(mm)

Width: 800-1220(mm)

Five ribs embossed aluminum mirror sheet

Alloy: 1050, 1060, 3003, 3105, 5182, 5183

Thickness: 0.9-8.0(mm)

Width: 800-1220(mm)

Cobble embossed aluminum mirror sheet

Alloy: 1050, 1060, 3003, 3105

Thickness: 0.1-3.0mm

Width: 800-1200mm

Characteristics: single-sided film with no scratch; stable mirror effect; reflective rate can be more than 86%.

Application: lamp lighting, reflector shade, etc.

Anodized aluminum mirror sheet

Anodized aluminum mirror sheet/coil refers to the non-oxidized aluminum mirror sheet/coil which has been anodized to produce a dense and insulating oxide film on its surface, making it more durable. The surface can be colored according to customer requirements.

anodized aluminum mirror sheet

Reflectivity: more than 86%

Diffuse reflectance: ≤ 12%

Thickness tolerance (mm):

a:(0.2-0.5) ±0.03

b: (0.6–0.8) ±0.04

The standard 5% NaCl salt spray test lasts more than 167 hours.

Color: oxidized natural color (silver), black, purple, red, blue, gray, copper, green and other colors. Chalco can mix colors according to customer samples.

Characteristic: the surface is clean without paint, with high hardness, good scratch resistance, corrosion resistance, no stain marks, and easy to clean.

Application: lighting reflector and lamp decoration, solar heat collection and reflective materials, interior building decoration, exterior wall decoration, household appliance panel, electronic product shell, furniture kitchen, interior and exterior decoration of automobile, signs, signs, bags, jewelry boxes and other fields.

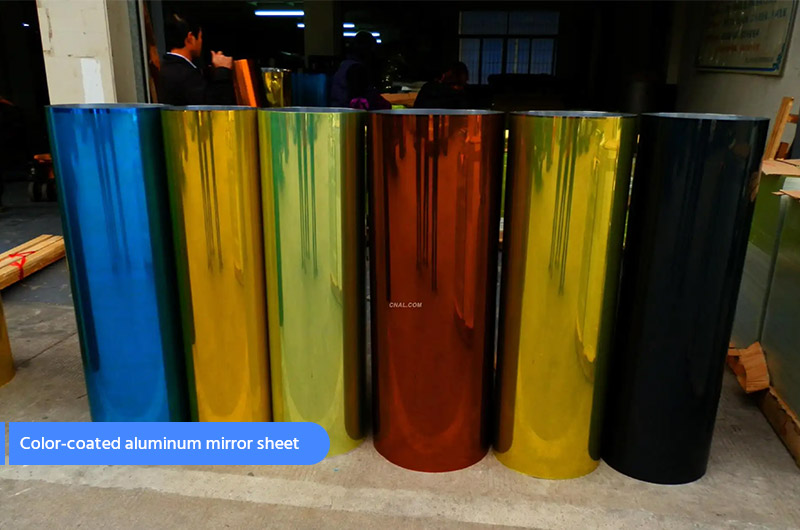

Color-coated aluminum mirror sheet

Chalco color-coated aluminum mirror sheet has bright color, is not easy to fade, and is of excellent quality, bringing customers a new choice of decorative materials. It is widely used in many fields such as aluminum plastic composite plate (acp), signs, indoor and outdoor decoration and jewelry box packaging.

color-coated aluminum mirror sheet

The color of Chalco aluminum mirror sheet can be divided into two categories: basic color and metal color.

Basic colors include gold mirror aluminum plate, silver mirror aluminum plate, blue mirror aluminum plate and black mirror aluminum plate.

Metallic colors include champagne gold, sapphire blue, violet, rose red, girl pink, bronze, and brown.

In addition, we can also mix new colors according to the requirements of decoration customers.

Thickness(mm): 0.2-0.5

Width(mm): 1000-1500

Reflective rate: 85%-87%

Application: indoor and outdoor decorative, jewelry box

Packaging: vertical moisture-proof packaging

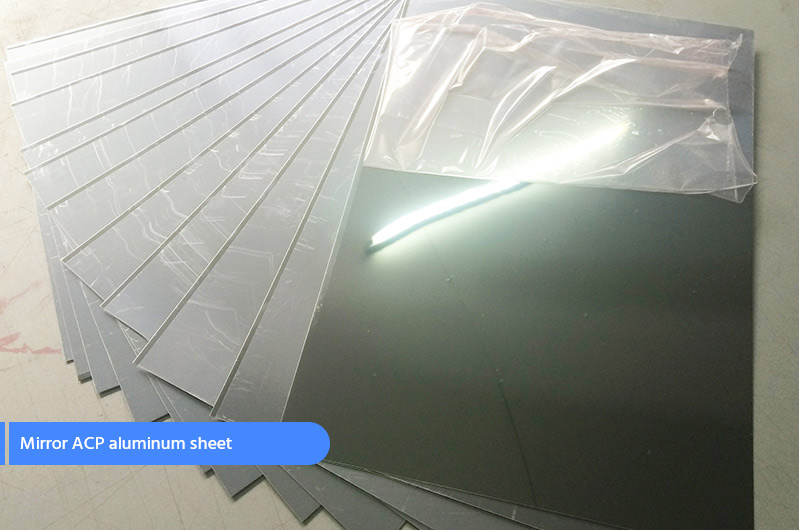

Mirror ACP aluminum sheet

The ACP panel consists of multiple layers of material. The upper and lower layers are color-coated mirror aluminum alloy sheets, the middle is non-toxic low density polyethylene (PE) core sheet, and the front is pasted with a protective film. For outdoor, the front surface of ACP panel can be coated with fluorocarbon resin (PVDF) coating to ensure that the paint will last for 15 years. For indoor, the front surface can be coated with PE.

Mirror ACP aluminum sheet

1. PVDF coated aluminum ACP: at least two layers of coating, fluorocarbon content more than 70%, and one layer of paint and one layer of primer shall be scraped off the surface. Measure with a film thickness gauge, >0.025 mm. Rub with butanone for 200 times.

2. PE coated aluminum ACP: film thickness tester>0.016 mm, wipe with butanone for 100 times.

Alloy: 1100H18

Width: 1220mm-1500mm,

Thickness: 0.18-0.25mm,

Features: good flatness and coating, suitable for ACP plate manufacturing.

Alloy: 1050, 1085, 5052

Temper: H18, H26

Width: 30mm-1380mm

Thickness: 0.18mm-1.0mm

Characteristics: sturdy and durable, smooth and flat, fireproof and non-toxic, sound insulation and shock resistance, simple processing, uniform color, easy maintenance, heat resistance and durability, light weight, impact resistance, salt fog resistance, pollution resistance, etc.

Application: interior and exterior curtain wall panels, ceiling panels, roof, column decoration and renovation of old buildings, and can also be used for indoor ceilings, elevators, road tunnel wall panels, advertising signs, display stands, bus waiting stations, parking booths, corridor tops, etc.

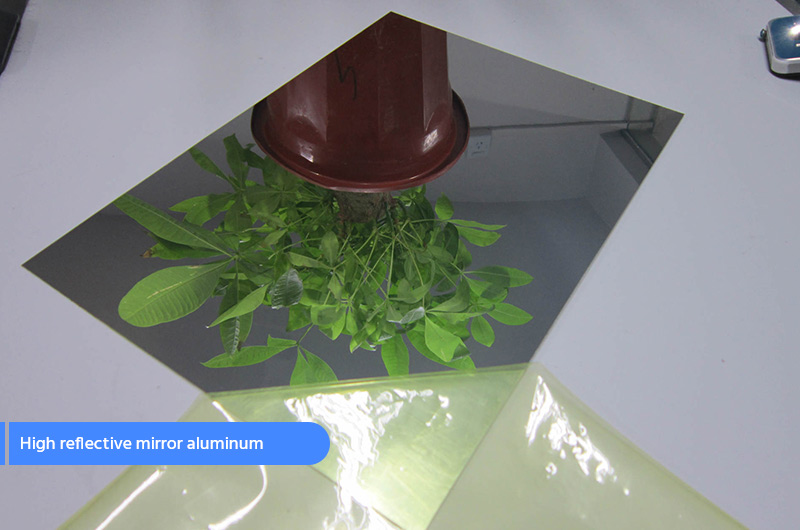

High reflective mirror aluminum

Usually, the reflectivity of high reflective mirror aluminum sheet can reach more than 95%. This kind of mirror aluminum adopts anodic aluminum oxide as the base material, through the vacuum magnetron sputtering process, and applies the German continuous roll-to-roll vacuum coating equipment. Based on the technology of electronic evaporation of aluminum, a layer of metal aluminum is coated on it as a reflective layer, and then titanium dioxide and silicon dioxide protective layer are coated on it to form a highly reflective mirror aluminum material with a reflectivity of 95% ± 1%.

high reflective mirror aluminum

Process: vacuum magnetron sputtering process

Width: ≤ 1250mm

Thickness: 0.3mm-1.0mm

Packaging and transportation: packaged in rolls to facilitate transportation. The mirror surface is covered with plastic film to protect the mirror surface from damage.

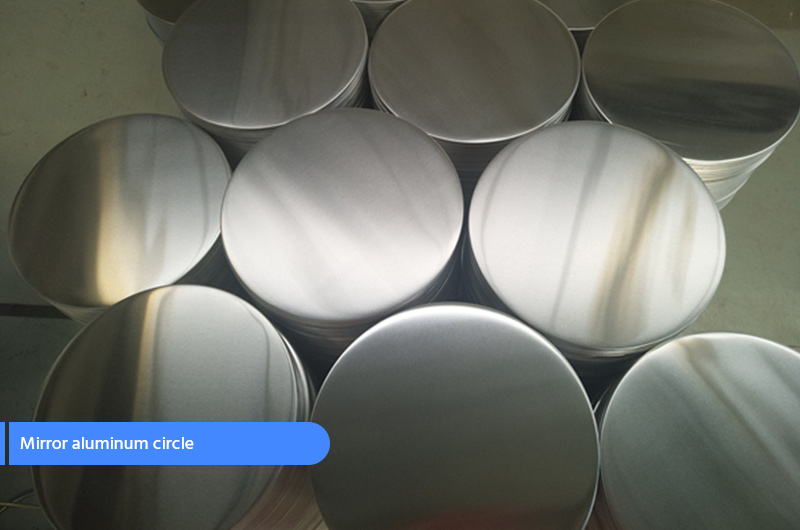

Mirror aluminum circle

Color-coated aluminum mirror circle is suitable for lamps, aluminum ceiling, integrated ceiling, nameplate, elevator and mirror aluminum plate used for interior decoration. Chalco can provide customized services with complete thickness specifications.

mirror aluminum circle

The thickness of the mirror aluminum circle produced by Chalco is between 0.3-1.0 mm. The reflectivity of gold/silver mirror aluminum sheet can reach 86%. It is widely used in cooker covers of kitchenware, household appliance panels, etc. The surface is shiny, improving the metal sense of the product, enriching the visual level of the product, and improving the product grade and added value.

Alloy: 1100, 1060

Temper: H0, H18, H24

Width: 0.3-1.0mm

Maximum diameter: 1000mm

Thickness tolerance: +/-0.2mm

Treatment process: color coated mirror

Surface: can be coated on one side or both sides

Application: kitchenware cover, household appliance panel, parts and accessories, etc.

Processing technology of aluminum mirror sheet

Chalco specializes in the production of polished aluminum mirror sheet coil. The surface polishing process of aluminum plate includes three kinds mechanical polishing, electrolytic polishing and chemical polishing.

Polished aluminum mirror sheet coil usually needs chemical polishing, electrolytic polishing or mechanical polishing to make the aluminum mirror sheet surface brighter after sandblasting.

Mechanical polishing

Mechanical polishing refers to the mechanical processing process of improving the surface smoothness of metal products by means of grinding between the polishing wheel coated with polishing paste and the grinding stone of parts.

Chemical polishing

The chemical polishing equipment is simple, power-saving, efficient, and low-cost, which eliminates the cumbersome steps of hanging, and is not limited by the shape and size of the parts. Especially when mechanical polishing cannot be carried out for parts with small size and complex shape, chemical polishing can obtain uniform and bright surface.

Electrolytic polishing

Electrolytic polishing uses a DC power supply with a voltage of about 25-30V. The workpiece to be polished must be placed on the anode and have good conductivity.

Common problems of aluminum mirror sheet

Simple discrimination test of aluminum mirror sheet

The aluminum mirror sheet will not be scratched easily.

Fingerprints can't be left easily on the aluminum mirror sheet.

The mirror aluminum plate is bent without cracks.

How to polish into aluminum mirror sheet

Mechanical polishing steps in industrial field

Rough grinding, fine grinding, polishing, polishing, sandblasting, brushing or rolling, etc., different processes shall be adopted according to the roughness of the surface.

Electrochemical polishing steps in industrial field

First, the aluminum profile is mechanically polished. Then the aluminum profile is polished by chemical polishing and electrochemical polishing with phosphoric acid, nitric acid and sulfuric acid mixture.

Polishing steps in civil field

Prepare sodium nitrate aqueous solution, and then prepare a diamond grinding wheel. First, use coarse sanding paper and polishing paste to polish. Then polish it with fine polishing paste, wipe off the remaining polishing paste with glasses cloth, and clean the metal surface with clean glasses cloth.

Note that the original coarse sanding marks should be polished with coarse sanding paper and polishing paste before using fine polishing paste. In this way, manual polishing is completed, and the polished metal surface is smooth and bright.

Why choose Chalco

Chalco has mirror aluminum coils prepared by rolling technology. Mirror aluminum sheet roll is just a general term, which is classified according to the high, medium and low specular reflectance of the sheet surface. It can also be divided into 80% reflectivity mirror aluminum plate, 85% reflectivity mirror aluminum plate, 89% reflectivity mirror aluminum plate, and 95% ultra-high reflectivity mirror aluminum plate.

Chalco has more than 20 years of production experience in the mirror anodized aluminum sheet industry. The company specializes in the production of mirror anodized aluminum sheet, and is one of the only manufacturers in the world with continuous coil mirror anodizing production lines. It has the following advantages:

1. The reflectivity of Chalco hot-rolled mirror aluminum sheet is 7% - 10% higher than that of polished mirror aluminum sheet.

2. The hot-rolled mirror aluminum plate solves the problem that the traditional domestic mirror aluminum cannot be anodized. There is no wax spot on the surface, which can be directly processed for screen printing and heat transfer printing.

3. The hot-rolled mirror aluminum is produced by fully automatic equipment. Compared with the traditional semi-automatic production method of domestic mirror aluminum, the production capacity is increased by 10% and the quality consistency is 90%, thus reducing the cost by 30%.
