Why choose Chalco aluminum rivets wire?
Authentication
Chalco supplies aluminum wire for rivet production, supported by quality and environmental management systems, including ISO and IATF16949 certifications as applicable.
Production strength
Production and management in accordance with the international power quality system to ensure a long service life.
Production standard
GB/T 3195
The specification of aluminum rivets wire
| 3003 aluminum rivets wire | |
| Size | 3.0-10.0mm |
| Temper | H14 |
| Size Tolerance | ±0.02mm |
| Weight Coil | Above 50KGs |
| Function | Automotive brake rivets |
| 3004/3A12 aluminum rivets wire | |
| Size | 3.0-10.0mm |
| Temper | H14 |
| Size Tolerance | ±0.02mm |
| Weight Coil | Above 50KGs |
| Function | Automotive brake rivets |
For projects specifying 3A21, refer to the dedicated 3A21 aluminum rivet wire page for its H14 wire specifications and riveting properties. The current tables list 3003 and 3004/3A12, so 3A21 requirements must be confirmed separately rather than inferred from the 3A12 column.
Chemical component of Chalco aluminum rivets wire
| Element | Composition % | |
| 3003 | 3004/3A12 | |
| Al | Rest | Rest |
| Mn | 1.0-1.5 | 1.0-1.5 |
| Fe | 0.7 | 0.7 |
| Cu | 0.05-0.2 | 0.25 |
| Si | 0.6 | 0.3 |
| Zn | 0.1 | 0.25 |
| Mg | 0.8-1.3 | |
| Other (individual impurities) | 0.05 | 0.05 |
| Other (total impurities) | 0.15 | 0.15 |
Advantages of Chalco aluminum rivets wire
Within Chalco's aluminum wire for rivets and fasteners range, 3003 and 3004 are 3xxx-series options used for selected rivet applications. Their forming, surface and material-condition requirements should be confirmed for the intended rivet type:
Good machinability: 3xxx aluminum rivet wire supports cold working and forming for selected solid and semi-tubular rivet designs. The suitability of aluminum cold forging depends on wire condition, rivet geometry and tooling.
Good corrosion resistance: Manganese-containing 3xxx aluminum alloys provide corrosion resistance for selected service conditions. For other rivet-wire material options where exposure conditions and forming needs differ, see 5000 series aluminum rivet wire; suitability depends on the application and specified temper.
Medium strength: 3xxx-series rivet wire generally emphasizes formability and practical strength for the specified connection. Confirm the required mechanical and riveting properties rather than assuming it is stronger than 2xxx-series materials.
Excellent weldability: since the manufacturing process of rivets often involves welding, the excellent weldability of Series 3 aluminum alloys makes the manufacturing process easier and more efficient.
Suitable for cold forming: the manufacture of rivets often involves cold forming, and the good cold forming properties of Series 3 aluminum alloys make the manufacturing process more flexible and controllable.
Related Rivet Wire Materials
Precautions for purchasing aluminum rivets wire
Material certification
Ensure that the purchased aluminum rivets wire meets relevant standards and obtains a qualified material certification certificate.
Specification requirements
Select the alloy, temper, wire diameter, coil weight and tolerance according to the rivet design and forming process; verify the intended alloy against the purchase specification.
Surface quality
Check whether the surface of the purchased aluminum rivets wire is smooth, free of cracks, wear, oxidation or other surface defects, to ensure that the surface quality of the aluminum rivets wire meets the requirements.
Supplier reputation
Choose a reputable and experienced supplier to purchase to ensure that the purchased aluminum rivets wire is reliable in quality, reasonable in price and timely in delivery.
Storage requirements
Pay attention to the storage requirements of the aluminum rivets wire, keep it dry, avoid moisture, mechanical impact or other damage.
In short, when purchasing aluminum rivets wire, you need to pay attention to material certification, specification requirements, surface quality, supplier reputation and storage requirements, etc., to ensure that the purchased aluminum rivets wire are reliable in quality and meet the requirements.

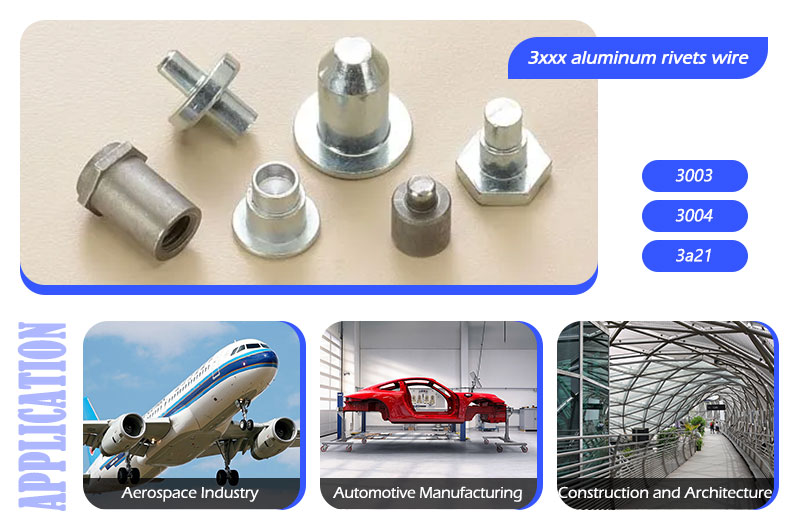

Applications of Chalco aluminum rivets wire
Aluminum alloy wire for rivets (Series 3) has a wide range of applications in industry, primarily for the manufacture of various types of rivets. A rivet is a fastener used to join two or more workpieces, usually by inserting one end of the rivet into a hole in the workpiece and then expanding it at the other end to form a permanent connection.
Below are some of the major applications of aluminum alloy wire for Series 3 rivets:
Automotive manufacturing: rivets play an important role in automotive manufacturing. They are used to join automobile body and chassis parts such as doors, hoods, trunk lids, etc. As automobile manufacturing requires a large number of fasteners, the use of rivets improves productivity and reduces costs.
Aerospace industry: there is a high demand for lightweight materials in the aerospace sector, as weight reduction can improve fuel efficiency and performance. the lightweight nature of aluminum alloy wire for Series 3 rivets makes it ideal for aerospace applications, used in the manufacture of aircraft structures and components.
Transportation industry: in addition to automotive and aerospace, rivets are used in other transportation industries. For example, they are used to manufacture components for transportation such as trains, ships and motorcycles.
Construction and architecture: rivets are also widely used in construction and architecture for joining metal structures, erecting frames and supporting structures, etc.
Electronics: in the electronics industry, rivets are used to fasten parts of electronic devices, such as cell phones, computers and household appliances.
