The 1035 aluminum wire rod is a high-formability grade within the 1000 series aluminum wire for fasteners, used in light-duty aluminum rivet and fastener wire applications. Its plasticity, corrosion resistance, conductivity and thermal conductivity support forming, bending and drawing. The material can be made into semi-hollow rivets for clothing, footwear and similar low-load products.
Why choose Chalco 1035 aluminum wire rod for rivets?
Chalco Aluminum is a company that integrates precision detection of precision testing such as melting, squeezing, and refined aluminum manufacturing.
Chalco supplies 1035 wire rod for fastener production, with alloy, temper and diameter requirements confirmed against the rivet design. The broader aluminum wire product range supports selection by grade, wire form and supply specification.
We have a whole set of domestic advanced rivets in China to develop, detect, and analyze instruments to provide guarantees for the development efficiency of new products and accelerate the transformation of scientific and technological achievements. In addition, our R & D & innovation and verification capabilities can help enhance the competitiveness of customers by saving the time and costs of new product development and marketing.
We have passed the AS9100 certification required by the aviation industry, the IATF16949 certification required by the automotive industry, etc., provides a strong guarantee for the quality of the aluminum alloy pole of the rivet for rivets produced by our company.
Chalco's brand represents quality, delivery ability and good reputation. With leading technology and global competitive products, we can continue to develop with customers in the future.
The specifications of 1035 aluminum wire rod for fasteners
H14 and H18 are different cold-worked tempers; the appropriate choice depends on the forming route and final rivet requirements. Aluminum alloy temper should be specified together with the wire diameter when preparing the purchase specification.
| Type | Alloy | Temper | Diameter mm |
| Fastener aluminum wire rod | 1035 | H18 | 1.60-3.00 |
| H14 | 3.00-10.00 |
The chemical composition of the 1035 aluminum wire for rivets using
| Element | Composition % |
| Si | 0.35 |
| Fe | 0.60 |
| Cu | 0.10 |
| Mn | 0.05 |
| Mg | 0.05 |
| Cr | --- |
| Zn | 0.10 |
| V | 0.05 |
| Ti | 0.03 |
| Al | Remainder |
The shear strength and riveting properties of 1035 aluminum wire for fasteners using
Shear strength and riveting test results should be checked alongside the specified temper and diameter. The relevant metal mechanical properties provides a basis for comparing strength and ductility requirements without treating these values as interchangeable.
| Alloy | Temper | Sample Temper | Diameter mm | Shear strength τ Mpa | Riveting property | |
| Protrusion height of sample ratio to diameter | Riveting test time | |||||
| 1035 | H14 | H14 | 3.0-20.0 | ≥60 | --- | --- |
The dimension tolerance of 1035 aluminum rod for rivet
The wire diameter tolerance governs feed consistency and the starting blank size; finished fastener fits must be checked separately. The fit and tolerance calculator is useful when converting drawing dimensions into assembly requirements.
| Diameter | Tolerance allowed | |||
| Grade A | Grade B | Grade C | Grade D | |
| ≤1.6 |
+0.000 -0.015 |
+0.015 -0.015 |
±0.015 |
+0.00 -0.04 |
| ＞1.6-4.0 |
+0.000 -0.025 |
+0.025 -0.015 |
±0.025 |
+0.00 -0.05 |
| ＞4.0-6.0 |
+0.000 -0.030 |
+0.025 -0.025 |
±0.040 |
+0.00 -0.08 |
| ＞6.0-10.0 |
+0.000 -0.040 |
+0.050 -0.025 |
±0.060 |
+0.00 -0.12 |
The appearance quality of 1035 aluminium wires for rivets
| Defect name | Technical requirement |
| Fastener aluminum wire | |
| Cracks, burrs, peeling, air bubbles, bumps, dents, scratches, triangular mouths, metal press-in, non-metal press-in and surface corrosion | Not allowed |
| Scuffs, scratches, bumps | Allowable depth does not exceed half of the negative deviation value |
| Oil spots | Allowed |
Characteristics of 1035 aluminum rod and wire for rivets
Having high plasticity: 1035 aluminum rivet wire is suitable for forming light-duty fasteners. In aluminum cold forging and heading, blank geometry, temper and surface condition affect how the material fills the forming die.
Good corrosion resistance: 1035 aluminum wire for fasteners using have good corrosion resistance, making it more durable in humid and corrosive environments.
Good conductivity thermal performance: the 1035 Aluminum rod for rivet has the characteristics of good thermal thermal thermal performance. It can quickly transmit heat and help maintain the temperature of the component or equipment in applications that need heat dissipation.
Small density: 1035 aluminum rods for rivets have the characteristics of low density, which means that its quality is relatively light, which can not only provide reliable connections, but also reduce the weight of the overall structure and meet the performance, durability and efficiency of different industries. Require
Relatively lighter weight: 1035 Aluminium wires for rivets have a relatively light weight, which is particularly beneficial for applications that need to reduce the overall weight.
Key points for buying 1035 aluminium wire for rivet
Material quality: make sure the purchased aluminum pole is good. High -quality aluminum poles should be pure aluminum materials, without obvious impurities or defects.
Specification size: according to the size of the 1035 rivets you need, select the suitable aluminum pole specification. Ensure that the diameter and length of the aluminum poles can meet your requirements.
Strength requirements: 1035 is intended for light-duty forming applications. Rivets needing different strength or production routes may require 3000 series aluminum rivet wire or 6000 series aluminum rivet wire after confirming the actual rivet design and forming process.
Corrosion resistance: if the fastener will be exposed to humid or corrosive environments, compare the required surface condition and mechanical properties with 5000 series aluminum rivet wire rather than assuming 1035 suits every exposure.
Manufacturer's reputation: choose a good reputation of manufacturers or suppliers to ensure that the purchased aluminum rods are products that meet the standards and are inspected by quality.
Price: compared with the price of different suppliers to ensure that the aluminum poles you buy are within a reasonable range and are consistent with its quality.
Uses: the light-load semi-hollow rivet application of 1035 differs from higher-strength rivet specifications. The 2000 series aluminum rivet wire, including materials selected for demanding fastening requirements, should be assessed separately for formability, strength and processing conditions.
The packaging method of the 1035 aluminum wire rod for rivets
- Double fiber cloth packing
- Wooden Box Packing
- Eye to Sky Wooden Pallet Packing
Application of 1035 aluminum wire for fasteners
1035 Aluminum wire rod for rivets produced by Chalco Aluminum for aluminum poles for 1035 rivets. The product tolerance is very rigorous. The specifications cover 1.6-10.0mm. The weight of a single volume can be produced according to customer requirements.

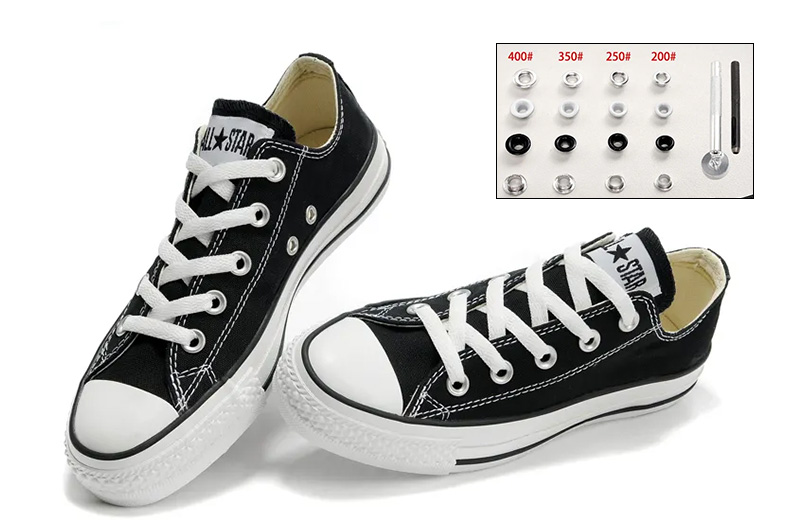

The 1035 aluminum wire for fasteners is used to produce various types of fasteners, especially the semi-hollow rivets, which is mainly used for rivet occasions with small loads,they are usually used in industries such as clothing, shoes, etc industries.
