5A05 aluminum plate is an Al-Mg series rust-proof aluminum alloy. This alloy has a high magnesium content and low strength, similar to 5A03 alloy. Mainly used for medium load parts, such as fuel tanks, gasoline or lubricating oil pipes, various liquid containers, etc.

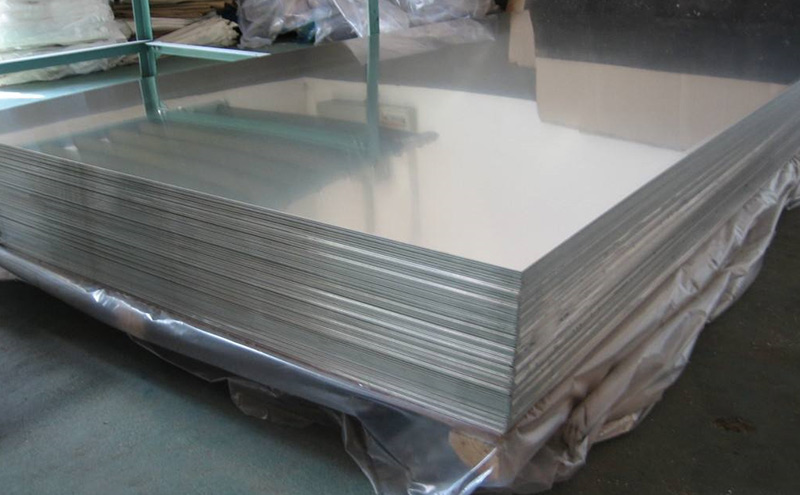

Chalco 5A05 aluminum plate stock
Chalco is a well-known 5A05 aluminum plate manufacturer in China. The aluminum products in stock have fast delivery and can be customized in various sizes.
| Product | Width(in) | Length(in) |
| 0.197" 5A05-H112 Aluminum Sheet | 59.055" | 118.11" |
| 0.236" 5A05-H112 Aluminum Sheet | 59.055" | 118.11" |
| 0.315" 5A05-H112 Aluminum Sheet | 59.055" | 118.11" |
| 0.394" 5A05-H112 Aluminum Sheet | 59.055" | 118.11" |
| 0.472" 5A05-H112 Aluminum Sheet | 47.244" | 78.74" |
| 0.472" 5A05-H112 Aluminum Sheet | 59.055" | 118.11" |
| 0.551" 5A05-H112 Aluminum Sheet | 59.055" | 118.11" |
| 0.591" 5A05-H112 Aluminum Sheet | 59.055" | 118.11" |
| 0.63" 5A05-H112 Aluminum Sheet | 59.055" | 118.11" |
| 0.709" 5A05-H112 Aluminum Sheet | 59.055" | 118.11" |
| 0.787" 5A05-H112 Aluminum Sheet | 59.055" | 118.11" |
| 0.866" 5A05-H112 Aluminum Sheet | 59.055" | 118.11" |
| 1.181" 5A05-H112 Aluminum Sheet | 59.055" | 118.11" |
| 1.378" 5A05-H112 Aluminum Sheet | 59.055" | 118.11" |
| 1.575" 5A05-H112 Aluminum Sheet | 59.055" | 118.11" |
| 1.772" 5A05-H112 Aluminum Sheet | 59.055" | 118.11" |
| 1.969" 5A05-H112 Aluminum Sheet | 59.055" | 118.11" |
| 2.165" 5A05-H112 Aluminum Sheet | 59.055" | 118.11" |
| 2.362" 5A05-H112 Aluminum Sheet | 59.055" | 118.11" |
| 2.559" 5A05-H112 Aluminum Sheet | 59.055" | 118.11" |
| 2.756" 5A05-H112 Aluminum Sheet | 59.055" | 118.11" |
| 2.953" 5A05-H112 Aluminum Sheet | 59.055" | 118.11" |
| 3.15" 5A05-H112 Aluminum Sheet | 59.055" | 118.11" |
| 3.346" 5A05-H112 Aluminum Sheet | 59.055" | 118.11" |
| 3.543" 5A05-H112 Aluminum Sheet | 59.055" | 118.11" |
| 3.74" 5A05-H112 Aluminum Sheet | 59.055" | 118.11" |
| 3.937" 5A05-H112 Aluminum Sheet | 59.055" | 118.11" |
| 4.331" 5A05-H112 Aluminum Sheet | 59.055" | 118.11" |
| 4.724" 5A05-H112 Aluminum Sheet | 59.055" | 118.11" |
| 5.118" 5A05-H112 Aluminum Sheet | 59.055" | 118.11" |
| 5.512" 5A05-H112 Aluminum Sheet | 59.055" | 118.11" |
| 5.906" 5A05-H112 Aluminum Sheet | 59.055" | 118.11" |
| 6.299" 5A05-H112 Aluminum Sheet | 59.055" | 118.11" |
| 0.039" 5A05-O Aluminum Sheet | 49.213" | 98.425" |
| 0.039" 5A05-O Aluminum Sheet | 59.055" | 118.11" |
| 0.047" 5A05-O Aluminum Sheet | 59.055" | 118.11" |
| 0.059" 5A05-O Aluminum Sheet | 49.213" | 98.425" |
| 0.079" 5A05-O Aluminum Sheet | 49.213" | 98.425" |
| 0.098" 5A05-O Aluminum Sheet | 49.213" | 98.425" |
| 0.098" 5A05-O Aluminum Sheet | 59.055" | 118.11" |
| 0.118" 5A05-O Aluminum Sheet | 49.213" | 98.425" |
| 0.157" 5A05-O Aluminum Sheet | 49.213" | 98.425" |
| 0.157" 5A05-O Aluminum Sheet | 59.055" | 118.11" |
| 0.197" 5A05-O Aluminum Sheet | 59.055" | 118.11" |
| 0.236" 5A05-O Aluminum Sheet | 49.213" | 98.425" |
5A05 aluminum plate mechanical properties
| Temper | O | H112 |
| Tensile Strength ( Rm/Mpa) | 275 | 255-275 |
| Yield Strength(Rp0.2/MPa) | 145 | 105-125 |
| Elongation(％) | 16 | 13-16 |
5A05 aluminum plate mechanical properties
Since 5A05 aluminum plate also belongs to the 5 series alloy, its main characteristics are low density, high tensile strength and high elongation. Under the same area, the weight of aluminum-magnesium alloy is lower than that of other series.
- High strength, especially fatigue resistance.
- High corrosion resistance and cannot be strengthened by heat treatment.
- It has good plasticity during semi-cold work hardening and low plasticity during cold work hardening. It has good weldability and can be polished.
- It belongs to the hot-rolled aluminum plate series, so it can be deeply oxidized.
- The machinability of 5A05 aluminum is relatively poor. If you want to process without deformation, you can choose 5052 aluminum plate, 5083 aluminum plate, 5A06 aluminum plate, 5056 aluminum plate, etc.

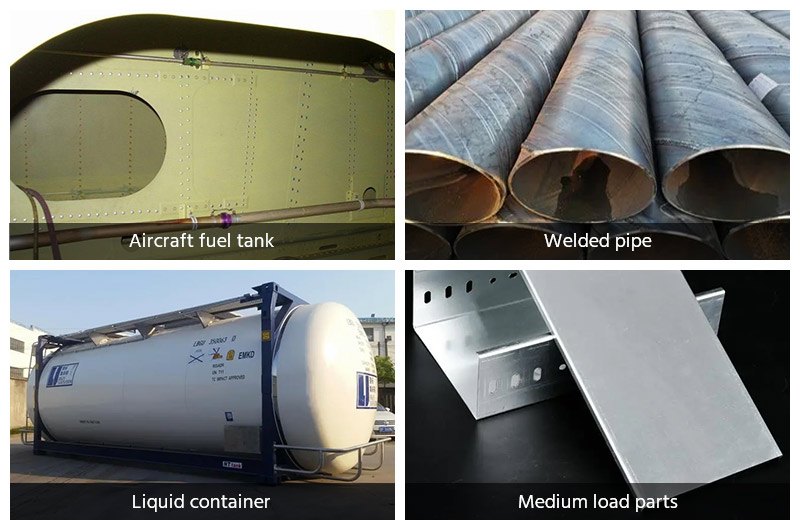

Application of 5A05 aluminum plate
- Aircraft fuel tank
- Welded pipe
- Other liquid containers
- Medium load parts with high plasticity and corrosion resistance

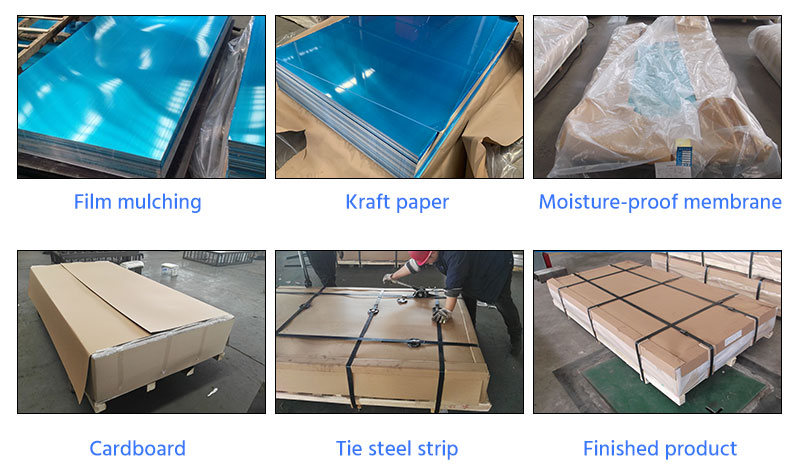

5A05 aluminum plate packaging
Standard export packaging, which can be covered with plastic film or kraft paper according to customer requirements. Use wooden boxes or wooden pallets to protect products from damage during transportation.
5A05 aluminum plate production supplier
As a professional aluminum plate manufacturer and supplier in China, Chalco is one of the largest 5A05 aluminum plate suppliers in China. We also produce aluminum coils, aluminum strips, coated aluminum coils, aluminum sheets, aluminum plates, anodized sheets, embossed aluminum sheets, etc.
Chalco offers you top quality, attractive and reasonable prices. Excellent surface quality and packaging, fast delivery. If you are looking for 5A05 aluminum plate manufacturer in China, Chalco is your best choice. We guarantee you the best price and quality service. For more details, please feel free to contact us directly.
