6201 aluminum wire is an Al-Mg-Si aluminum alloy wire used for electrical conductors. It is primarily intended for power applications that require a balance of electrical conductivity, mechanical strength, and conductor operating performance.
Compared with electrical-grade pure aluminum, which is characterized primarily by high conductivity, 6201 aluminum alloy gains strength through alloying. It retains good electrical conductivity while offering a better strength-to-weight ratio, making it widely used for overhead transmission and distribution conductors and related electrical conductor manufacturing.
6201 Aluminum Alloy Conductor Products and Material Forms
Depending on the final application and supply form, 6201 aluminum alloy can be used in different types of electrical conductor products.
Common product forms include:
- AAAC 6201 Aluminum Alloy Conductor
- 6201-T81/T83 Aluminum Round Wire
- 6201 Aluminum Wire Rod
Different product forms correspond to different stages of use:
AAAC 6201 Aluminum Alloy Conductor

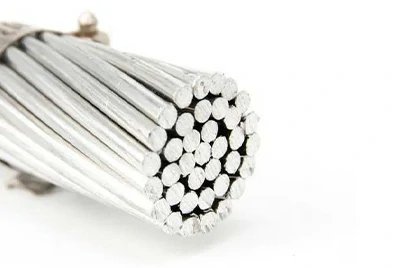

AAAC (All Aluminum Alloy Conductor) is an overhead conductor made by stranding aluminum alloy wires.
Because 6201 aluminum alloy offers a good balance of electrical conductivity and mechanical properties, it is widely used to manufacture all-aluminum alloy conductors for overhead transmission and distribution lines.
Key features of AAAC 6201 conductors include:
Aluminum alloy conductive material with no steel core;
A balance of electrical conductivity and mechanical strength;
Suitable for overhead conductor applications requiring a higher strength-to-weight ratio;
Available in different conductor constructions and specifications to match project requirements.
Specific AAAC 6201 conductor specifications should be confirmed according to line design and application requirements, including conductor cross-sectional area, construction, applicable standards, and electrical and mechanical performance requirements. For AAAC 6201 conductor inquiries, please provide the relevant technical parameters and project requirements. We will propose a matching solution based on the operating conditions.
6201-T81/T83 Aluminum Alloy Round Wire

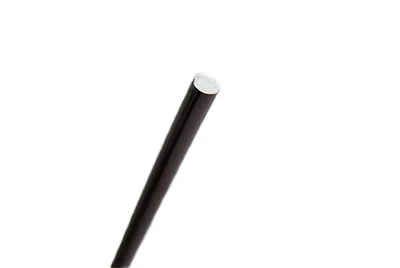

6201 aluminum alloy round wire is an important wire form for electrical conductor manufacturing and is commonly used to produce AAAC and other aluminum alloy conductors.
Different 6201 round-wire tempers can be selected according to the application requirements, including:
6201-T81 Aluminum Wire
6201-T83 Aluminum Wire
6201-T81/T83 aluminum alloy round wire is primarily used for
AAAC conductor manufacturing;
Aluminum alloy conductor processing;
Power conductor production.
6201-T81/T83 aluminum alloy round wire specifications can be matched to different conductor application requirements. Customers may provide the required wire diameter, material temper, performance requirements, and applicable standards. We will propose a corresponding product solution based on the specific operating conditions.
6201 Aluminum Alloy Wire Rod

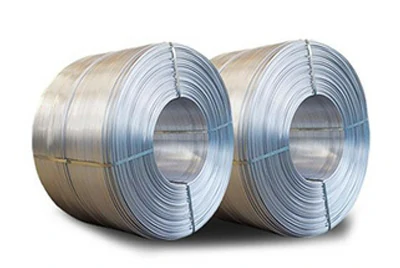

6201 aluminum alloy wire rod is an important feedstock for producing 6201 aluminum alloy wire.
After subsequent drawing, it can be made into 6201 aluminum alloy round wire in different sizes for electrical conductors and related applications.
6201 aluminum alloy wire rod is primarily used for
- Aluminum alloy wire processing;
- Conductor manufacturing;
- Cable and electrical material production.
6201 aluminum alloy wire rod specifications can be matched to downstream processing and application requirements. Customers may provide the required wire rod specification, material property requirements, surface quality requirements, and processing purpose so that a suitable 6201 aluminum alloy wire rod solution can be determined.
6201 Aluminum Wire Standards and Specification Confirmation
Specifications for 6201 aluminum wire and related conductor products are generally confirmed by reference to the corresponding industry standards, based on the product form, material temper, and final application requirements.
Commonly referenced standards include ASTM B398/B398M and ASTM B399/B399M. ASTM B398/B398M applies to 6201 aluminum alloy electrical round wire, while ASTM B399/B399M applies to 6201 aluminum alloy stranded conductors (AAAC).
Based on customer application requirements, corresponding 6201 aluminum alloy wire and conductor products can be supplied to specified standards, technical specifications, or project requirements.
ASTM B398/B398M 6201 Aluminum Alloy Electrical Round Wire
ASTM B398/B398M is one of the commonly referenced standards for 6201 aluminum alloy electrical round wire and applies to aluminum alloy conductor wire in tempers such as 6201-T81/T83.
6201 aluminum alloy round wire can be matched to customer requirements for alloy grade, material temper, wire diameter, mechanical properties, and electrical conductivity for different electrical conductor applications.
ASTM B399/B399M 6201 Aluminum Alloy Stranded Conductor
ASTM B399/B399M is one of the commonly referenced standards for 6201 aluminum alloy stranded conductors (AAAC) used in overhead transmission and distribution conductor applications.
AAAC 6201 conductors can be matched to project requirements for conductor construction, cross-sectional area, applicable standards, and electrical and mechanical performance for different line applications.
*Chalco can provide matching 6201 aluminum wire and related conductor product solutions based on customer application requirements. Specifications can be confirmed according to product form, material temper, dimensions, applicable standards, and performance requirements. Customers may provide specific technical requirements so that a suitable product solution can be determined.
6201 Aluminum Wire Applications
6201 aluminum wire is mainly used in electrical conductor manufacturing and overhead power transmission and distribution, and can be used in different types of aluminum alloy conductor products.

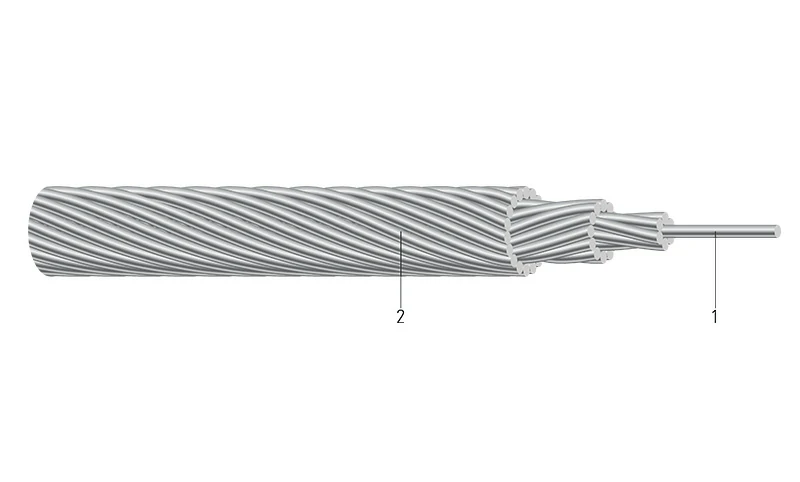

AAAC Conductors: 6201 aluminum alloy wire is an important material for manufacturing AAAC (All Aluminum Alloy Conductors) for overhead transmission and distribution lines.
Based on AAAC conductor application requirements, Chalco can provide matching 6201 aluminum alloy wire and related conductor product solutions.

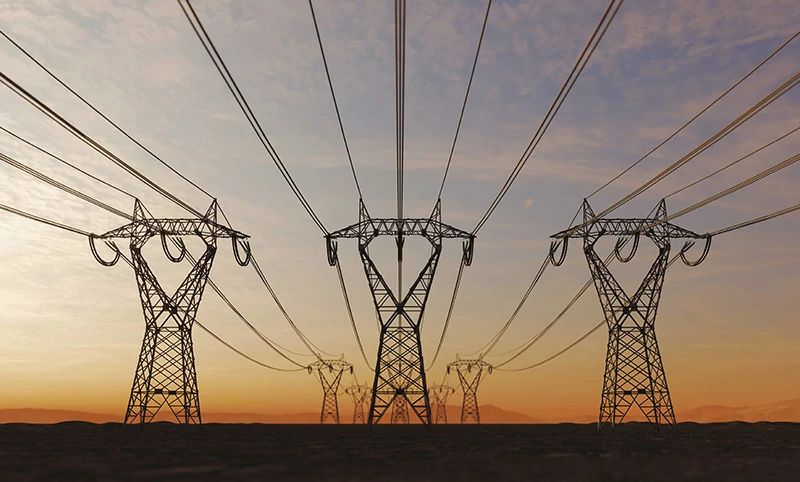

Overhead Transmission and Distribution Lines: 6201 aluminum wire is widely used to manufacture aluminum alloy conductors for overhead transmission and distribution systems. It is suitable for power-line applications requiring a balance of conductivity and mechanical strength.

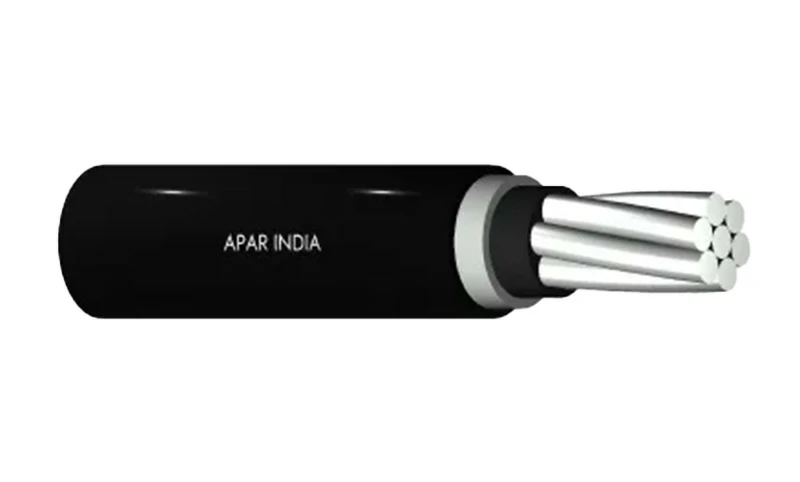

Covered Conductors and ABC Messenger Applications: 6201 aluminum alloy can be used for load-bearing conductor applications in covered conductors and aerial bundled cable systems, meeting the mechanical and electrical performance requirements of the relevant conductor construction.
Why Choose 6201 Aluminum Alloy Conductor Material for Engineering Projects?
6201 aluminum alloy conductor material is primarily used in electrical conductor applications that require a balance of conductivity and mechanical performance. Compared with pure aluminum, which is characterized mainly by high conductivity, alloy strengthening increases the strength and strength-to-weight ratio of 6201 aluminum alloy while retaining good electrical conductivity. It is suitable for overhead transmission and distribution and aluminum alloy conductor applications.
Strength and Weight Balance: 6201 aluminum alloy offers relatively high mechanical strength and can meet the combined load-bearing and weight-control requirements of overhead conductors.
Electrical Conductivity Requirements: 6201 provides a balance of mechanical and electrical properties while retaining conductivity suitable for electrical conductor applications.
Environmental and Processing Compatibility: A suitable product form and material temper can be selected for 6201 aluminum alloy according to the line environment, conductor construction, and processing requirements.
How to Select 6201-T81 and T83 Tempers
The temper of 6201 aluminum alloy wire is generally selected according to conductor design requirements and operating conditions. T81 and T83 are common temper options for electrical conductor applications.
These tempers have different mechanical and electrical characteristics. The selection should be confirmed against the conductor construction, applicable standards, and specific application requirements.
| Item | 6201-T81 | 6201-T83 |
| Primary Characteristic | Common electrical conductor temper balancing strength and conductivity | Emphasis on optimized electrical conductivity |
| Primary Consideration | Balance of strength and overall performance | Electrical conductivity requirements |
| Application Considerations | Conventional conductor designs and electrical applications | Applications with specific electrical conductivity requirements |
| Selection Basis | Customer standards and technical requirements | Project requirements and conductor design |
In practical applications, neither 6201-T81 nor T83 is universally superior. Temper selection generally requires a comprehensive review of the conductor construction design, applicable standards, and line operating conditions. Chalco can provide corresponding 6201 aluminum alloy wire and conductor product solutions based on the customer-specified temper, technical standards, and application requirements.
Comparison of 6201 Aluminum Wire and Other Conductor Materials
For electrical conductor applications, material selection generally requires a comprehensive review of electrical conductivity, mechanical strength, conductor construction, and line operating requirements.
6201 aluminum alloy wire and 1350 electrical-grade aluminum wire differ in material characteristics and typical applications.
6201 Aluminum Wire vs. 1350 Aluminum Wire
Neither 6201 aluminum alloy nor 1350 electrical-grade aluminum is universally superior; the selection depends on conductor design and application requirements. When mechanical performance, strength-to-weight ratio, and overhead-line load-bearing requirements are the main considerations, 6201 aluminum alloy is generally a suitable material option. When maximum electrical conductivity is the priority, 1350 electrical-grade aluminum is more commonly selected.
| Item | 6201 Aluminum Wire | 1350 Aluminum Wire |
| Material Type | Al-Mg-Si aluminum alloy | Electrical-grade pure aluminum (EC Aluminum) |
| Primary Characteristic | Balance of strength and electrical conductivity | High electrical conductivity |
| Mechanical Performance | Relatively high strength for conductor applications subject to mechanical loads | Relatively low strength |
| Typical Applications | AAAC aluminum alloy conductors and overhead transmission and distribution | AAC pure aluminum conductors and electrical conduction applications |

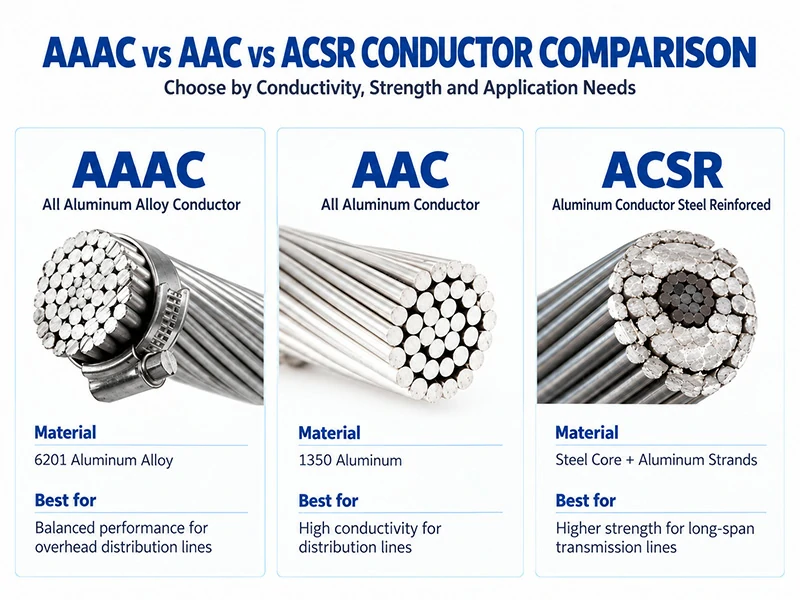

AAAC vs. AAC vs. ACSR Conductor Types
When selecting an overhead conductor, the suitable type should be determined based on line length, mechanical load, environmental conditions, and electrical performance requirements. Different overhead conductor constructions use different material systems, with the main differences shown below:
| Item | AAAC | AAC | ACSR |
| Full Name | All Aluminum Alloy Conductor | All Aluminum Conductor | Aluminum Conductor Steel Reinforced |
| Conductor Material | Aluminum alloy wire (typically 6201) | 1350 pure aluminum wire | Steel core + aluminum wire |
| Primary Characteristic | Balance of strength and weight | High electrical conductivity | High mechanical strength and long-span capability |
| Typical Applications | Overhead transmission and distribution lines | Distribution lines and electrical conductor applications | Long-distance transmission and long-span lines |
Chalco can provide 6201 aluminum alloy wire and related conductor product solutions based on customer project requirements, supporting material selection for different conductor applications.
6201 Aluminum Wire RFQ Requirements
To identify a suitable 6201 aluminum wire and related conductor product solution, please provide the following information with your inquiry:
Product form (6201 Aluminum Wire, AAAC Conductor, or 6201 Aluminum Wire Rod)
Alloy temper (T81, T83, or specified temper)
Dimensions (wire diameter, cross-sectional area, or conductor construction)
Applicable standard (such as ASTM B398/B398M, ASTM B399/B399M, or a customer-specified standard)
Application and project requirements
Spool specification and packaging requirements
Testing and quality documentation requirements
Based on the technical parameters and application requirements provided by the customer, Chalco can identify a corresponding 6201 aluminum wire and related conductor product solution.
FAQ
1. What are the main applications of 6201 aluminum wire?
6201 aluminum wire is primarily used for electrical conductors, particularly AAAC (All Aluminum Alloy Conductors), overhead transmission lines, distribution lines, and other aluminum alloy conductor products.
2. Is 6201 aluminum wire suitable for manufacturing AAAC conductors?
Yes. 6201 aluminum alloy wire is one of the materials commonly used to manufacture AAAC conductors. Multiple 6201 aluminum alloy wires are stranded to form an AAAC conductor for overhead transmission and distribution applications.
3. What is the difference between 6201-T81 and T83 aluminum wire?
6201-T81 and T83 are different material tempers used for electrical conductor applications.
The selection should be confirmed according to the conductor design, applicable standards, and project requirements. T81 is generally used for applications requiring a balance of mechanical properties and electrical conductivity, while T83 is generally used where specific electrical conductivity requirements apply.
4. What products does ASTM B398 cover?
ASTM B398/B398M is one of the commonly referenced standards for 6201 aluminum alloy electrical round wire and applies to 6201 aluminum alloy electrical conductor wire.
This standard is generally used to confirm the material temper, dimensions, and related performance requirements for 6201 aluminum wire.
5. What products does ASTM B399 cover?
ASTM B399/B399M is one of the commonly referenced standards for 6201 aluminum alloy stranded conductors and is primarily used for aluminum alloy conductor applications such as AAAC (All Aluminum Alloy Conductors).
This standard primarily addresses the construction and related technical requirements of aluminum alloy stranded conductors.
6. What is the difference between 6201 aluminum wire and an AAAC conductor?
6201 aluminum wire is a single aluminum alloy wire used to manufacture conductors, while an AAAC conductor is the finished conductor product formed by stranding multiple aluminum alloy wires.
6201 aluminum wire is generally used for subsequent conductor processing, while AAAC conductors can be used directly in overhead transmission and distribution lines.
7. What information is required when purchasing 6201 aluminum wire?
Purchasing 6201 aluminum wire generally requires the product form, alloy grade, material temper, wire diameter, applicable standards, and application requirements.
For AAAC-related projects, the conductor construction, project requirements, and relevant technical parameters should also be provided so that a suitable product solution can be identified.
8. What quality documents are required when purchasing 6201 aluminum wire?
The required quality documents depend on project requirements and customer technical specifications. Common documents include material certificates, inspection records, test reports, and product traceability records.
Chalco can provide corresponding quality documents based on customer and project requirements to support technical confirmation and supplier evaluation.
Order 6201 Aluminum Wire
Based on customer application requirements, Chalco can provide 6201 aluminum wire and related conductor product solutions, including 6201-T81/T83 aluminum alloy round wire, AAAC conductor materials, and 6201 aluminum alloy wire rod.
For product specifications, technical data, or a quotation, please provide your product requirements, including product form, material temper, dimensions, applicable standards, and application requirements.
Our technical team will identify a suitable product solution based on your project requirements.
Chalco can provide you the most comprehensive inventory of aluminum products and can also supply you customized products. Precise quotation will be provided within 24 hours.
Get a quote
