6005/6005A Aluminum (T5/T6) – Electrical & Industrial Structural Solutions

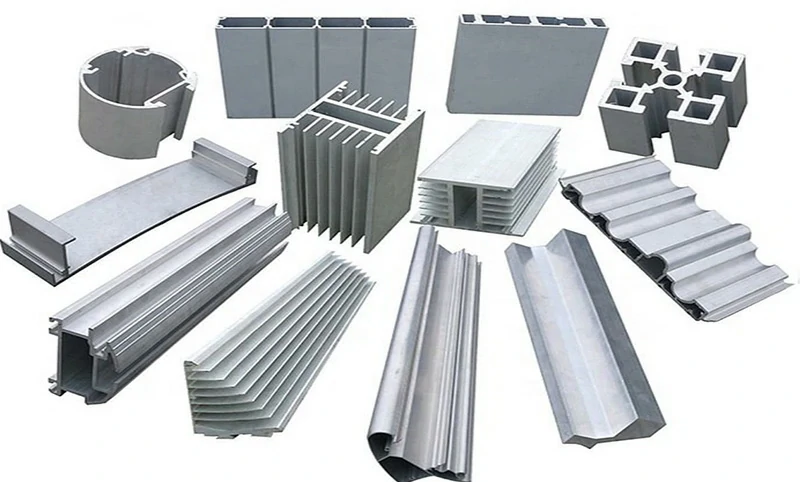

6005 and 6005A aluminum extrusions are widely used in electrical and industrial structural applications because of their strength, corrosion resistance, light weight, and good fabrication performance. In T5/T6 tempers, these profiles are suitable for support structures, equipment frames, protective enclosures, and customized cross-sections for different project requirements.

Chalco supplies 6005/6005A aluminum profiles with stable material performance, controlled dimensions, and multiple surface finish options. Custom cross-sections, lengths, and secondary processing can be provided for electrical engineering, industrial structures, renewable energy, and related infrastructure projects.

6005 Aluminum Product Specifications

Material Grade: 6005A

Temper: T6 (Solution Heat Treatment + Artificial Aging)

Form: Extruded Profiles and Tubes

Chemical Composition

Mechanical Properties (T6 Temper)

Processing and Fabrication Characteristics

Extrusion Performance: Excellent, supports complex cross-sectional profiles

Weldability: Good, suitable for MIG and laser welding

Bendability: Excellent, ideal for tubing and support brackets

Corrosion Resistance: Naturally corrosion-resistant, suitable for outdoor and high-humidity environments

Surface Finishes: Anodizing, painting, or powder coating

Certifications and Standards

• EN 573-3, EN 755-2
• Material documentation can be provided according to relevant standards and project requirements.
• RoHS/REACH compliance documents or related environmental documentation available upon request

Applications of 6005 Aluminum Extrusions in Substation Equipment

6005 aluminum profiles are widely used in electrical equipment and structural applications thanks to their high strength, corrosion resistance, lightweight design, and good machinability. They are widely used in substations, transmission lines, distribution systems, and GIL corridors, providing reliable structural support and long-term stability for power infrastructure.

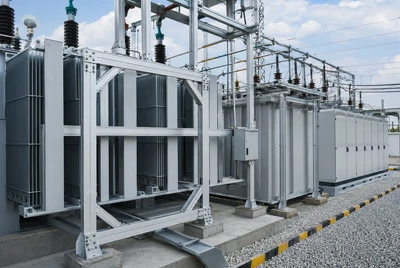

Substation Equipment

In substation equipment, 6005 aluminum is commonly used for transformer enclosures, bus ducts, switchgear cabinets, and grounding systems.

Chalco supplies high-strength aluminum profiles with custom sizes and cross-sections to support fast fabrication and reliable long-term operation.

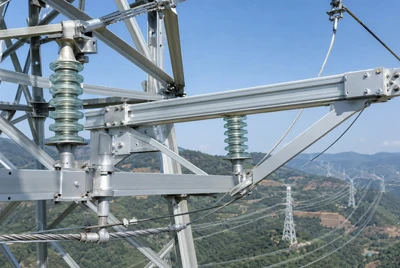

Transmission Line Equipment

6005 aluminum is widely used for conductor supports, insulator mounting brackets, hardware fittings, and shield wires.

Chalco supplies lightweight, weather-resistant profiles with custom cross-sections to support easy installation and reliable transmission lines.

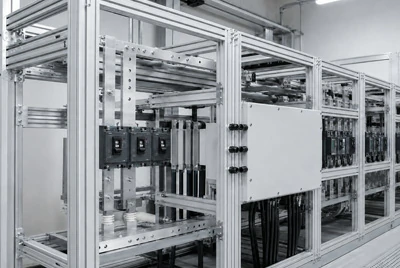

Distribution Systems

6005 aluminum is suitable for distribution cabinet frames, bus duct components, and junction box structures.

Chalco supplies machinable, robust aluminum profiles for fast assembly, precise integration, and reliable distribution system operation.

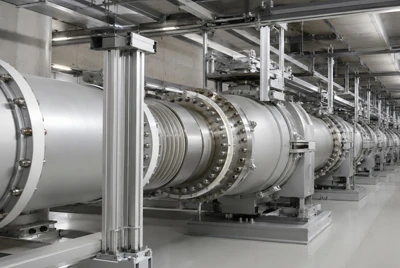

GIL Corridor Applications

GIL enclosures, support structures, connecting flanges, and related structural profiles.

Chalco offers high-strength extruded profiles with custom lengths and cross-sections for faster corridor assembly and better seismic performance.

Applications of 6005 Aluminum Extrusions in Renewable Energy

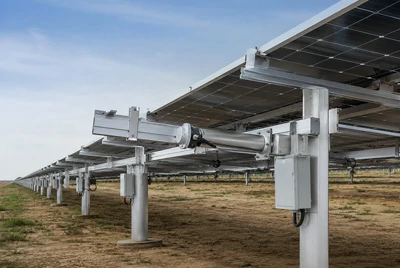

Photovoltaic Mounting Systems

In PV mounting systems, 6005 aluminum is commonly used for support columns, cross beams, tracker components, and junction box enclosures.

Chalco supplies lightweight, corrosion-resistant profiles with custom sizes for fast installation and stable long-term operation.

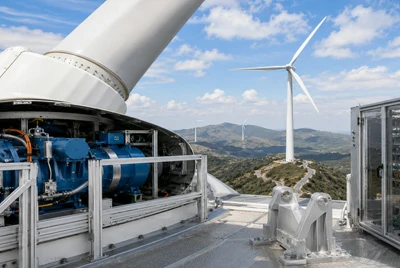

Wind Energy Systems

6005 aluminum is widely used in wind turbine nacelle housings, tower connectors, and wind power control cabinets.

Chalco supplies high-strength, weldable profiles with custom fabrication and fast delivery for safer, more durable wind energy equipment.

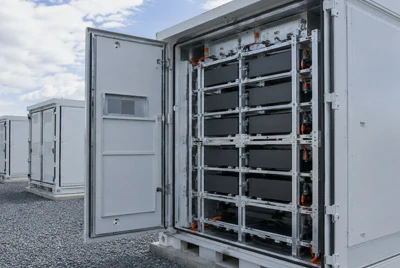

Energy Storage Systems

6005 aluminum is suitable for battery enclosures, energy storage cabinet frames, and battery connector components.

Chalco offers thermally conductive, stable profiles customized for efficient and safe energy storage operation.

Applications of 6005 Aluminum Extrusions in Rail Transit Power Systems

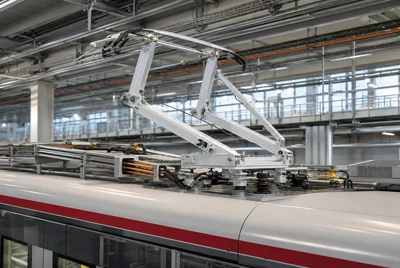

Metro and Train Power Equipment

In rail transit, 6005 aluminum is primarily used for pantograph support brackets on metro trains and bus ducts on rolling stock.

Chalco supplies lightweight, high-strength profiles with custom sizes for safe, stable onboard power systems.

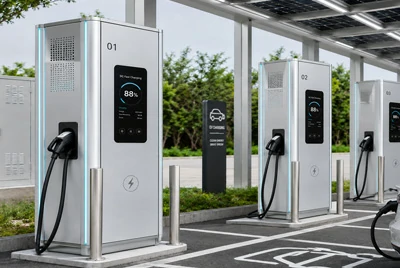

Charging Infrastructure

6005 aluminum is widely used for EV charging station enclosures and mounting brackets.

Chalco offers weather-resistant, machinable profiles with custom options for faster installation and durable charging equipment.

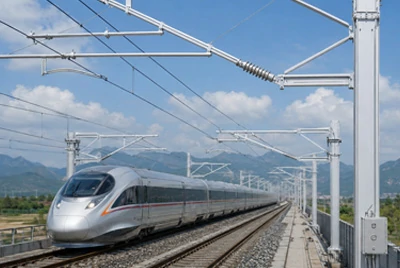

High-Speed Rail Catenary Supports

6005 aluminum is suitable for overhead contact line support structures in high-speed rail systems.

Chalco provides high-strength extruded profiles with custom fabrication for long-term stability and improved wind/seismic resistance.

Typical Electrical Applications of 6005/6005A Aluminum Profiles

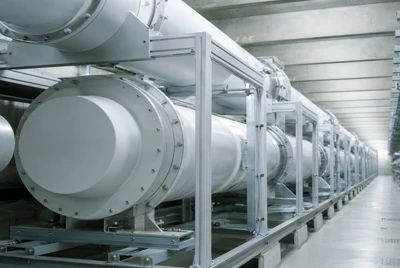

GIL Corridor Systems Across Multiple Asian Countries: Custom-fabricated enclosure and conductor tube profiles enable rapid assembly and enhanced seismic performance.

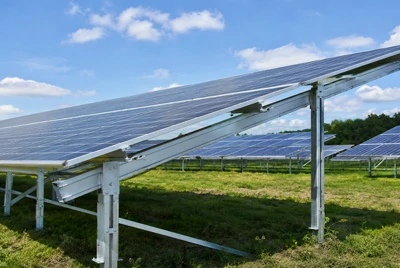

European Photovoltaic Market: PV mounting profiles widely deployed, delivering long-term structural stability.

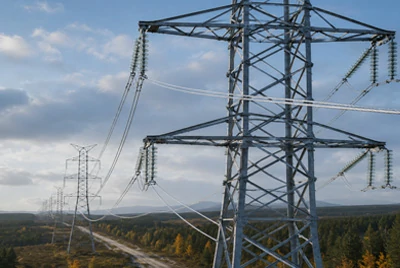

Transmission Projects in the Americas: Hardware fittings and supports meet stringent requirements for high strength and weather resistance.

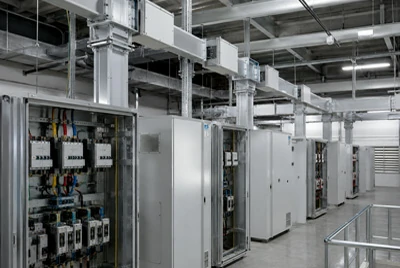

Distribution Projects in Southeast Asia: Cabinet and bus duct profiles improve wiring efficiency and ease of installation.

Alloy Comparison: 6005 vs. 6005A vs. 6061 vs. 6063

6005 and 6005A profiles combine high strength, corrosion resistance, and excellent extrudability, making them ideal for electrical supports, GIL corridors, and distribution systems. In contrast, 6061 is better suited for high-load industrial frames, while 6063 excels in architectural and decorative applications.

Chalco offers 6005 profiles with custom cross-sections, lengths, and surface treatments to meet diverse electrical and industrial project requirements. Contact us for samples and tailored solutions to make your projects more efficient and reliable.

Chalco's Production and Processing Capabilities for 6005/6005A Aluminum Profiles

Cross-Section Dimensions: Customizable per customer drawings

Length: Available in standard lengths or cut-to-size

Weight: Weight per meter provided for engineering calculations

Secondary Processing: Supports cutting, punching, bending, and other fabrication operations

Surface Finishes: Anodizing, painting, or powder coating

Procurement and Project Collaboration for 6005/6005A Aluminum Alloys

6005 aluminum profiles are widely used in power engineering-including substation equipment, transmission lines, distribution systems, and GIL corridors-thanks to their high strength, corrosion resistance, extrudability, and lightweight properties. Their flexibility and reliability also make them well-suited for renewable energy applications such as photovoltaic mounting, wind power, energy storage, and rail transit systems.

Chalco provides 6005 profiles with customized cross-sections, lengths, and surface treatments to help your project achieve efficient construction and long-term stability. Contact us now for technical support and sample requests.
