Henan Chalco supplies ODS aluminum material solutions, including high-strength, high-conductivity ODS aluminum alloys, ODS aluminum matrix composites, and ODS aluminum-lithium alloys.
Based on powder metallurgy and oxide dispersion strengthening technologies, these materials address copper-replacement, high-strength lightweighting, thermal management, and low-thermal-expansion requirements, with support for material selection and supply.
Henan Chalco can help select an ODS aluminum material solution based on your application, performance targets, and dimensional requirements. Available product forms include billets, plates, tubes, profiles, and forgings.
What is ODS Aluminum?
ODS aluminum (oxide dispersion strengthened aluminum) is a class of high-performance aluminum materials whose overall properties are enhanced through powder metallurgy and oxide dispersion strengthening.
Oxide films can hinder densification during aluminum powder sintering. ODS aluminum addresses this issue through activated sintering: activating agents and dynamic reactions during sintering help break up the oxide films, promoting high densification and nanoscale oxide dispersion strengthening.
This material design produces a finer, more uniform microstructure and improves the overall strength, thermal stability, and manufacturability of complex structures.
ODS Aluminum Supply Capabilities
Henan Chalco supports the supply of high-performance ODS aluminum alloys and aluminum matrix composites, including aluminum alloys, aluminum-lithium alloys, and aluminum matrix composite systems. Custom billet solutions are available to suit application requirements.
Working with a supply partner that has R&D and production capabilities for high-performance powder-metallurgy aluminum alloys, Henan Chalco supports the supply of large, high-quality ODS aluminum and aluminum matrix composite billets, including:
- Large-diameter round billets;
- Development of slabs, elliptical billets, hollow billets, and other special shapes;
- Custom dimensions based on the material system and specification requirements.
Current supply capabilities include large billets with diameters of 650 mm or more and lengths of 1100 mm or more.
Slab Billet
Elliptical-Section Sintered Billet
Solid/Hollow Billets
The available material range covers multiple aluminum alloy series, aluminum-lithium alloys, and aluminum matrix composites. Large billets and custom structures can be developed to meet material selection needs across different applications.
ODS 7055 Aluminum Alloy Billet
This non-cast ODS 7055 aluminum alloy billet measures Ø400 mm × 1180 mm.
2024 Aluminum Alloy Billet
This large 2024 aluminum alloy billet measures Ø650 mm × 600 mm and supports material development for high-strength structural applications.
Aluminum Matrix Composite Billets
These 2009/SiC and 6092/SiC aluminum matrix composite billets measure Ø308 mm × 800 mm.
2195 Aluminum-Lithium Alloy Billet
These 2195 aluminum-lithium alloy billets are available in Ø380 mm and Ø450 mm diameters for lightweight, high-stiffness aluminum-lithium applications.
Contact us with your material requirements, dimensions, and application details. We will help evaluate a suitable ODS aluminum material solution.
Select the right ODS aluminum solution for your application
Select a material solution below to view detailed product information.
| Customer Requirement | Recommended Material Solution |
| Copper replacement with lightweight and high conductivity requirements | High Strength Conductive ODS Aluminum Alloy |
| Improved corrosion resistance and durability for heat exchanger applications | High Strength Thermal Conductive & Corrosion Resistant ODS Aluminum Tube |
| High fatigue resistance requirements for structural components | High Strength Fatigue Resistant ODS 2xxx Aluminum Alloy |
| High strength thin sheet with excellent forming performance | High Processing Performance ODS 7xxx Aluminum Alloy |
| Ultra-high strength lightweight structural requirements | Ultra-High Strength ODS Aluminum Alloy (>800 MPa) |
| High stiffness, low thermal expansion and thermal management needs | ODS Aluminum Matrix Composite |
| Lightweight structures requiring higher stiffness | Lightweight High Stiffness ODS Aluminum-Lithium Alloy |
| Complex high-strength structural components requiring integrated forming solutions | ODS Aluminum Semi-Solid Rheoformed Components |
High Strength Conductive ODS Aluminum Alloy
Commercially pure aluminum offers high electrical conductivity but relatively limited strength. Some high-strength aluminum alloys provide better mechanical properties at the expense of conductivity.
Henan Chalco supplies high-strength, high-conductivity ODS aluminum alloys. Oxide dispersion strengthening improves overall material performance, balancing strength, electrical conductivity, and thermal stability while retaining aluminum's lightweight advantage. This makes the material a high-performance option for replacing copper with aluminum.

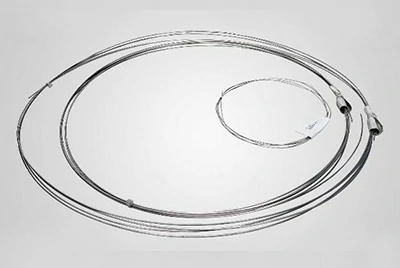

Ø3 mm ODS Aluminum Conductor Wire
Through nanoscale oxide dispersion strengthening and microstructural refinement, ODS aluminum improves strength while retaining good electrical conductivity, offering a new solution for high-strength conductive aluminum materials.

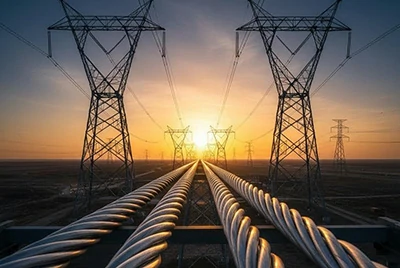

Applications for High Strength Conductive ODS Aluminum Alloy include:
- Overhead Conductors
- Aluminum Conductors
The following data show the mechanical properties and electrical conductivity of ODS Al in different conditions:
| Product | Condition |
Tensile Strength (MPa) |
Yield Strength (MPa) |
Elongation (%) |
Electrical Conductivity (%IACS) |
| Commercially Pure Aluminum | Annealed | 50-80 | 20-30 | 35-40 | 62-64 |
| ODS Al | Before Annealing | 207 | 183 | 17 | 60 |
| ODS Al | After Annealing | 188 | 172 | 19 | 60.6 |
| ODS Al | As-Drawn (Ø3 mm) | 215 | 186 | 8.5 | 60.5 |
| ODS Al | Annealed (Ø3 mm) | 205 | 163 | 7.5 | 61.5 |
Performance Comparison with International Conductor Materials:
Considering electrical conductivity, strength, and thermal stability together, ODS Al offers a new technical route for high-strength conductive aluminum materials.
| Country | Material | Tensile Strength (MPa) | Electrical Conductivity (%IACS) | Thermal Stability |
| USA | Cu | 200–250 | 100 | Low |
| USA | Al-Zr | 200–210 | 61 | High |
| USA | Al-Fe-Co | 200–220 | 61 | High |
| USA | Al-Sc | 210 | 61.5 | High |
| USA | Al-Fe-Mg | 150–170 | 59.5 | Medium |
| Japan | Al-B-Zr | 190–210 | 58.5 | High |
If you need an aluminum solution that combines electrical conductivity, strength, and low weight, send us your application, product specifications, and target properties. Henan Chalco can help evaluate a suitable ODS aluminum material solution.
High-Strength, Thermally Conductive, and Corrosion-Resistant ODS Aluminum Alloy
Conventional heat exchanger materials, including standard 3003 aluminum tubes and zinc-sprayed 3003 aluminum tubes, can face corrosion-resistance challenges. Henan Chalco supports the supply of high-performance ODS aluminum tubes that combine strength, thermal conductivity, and corrosion resistance for upgraded heat exchanger systems.

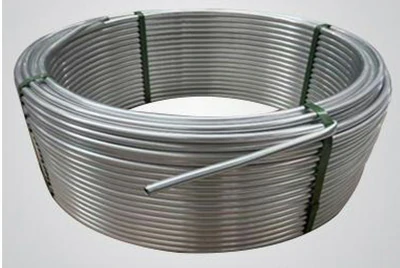

High-Efficiency Internally Grooved Aluminum Heat Exchanger Tube
ODS aluminum tubes use oxide dispersion strengthening to optimize the microstructure and improve overall performance while retaining aluminum's lightweight advantage.
Available products include:
- Ø7 × 0.47 × 0.25 mm internally grooved ODS aluminum tube
- Ø7 × 0.7 mm smooth ODS aluminum tube

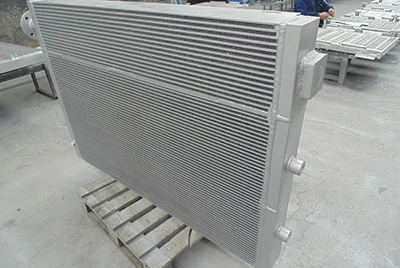

Applications include:
ODS aluminum tubes offer improved corrosion resistance for applications where conventional aluminum tubes face corrosive environments.
In SWAAT acidified salt spray testing:
| Material | Time to Pitting Perforation |
| 3003 Aluminum Tube | 336 h |
| Zinc-Sprayed 3003 Aluminum Tube | 1800 h |
| ODS Aluminum Tube | 3000+ h (no perforation) |
Compared with conventional aluminum heat exchanger tubes, ODS aluminum tubes provide a better overall balance of mechanical performance and thermal conductivity.
Example Properties of ODS Aluminum Tubes:
| Material/Condition | Tensile Strength (MPa) | Elongation (%) | Thermal Conductivity (W/m·K) | Hardness (HV) |
| 3003 / O Temper | 105 | 30 | 130–160 | 35 |
| Pure Copper / O Temper | 200 | 30 | 390–401 | 85 |
| ODS Aluminum / O Temper | 158 | 28 | 220–230 | 51 |
Thermal Conductivity of ODS Aluminum:
| Temperature | Thermal Conductivity |
| Room Temperature (25°C) | 221 W/m·K |
| 100°C | 222 W/m·K |
| 200°C | 219–220 W/m·K |
| 300°C | 214–216 W/m·K |

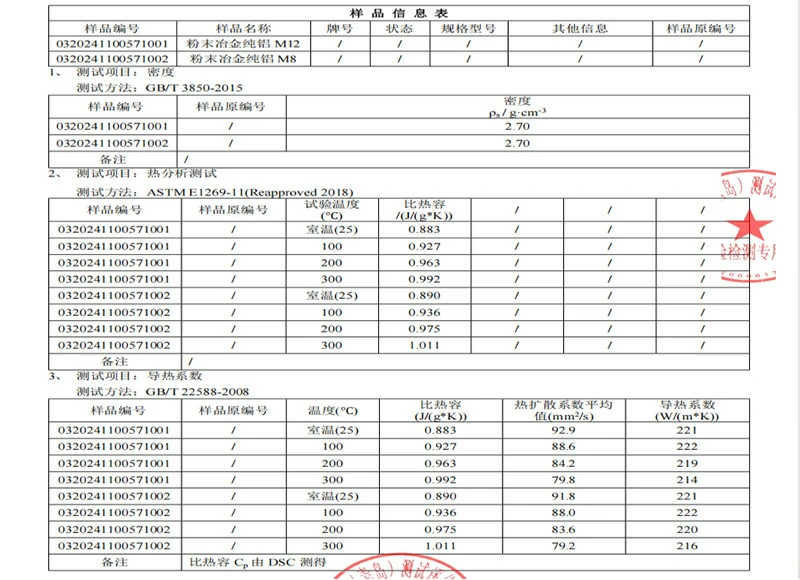

Test data show that ODS aluminum maintains stable thermal conductivity from room temperature to 300°C, with values of approximately 214-222 W/m·K, demonstrating good heat transfer capability and thermal stability.
Send us your tube dimensions, service environment, and performance requirements. Henan Chalco can help evaluate a suitable ODS aluminum tube supply solution.
High-Strength, Fatigue-Resistant ODS 2xxx Aluminum Alloy
In aerospace structures, advanced equipment, and high-performance lightweight components, conventional high-strength aluminum alloys may still require improved fatigue resistance and better overall performance while meeting strength targets.
Henan Chalco supports the supply of high-strength, fatigue-resistant ODS 2xxx aluminum alloys. Oxide dispersion strengthening optimizes the microstructure and improves strength, fatigue resistance, and overall mechanical performance for high-reliability structural applications.
Key Properties of ODS 2324 Aluminum Alloy vs. 2324 Aluminum Alloy for Boeing Applications:
| Material | Tensile Strength | Yield Strength | Elongation |
| ODS 2324 Aluminum Alloy | 545 MPa (L-T direction) | 478–485 MPa | 8.0–10.5% |
| ODS 2324 Aluminum Alloy | 515 MPa (T-L direction) | 409–411 MPa | 10.5–15.0% |
| Alcoa 2324-T39 | 475 MPa | 370 MPa | 8% |
| Alcoa 2024-T351 | 435 MPa | 290 MPa | 8% |
ODS 2324 aluminum alloy has higher tensile and yield strengths than the compared US Alcoa 2324-T39 alloy. Under aerospace-standard fatigue test conditions (R = -1, 10⁷ cycles), its fatigue strength exceeds 200 MPa, demonstrating good fatigue resistance.

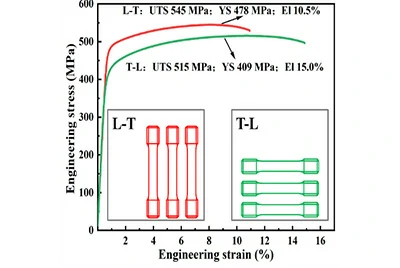

ODS 2324 aluminum alloy maintains consistent mechanical properties in different sampling directions:
| Sampling Direction | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Reduction of Area (%) |
| L-T-1 | 545 | 485 | 9.5 | 17 |
| L-T-2 | 545 | 478 | 10.5 | 18 |
| L-T-3 | 545 | 483 | 8.0 | 14 |
| T-L-1 | 515 | 411 | 10.5 | 20 |
| T-L-2 | 515 | 409 | 15.0 | 26 |
High Strength Fatigue Resistant ODS 2xxx Aluminum Alloy is suitable for:
- High-reliability lightweight structural components;
- Structural components subject to high fatigue loads;
- Material evaluation for aerospace and advanced equipment;
- High-performance aluminum alloy replacement applications.
If your project focuses on weight reduction, higher strength, or improved fatigue performance, send us your application, material requirements, and product specifications. Henan Chalco can help evaluate a suitable ODS 2xxx aluminum alloy solution.

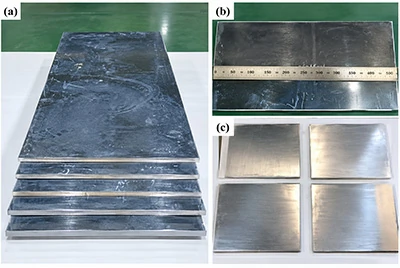

High-Formability ODS 7xxx Aluminum Alloy
Conventional 7xxx series aluminum alloys provide high strength, but they can have a limited processing window for thin-sheet fabrication, bending, and dimensional stability after heat treatment.

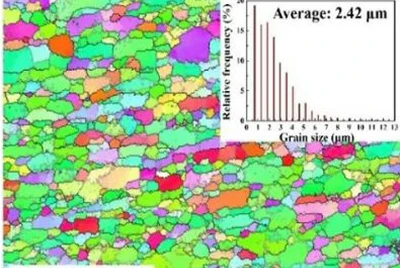

ODS 7xxx aluminum alloys combine microstructural optimization with tailored strengthening mechanisms to improve elongation, bendability, and processing adaptability while maintaining high strength, balancing strength with formability.
Ultra-thin sheets from 0.15 to 0.2 mm can be processed and bent to 90° without cracking, combining high strength, low weight, and a high forming yield.
Performance Data for Aluminum Alloy Sheet Products:
| Application | Material | Mechanical Performance | Processing Capability |
| Keyboard Cover Sheet | 7xxx Series Aluminum Alloy | Tensile Strength: 450–530 MPa; Elongation: 14–16% | Thickness 0.15–0.2 mm; 90° bending capability |
| Laptop Display Backplate (Small Size) | 5xxx Series Aluminum Alloy | Tensile Strength ≥440 MPa; Yield Strength ≥350 MPa; Elongation ≥17% | Improved forming performance |
| Laptop Display Backplate (Large Size) | 5xxx Series Aluminum Alloy | Compared with same composition GM55 material, strength and elongation are improved; strength increased by approximately 70 MPa | Improved bending yield and flatness control |

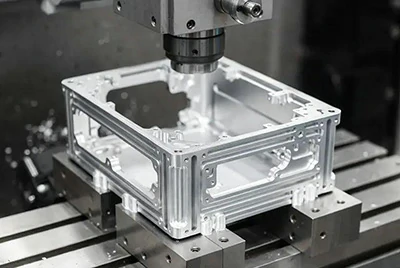

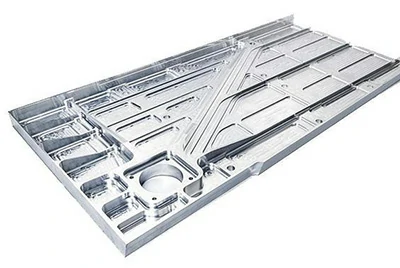

For precision components in smartphones, laptops, and similar products, our ODS 7xxx aluminum alloys offer:
- Thin-gauge processing capability;
- Good bendability;
- Stable dimensional control;
- High finished-part processing yield.
If your project requires high strength, thin-gauge processing, and complex forming, send us the product dimensions, processing method, and target properties. Henan Chalco can help evaluate a suitable ODS 7xxx aluminum alloy solution.

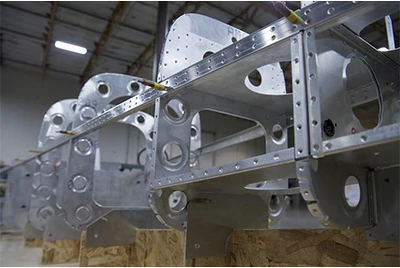

Ultra-High-Strength ODS Aluminum Alloy Exceeding 800 MPa
For high-end equipment, lightweight structures, and highly loaded components, Henan Chalco supports the supply of ultra-high-strength ODS aluminum alloy with tensile strength exceeding 800 MPa, delivering exceptional strength at a low structural weight.
Compared with conventional aluminum alloys, this material combines:
- Ultra-high structural strength;
- Low density and light weight;
- Good wear and fatigue resistance;
Ultra-high strength, low density, wear resistance, and fatigue resistance combine to reduce the weight of highly loaded structures.
The key advantage of this ultra-high-strength ODS aluminum alloy is its strength beyond 800 MPa:
| Material | Density (g/cm³) | Yield Strength (MPa) | Tensile Strength (MPa) | Specific Strength (kN·m/kg) |
| Ti-6Al-4V | 4.43 | 880 | 950 | 214.4 |
| DP980 Advanced High Strength Steel | 7.85 | 600 | 980 | 124.8 |
| Maraging 300 Steel | 8.0 | 2000 | 2060 | 257.5 |
| 7075-T6 Aluminum Alloy | 2.81 | 540 | 620 | 220.7 |
| Ultra-High Strength ODS Aluminum Alloy | 2.85 | 850 | 866 | 303.9 |
If your project must exceed the strength limits of conventional aluminum alloys while reducing structural weight, send us the application, structural requirements, and target properties. Henan Chalco can help evaluate a suitable ultra-high-strength ODS aluminum alloy solution.

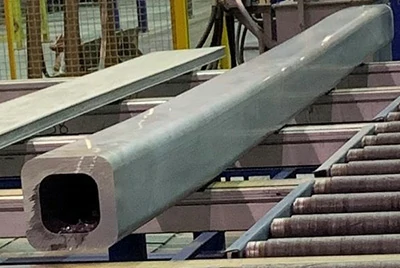

Lightweight, High-Stiffness ODS Aluminum-Lithium Alloy
Compared with conventional aluminum alloys, aluminum-lithium alloys use lithium to reduce density and increase elastic modulus, combining low weight with high stiffness.
For every 1 wt.% lithium added to an aluminum alloy:
- Density decreases by approximately 3%;
- Elastic modulus increases by approximately 6%.

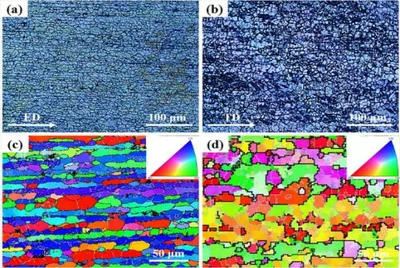

Henan Chalco supports the supply of ODS aluminum-lithium alloys. Powder metallurgy refines the microstructure and supports the development of high-performance aluminum-lithium materials.
ODS vs. Conventional Aluminum-Lithium Alloy Properties:
| Material | Density (g/cm³) | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) |
| ODS Aluminum-Lithium Alloy | 2.55 | 655 | 620 | 8 |
| Traditional Aluminum Alloy | 2.65 | 590 | 540 | 8 |

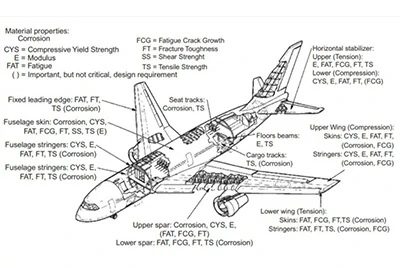

Aluminum-Lithium Alloy in Aerospace Structures
In China's domestically produced C919 passenger aircraft, aluminum-lithium alloys account for more than 3 t of net material per aircraft.
Send us your application, structural requirements, and target properties. Henan Chalco can help evaluate a suitable ODS aluminum-lithium alloy solution.
ODS Aluminum Alloy Semi-Solid Rheoformed Components
Conventional casting routes for complex high-strength 7xxx series aluminum alloy structures may face forming difficulties and challenges in retaining material performance.
Semi-solid rheoforming combines ODS aluminum alloy systems with advanced forming methods to manufacture complex high-strength components, creating a new development route for high-performance aluminum structures.

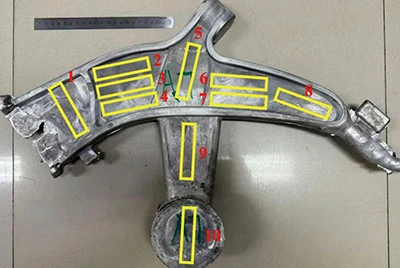

ODS Aluminum Alloy Semi-Solid Formed Component
Combining high-strength ODS aluminum alloys with semi-solid rheoforming enables the development of complex components while retaining the material's overall mechanical properties.

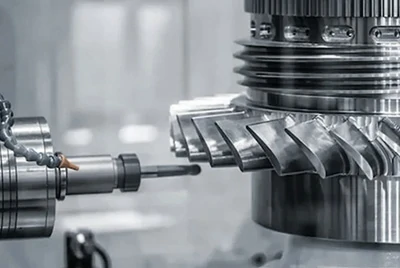

ODS aluminum alloy semi-solid rheoforming supports the integrated production of complex, high-strength components and reduces the manufacturing constraints of conventional processes.
Mechanical test results from different locations of in-house-developed 7xxx series high-strength aluminum alloy semi-solid rheoformed components are shown below:
| Sample Position | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) |
| 1-1 | 575 | 495 | 4.1 |
| 1-2 | 582 | 501 | 4.7 |
| 2-1 | 584 | 502 | 6.0 |
| 2-2 | 584 | 497 | 6.3 |
| 3-1 | 579 | 493 | 4.6 |
| 3-2 | 581 | 499 | 5.0 |
| 4-1 | 593 | 507 | 9.0 |
| 4-2 | 597 | 508 | 9.1 |
| 5-1 | 587 | 498 | 7.1 |
| 5-2 | 585 | 491 | 7.2 |
| 6-1 | 581 | 508 | 6.5 |
| 6-2 | 590 | 492 | 6.3 |
| 7-1 | 595 | 495 | 10.5 |
| 7-2 | 598 | 509 | 11.0 |
If your project involves complex structures, high strength, and lightweighting, send us the part geometry, performance requirements, and application details. Henan Chalco can help evaluate an ODS aluminum semi-solid rheoformed component solution.
ODS Aluminum Matrix Composites
ODS aluminum matrix composites use reinforcing phases to optimize the material structure. While retaining aluminum's low density, they deliver a combination of high specific strength, high specific modulus, high thermal conductivity, low thermal expansion, wear resistance, and fatigue resistance.
Henan Chalco supports the supply of ODS aluminum matrix composites, providing high-performance aluminum composite solutions.
By tailoring the reinforcing phase, ODS aluminum matrix composites retain aluminum's low density while providing high specific strength, high specific modulus, low thermal expansion, and effective thermal management.
Mechanical Property Comparison of Aluminum Matrix Composites and Other Materials:
| Material System | Density (g/cm³) | Thermal Expansion Coefficient (×10⁻⁶/K) | Thermal Conductivity (W/m·K) | Elastic Modulus (GPa) |
| Aluminum Matrix Composite | 2.8–3.0 | 8.5–15 | 150–200 | 90–150 |
| Aluminum Alloy | 2.7 | 23.5 | 150 | 70 |
| Titanium Alloy | 4.5 | 9.1 | 8 | 115 |
| Stainless Steel | 7.8 | 12.5 | 25 | 200 |
| Copper Alloy | 8.9 | 17.7 | 390 | 115 |

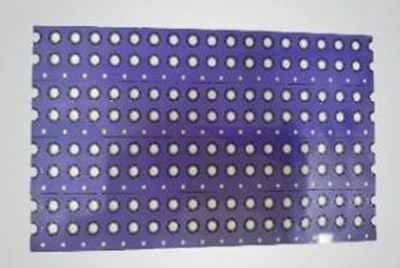

Aluminum-Silicon Carbide Sheet Properties:
| Material | Al / SiC |
| Thickness (mm) | 0.15–0.2 |
| Tensile Strength (MPa) | ≥450 |
| Elongation (%) | ≥5 |
| Elastic Modulus (GPa) | 95–110 |
| Thermal Expansion Coefficient (×10⁻⁶/K) | 15–18 |
| Thermal Conductivity (W/m·K) | 130–170 |
Aluminum matrix composites with different reinforcement systems can be developed, including:
| Product Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) |
| 6061/SiC | 430–510 | 370–450 | 6–8 |
| 2009/SiC | 540–600 | 420–480 | 5–7 |
| 6061/B₄C | 400–520 | 340–500 | 6–10 |
The reinforcement system, material ratio, and product form can be customized to suit application requirements.
Related Aluminum Matrix Composite Products and Technologies:
Ceramic Aluminum Matrix Composites
Ceramic Aluminum-Based Composite Powder
High Temperature Ceramic Aluminum Composites
Wrought Ceramic Aluminum Matrix Composites
Cast Ceramic Aluminum Matrix Composites
Aluminum Silicon Carbide Matrix Composites
Henan Chalco can help evaluate a suitable ODS aluminum matrix composite solution.
ODS Aluminum Applications
Henan Chalco supports material selection and supply for the following ODS aluminum applications based on performance requirements.
Lightweight Structural Components
For structural components that require lower weight and higher load capacity, ODS aluminum alloys and ODS aluminum-lithium alloys offer high-strength lightweight material options.
Copper Replacement and Electrical Applications
For copper-replacement applications, high-strength conductive ODS aluminum materials balance strength and electrical conductivity while retaining the weight advantage of aluminum.
Heat Exchanger and Thermal Management Applications
Heat exchanger and thermal management materials must combine thermal conductivity, corrosion resistance, and long-term stability.
Precision Electronics and 3C Components
Electronic components require a combination of low weight, high strength, dimensional stability, and precision machinability.
Advanced Manufacturing and Complex Structural Parts
For complex structures requiring high strength and integrated manufacturing, ODS aluminum alloy semi-solid rheoforming offers a new route for component development.
If you need an ODS aluminum material for a specific application, send us the product use, target properties, and specifications. Henan Chalco can help evaluate a suitable material solution.
ODS Aluminum Technology Features
ODS aluminum combines powder metallurgy with near-net-shape manufacturing to improve overall performance, reduce machining allowances and material waste, and balance high performance with cost efficiency.
High Performance
ODS aluminum uses nanoscale oxide particles to strengthen the matrix, helping improve strength and microstructural stability.
Lower Material Processing Limitations
Powder metallurgy reduces the coarse, uneven microstructures that can develop during conventional casting, expanding the material design space for high-performance aluminum alloys.
Near-Net-Shape Manufacturing Potential
ODS aluminum supports near-net-shape manufacturing, reducing downstream processing, improving material utilization, and enabling complex product structures.
Expanded Processing Window
A fine-grained microstructure and low internal stress provide a wider processing window for high-temperature deformation and complex structural manufacturing.
Comparison of Three Manufacturing Processes
Fine-Grained ODS Aluminum Microstructure
ODS Aluminum Composition Distribution
Why Choose Us
We are a high-tech enterprise specializing in the R&D and large-scale production of high-performance powder-metallurgy aluminum alloys, with a core annual production capacity of 15,000 metric tons.
Henan Chalco has R&D and large-scale production capabilities for high-performance powder-metallurgy aluminum alloys, supporting customers with ODS aluminum alloys, ODS aluminum matrix composites, and related high-performance aluminum materials.
- 30 years of industry experience, with R&D led by professors and PhD-level specialists
- One-stop coverage of aluminum alloys from the 1xxx through 8xxx series and a full range of aluminum matrix composites
- In-house-developed ODS aluminum alloys and near-net-shape manufacturing for cost-effective, large-scale production of high-performance aluminum materials
- 8 patent applications and 10 core technology patents
The main product range covers aluminum alloys and aluminum matrix composites in billets, profiles, plates, tubes, forgings, and other forms.
High-performance aluminum alloys produced by powder metallurgy feature a fine, uniform microstructure, dispersed alumina particle strengthening, and low internal stress. The process also supports large-scale production of large and complex-shaped products.
FAQ About ODS Aluminum Materials
What is ODS Aluminum?
ODS aluminum (oxide dispersion strengthened aluminum) is a class of high-performance aluminum materials whose overall properties are enhanced by oxide dispersion strengthening.
What are the advantages of ODS Aluminum?
ODS aluminum combines high strength, thermal stability, a fine-grained microstructure, and low weight for high-performance structures, thermal management, and electrical applications.
What types of ODS Aluminum materials can Henan Chalco supply?
Henan Chalco supports the supply of ODS aluminum alloys, ODS aluminum matrix composites, and ODS aluminum-lithium alloys.
What product forms are available?
Available product forms include billets, plates, tubes, profiles, forgings, and custom structural products.
Can ODS Aluminum be customized?
Yes. Henan Chalco can help evaluate a suitable ODS aluminum material solution based on the application, performance targets, and product specifications.
Is ODS Aluminum suitable for copper replacement applications?
ODS aluminum can be used in selected copper-replacement applications, including conductive components, heat exchange systems, and new-energy components. Suitability must be confirmed against the specific application requirements.
Can Henan Chalco support large-size ODS Aluminum billets?
Yes. Through its supply partner's material development capabilities, Henan Chalco can support large billets and custom structural products.
Request an ODS Aluminum Material Solution
Henan Chalco can help evaluate a suitable ODS aluminum material solution based on your application requirements, performance targets, and product specifications.
Please provide:
- Application;
- Product form;
- Dimensions;
- Performance requirements.
Contact us to discuss an ODS aluminum alloy, ODS aluminum matrix composite, or ODS aluminum-lithium alloy supply solution.
Chalco can provide you the most comprehensive inventory of aluminum products and can also supply you customized products. Precise quotation will be provided within 24 hours.
Get a quote
