8021 Aluminum Foil | Lithium Pouch Cell Packaging

8021 aluminum foil is an 8xxx-series aluminum alloy foil primarily used to manufacture aluminum plastic film for lithium pouch cells. With good elongation, formability, and surface quality, 8021 aluminum foil can serve as the middle aluminum layer in the film, providing stable barrier protection for pouch cells.

Compared with conventional packaging foil, 8021 aluminum foil is more suitable for applications with higher requirements for deep drawing, processing stability, and lamination performance. In aluminum plastic film structures, 8021 aluminum foil is laminated with materials such as PA and CPP/PP to form a multilayer protective structure.

Chalco supplies 8021-O aluminum foil with customizable thickness, width, and surface requirements. It can meet material performance and batch consistency needs in the manufacture of aluminum plastic film for lithium pouch cells.

8021 Aluminum Foil Specifications

Chalco supplies 8021-O aluminum foil with thickness, width, and surface quality controlled according to aluminum plastic film manufacturing requirements. For lithium pouch cell packaging, 8021 aluminum foil requires stable dimensional accuracy, a clean surface, and good compatibility with lamination processes.

Depending on customer application requirements, Chalco can provide:

• Customized thickness and width;
• Surface quality control for aluminum plastic film lamination requirements;
• Supporting packaging and delivery solutions.

Quality Advantages of Chalco 8021 Aluminum Foil

When used in aluminum plastic film for lithium pouch cells, 8021 aluminum foil undergoes processing steps such as lamination, pocket forming, and edge folding. The material therefore requires not only good processability, but also stable surface condition and batch consistency.

Good formability: Aluminum plastic film requires deep drawing during manufacturing. The good formability of 8021 aluminum foil makes it suitable for pocket forming, edge folding, and other processes used to produce complex film structures.

High elongation: 8021 aluminum foil must withstand substantial deformation during processing. Good elongation helps reduce the risk of cracking or damage and improves processing stability.

Stable surface quality: 8021 aluminum foil is laminated with materials such as PA and CPP/PP. Stable surface quality helps meet lamination requirements and supports the structural stability of the aluminum plastic film.

Consistent material performance: Chalco controls the material performance of 8021 aluminum foil through alloy composition control, rolling process management, and quality inspection, helping customers obtain stable batch-to-batch consistency.

Applications of 8021 Aluminum Foil in Lithium Pouch Cell Packaging

8021 aluminum foil is primarily used to manufacture aluminum plastic film for lithium pouch cells. In a pouch cell structure, the film serves as the cell's outer packaging and consists of multiple laminated materials. The 8021 aluminum foil forms the middle aluminum layer and provides important barrier protection for the cell.

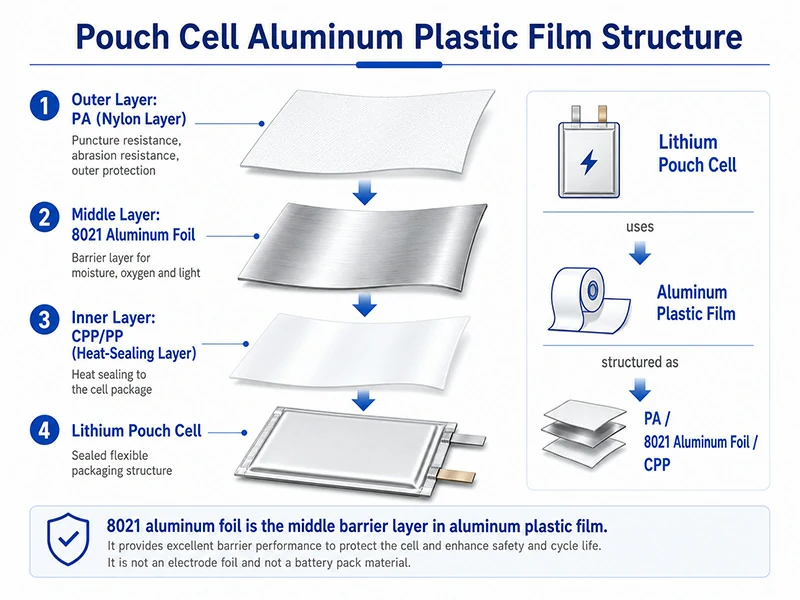

Aluminum Plastic Film Structure for Pouch Cells

8021 aluminum foil is primarily used to manufacture aluminum plastic film for lithium pouch cells. Unlike cylindrical and prismatic cells, which use metal housings, pouch cells use flexible aluminum plastic film as the outer packaging material. The film forms a protective structure by laminating multiple material layers, with 8021 aluminum foil positioned in the middle.

Typical Structure

In an aluminum plastic film structure, 8021 aluminum foil primarily serves as the middle barrier layer.

The aluminum foil layer uses its good barrier properties to protect pouch cells from water vapor, oxygen, and light. At the same time, the formability and elongation of 8021 aluminum foil can meet the pocket-forming, edge-folding, and other processing requirements of aluminum plastic film manufacturing.

In addition to aluminum plastic film for lithium pouch cells, 8021 aluminum foil can be used in other high-barrier flexible packaging applications, such as pharmaceutical packaging, cold-form foil, and laminated packaging materials. Chalco can provide customized 8021 aluminum foil solutions based on application requirements.

Config Advice

Chalco 8021 Aluminum Foil Supply Capabilities

As a supplier of processed aluminum materials, Chalco has integrated aluminum foil production and quality control capabilities and can supply 8021 aluminum foil for lithium pouch cell packaging.

Supported by an established aluminum alloy processing system, Chalco can control alloy composition, rolling processes, dimensional accuracy, and surface quality during 8021 aluminum foil production to meet material consistency requirements for aluminum plastic film manufacturing.

Manufacturing and Quality Control

The 8021 aluminum foil production process includes: alloy melting; casting and rolling; hot and cold rolling; annealing; slitting; and finished-product inspection.

Through production process control and quality inspection, Chalco can support customer requirements for material performance, dimensional accuracy, and surface quality.

Custom Specification Support

For different aluminum plastic film processing requirements, Chalco can provide custom 8021 aluminum foil services, including:

• Alloy and temper: 8021-O;
• Thickness range: 0.025-0.06 mm;
• Width range: 100-1650 mm;
• Specification adjustments based on application requirements.

Quality Documentation Support

Chalco can provide relevant quality documents based on customer requirements, including:

• Material Test Certificate (MTC);
• Chemical Composition Report;
• Mechanical Property Report;
• Inspection Report.

Depending on project requirements, Chalco can also coordinate product verification with third-party testing organizations and provide the corresponding test reports.

Stable Supply Capability

Chalco has an integrated aluminum processing production system covering melting, rolling, finishing, and inspection. It can provide stable 8021 aluminum foil supply solutions based on customer project requirements. Through control of material production processes and product quality, Chalco can meet customer needs for consistent foil specifications, processing stability, and long-term supply.

In addition to 8021 aluminum foil, Chalco supplies other aluminum foil products for battery applications. It can provide matching aluminum foil material solutions based on different battery structures, processing methods, and application requirements.

Modified Aluminum Foil for Battery

Current Collector Aluminum Foil

Lithium Ion Battery Foil

Liquid Cold Plate

Power Battery Aluminum

Power Battery Shell

FAQ

What Is the Difference Between 8021 and 8011 Aluminum Foil?

Both 8021 and 8011 aluminum foil are 8xxx-series aluminum alloy foils, but they differ in application focus and performance characteristics. 8021 aluminum foil typically offers better elongation and formability, making it more suitable for applications with higher deep-drawing requirements, such as aluminum plastic film for lithium pouch cells. 8011 aluminum foil is widely used in conventional packaging applications such as food and pharmaceutical packaging.

What Is the Difference Between 8021 and 8079 Aluminum Foil?

Both 8021 and 8079 aluminum foil can be used for flexible laminated packaging. In comparison, 8021 aluminum foil is typically used in applications with higher formability and material stability requirements, such as aluminum plastic film for lithium pouch cells. The suitable alloy should be determined based on the film structure, processing method, and customer application requirements.

Is 8021 Aluminum Foil a Battery Cathode Foil?

No. The 8021 aluminum foil used in aluminum plastic film and cathode current collector foil are different types of aluminum materials for batteries.

8021 aluminum foil is primarily used as the middle aluminum layer in pouch cell packaging, where it serves as a protective barrier rather than as a current collector foil coated with cathode material.

Why Is 8021 Aluminum Foil Used in Pouch Cell Packaging?

Pouch cells use flexible aluminum plastic film as their outer packaging. The 8021 aluminum foil forms the middle barrier layer and must meet both forming-process and long-term protection requirements.

8021 aluminum foil offers good elongation, deep-drawing formability, and stable surface quality, making it suitable for pocket forming, edge folding, and lamination during aluminum plastic film manufacturing.

Can Chalco Provide Quality Documents for 8021 Aluminum Foil?

Yes. Based on customer requirements, Chalco can provide quality documents for 8021 aluminum foil, including a Material Test Certificate (MTC) and product inspection reports, to support customer material verification and supplier audits.

Can Chalco Customize 8021 Aluminum Foil Specifications?

Yes. Chalco can provide specification evaluation and customization support for 8021 aluminum foil based on customer application requirements, including thickness, width, temper, and other processing requirements for different aluminum plastic film manufacturing needs.

Request an 8021 Aluminum Foil Supply Solution

Chalco supplies 8021 aluminum foil for lithium pouch cell packaging, with support for custom specifications, quality documentation, and matching to project requirements.

Whether for aluminum plastic film manufacturing, material verification, or bulk procurement, Chalco can provide an appropriate 8021 aluminum foil solution based on customer application requirements.

Contact us for 8021 aluminum foil specifications, technical documentation, and supply solutions.
