Aluminum sliding glass doors are often selected for patios, balconies, villas, hotels and commercial openings where buyers need wider views, smooth operation, better sealing and long-term outdoor durability.
Chalco provides custom aluminum sliding patio doors with ES systems, glass, thermal break, hardware and finish options, helping customers choose the right solution by size, climate, wind load, performance target and budget.
| Aluminum Alloy Grade | Common: 6063-T5; 6061-T6 available for high-strength projects, subject to project requirements |
| Main Profile Wall Thickness | Wall thickness of main door profiles is typically recommended ≥ 2.0mm, subject to system design and project calculations |
| Frame Thickness | Available in 86mm / 115.6mm / 116mm / 152mm depending on series |
| Sash Thickness | Available in 34mm / 52mm / 70mm depending on series |
| Thermal Break Strip | Frame thermal break: 15–33mm; sash thermal break: 15–34mm, depending on system configuration |
| Interior Sightline Width | Reference configuration: frame 40mm / sash 102mm, subject to profile system |
| Outer Frame Width | Reference configuration: 152mm, subject to selected system |
| Glazing Options | Options include tempered, laminated, insulating, Low-E, and argon-filled insulating glass; reference configuration: 5mm+12A+5mm+12A+5mm |
In addition to the above standard parameters, Chalco can provide customized aluminum sliding glass door solutions based on project drawings, opening dimensions, wind load, glazing specifications, color, hardware, and packaging requirements.

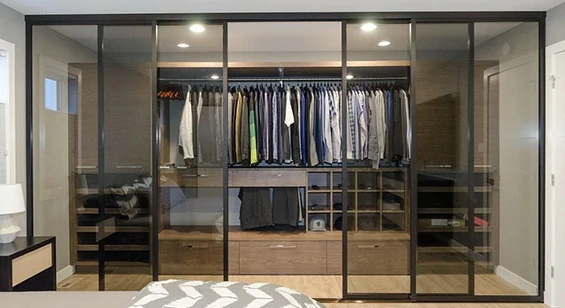

A practical sliding door system for standard patios, balconies and residential openings.

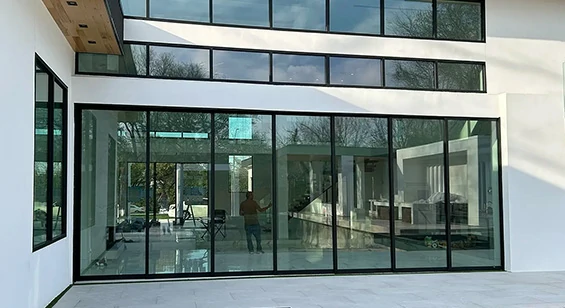

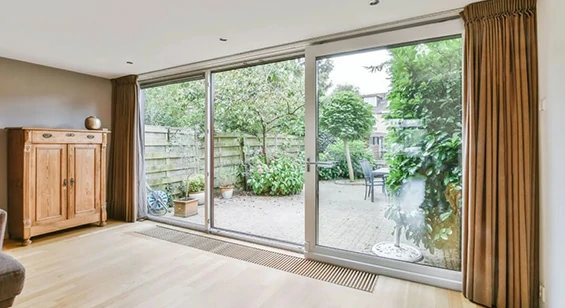

A wider opening solution for projects that need better ventilation, access and indoor-outdoor connection.

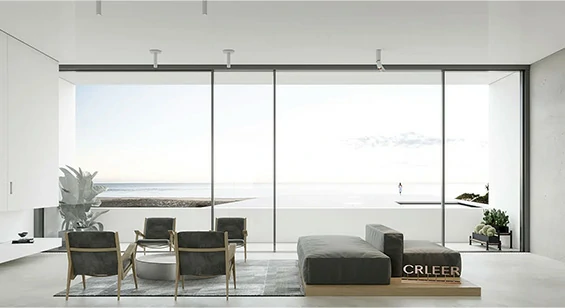

Designed for large openings in villas, hotels, resorts and commercial spaces.

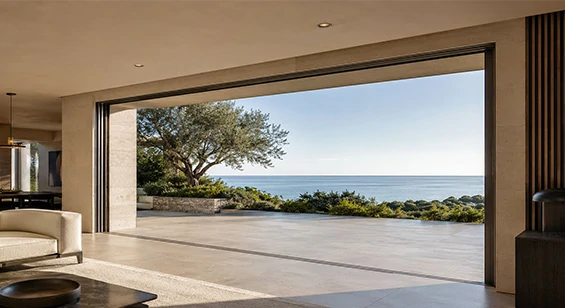

The sash slides into a concealed cavity within the wall, ideal for projects seeking unobstructed views and premium architectural aesthetics.

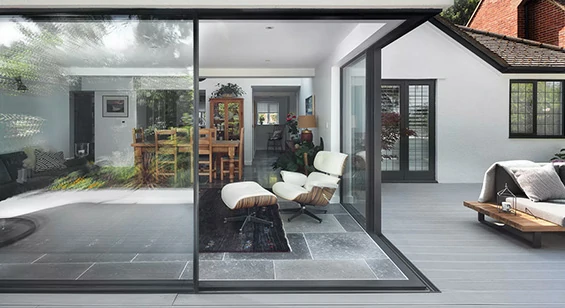

Ideal for projects requiring corner openings, unobstructed views, and distinctive architectural aesthetics.

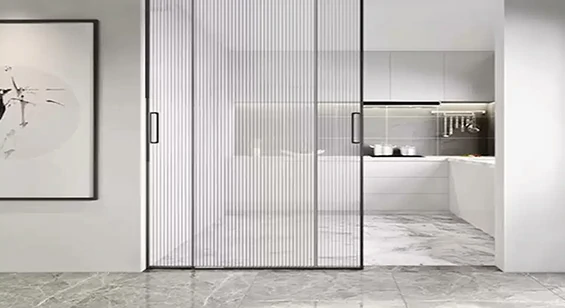

Features a narrower frame design to increase glass area and enhance modern architectural appeal.

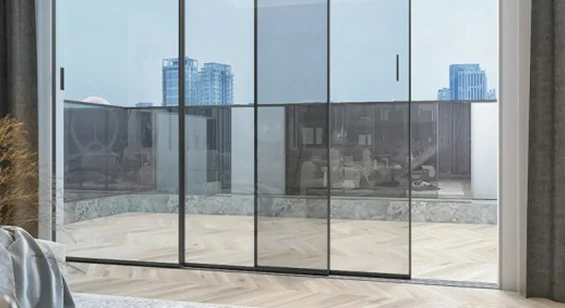

An automated sliding solution ideal for large panels, premium projects, and ease-of-use requirements.
A project-oriented sliding door solution designed for large openings and custom architectural designs.
Unsure which sliding door system suits your project?
Please provide opening dimensions, sash layout, glazing requirements, and project location—we can help confirm the appropriate configuration.
| Series | Recommended Applications | Key Advantages |
| ES86 | Residential balconies | Slim frame, excellent sealing performance |
| ES115 | High thermal insulation projects | Strong thermal break, excellent water tightness |
| ES116 | Safety-focused installations | Integrated glazing bead, compatible with standard hardware |
| ES144 | Low-threshold access | Easy passage, enhanced performance |
| ES152 | Large, heavy-duty doors | Supports loads over 300kg, flexible track options |
The ES86 is a slim-frame aluminum sliding door system suitable for residential patios, balconies, and modern architectural openings. It features hidden drainage, EPDM gasket sealing, and optional insect screen and shading configurations, balancing minimalist aesthetics with reliable everyday performance.
The ES115 is a reinforced thermal break aluminum sliding door system designed for residential and project applications demanding higher thermal insulation, water tightness, and overall sealing performance. It features die-cast corner connectors, unique drainage design, and multi-seal construction, ensuring structural stability and long-term reliability.
Performance ratings: Thermal insulation Class 7, Sound insulation Class 2, Water tightness Class 4, Air tightness Class 6, Wind resistance Class 9.
Structural parameters: Frame thickness 115.6 mm, sash thickness 52 mm, frame thermal break 33 mm, sash thermal break 22 mm.
The ES116 is an aluminum sliding door system designed with a focus on safe glazing installation and hardware compatibility, suitable for projects requiring secure glass mounting, universal hardware fitment, and stable sealing performance. The system features an internal glazing bead design, Euro groove profile, and multi-seal structure, enabling easy integration with various hardware solutions and enhancing overall reliability.
Performance ratings: Thermal insulation Class 5, sound insulation Class 3, water tightness Class 3, air permeability Class 5, wind load resistance Class 9.
Structural parameters: Frame thickness 116 mm, sash thickness 52 mm, frame thermal break 18.6 mm, sash thermal break 15 mm.
The ES144 is an upgraded aluminum sliding door system ideal for residential and commercial projects requiring low-threshold access, enhanced hardware, and superior overall performance. Featuring a Euro groove profile, low-track design, and multi-seal structure, it delivers more consistent air tightness, water resistance, and wind load performance compared to standard sliding systems, and allows the sash to be fixed at any position.
Performance ratings: Thermal insulation Class 6, sound insulation Class 3, water tightness Class 3, air permeability Class 6, wind load resistance Class 9.
Structural parameters: Frame thickness 116 mm, sash thickness 52 mm, frame thermal break 18.6 mm, sash thermal break 15 mm.
The ES152 is a heavy-duty aluminum sliding door system designed for large openings, oversized glass panels, and high-load applications. With a sash load capacity exceeding 300 kg, it supports single-, double-, or triple-track configurations and incorporates thermally broken edge profiles, system-optimized fabrication methods, and dedicated components to enhance connection strength, thermal performance, and overall stability.
Performance ratings: Thermal insulation Class 7, sound insulation Class 3, water tightness Class 4, air permeability Class 8, wind load resistance Class 9.
Structural parameters: Frame thickness 152 mm, sash thickness 70 mm, frame thermal break 24 mm, sash thermal break 24 mm.
Chalco aluminum sliding patio and glass doors are suitable for residential homes, villas, hotels, restaurants, and commercial projects, and can be selected based on opening dimensions, environmental conditions, glass requirements, and hardware configuration.

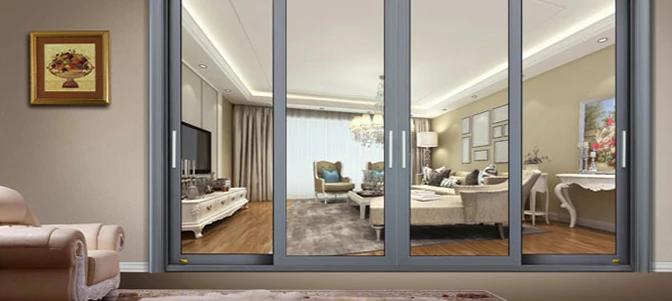

Ideal for patios, balconies, living rooms, and large residential openings, meeting requirements for natural light, unobstructed views, and space efficiency.

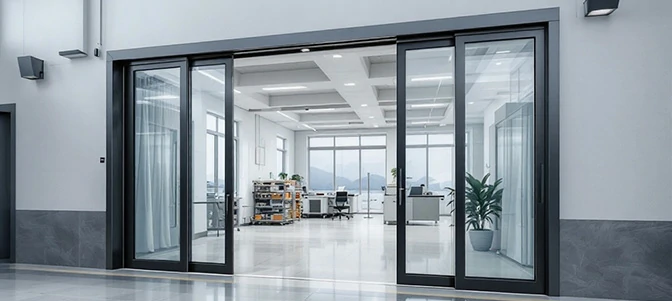

Suitable for hotels, resorts, restaurants, showrooms, retail stores, and flexible commercial spaces, fulfilling demands for large openings and high-frequency usage.
You can select appropriate glass, hardware, surface colors, tracks, gaskets, and screen configurations based on project location, opening size, performance requirements, and design style.

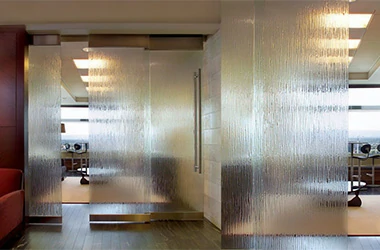

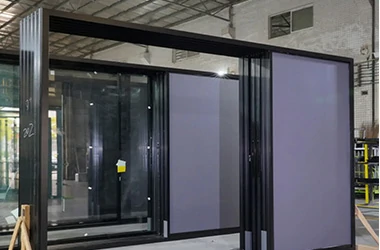

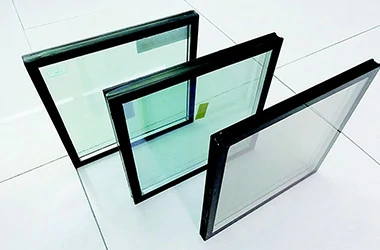

Glass configuration directly affects safety, thermal insulation, soundproofing, daylighting performance, and overall sash weight.
The hardware system determines the smooth operation, safety, and long-term stability of aluminum sliding glass doors.
Available hardware brands:
For premium or project-specific aluminum sliding glass doors, hardware can be matched to HOPPE, SIEGENIA, G-U, GIESS, Kin Long, Guoqiang, Hehe, Chunguang, or equivalent brands as required, subject to final project confirmation.
Surface finishes affect the door's appearance, corrosion resistance, and long-term outdoor service life.
Track and threshold design impact drainage, accessibility, weather resistance, and daily user experience.
Common track options:
| Raised track / vertical threshold track |
Approx. 25.4 mm high track base Approx. 19 mm step height Approx. 68.8 mm width |
Clear anodized aluminum Thermally broken construction available upon project request |
| Recessed track |
Approx. 25.4 mm high track base Approx. 68.8 mm width |
Clear anodized aluminum Black anodized aluminum |
Sealing gaskets directly influence air tightness, water resistance, sound insulation, and indoor comfort.
Screen configurations allow ventilation while reducing insect, dust, and debris entry.
Sash dimensions and opening direction should be confirmed early to avoid design, installation, and cost changes later.
Chalco supplies complete aluminum sliding door frame kits based on project drawings, opening dimensions, and sash layout, helping contractors, distributors, and project buyers match frame profiles, sash profiles, tracks, thresholds, gaskets, rollers, locks, and screen systems in one go.
Please provide opening dimensions, sash layout, glass thickness, track requirements, hardware preferences, and order quantity for a quick quotation.
Aluminum sliding glass doors are available in standard or custom sizes based on opening width, height, sash configuration, and project requirements.
The following dimensions serve as common market references for residential patio doors, large openings, and project-based sliding door systems.
| Dimension Reference | Metric Dimensions | Suitable Applications |
| 58.5" × 80" | 1486 × 2032 mm | Narrow patio or balcony openings |
| 70.5" × 80" | 1791 × 2032 mm | Standard residential patio door |
| 72" × 80" | 1829 × 2032 mm | Common replacement door or new opening |
| 94.5" × 80" | 2400 × 2032 mm | Wider residential sliding door |
| 120" × 80" | 3048 × 2032 mm | Large patio or multi-panel assembly |
| 120" × 96" | 3048 × 2438 mm | Tall, large-opening sliding glass door |
| 144" × 80" | 3658 × 2032 mm | Wide patio, villa, or commercial opening |
| 144" × 96" | 3658 × 2438 mm | Extra-large sliding glass door projects |
Chalco ES series aluminum sliding glass doors can be configured for thermal insulation, sound insulation, water tightness, air tightness, and wind load resistance according to project requirements.
Final performance depends on the selected system, glazing, seals, hardware, and test conditions.
Note: Final performance values should be confirmed based on the selected ES series, glazing configuration, project drawings, and available test documentation.
Aluminum sliding glass doors aren't just about how wide the profile is or how large the glass appears.
For residential patios, hotels, commercial spaces, and large-opening projects, long-term user experience truly depends on: stable frame joints, smooth sliding operation, effective rainwater drainage, reliable sealing, weather-resistant finishes, and hardware capable of supporting the weight.
Corner joints of frames and sashes can use impact-corner injection-molded corner keys combined with die-cast corner connectors to enhance structural stability. This joint method helps reduce loosening, deformation, and long-term seal degradation—especially critical for large glass doors, frequently used patio doors, and commercial projects.
Concealed vertical drainage channels direct rainwater out of the system efficiently, minimizing water accumulation, backflow, and visual impact from exposed drain holes. For patios, balconies, and outdoor-connected spaces, drainage design affects real-world performance more than frame thickness alone.
EPDM gaskets, multi-point seals, and pressure-equalized sealing structures reduce infiltration of wind, rain, dust, and noise. For high thermal performance, high water tightness, or street-facing projects, the sealing system must be coordinated with glazing, profiles, drainage, and installation—not evaluated by a single gasket alone.
Thermally broken profiles reduce heat transfer at frame and sash joints. When paired with insulating glazing units, Low-E glass, argon gas fill, and warm-edge spacers, they improve overall thermal performance—ideal for villas, apartments, hotels, and energy-efficient projects.
Slim frame designs maximize visible glass area, enhancing natural light and providing clearer, more open views.
When selecting an aluminum sliding glass door, consider project location, climate conditions, glass safety, noise levels, and opening dimensions.
The right system depends not only on profile width but also on glazing, sealing, drainage, hardware, and surface finish.
| Project Conditions | Recommended Configuration |
| Hot or high-sunlight regions | Thermally broken aluminum + Low-SHGC Low-E glass |
| Cold climates | Wider thermal break + insulating glazing + argon fill + warm-edge spacer |
| Coastal or high-humidity areas | High-grade powder coating, anodizing, or PVDF fluorocarbon finish |
| Heavy rain or high wind pressure zones | Drainage system + multi-point seals + verified wind load resistance |
| Street-facing or high-noise areas | Laminated glass + higher air tightness |
| Large openings or heavy sashes | Verify glass weight, roller load capacity, and track system compatibility |
| Public areas or floor-to-ceiling doors/windows | Tempered or laminated safety glass |
Please provide project location, opening dimensions, sash layout, glazing requirements, and performance targets. Chalco can assist in comparing suitable ES sliding door systems before quoting.
Replacing aluminum sliding glass doors involves more than removing the old unit and installing a new one. Before replacement, confirm opening dimensions, track condition, glass weight, drainage direction, and profile system to ensure proper fit, smooth operation, and stable sealing.
Both aluminum sliding glass doors and uPVC sliding doors are suitable for patios, balconies, and residential openings. The choice depends primarily on project scale, climate, budget, aesthetics, structural strength, and long-term performance requirements.
| Comparison Criteria | Aluminum Sliding Glass Door | uPVC Sliding Door |
| Frame Strength | Higher strength; suitable for large sashes and commercial applications | Lower rigidity; better suited for standard residential sizes |
| Aesthetic Appearance | Slimmer frames, larger glass area, more modern appearance | Typically wider frames, more traditional appearance |
| Durability | Excellent weather resistance with appropriate surface treatment | May degrade or deform under prolonged intense sunlight or high temperatures |
| Energy Efficiency | Thermal performance enhanced via thermally broken aluminum + Low-E glass | Inherently good thermal insulation due to material properties |
| Color Options | Available finishes include powder coating, anodizing, PVDF, and custom colors | Color options are relatively limited |
| Large opening compatibility | Better suited for extra-large dimensions, multi-track configurations, and commercial openings | Less suitable for extra-large or heavy glass door panels |
| Cost | Typically higher initial cost, but better long-term value for projects | Generally lower cost, ideal for budget-sensitive residential projects |
For projects requiring narrow frames, large glass panels, higher structural strength, custom colors, commercial-grade durability, or large openings, aluminum sliding glass doors are recommended.
For standard residential replacements with limited budgets and smaller openings, PVC-U sliding doors may be a suitable option.
Aluminum is better suited for large openings, narrow frames, commercial applications, and long-term durability; PVC-U is typically more appropriate for budget-conscious standard residential replacement doors.
Cost depends on opening dimensions, glass type, profile system, hardware, surface finish, quantity, and installation conditions. An accurate quote requires details on dimensions, panel layout, glass specifications, and project location.
Aluminum doors typically cost more than PVC-U doors, and non-thermal-break aluminum conducts heat more readily. Performance can be improved by selecting thermal-break profiles, insulated glazing, and appropriate surface finishes.
The right aluminum sliding door depends on project requirements. A high-performance door should align with opening size, glass weight, wind load, thermal performance needs, hardware load capacity, and environmental conditions.
To provide a faster and more accurate quote for your aluminum sliding glass doors, please share the following project details.
This information helps us select the appropriate profile system, glass, hardware, surface finish, and delivery solution.
Quick Quotation Checklist:
Please send your opening dimensions, project location, panel layout, and glass requirements. Chalco can help you evaluate suitable sliding door systems, confirm profile, glass, and hardware configurations, and provide a project-specific quotation.
