Why choose Chalco Aluminum alloy profile for missile launching box guide?
Authentication
Chalco products are manufactured in our state-of-the-art facility using a strict quality and environmentalmanagement system that is ISO certified.
Production strength
Production and management in accordance with the international power quality system to ensure a long service life.
Production standard
GJB 10070-2021
The specification of aluminum alloy profile for missile launching box guide-mm
| Alloy | Temper | Section Shape | specification | |||
| Height H | Width B | Thickness h | Length | |||
| 2A12 | T3511 | Pic 1 | 80-100 | 220-240 | 5-8 | 3m; customized |
| 6A02 | T6511 | Pic 2a) | 170--190 | 120-190 | 8-15 | |
| Pic 2b) | 120-140 | 250-270 | 5-14 | |||
| Specific dimensions should be in accordance with the requirements of the profile drawings signed by thesupplying and demanding parties. | ||||||

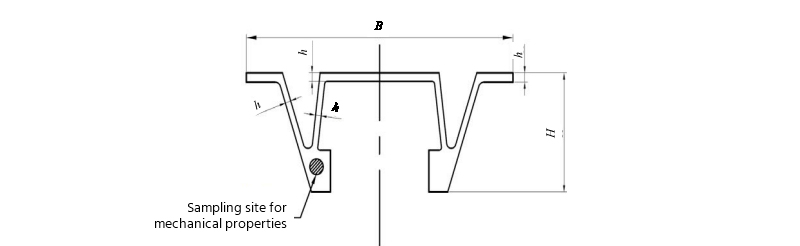

Pic. 1 Schematic diagram of the cross-sectional shape of the 2A12 aluminium alloy T3511 state profile

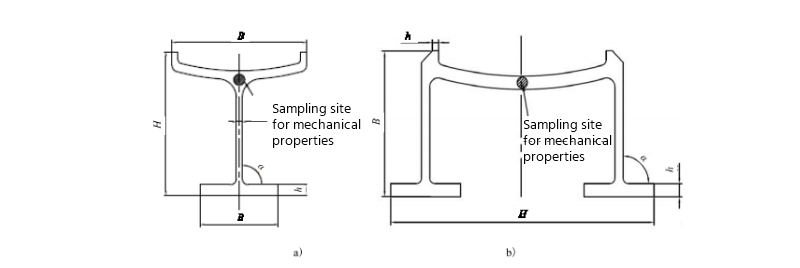

Pic. 2 Schematic diagram of the cross-section shape of the 6A02 aluminium alloy T6511 state profile
Curvature
2A12 aluminium alloy profiles (Pic. 1) shall have an upward and downward curvature and a lateral curvature of notmore than 1m per metre, and a full-length curvature of not more than 2mm. 6A02 aluminium alloy profiles (Pic. 2)shall have an upward and downward curvature of not more than 2mm over the whole length, and a lateral curvature ofnot more than 1.5mm over the whole length.
Twisting degree
2A12 aluminium alloy profiles (Pic. 1) should have a full-length twist of not more than 1.5 mm. 6A02 aluminium alloyprofiles (Pic. 2) should have a full-length twist of not more than 2 mm.
Angular misalignment
6A02 Aluminium alloy profile (Pic. 2) has an angular deviation of ±10', i.e. a perpendicularity a of 90'±10'.
Symmetry
The symmetry of the profile is ±0.5mm.
Chalco's hot-selling extruded profiles shapes
With decades of experience in the aluminum extrusion industry, Chalco has achieved an annual production capacity of100,000 tons. We also possess molds for 2000 standard aluminum extruded profiles. Take advantage of our latestpromotional policy with waived mold fees.
Typically, 6063 is used for architectural applications, while 6061 is utilized for structural purposes. Wellste alsooffers various other alloy numbers such as the 1000 series, 2000 series, 3000 series, 5000 series, 6000 series, and7000 series. Our sales engineers can assist you in selecting the right alloy for your project.
Instant Quote
Aluminum Angle
Aluminum T bar
Aluminum I Beam
Extruded Aluminum Channel
Aluminum Flat Bar
Aluminium G Profile
F-shaped-Aluminium-Extrusion
Aluminium J Profile
Square-Aluminum-Extrusion
Z-Aluminium-Extrusion
Oval Aluminum Extrusion
Y Section Aluminium Extrusion
Chemical component of Chalco Aluminum alloy profile for missile launching box guide
| 2A12 | 6A02 | ||
| Al | Rest | Al | Rest |
| Cu | 3.8-4.9 | Cu | 1.8-2.6 |
| Mn | 0.2-0.8 | Mn | 0.3-0.9 |
| Mg | 1.2-1.8 | Mg | 0.4-0.8 |
| Zn | 0.3-0.9 | Zn | 5.1-6.1 |
| Fe | 0.5 | Fe | 0.5 |
| Si | 0.5 | Si | 0.6 |
| Pb | 0.2 | Pb | 0.2 |
| Dissolved aluminium impurities | 0.15 | Dissolved aluminium impurities | 0.15 |
| Other (individual impurities) | 0.05 | Other (individual impurities) | 0.05 |
| Other (total impurities) | 0.15 | Other (total impurities) | 0.15 |
Mechanical property of Chalco Aluminum alloy profile for missile launching box guide
| Alloy | Temper | Sample temper | Tensile strength Rm MPa | Yield strength Rp0.2 MPa | Elongation A% | Hardness HBW 2.5/62.5/30 |
| Not less than | ||||||
| 2A12 | T3511 | T3511 | 440 | 315 | 10.0 | 110 |
| 6A02 | T6511 | T6511 | 295 | 225 | 10.0 | 73 |
Advantages of Chalco aluminum alloy profile for missile launching box guide
Lightweight: aluminium alloy is a lightweight material with a lower density compared toconventional steel. The use of aluminium alloy profiles can significantly reduce the weight of the rail, helping toimprove the mobility and transport efficiency of the missile case.
High strength: although aluminium alloys have a lower density, their strength is relatively high.Aluminium alloy profiles have good strength and rigidity and can withstand large loads and impacts, ensuring thestability and safety of the guideway.
Instant QuoteCorrosion resistance: aluminium alloys have good corrosion resistance and can withstand humidity,oxygen and some chemical substances. This is particularly important for missile launch box rails, as they are oftenrequired to work in harsh environmental conditions, such as marine environments or high humidity environments.
Machinability: aluminium alloy profiles have good machinability and are easy to cut, drill, stamp,weld and other machining processes. This makes the design and manufacture of rails more flexible and convenient, andcan meet a variety of complex shape and size requirements.
Thermal conductivity: aluminium alloy has good thermal conductivity and can conduct and dissipateheat quickly. During the missile launching process, the guide rail may be subject to high temperature impact, andthe aluminium alloy can effectively disperse the heat and maintain the stable temperature of the guide rail, whichhelps to improve the service life of the guide rail.
In summary, the use of aluminium alloy profiles for missile launch box guide rails has the advantages of lightweight, high strength, corrosion resistance and good processing performance, making it a common choice. Theseadvantages help to improve the performance, reliability and service life of missile launch boxes.
Precautions for purchasing aluminum alloy profile for missile launching box guide
Material certification
Ensure that the purchased Aluminum alloy profile for missile launching box guide meets relevant standards andobtains a qualified material certification certificate.
Specification requirements
Select the appropriate specification, size and shape according to actual needs to ensure that the purchased Aluminumalloy profile for missile launching box guide can meet the specific Aluminum alloy profile for missile launching boxguide manufacturing requirements.
Surface quality
Check whether the surface of the purchased Aluminum alloy profile for missile launching box guide is smooth, free ofcracks, wear, oxidation or other surface defects, to ensure that the surface quality of the Aluminum alloy profilefor missile launching box guide meets the requirements.
Supplier reputation
Choose a reputable and experienced supplier to purchase to ensure that the purchased Aluminum alloy profile formissile launching box guide is reliable in quality, reasonable in price and timely in delivery.
Instant QuoteStorage requirements
Pay attention to the storage requirements of the Aluminum alloy profile for missile launching box guide, keep itdry, avoid moisture, mechanical impact or other damage.
In short, when purchasing Aluminum alloy profile for missile launching box guide, you need to pay attention tomaterial certification, specification requirements, surface quality, supplier reputation and storage requirements,etc., to ensure that the purchased Aluminum alloy profile for missile launching box guide are reliable in qualityand meet the requirements.
Applications of Chalco Aluminum alloy profile for missile launching box guide
Military missile systems: aluminium rails are widely used in various military missile systems. Theguide rails of missile launch boxes are used to support and guide the operation of missiles to ensure accuratemissile launch and target hit. Aluminium alloy profiles are able to meet the high strength and durabilityrequirements of guide rails, while reducing the weight of the entire system.
Spacecraft launching system: in the spacecraft launching system, guide rails are used to supportand guide the launching process of the spacecraft. Aluminium alloy profiles can meet the high strength and rigidityrequirements of guide rails, and at the same time have good corrosion resistance and lightweight characteristics,which help to improve the performance and efficiency of the whole launch system.
Rocket launching system: the guide rail in the rocket launching system bears the function ofsupporting, guiding and maintaining the running trajectory of the rocket. Aluminium alloy profiles are suitable formanufacturing guide rails of various sizes and shapes, with sufficient strength and rigidity to cope with thevibration and impact of rocket launching.
Shipboard missile launching systems: missile launch box rails on ships are used to support andguide the launching of missiles. Due to the complexity of the naval environment, the rails need to have goodcorrosion resistance and structural stability. Aluminium alloy profiles meet these requirements and are lightweight,helping to reduce the ship's load.
Instant QuoteIn conclusion, the use of aluminium alloy profiles for missile launch box rails is widely used in the military andaerospace fields, including military missile systems, spacecraft launch systems, rocket launch systems and navalmissile launch systems. The advantages of aluminium alloy profiles make them ideal for use in these fields, meetingthe requirements of high strength, corrosion resistance and light weight.
