Chalco supplies high strength formable aluminum sheet for precision stamping and lightweight 3C electronic structures. This high-strength 5000 series Al-Mg material combines mechanical strength, useful formability, and non-magnetic characteristics for smartphone support plates, LCD components, and other thin-gauge electronic parts.
For projects requiring mechanical properties comparable to GM55, Chalco offers DCE51, a high-strength Al-Mg aluminum sheet grade for application-specific material selection. Its strength and forming performance can be evaluated against the required GM55 specifications, with temper, thickness, and component design considered during material matching.
High Strength 5000 Series Aluminum Sheet (DCE51) Specifications

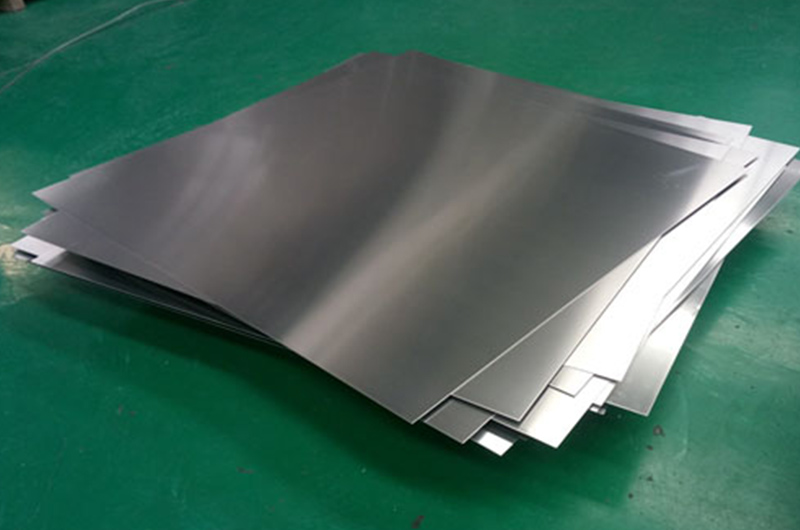

Chalco offers high-strength 5000 series aluminum sheet for electronic housings, support plates, and precision-stamped structures. Material specifications can be coordinated according to the required temper, thickness, dimensions, mechanical properties, and downstream forming process.
| Item | Specification |
| Material | DCE51 high-strength 5000 series Al-Mg alloy |
| Product Form | Aluminum sheet; coil supply subject to confirmation |
| Temper | O, H32, H34, H36, H38, H18 |
| Tested Thicknesses | 0.10, 0.15, 0.20, 0.25, 0.30, 0.40, 0.50, 0.60, 0.80, 1.00 mm |
| Width & Length | To be confirmed according to order requirements |
| Processing Options | Slitting and cut-to-length supply, subject to specification and order confirmation |
| Main Applications | 3C electronic structural parts, smartphone midframes, support plates, and precision stamping |
The thicknesses listed above represent available mechanical test data rather than the complete supply range. Please provide your required dimensions, temper, quantity, and forming requirements so that Chalco can confirm product availability and suitable supply options.
Precision Stamping & Formability of High Strength 5000 Series Aluminum Plate (DCE51)
Chalco's precision stamping aluminum sheet combines high strength, useful elongation, and lightweight construction for demanding 3C electronic structural parts. It provides a material option for smartphone midframes, punched support plates, and thin-gauge components where both structural performance and forming capability are important.
Different temper conditions allow manufacturers to balance strength and formability for bending, punching, and flanging operations. This flexibility supports material selection for OEM components with different structural loads, forming depths, and manufacturing requirements.
| Temper | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) |
| O | 290 | 130 | 33 |
| H32 | 295 | 160 | 28 |
| H34 | 350 | 250 | 15 |
| H36 | 370 | 295 | 13 |
| H38 | 390 | 280 | 12 |
| H18 | 430 | 370 | 8 |
High Strength 5000 Series Aluminum Sheet (DCE51) Properties
This high-strength Al-Mg alloy sheet combines a high-magnesium composition with mechanical performance suited to thin-gauge electronic structures. The reference composition and thickness-specific test results help OEM manufacturers review material suitability for precision forming and structural applications.
| Element | Composition (wt.%) |
| Si | ≤0.12 |
| Fe | ≤0.20 |
| Cu | ≤0.05 |
| Mn | 0.25–0.30 |
| Mg | 5.6–6.0 |
| Cr | ≤0.10 |
| Zn | ≤0.20 |
| Ti | 0.015–0.030 |
| Al | Balance |
Measured properties across selected thin-gauge thicknesses demonstrate the strength and elongation available in H34 and H38 conditions, supporting material evaluation for precision-stamped electronic components.
| Thickness (mm) | Temper | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) |
| 0.10 | H34 | 337 | 225 | 14 |
| 0.10 | H38 | 370 | 270 | 11 |
| 0.30 | H34 | 342 | 240 | 17.5 |
| 0.30 | H38 | 382 | 280 | 13.5 |
| 0.50 | H34 | 348 | 245 | 17 |
| 0.50 | H38 | 386 | 280 | 13 |
Need DCE51 sheet for a precision-stamped electronic component? Share your required strength, thickness, temper, and drawings with Chalco to confirm suitable material options and availability.
High Strength Aluminum Sheet for 3C Electronics Applications
High-strength aluminum sheet for electronics supports lightweight structural designs in smartphones, laptops, and other 3C devices. Its strength, formability, and non-magnetic characteristics make it a material option for thin-gauge support plates, internal frames, and precision-stamped components.
- Smartphone Midframes & Support Plates: High-strength aluminum sheet for internal support plates, midframe components, and punched structures, supporting thin-wall designs and potential weight reduction compared with heavier metal alternatives.
- Laptop & Portable Device Housings: Suitable for evaluating lightweight laptop covers, housing panels, and internal support components requiring structural strength and formed sheet metal features.
- Precision Stamped Electronic Parts: Material options for keyboard brackets, punched plates, bent supports, and flanged components, combining mechanical strength with temper-dependent forming capability.
- Electronic Equipment Frames & Chassis: Can be considered for internal frames, reinforcing plates, and thin-gauge chassis components requiring lightweight construction and mechanical support.
High Strength 5000 Series Aluminum Sheet vs Other Alloys
Aluminum sheet selection for electronic components requires consideration of mechanical strength, formability, machining requirements, thermal performance, and component design. The representative values below provide an initial reference for comparing different material routes under their listed conditions.
| Aluminum Alloy | Reference Temper | Representative Tensile Strength (MPa) | Applications & Selection Focus |
| DCE51 (Alternative for GM55-Related Requirements) | H38 | 390 | High-strength thin-gauge electronic structural parts requiring a balance of strength and formability. Chalco supplies DCE51 for evaluation against specified GM55-related requirements, with final matching based on temper, thickness, target mechanical properties, component design, and forming conditions. |
| 5052 | H34 | 242 | General electronic housings, covers, and formed sheet metal components where corrosion resistance and conventional fabrication are important. |
| 5182 | H34 | Approx. 331 | Formed sheet components requiring application-specific combinations of strength and elongation, with suitability depending on temper, thickness, and part geometry. |
| 6061 | T6 | 320 | Heat-treated structural components, machined parts, and equipment supports where structural strength and machinability are key considerations. |
| 6803 | Strength-enhanced condition | 349 | Electronic structural components requiring mechanical strength together with heat dissipation, particularly where thermal performance influences material selection. |
The values shown are associated with different alloy conditions and should not be treated as a same-thickness performance ranking. Share your target strength, temper, thickness, forming process, drawings, and quantity with Chalco to evaluate a suitable aluminum sheet option.
Anodizing & Surface Finishing Capabilities for 3C Electronics
Chalco provides comprehensive aluminum surface treatment solutions for 3C electronic components, combining substrate selection with customized finishing requirements. Our anodizing options include natural silver finishes and black anodizing for electronic housings and structural components, while brushed aluminum and matte finishes offer additional surface textures for decorative applications.
Chalco supports project-specific requirements for color, gloss, anodic film thickness, sealing, and batch appearance consistency. Through substrate matching, finishing-process coordination, and sample approval, we help customers establish suitable surface specifications for volume orders. For high-magnesium DCE51 sheet, decorative anodizing suitability and final appearance should be verified through material-specific trials.
Chalco Quality Control & Supply Support
Chalco supports high-strength aluminum sheet orders with material specification coordination, dimensional inspection, mechanical property verification, and delivery documentation. For 3C electronic components, these services help customers manage critical material requirements before precision stamping and assembly.
- Material & Specification Coordination: Match alloy temper, sheet thickness, width, dimensions, and mechanical requirements to customer drawings and intended applications.
- Dimensional & Flatness Inspection: Check thickness, width, flatness, waviness, and other agreed dimensional requirements to support precision stamping and assembly.
- Mechanical & Surface Quality Verification: Coordinate chemical composition and tensile property verification, together with checks for scratches, dents, cleanliness, surface condition, and edge burrs.
- Packaging & Documentation: Arrange protective packaging, material identification, and applicable MTC or CoC documents. Third-party inspection can be coordinated when specified in the order.
Share your required temper, thickness, drawings, quantity, and inspection criteria with Chalco to confirm suitable DCE51 supply arrangements and quotation details.
Related Aluminum Sheet & Coil Solutions for 3C Electronics
Pre-Anodized Aluminum Coil
High Formability Aluminum for 3C Parts
High-Strength Anodized Aluminum Sheet
High Strength Aluminum Sheet FAQ
What is high-strength 5000 series aluminum sheet (DCE51) used for in 3C electronics?
High-strength aluminum sheet for electronics is used in smartphone support plates, laptop structural components, precision-stamped brackets, and other lightweight 3C parts. Suitable material conditions are selected according to the required strength, thickness, and forming process.
How does this material compare with conventional 5052 aluminum sheet?
DCE51 is a high-magnesium 5000 series alloy developed for high-strength electronic structural applications, while 5052 is commonly selected for general sheet metal fabrication and corrosion-resistant components. DCE51-H38 has a typical tensile strength of 390 MPa, although material comparisons should account for temper, thickness, and forming requirements.
Which tempers are suitable for precision stamping and bending?
O temper offers higher elongation for more demanding deformation, while H34 and H36 provide intermediate strength and forming capability. H38 and H18 offer higher-strength options where forming requirements are more controlled. The appropriate temper depends on part geometry, sheet thickness, bend radius, and tooling.
Can high-strength 5000 series aluminum sheet be anodized?
Anodizing may be considered for high-strength 5000 series aluminum components, but the final appearance depends on alloy composition, surface condition, and finishing parameters. For high-magnesium DCE51, black anodizing and other decorative finishes should be evaluated through sample trials before production.
Can Chalco supply aluminum sheet with mechanical properties comparable to GM55?
Yes. Chalco supplies DCE51 high-strength 5000 series aluminum sheet for projects evaluating GM55-comparable strength and forming requirements. DCE51 offers documented tensile and elongation properties across multiple tempers, allowing customers to assess its suitability against specific GM55 requirements. Final matching depends on thickness, temper, mechanical specifications, and forming conditions.
What specifications and quality documents are required for an RFQ?
Please provide the required alloy or target mechanical properties, temper, thickness, width, length, quantity, application, and any drawings or technical standards. Chalco can coordinate applicable material test certificates (MTC), certificates of conformity (CoC), and additional inspection requirements according to the agreed order specifications.
Request a Quote for High Strength Aluminum Sheet
Looking for DCE51 high-strength aluminum sheet for precision stamping or 3C electronic components? Chalco can help evaluate suitable material specifications based on your strength, forming, and surface finishing requirements. For an accurate quotation, please share the following details:
- Alloy / Target Properties: DCE51, GM55-comparable requirements, or specified mechanical properties
- Temper: O, H32, H34, H36, H38, H18, or required condition
- Dimensions: Thickness × Width × Length
- Product Form: Sheet or coil
- Processing Requirements: Stamping, bending, flanging, or other forming operations
- Surface Finish: Anodizing, coating, or other specified finishing requirements
- Order Quantity: Required volume or estimated project demand
- Drawings & Standards: Technical drawings, inspection criteria, or applicable specifications
- Delivery Destination: Country, city, or destination port
Send your specifications to Chalco to confirm material availability, technical requirements, and quotation details.
