Chalco manufactures forged aluminum tube hollows and bored-from-solid tube shells for large-diameter and thick-wall applications requiring high structural integrity.
The forging route delivers a dense, uniform microstructure and tight concentricity for critical load-bearing parts. Typical grades include 6061, 7075, 7050.
- Thick-wall & large-diameter capability
- Forged hollows & bored-from-solid route
- Tight concentricity; UT/RT available
- Heat-treat ready (e.g., T6/T651)
- Cut-to-length; responsive lead times
At a glance: OD Ø20–Ø800 mm · Wall ≥5 mm · Length up to 1500 mm · Tolerance (as forged/machined) up to ±0.5 mm · UT/RT on request
Also available: titanium and steel forged hollows — see dedicated pages. This page focuses on forged aluminum tube hollows for thick-wall/large-diameter needs.
Manufacturing Routes for Thick-Wall & Large-Diameter Aluminum Tubes
Forged Hollows / Bored-from-Solid — preferred when sections are oversize or ultra-thick and higher structural integrity is required. The forged route delivers a dense microstructure and allows concentricity control via deep-hole boring; UT/RT is available on request.
Seamless / Drawn (comparison) — common route for mainstream OD/wall ranges with faster supply. For oversized sections or higher reliability requirements, Chalco recommends forged aluminum hollows (this page).
Aluminum Forged Hollow Types Supplied by Chalco
-

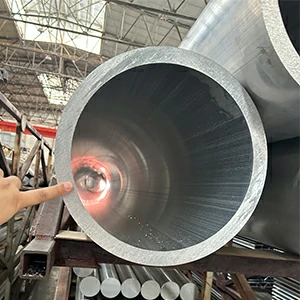

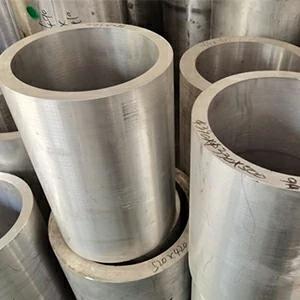

Forged Aluminum Tube Hollow
Near-net hollow forging for large-diameter and thick-wall requirements; dense structure and reliable performance for critical tube shells.
-

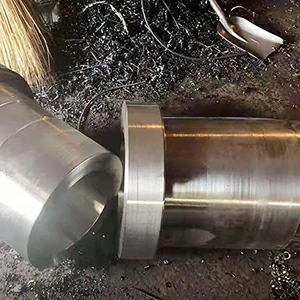

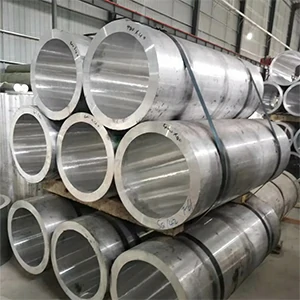

Bored-from-Solid Aluminum Hollow
Solid billet route with deep-hole drilling/boring to target ID & wall; suitable when geometry or stock availability favors solid processing.
-

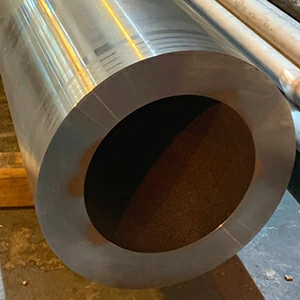

Thick-Wall Forged Aluminum Hollow
High wall thickness with tight concentricity control for pressure-bearing applications; heat treatment (e.g., T6/T651) and UT/RT available per drawing.
-

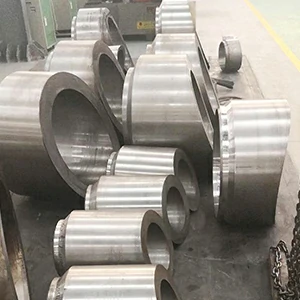

Custom-Shape Forged Aluminum Hollow
Square/oval hollows or flanged-end designs for space-limited or interface-rich assemblies; consistent alloy/temper to match adjoining parts.

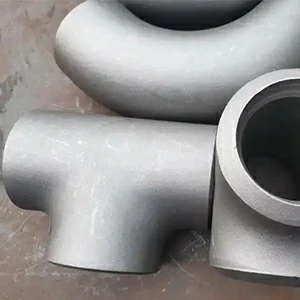

Forged Aluminum Pipe Fittings (Related Components)
Chalco supplies forging-grade aluminum fittings matched to forged aluminum tube hollows for high-pressure assemblies. Standards: ASME B16.9 / MSS-SP / GB/T / EN. Delivery: blank, rough-machined, or finish-machined with inspection documents (e.g., UT, material certs) on request.
-
Aluminum Forged Elbow
90° / 45° elbows for flow direction changes; alloy/temper consistent with hollow components.
-
Aluminum Forged Tee
T-shaped branch connections for high-pressure systems; OD and bore per drawing.
-
Aluminum Forged Reducer
Concentric / eccentric reducers for diameter transition; concentricity control on request.
-

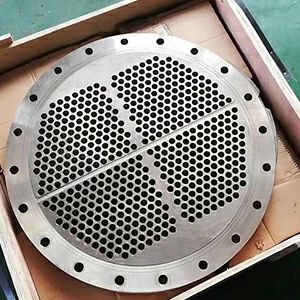

Aluminum Forged Flange
Forged flanges for bolted assemblies; surface and hole pattern per spec.
Also available: end caps, unions/couplings, crosses and 180° elbows, supplied on request to match alloy/temper.
Aluminum Alloys & Tempers for Forged Tube Hollows
Chalco supplies forged aluminum tube hollows and bored-from-solid tube shells for thick-wall and large-diameter applications. Alloy selection balances strength, corrosion resistance and heat-treat response for critical, load-bearing parts.
Core Aluminum Grades
-
6061 Forged Aluminum Tube Hollow
General-purpose; weldable and stable in machining. Typical temper: T6/T651.
-
7075 Forged Aluminum Tube Hollow
High strength for aerospace/defense structures; good fatigue resistance. Typical temper: T6/T651.
-
5083 Forged Aluminum Tube Hollow
Corrosion resistance for marine/chemical environments; non-heat-treatable; excellent toughness.
- Dense forged microstructure; improved fatigue/impact performance
- Concentricity control after deep-hole boring; UT/RT on request
- Heat-treat ready where applicable (e.g., T6/T651)
- Consistent ID/OD and wall for precision assemblies
6061 forged aluminum tube hollow
7075 forged aluminum tube hollow
5083 forged aluminum tube hollow
Also supplied on request: 7050 (SCC-resistant, thick sections), 2024 (fatigue strength), 2219 (high-temperature/weldable), 6082, 7475. Tempers vary by alloy and drawing/specification.
Capabilities & Quality — Thick-Wall & Large-Diameter Forged Aluminum Tube Hollows
Chalco manufactures forged aluminum tube hollows and bored-from-solid tube shells for thick-wall and large-diameter applications, with controlled concentricity and documented quality for critical, load-bearing parts.
Processing Capability & Range
- OD window: Ø20–Ø800 mm
- Wall: ≥5 mm (per drawing/route)
- Length: up to 1500 mm (material/route dependent)
- Concentricity control: deep-hole drilling/boring → finish machining
- Heat treatment: T6 / T651 / T74 / T76 (by alloy/spec)
- Machined tolerance: up to ±0.5 mm (tighter on request; CNC finish-turning ±0.05 mm ID)
Quality Control & Documentation
- Standards: ASTM / ASME / EN / GB / MIL (per PO)
- NDT: UT / RT on request; hardness & mechanical tests as specified
- Reports: material certs; heat-treat & dimensional reports
- Traceability: heat-number tracking; process records retained
- Packing: export packing with ID/OD protection
For a fast quote, include: Alloy/Temper · OD/ID/Wall · Length · Qty · Drawing/Tolerances · NDT (UT/RT).
Typical Applications — Forged Aluminum Tube Hollows
Chalco supplies forged aluminum tube hollows and bored-from-solid tube shells for thick-wall, large-diameter assemblies that require dense structure, concentricity control, and documented UT/RT.

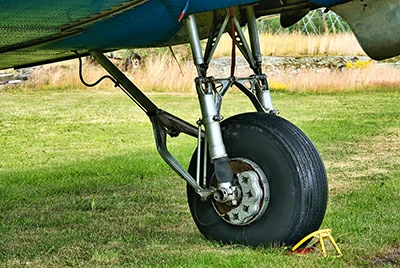

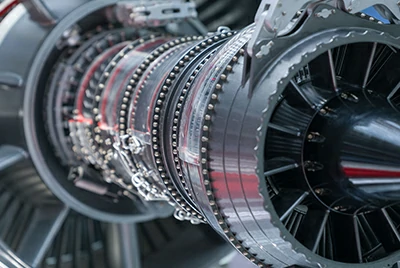

Aerospace — Actuators, Housings, Structural Tube Shells
Forged aluminum hollows with deep-hole boring and finish machining for high-load actuators and airframe interfaces. Typical grades: 7075 / 7050 / 6061; tempers such as T6/T651.
- Thick-wall, large-OD tube shells; tight concentricity
- UT/RT on request; dimensional & heat-treat reports
- Ready for anodizing / protective finishes

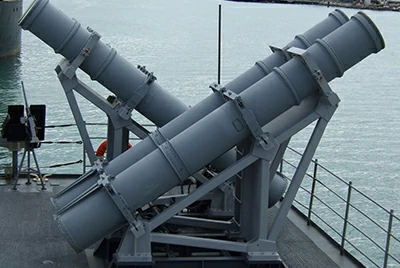

Defense & Military — Load-Bearing Tube Shells
High-strength forged aluminum hollows for impact/vibration environments and large-OD actuator housings; deep-hole bored IDs ensure alignment in precision mounts and motion systems. Typical grades: 7075 / 7050.
- Large-OD, thick-wall; machined tolerance up to ±0.5 mm
- Traceable batches; UT/RT and hardness/mechanical tests
- Finish machining for straightness/runout targets

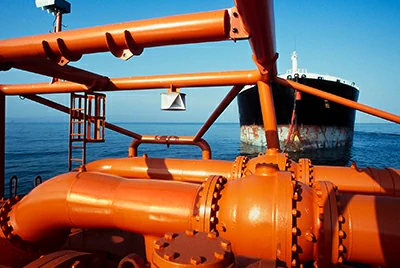

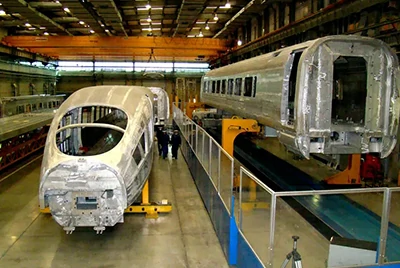

Rail & Marine — Cooling/Brake Modules, Corrosion-Resistant Shells
5083 / 6061 forged hollows for seawater and high-vibration service; weld-free tube shells improve fatigue life. Concentricity and surface finish tailored to assembly fit.
- Corrosion-resistant alloys; stable machining behavior
- Thick-wall hollows for cooling/brake modules
- Optional surface treatments; protected export packing

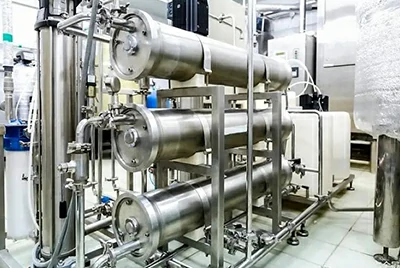

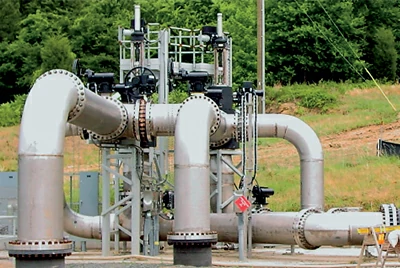

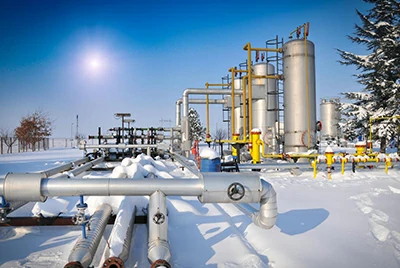

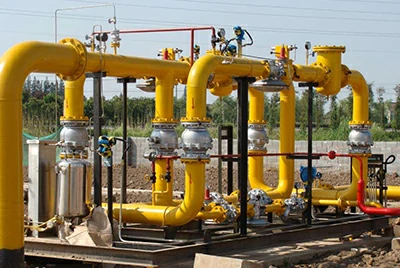

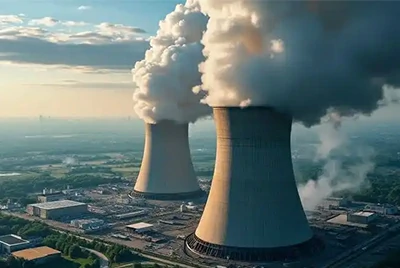

Also supported on request: power & thermal equipment, chemical systems, and other special environments requiring thick-wall, large-diameter forged aluminum hollows with UT/RT and heat-treat documentation.
Fast Quote: please include Alloy/Temper · OD/ID/Wall · Length · Qty · Drawing/Tolerances · NDT (UT/RT).
"The 7050 hollows passed UT Level B first time. Delivered in 16 days.” – US aerospace client
Frequently Asked Questions (Forged Aluminum Tube Hollows)
Q1 – Can Chalco machine non-standard IDs or custom shapes?
Yes. Drawings for square/oval hollows, multi-interface sections, or extreme wall ratios are welcome. Deep-hole boring and finish machining achieve concentricity targets.
Q2 – Which aluminum alloys are most requested?
Core grades: 6061, 7075, 7050, 5083. Others such as 2024, 2219, 6082, 7475 and 7050 series are supplied on request.
Q3 – Typical lead time?
Standard forged aluminum hollows: 10–20 days. Large-OD or high-strength grades: 20–30 days. Expedite slots are available—advise your deadline when sending RFQ.
Q4 – What inspection documents are included?
Chalco provides dimensional report and material cert as default. UT/RT, hardness and mechanical tests, or third-party witness (SGS, BV, TÜV) can be added per PO.
Q5 – Minimum order quantity?
Prototype orders start from 1 piece for proof-of-concept or qualification.
Q6 – Can parts follow ASTM / ASME / EN or customer specs?
Yes. Processing, heat treatment and inspection can align with ASTM B247, AMS-QQ-A-367, EN 485 or customer drawings.
