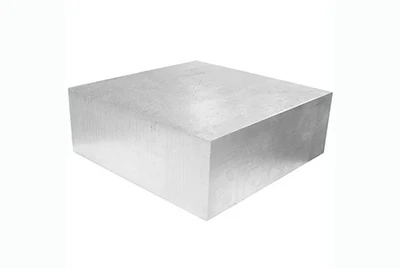

The 2024 solid aluminum block offers exceptional strength and outstanding heat resistance. It also provides excellent machinability, making it ideal for high temperature applications.
When exposed to temperatures above 125°C, its strength even exceeds that of 7075 aluminum. This makes it a perfect choice for demanding uses in aerospace and automotive industries.
2024 high strength solid aluminum block specifications
Standards: ASTM B211, ASTM B221, AMS 4120, AMS 4339, AMS-QQ-A-225/6, AMS-QQ-A-200/3, EN 573-3
Certifications: AS9100, ISO 9001, IATF 16949, NADCAP NDT, NADCAP HT
Popular 2024 high strength solid aluminum block products
Custom sizes are available to meet your specific needs. We offer precision machining services to ensure high accuracy and premium quality 2024 aluminum block solutions.
Free samples are provided, so you can test the quality of our aluminum materials before placing a full order. This helps ensure the product meets your exact requirements.Quick Quote
- Temper: T3, T351, T4, T6, T851
- Shapes: Square, rectangular
- Thickness: 10mm – 250mm
- Width: 100mm – 1600mm
- Length: 300mm – 2600mm
- Surface treatment: Mill finish and anodized surface available

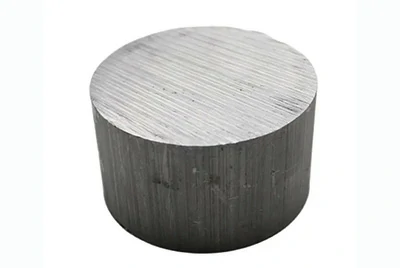

2024 forged aluminum block
Produced through high-temperature and high-pressure forging. The grain is refined for extremely high strength, ideal for heavy-load aerospace and military applications.
Contact us now
2024 cast aluminum block
Formed by pouring molten aluminum into molds. It is suitable for low-load mechanical parts, offering lower cost and good machinability.
Contact us now2024 rolled plate cut aluminum block

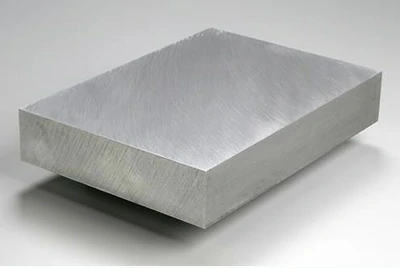

Cut from high-precision rolled plates with uniform structure. Perfect for precision CNC machining and aerospace structural components.
Contact us now

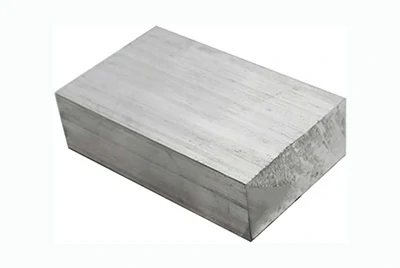

2024 extruded aluminum bar cut block
Cut from extruded bars, combining high strength with good toughness. Ideal for mechanical components and high-stress structural parts.
Contact us nowAvailable stock sizes of 2024 high strength solid aluminum blocks
We offer a wide range of 2024 high strength solid aluminum blocks in stock. Thickness ranges from 25mm to 1200mm. Custom sizes and precision cutting services are available on request. Quick Quote
| Specification | Size (mm) | Size (inches) |
| 2024 solid aluminum block | 200 × 200 × 25 | 8" × 8" × 1" |
| 2024 solid aluminum block | 300 × 300 × 50 | 12" × 12" × 2" |
| 2024 solid aluminum block | 500 × 500 × 50 | 20" × 20" × 2" |
| 2024 solid aluminum block | 150 × 300 × 25 | 6" × 12" × 1" |
| 2024 solid aluminum block | 250 × 400 × 50 | 10" × 16" × 2" |
| 2024 solid aluminum block | 600 × 800 × 50 | 24" × 32" × 2" |
| 2024 solid aluminum block | 300 × 400 × 50 | 12" × 16" × 2" |
| 2024 solid aluminum block | 500 × 600 × 50 | 20" × 24" × 2" |
| 2024 solid aluminum block | 800 × 1000 × 75 | 32" × 40" × 3" |
| 2024 solid aluminum block | 200 × 500 × 25 | 8" × 20" × 1" |
| 2024 solid aluminum block | 400 × 600 × 50 | 16" × 24" × 2" |
| 2024 solid aluminum block | 800 × 1200 × 75 | 32" × 48" × 3" |
| 2024 solid aluminum block | 100 × 150 × 25 | 4" × 6" × 1" |
| 2024 solid aluminum block | 200 × 250 × 50 | 8" × 10" × 2" |
| 2024 solid aluminum block | 300 × 400 × 50 | 12" × 16" × 2" |
| 2024 solid aluminum block | 250 × 500 × 25 | 10" × 20" × 1" |
| 2024 solid aluminum block | 600 × 800 × 50 | 24" × 32" × 2" |
| 2024 solid aluminum block | 1000 × 1200 × 50 | 40" × 48" × 2" |
Chemical composition of 2024 high strength solid aluminum block
2024 high strength solid aluminum block is a high-copper aluminum alloy. It contains approximately 3.8% to 4.9% copper, which gives it excellent strength and superior fatigue resistance.
| Chemical Element | % Present |
| Si | 0.50 max |
| Fe | 0.50 max |
| Cu | 3.8 – 4.9 |
| Mn | 0.3 – 0.9 |
| Mg | 1.2 – 1.8 |
| Cr | 0.10 max |
| Zn | 0.25 max |
| Ti | 0.15 max |
| Other (Each) | 0.05 max |
| Others (Total) | 0.15 max |
| Aluminium (Al) | Remainder |
Performance of 2024 high strength solid aluminum block
| Performance | 2024-O | 2024-T3 | 2024-T4 | 2024-T351 |
| Tensile Strength | 100-200 MPa | 320-480 MPa | 310-480 MPa | 330-460 MPa |
| Shear Strength | 130 MPa | 290 MPa | 290 MPa | 290 MPa |
| Fatigue Strength | 90 MPa | 140 MPa | 140 MPa | 140 MPa |
| Elastic Modulus | 71 GPa | 71 GPa | 71 GPa | 71 GPa |
| Brinell Hardness | 49 | 120 | 120 | 120 |
| Elongation at Break | 15% | 15% | 16% | 13% |
Advantages of 2024 high strength solid aluminum block
- Excellent surface quality: Clean surface with no oil stains, waves, scratches, or roller marks. Smooth edges with no burrs.
- Outstanding physical properties: Low density and high specific modulus. Great thermal and electrical conductivity with excellent manufacturability.
- High strength and lightweight: Produced using advanced processes, these blocks combine high strength with low weight—ideal for lightweight structural materials.
- Superior mechanical performance: Tensile strength reaches 400–500 MPa with excellent fatigue resistance, making it suitable for high-load applications.
- High temperature resistance: Maintains high strength below 150°C. Performs better than 7075 aluminum in heat resistance, ideal for structural parts in elevated temperatures.
Applications of 2024 high strength solid aluminum block

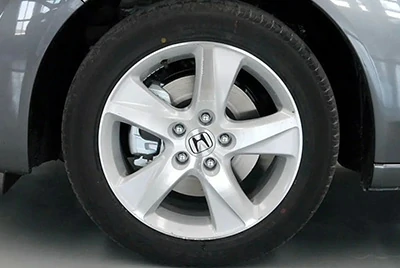

Automotive and transportation
Applied in wheels, trailer rims, and structural transport components.
Contact us now

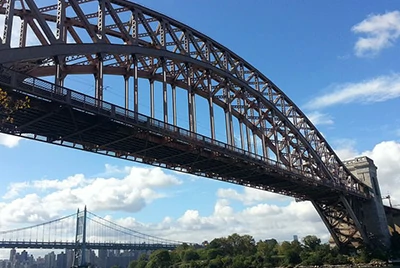

Industrial structures
Used in buildings, heavy machinery parts, and high-strength industrial applications.
Contact us nowHow to choose the right aluminum block?
- If your application requires maximum strength and fatigue resistance—such as aerospace, defense, or racing—forged aluminum blocks are recommended.
- If you're working with a limited budget and strength is not critical—such as general mechanical parts or low-load structures—cast aluminum blocks are a better choice.
- If you need uniform mechanical properties for precision machining or high-strength needs—such as CNC processing or mold making—go with rolled plate cut aluminum blocks.
- If your application requires good toughness with moderate strength—ideal for structural or mechanical parts—extruded bar cut aluminum blocks are recommended.
We offer a wide range of 2024 aluminum blocks with custom machining services. Contact us for expert material selection advice! Quick Quote
Why choose us? – Premium 2024 aluminum block supply with expert machining services
Our 2024 aluminum blocks are produced using high-quality aluminum ingots and comply with international standards such as ASTM B221, AMS 4120, and EN 573-3.
- Custom size cutting: We support milling, CNC precision cutting, turning, drilling, and tapping. Dimensional tolerance is controlled within ±0.2mm to meet your specific requirements.
- Surface treatment: Anodizing, electroplating, coating, and anti-corrosion treatments are available to enhance durability.
- Heat treatment services: We offer various tempers such as T3, T4, T351, and T851 to improve material strength and stability.
- Custom machined parts: We provide CNC machining according to your drawings, delivering finished aluminum components and saving your downstream processing time.
- Fast delivery: We keep a wide range of stock and support custom machining with quick turnaround to keep your project on schedule.
Packaging and shipping – Safe and secure delivery guaranteed
- Small-size blocks: Wrapped in PE film, protected with shockproof foam, and reinforced with cardboard boxes to prevent damage.
- Medium and large blocks: Protected with anti-rust plastic film, reinforced wooden crates, and secured with straps for safe transport.
- Oversized blocks: Packed with custom steel frames or wooden pallets to ensure safe loading and unloading.
- Air freight: Ideal for urgent orders, delivery within 3–7 days.
- Sea freight: Cost-effective for bulk purchases, with delivery times ranging from 15 to 45 days.
- Rail/land transport: Flexible solutions for Southeast Asia and European markets.
- Order tracking: Tracking numbers provided to keep you informed throughout the shipment.
- Shipping insurance: Optional transport insurance available to ensure peace of mind.
- Fast customs clearance: We’re familiar with international trade regulations and help customers complete import procedures smoothly.
We support DDP, FOB, CIF, EXW, and other trade terms to meet your logistics needs! Quick Quote
Related products for 2024 high strength solid aluminum block
These products can be used together with our 2024 high strength solid aluminum blocks. We offer complete aluminum alloy solutions for various industrial applications!
2024 Aluminum Plate
2024 Aluminum Bar/Rod
2024 Aluminum Tube
2024 Extruded Profile
7075 Aluminum Block
7075 Aluminum Block
2024 aluminum block related questions
What is 2024 grade aluminum?
2024 aluminum is a high-strength alloy primarily composed of aluminum and copper, known for its exceptional strength-to-weight ratio. Developed for aerospace applications, this alloy has become a cornerstone in various industries due to its lightweight properties and durability.
Is 2024 aluminum stronger than 6061?
The yield strength of 2024 aluminum is greater than 6061 aluminum (324 MPa > 276 MPa). For this reason, 2024 is commonly used for aircraft aluminum applications. If strength is not the main concern, then 6061 may be considered, since it is also strong and possesses many beneficial properties.
What is 2024 temper aluminium?
2024-O temper aluminium has no heat treating. It has an ultimate tensile strength of 140–210 MPa (21–30 ksi), and a maximum yield strength of no more than 97 MPa (14, 000 psi). The material has elongation (stretch before ultimate failure) of 10–25%, this is the allowable range per applicable AMS specifications.
What is the difference between 2024 and 7075 aluminum?
7075 contains a higher percentage of zinc and copper, contributing to its superior strength. On the other hand, 2024 has a significant amount of copper, which enhances its machinability.
