6061 Aluminum Square Bar
  1. Home
  2. > Product
  3. > Aluminum Bar
  4. > 6061 Aluminum Square Bar

6061 Aluminum Square Bar

6061 Aluminum Square Bar is a heat-treatable solid extruded aluminum bar known for its excellent corrosion resistance, ease of machining, and remarkable mechanical properties. It finds extensive applications in structural supports, shipbuilding, aircraft components, and can be surface treated, milled, or custom cut as required.Welcome contact

Processing of Chalco Aluminum 6061 Aluminum Square Bar: Cold finish, Extrusion

Extrusion: ASTM B221, AMS-QQ-A-200/8, EN755

Cold Finish: AMS4117, ASTM B211, EN754

Chalco stock procurement guidelines

  • All stock items are available for retail; once the order is confirmed, customs clearance and shipping take about one week.
  • As the original manufacturer with large-scale one-stop production, the quality of aluminum bar matches market standards and costs 10% less.
  • A trusted brand that undergoes rigorous quality checks, ensuring no concerns about product quality.

As one of China's most renowned aluminum manufacturers, Chalco possesses hundreds of extrusion dies. If you require bulk purchases, we can prioritize matching existing dies, reducing the cost of developing new ones, and thereby minimizing your production expenses.

Click to view Chalco's 6061 aluminum square bar extrusion die table.

Chalco's 6061 aluminum square bar stock list

Inventory information is being updated in real-time, with hot selling inventory lengths of 3m, 6m and other sizes available for cutting.

Welcome to click on the button to obtain the latest inventory information and lowest quotation....Quick Quote

Description Metric Dimensions /mm Imperial Dimensions/in Connect
0.39x0.39 Aluminum Square Bar 6061-T6-Extruded 10x10 0.39x0.39 Quote
0.47x0.47 Aluminum Square Bar 6061-T6-Extruded 12x12 0.47x0.47 Quote
0.55x0.55 Aluminum Square Bar 6061-T6-Extruded 14x14 0.55x0.55 Quote
0.59x0.59 Aluminum Square Bar 6061-T6-Extruded 15x15 0.59x0.59 Quote
0.63x0.63 Aluminum Square Bar 6061-T6-Extruded 16x16 0.63x0.63 Quote
0.71x0.71 Aluminum Square Bar 6061-T6-Extruded 18x18 0.71x0.71 Quote
0.79x0.79 Aluminum Square Bar 6061-T6-Extruded 20x20 0.79x0.79 Quote
0.98x0.98 Aluminum Square Bar 6061-T6-Extruded 25x25 0.98x0.98 Quote
1.18x1.18 Aluminum Square Bar 6061-T6-Extruded 30x30 1.18x1.18 Quote
1.38x1.38 Aluminum Square Bar 6061-T6-Extruded 35x35 1.38x1.38 Quote
1.57x1.57 Aluminum Square Bar 6061-T6-Extruded 40x40 1.57x1.57 Quote
1.77x1.77 Aluminum Square Bar 6061-T6-Extruded 45x45 1.77x1.77 Quote
1.97x1.97 Aluminum Square Bar 6061-T6-Extruded 50x50 1.97x1.97 Quote
2.17x2.17 Aluminum Square Bar 6061-T6-Extruded 55x55 2.17x2.17 Quote
2.36x2.36 Aluminum Square Bar 6061-T6-Extruded 60x60 2.36x2.36 Quote
2.56x2.56 Aluminum Square Bar 6061-T6-Extruded 65x65 2.56x2.56 Quote
2.76x2.76 Aluminum Square Bar 6061-T6-Extruded 70x70 2.76x2.76 Quote
2.95x2.95 Aluminum Square Bar 6061-T6-Extruded 75x75 2.95x2.95 Quote
3.15x3.15 Aluminum Square Bar 6061-T6-Extruded 80x80 3.15x3.15 Quote
3.35x3.35 Aluminum Square Bar 6061-T6-Extruded 85x85 3.35x3.35 Quote
3.54x3.54 Aluminum Square Bar 6061-T6-Extruded 90x90 3.54x3.54 Quote
3.74x3.74 Aluminum Square Bar 6061-T6-Extruded 95x95 3.74x3.74 Quote
3.94x3.94 Aluminum Square Bar 6061-T6-Extruded 100x100 3.94x3.94 Quote
4.13x4.13 Aluminum Square Bar 6061-T6-Extruded 105x105 4.13x4.13 Quote
4.33x4.33 Aluminum Square Bar 6061-T6-Extruded 110x110 4.33x4.33 Quote
4.53x4.53 Aluminum Square Bar 6061-T6-Extruded 115x115 4.53x4.53 Quote
4.72x4.72 Aluminum Square Bar 6061-T6-Extruded 120x120 4.72x4.72 Quote
4.92x4.92 Aluminum Square Bar 6061-T6-Extruded 125x125 4.92x4.92 Quote
5.12x5.12 Aluminum Square Bar 6061-T6-Extruded 130x130 5.12x5.12 Quote
5.31x5.31 Aluminum Square Bar 6061-T6-Extruded 135x135 5.31x5.31 Quote
5.51x5.51 Aluminum Square Bar 6061-T6-Extruded 140x140 5.51x5.51 Quote
5.71x5.71 Aluminum Square Bar 6061-T6-Extruded 145x145 5.71x5.71 Quote
5.91x5.91 Aluminum Square Bar 6061-T6-Extruded 150x150 5.91x5.91 Quote
6.3x6.3 Aluminum Square Bar 6061-T6-Extruded 160x160 6.3x6.3 Quote
6.69x6.69 Aluminum Square Bar 6061-T6-Extruded 170x170 6.69x6.69 Quote
7.09x7.09 Aluminum Square Bar 6061-T6-Extruded 180x180 7.09x7.09 Quote
7.48x7.48 Aluminum Square Bar 6061-T6-Extruded 190x190 7.48x7.48 Quote
7.87x7.87 Aluminum Square Bar 6061-T6-Extruded 200x200 7.87x7.87 Quote

If the above inventory does not have the specifications you need, you can directly contact us for customization or check the specific production capabilities below.Quick Quote

Chalco 6061 aluminum square bar specifications

Name 6061 aluminum square bar
Temper T6, T6511
Equivalent name A96061, EN AW-6061, AlMgSiCu, HE20, AA6061, 3.3211
6061 aluminum square rod metric size range Min10x10mm,Max220x220mm
6061 aluminum square rod inch size range Min0.375"x0.375",Max9"x9"
6061 aluminum square rod length Max 6m, Fix & Cut Length or Customized
Surface treatment Anodizing, electrophoretic coating, powder coating, etc.
Production Process Cold finish, Extruded
Standard UNS A96061, ASTM B211, AMS 4115, AMS 4116, AMS 4117, AMS 4128, AMS QQ-A-225/8, ASTM B221, AMS 4150, AMS 4160, AMS 4161, AMS QQ-A-200/8.

Chalco 6061 aluminum square bar physical properties

6061-T6 6061-T651 6061-T6511
Tensile Strength 270-310 MPa 270-320 MPa 270-290 MPa
Shear Strength 210MPa 210 MPa 170MPa
Elastic Modulus 69GPa 69GPa 69GPa
Brinell Hardness 93 93 -
Elongation at Break 10% 11% 9%

Questions you might have about 6061 aluminum square bar

What are the common sizes of 6061 aluminum square rods?

Commonly used sizes:8x8mm、10x10mm、12x12mm、14x14mm、15x15mm、16x16mm、18x18mm、20x20mm、22x22mm、25x25mm、28x28mm、30x30mm、32x32mm、35x35mm、40x40mm、45x45mm、50x50mm

What 6061 aluminum rods does Chalco have?

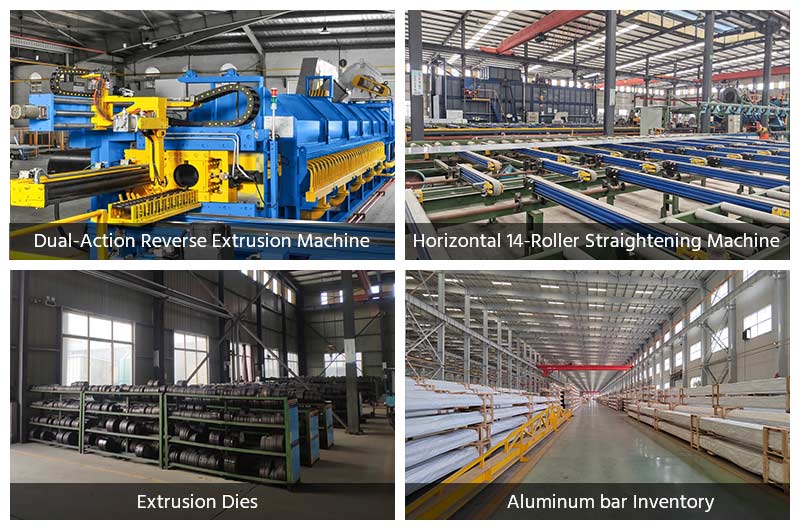

What production equipment does Chalco have as a 6061 aluminum square rods supplier?

Chalco is equipped with multiple advanced double-action reverse extrusion production lines, featuring gas injection rapid heating furnaces, thermal stripping machines, infrared continuous temperature measurement systems, and water vapor quenching for extrusion. The facilities also include horizontal 14-roller straightening machines, precision cutting, and bounce inspection equipment. With state-of-the-art production lines and techniques, strict quality control systems for pressure pipeline components ensure the quality and performance of each pipe, ensuring greater safety and reliability for your application projects.

6061 aluminum square rod production capacity

What are the characteristics of 6061 Aluminum Square Bar?

  • Excellent corrosion resistance
  • Heat-treatable
  • Excellent welding capabilities
  • Good machinability
  • Excellent strength-to-weight ratio

6061 aluminum square rod

What are the best application areas for 6061 Aluminum Square Bar?

  • Structural and Support Applications: Commonly used in structural frames and support structures.
  • Marine and Shipbuilding: Structural support, ship equipment brackets, protective devices, ship hatches, and door and window frames.
  • Aerospace: Suitable for aerospace applications, such as aircraft structures.
  • Architectural Decoration: Used in decorative materials, steel structures, curtain walls, and door and window manufacturing.

Application fields of 6061 aluminum square rod

What are the advantages of Chalco?

Chalco, as one of China's leading aluminum manufacturers, offers a vast range of molds, producing a full series of 6061 Aluminum Square Bar to meet varying size and shape requirements. The prices are highly competitive, providing a one-stop supply to eliminate your concerns. All products are certified under quality systems such as ISO 9001, GJB 9001, AS9100, TS16949, and hold Nadcap (NonDestructive/Heat/Materials Testing) certification. Customization according to Japanese, European, American standards, and other client-specific needs is available upon request.

Are You Looking for an Aluminum Supplier?

If you need a professional aluminum supplier to provide you with high-quality, cost-effective aluminum, we will be your best choice.

Lowest offerFree sample
Contact us Now

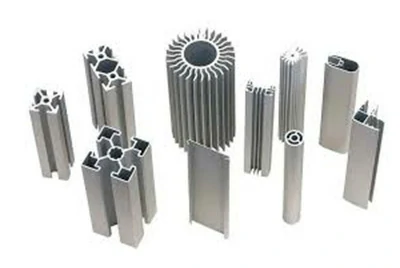

Other 6061 products you may be interested in

Chalco 6061 aluminum square bar extrusion mold list

Chalco's extrusion molds are generally divided into two types. One corresponds to proprietary molds tailored for specific alloys and conditions, while the other is a set of general alloy molds. The general alloy molds typically refer to 6xxx alloys, such as 6060, 6061, 6063, 6082, etc. You can select the corresponding dimensions, alloy, and extrusion press tonnage based on project requirements, or directly obtain detailed information.Quick Quote

A(mm) B(mm) Line Density (Kg/m) Extrusion Tonnage Alloy Radius Angle
6.35 6.35 0.109 500T 6061-T6511
6.35 6.35 0.109 500T 6061-T6511 Yes
6.35 6.35 2.592 2000T Universal
7.95 7.95 0.17 500T 6061-T6 R0.38
7.95 7.95 0.171 500T 6061-T6511
7.95 7.95 3.266 1250T Universal
8 8 0.171 500T Universal
9.525 9.525 4.32 2000T Universal
10 10 0.89 880T Universal
12 12 15.39 9000T Universal
12.7 12.7 0.435 6061-T6511
12.7 12.7 0.272 550T Universal
15 15 10.452 3600T Universal
15.875 15.875 8.1 3600T Universal
15.88 15.88 0.68 880T 6061-T6511
17.46 17.46 0.823 6061-T6511
17.46 17.46 8.492 3600T Universal
18 18 0.823 880T Universal
19.05 19.05 0.978 6061-T6511
19.05 19.05 7.29 3150T Universal
20 20 15.677 3600T Universal
20.64 20.64 10.8 3600T Universal
22.2 22.2 1.334 1250T 6061-T6511
22.225 22.225 1.15 1250T Universal
25 25 3.047 2000T Universal
25.4 25.4 10.463 3600T Universal
27 27 20.903 3600T Universal
30 30 22.769 7500T Universal
31.75 31.75 2.722 2000T 6061-T6
31.75 31.75 44.946 7500T Universal
35 35 1.652 1250T Universal
38.1 38.1 3.919 3150T 6061-T6
38.1 38.1 37.8 7500T Universal
40 40 2.916 2000T Universal
44.45 44.45 5.335 2000T 6061-T6511
44.45 44.45 9.299 3600T Universal
45 45 24.387 7500T Universal
50 50 6.75 3600T 6061-T6
50 50 5.468 2000T Universal
50 50 6.75 2000T Universal
50.8 50.8 6.968 3150T 6061-T6511
50.8 50.8 3.318 2000T Universal
55 55 34.839 7500T Universal
57.15 57.15 8.819 3600T 6061-T6511
57.15 57.15 8.168 3600T Universal
60 60 15.677 3600T Universal
63.5 63.5 10.887 3600T 6061-T6
63.5 63.5 12.96 3600T Universal
65 65 26.129 7500T Universal
69.85 69.85 13.173 3600T 6061-T6511
69.85 69.85 11.408 3600T Universal
70 70 13.173 3600T Universal
76.2 76.2 15.677 3600T 6061-T6511
76.2 76.2 20.25 3600T Universal
80 80 41.806 7500T Universal
85 85 22.14 7500T Universal
88 88 20.909 7500T 6061-T651
88.9 88.9 19.508 3600T Universal
90 90 24.387 7500T Universal
95.25 95.25 24.496 7500T 6061-T6511
95.25 95.25 21.87 3600T Universal
100 100 24.496 7500T Universal
101.6 101.6 27.871 7500T 6061-T6511
101.6 101.6 27 7500T Universal
110 110 29.4 7500T Universal
114.3 114.3 35.272 12500T 6061-T6511 1
120 120 32.67 7500T Universal
127 127 43.548 7500T 6061-T6511
130 130 38.88 7500T Universal
