We supply 3105 aluminum sheet (also available as pre-painted aluminum sheet/coil), ideal for screw caps, signage, roofing and wall panels, and other architectural trim and formed appearance parts.
We also support slitting, cut-to-length leveling, and custom-size cutting for easy processing.
This material combines a durable coating with excellent formability and corrosion resistance. It also offers good weldability for fabrication and assembly.
3105 aluminum sheet options
- Standard / common tempers: O, H12, H14, H16, H18, H22, H24, H26, H28
- Other tempers: H19, H111/H112/H114 (subject to standard and supply form, usually for specific thicknesses or projects)
- Colors: glossy black, red, chevron blue, white, double-sided white
- Thickness: 0.2–10 mm (0.0079"–0.3937")
- Width: 100–2650 mm (3.937"–104.331")
- Length: 500–16000 mm (19.685"–629.921")
Available sizes may vary by temper, surface type (mill finish / pre-painted / embossed), and your order requirements.
In your RFQ, please note the intended application and required standard.
We will confirm the workable size range and lead time accordingly.
3105 aluminum sheet standards and documentation
Based on your drawing, specification, and end-customer requirements, we can supply to the following standards and provide supporting documents:
- ASTM B209: common general specification for aluminum sheet and coil in North America
- ASME SB209: widely used for boiler, pressure vessel, and pressure equipment projects
- EN 573-3: chemical composition limits
- EN 485-2: mechanical property requirements
- JIS H4000: Japanese standard system for aluminum sheet and strip
- MTR / material certificate: typically EN 10204 3.1 or Mill Test Certificate (MTC)
- Coating-related reports: PVDF/PE system description, color control / ΔE requirement, coating thickness, etc. (provided per project terms)
3105 aluminum sheet available products
We offer 3105 aluminum sheet in a full range of common tempers.
We supply in both sheet and coil, with slitting, cut-to-length leveling, and custom cutting to match your process route.
This helps you place an order faster and start production with less extra handling.
-
3105 Mill Finish Sheet Coil
Designed for post-painting, stamping and bending, roll forming, and general sheet metal fabrication.
3105 is a non-heat-treatable alloy. It offers stable corrosion resistance, formability, and weldability for continuous processing and volume supply.
If you're unsure whether to choose H14 or H24, tell us your forming method (bending / roll forming / stamping) and appearance needs. We'll recommend a practical option used by engineers.
-

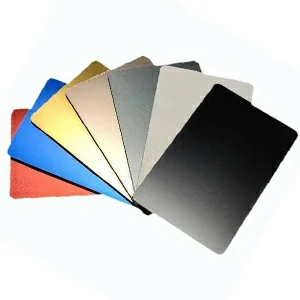

3105 Pre-Painted Sheet Coil
Built for exterior cladding and appearance-part purchasing, such as building facades/envelopes, trailer and body skin, signage, and decorative panels.
Chalco supplies factory pre-coated / coil-coated material. After receipt, you can slit, level cut-to-length, roll form, or bend right away, reducing repainting time and batch-to-batch risk.
Coating systems can be matched to your environment (indoor/outdoor and weathering level). PVDF / PE options are available, with color matching by RAL/NCS codes or customer samples. This helps reduce color shift, rework, and project risk.
-

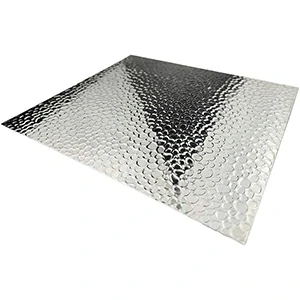

3105 Embossed Stucco Sheet Coil
For insulation jacketing on pipes, tanks, vessels, and equipment insulation systems.
Embossed surfaces (such as stucco) resist scuffs during transport and installation. They also add panel stiffness and reduce visible waviness, making them better for outdoor job sites.
For project acceptance, please state the surface type, service environment, and any extra requirements in your RFQ (such as moisture barrier or coating).
-

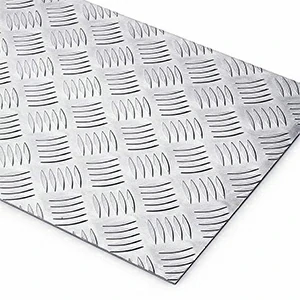

3105 Tread Pattern Sheet
For steps, platforms, walkways, vehicle flooring, and protective panels where anti-slip and wear resistance matter.
If you need 3105 tread plate, specify the pattern type (five-bar / diamond, etc.), thickness, size, application, and load/anti-slip requirements in your RFQ.
We will confirm the workable specification and processing route accordingly.
Send us your application, size/temper, and whether you need pre-painted material (color/coating system). We can quote quickly and accurately.
If you need help selecting, tell us your use case and we'll match the right parameter combination for you.
Common colors and cut sizes for 3105 pre-painted aluminum sheet
Below are popular market colors and cut sizes for 3105 pre-painted aluminum sheet, helping you quickly match your purchasing list and project quantity.
Weights are theoretical values (excluding packaging; coating weight is usually minimal). Final weight is subject to actual delivery.
| Product | Color | Length (in) | Thickness (in) | Width (in) | Temper | Weight (lb/sheet) |
| 3105 painted aluminum sheet | Glossy | 48" | 0.040" | 12" | H14 | 2.28 |
| 3105 painted aluminum sheet | Glossy | 48" | 0.040" | 24" | H14 | 4.56 |
| 3105 painted aluminum sheet | Chevron blue | 48" | 0.040" | 24" | H14 | 4.56 |
| 3105 painted aluminum sheet | Red | 48" | 0.040" | 24" | H14 | 4.56 |
| 3105 painted aluminum sheet | White | 48" | 0.040" | 24" | H14 | 4.56 |
| 3105 painted aluminum sheet | Glossy | 48" | 0.040" | 48" | H14 | 9.12 |
| 3105 painted aluminum sheet | Chevron blue | 48" | 0.040" | 48" | H14 | 9.12 |
| 3105 painted aluminum sheet | Red | 48" | 0.040" | 48" | H14 | 9.12 |
| 3105 painted aluminum sheet | White | 48" | 0.040" | 48" | H14 | 9.12 |
| 3105 painted aluminum sheet | Glossy | 96" | 0.040" | 48" | H14 | 18.24 |
| 3105 painted aluminum sheet | Chevron blue | 96" | 0.040" | 48" | H14 | 18.24 |
| 3105 painted aluminum sheet | Red | 96" | 0.040" | 48" | H14 | 18.24 |
| 3105 painted aluminum sheet | White | 96" | 0.040" | 48" | H14 | 18.24 |
| 3105 painted aluminum sheet | Double-sided white | 120" | 0.040" | 48" | H14 | 22.80 |
If you want us to recommend the right H14/H24 and PVDF/PE combination, please share your application, color, coating requirements, and required sizes/quantity.
We can also provide weight calculations, available specifications, and lead time together.
For fast quantity planning and shipping-weight estimates, we also offer a 3105 aluminum sheet weight calculator.
It automatically calculates piece weight and total weight based on thickness, width, and length: 3105 aluminum sheet weight calculator.
3105 pre-painted aluminum sheet color and coating selection
For exterior cladding and appearance-part projects, what drives acceptance and rework cost is often not thickness.
It's color batch variation and coating batch variation.
That's why we recommend clearly specifying the color system and coating requirements when purchasing 3105 pre-painted aluminum sheet.
This helps keep batch consistency and delivery under control.

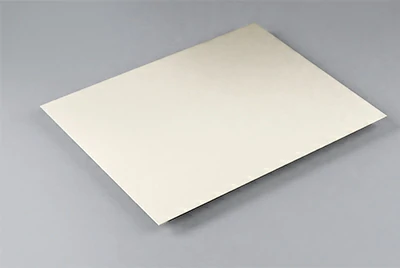

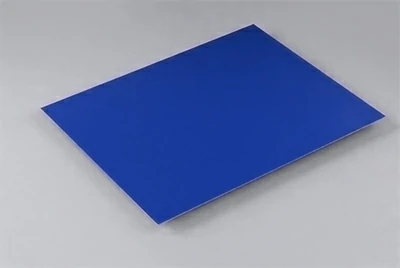

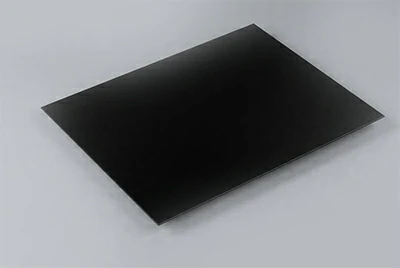

Popular color examples
We offer multiple standard colors for fast purchasing needs in common uses such as signage, trailer side panels, and wall panels.
We have shown color images on this page, but the actual appearance may vary with lighting, display settings, and surface gloss.
For appearance-critical acceptance, we recommend using a physical sample or an official color code as the final reference.
Custom colors available
We also support custom colors matched to your brand or project samples.
This helps you keep a consistent look and stronger visual identity.
For easier internal approval and acceptance, we can customize per your project requirements:
- Coating system: PVDF / PE (or customer-specified system)
- Color system: RAL / NCS / customer sample (color control by standard code or by sample, with ΔE requirement if needed)
- Coating side: single-side or double-side coating; whether a back-side coat is required
- Protective film: optional for transport/forming, and whether embossed/orange peel or other surface textures are required
If you want us to recommend the most suitable PVDF/PE option or confirm color matching, please send your color code or sample requirements.
We will suggest a workable coating and delivery plan based on your application.
3105 aluminum sheet typical applications

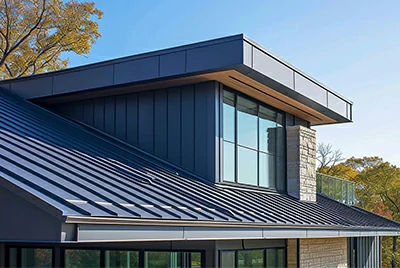

Building facade and corrugated sheets
Residential cladding, decorative wall panels, roofing sheets, corrugated panels, and rainwater parts like gutters and downpipes.
Contact Us

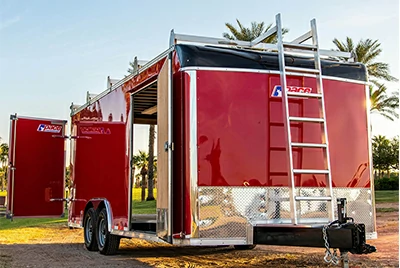

Trailer/RV side panels and skin
Trailer interior lining, trailer side panels/wall panels, exterior body sheets, and cladding/enclosure panels for mobile homes.
Contact UsIndustrial insulation jacketing
Outer jacketing for insulation systems on pipes, tanks, vessels, and equipment.
Contact Us
Sheet metal fabrication and signage
Sign blanks, decorative panels, room dividers, baffles/partitions, lamp shades, and louvers for appearance-focused parts.
Contact UsAutomotive exterior panels
Body panels, racing skins, and custom build panels that need clean looks and easy forming.
Contact Us

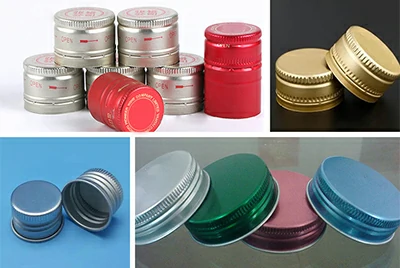

Screw caps
Coil-fed stamping for beverage caps, cosmetic caps/cap stock, and lightweight sealing components.
Contact Us3105 aluminum sheet selection tips:
- For pre-painted projects, specify single-side or double-side coating, gloss level, and protective film. Make appearance consistency part of your acceptance criteria.
- Tell us your roll forming / bending / stamping process and key bend requirements. We will match the right temper and size to reduce springback and cracking risk.
- For projects with frequent lifting, installation, or job-site rubbing, we recommend protective film to reduce rework on appearance.
- If riveting or bonding is involved, please tell us early. Joining method and contact materials affect surface recommendations and delivery details.
- Choose thickness based on panel span, installation strength, and service environment. Avoid "too thin" distortion or "too thick" cost and handling burden.
- Welding or flame cutting should be evaluated. For double-side coated products, run a process check and protection plan to prevent heat damage and appearance issues.
Just share your application and key parameters.
We will match the right 3105 product type and delivery plan, and provide an approval- and acceptance-ready document package.
This keeps selection accurate, delivery controllable, and your project moving smoothly.
Features of 3105 aluminum sheet
- Pre-painted wear-resistant surface: the coating resists abrasion and scratching, ideal for appearance-sensitive projects during transport, installation, and fabrication.
- Lightweight: aluminum has low density, making handling and installation easier while reducing overall weight.
- Corrosion resistant: works in many indoor and outdoor environments, especially for cladding, enclosures, and general exterior use.
- Easy to form and fabricate: good ductility for bending, roll forming, and stamping.
- Good welding compatibility: the base metal offers solid weldability.
- Non-heat-treatable alloy: 3105 cannot be heat treated to increase strength; strength is mainly matched by work hardening (temper).
3105 aluminum sheet properties
We provide property limits for tempers such as H12 and H14 based on ASTM B209, and show the actual test results in the MTR (EN 10204 3.1).
Elongation is inspected and accepted by the thickness-based requirements.
3105-H12 (1/4 hard) mechanical properties — ASTM B209
| Thickness range (in) | Tensile strength (min–max, ksi) | Yield strength (min, ksi) | Elongation A50 (min, %) |
| 0.017–0.019 | 19–26 | 15 | 1 |
| 0.020–0.031 | 19–26 | 15 | 1 |
| 0.032–0.050 | 19–26 | 15 | 2 |
| 0.051–0.080 | 19–26 | 15 | 3 |
3105-H14 (1/2 hard) mechanical properties — ASTM B209
| Thickness range (in) | Tensile strength (min–max, ksi) | Yield strength (min, ksi) | Elongation A50 (min, %) |
| 0.013–0.019 | 22–29 | 18 | 1 |
| 0.020–0.031 | 22–29 | 18 | 1 |
| 0.032–0.050 | 22–29 | 18 | 2 |
| 0.051–0.080 | 22–29 | 18 | 2 |
3105-O (annealed) mechanical properties — ASTM B209
| Thickness range (in) | Tensile strength (min–max, ksi) | Yield strength (min, ksi) | Elongation A50 (min, %) |
| 0.013–0.019 | 14–21 | 5 | 16 |
| 0.020–0.031 | 14–21 | 5 | 18 |
| 0.032–0.080 | 14–21 | 5 | 20 |
Physical properties
Physical data is used for engineering estimates and design calculations, and should be treated as typical reference values.
Final acceptance is based on the limits in ASTM B209 / ASME SB209 and the batch MTR (EN 10204 3.1).
| Physical property | Typical value (Imperial) | Typical value (Metric) |
| Density | 0.0983 lb/in³ | 2.721 g/cm³ |
| Modulus of Elasticity | 10.0 × 10⁶ psi | 68.95 GPa |
| CTE(68–212°F) | 12.1 × 10⁻⁶ /°F | 21.78 × 10⁻⁶ /K |
| Thermal Conductivity | 99 Btu/ft·hr·°F | 171.3 W/m·K |
| Specific Heat | 0.214 Btu/lb·°F | 896 J/kg·K |
| Electrical Resistivity | 1.504 μΩ·in | 3.82 × 10⁻⁸ Ω·m |
Please share your application and key parameters.
We will match the right temper/specification and provide a quote with delivery recommendations.
3105 aluminum sheet chemical composition (ASTM B209)
| Element | Composition limits (wt%) |
| Si (silicon) | ≤ 0.60 |
| Fe (iron) | ≤ 0.70 |
| Cu (copper) | ≤ 0.30 |
| Mn (manganese) | 0.30 – 0.80 |
| Mg (magnesium) | 0.20 – 0.80 |
| Cr (chromium) | ≤ 0.20 |
| Zn (zinc) | ≤ 0.40 |
| Ti (titanium) | ≤ 0.10 |
| Other (each) | ≤ 0.05 |
| Other (total) | ≤ 0.15 |
| Al (aluminum) | Balance |
This composition table is for standard-compliance reference.
Final delivery evidence is based on batch traceability via MTR and Heat No.
If your drawing/spec also references EN 573-3 or JIS H4000, please note it in your RFQ.
We will provide the corresponding cross-reference documents and inspection requirements.
Common names and equivalent designations for 3105
| UNS | USA | EU | Turkey | Japan |
| A93105 | AA 3105 | EN AW-3105; AlMn0,5Mg0,5; 3.0505 | TS 412 | A3105P; JIS H 4000 |
Value-added processing services
We don't only supply standard 3105 aluminum sheet. We also support secondary processing based on your drawings.

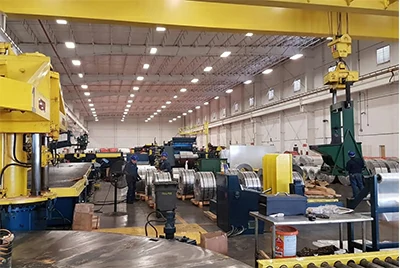

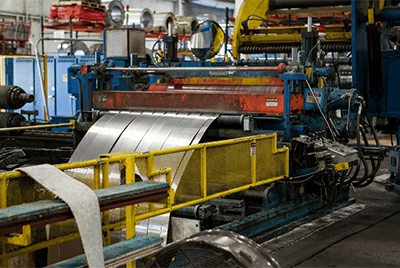

- Slitting: slit to your target coil width for roll forming and continuous stamping.

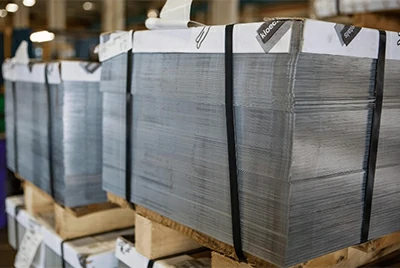

- Cut-to-length: level coil and cut to fixed lengths.

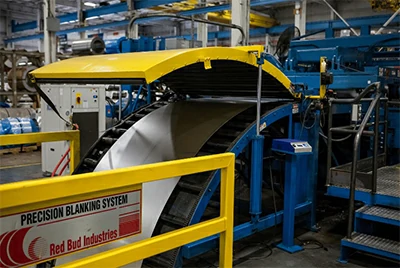

- Blanking / shearing / sawing: quick cutting based on your size list.
- Edge conditioning: deburring, chamfering, and edge trimming.
- Oscillate winding (optional): optimize coil winding per your handling needs.
- Complex cutting (as needed): flatbed laser, tube laser, HD plasma, and waterjet options, confirmed by drawing and tolerance requirements (feasibility and lead time subject to review).
Send your size list/drawing (with tolerances) and supply form (sheet / coil).
We will confirm slitting, leveling, cutting, and packing in one go, and provide a quote and lead-time suggestion.
Related products for 3105 aluminum sheet
From color-coated sheet/coil to embossed, corrugated, and stucco finishes, we offer a wide product range for building, insulation jacketing, trailer skin, and general fabrication.
Send your required alloy/temper, thickness, width, quantity, and destination port—we'll quote with the best option (and cost) for your application.
Color Coated Aluminum Sheet
Aluminum Corrugated Metal
Embossed Aluminum Foil
Aluminum Sheet for Screw Caps
Aluminum Tread Checkered Plate
Stucco Aluminum Coil
PCB Aluminum Entry Sheet
Oil Tanker Plate
Aluminum Strips for Shutters

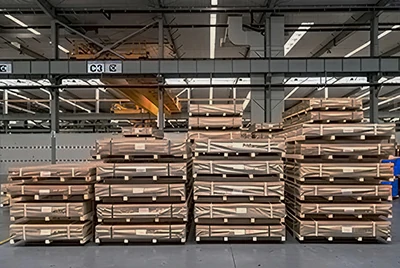

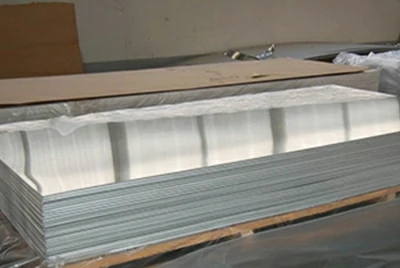

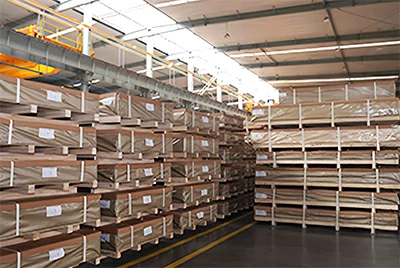

3105 aluminum sheet packaging and shipping
- Moisture and contamination protection: surface separation + moisture-proof packing to reduce the impact of humidity and dust during ocean freight.
- Anti-scratch structure: effective interleaving between sheets, plus outer wrapping protection to reduce handling friction and scratches.
- Corner and edge protection: reinforced protection on edges and corners to reduce dents, edge damage, and handling marks.
- Palletized delivery: sheets are typically reinforced on pallets, with fumigated/export-compliant wooden pallets available.
FAQ (frequently asked questions)
What is AA3105 aluminum?
AA3105 is a non-heat-treatable aluminum alloy. It is widely used for sheet/coil, pre-painted base metal, and architectural panels.
Common equivalents include EN AW-3105 and JIS A3105P.
What is the difference between 3105 and 5052 aluminum?
5052 is an Al-Mg alloy. It usually offers higher strength and better corrosion resistance in marine environments, so it is preferred for structural and marine use.
3105 is more focused on forming and coating applications such as pre-painted sheet, exterior cladding, and roll forming, with a more cost- and supply-friendly product form.
What is the difference between 3003 and 3105 aluminum?
3003 is a classic Al-Mn general-purpose sheet alloy with very broad usage.
3105 adds a small amount of Mg on the Al-Mn base, so strength is typically slightly higher. It is often chosen for pre-painted/architectural sheet and roll-formed products.
What are the characteristics of 3105 H24 aluminum?
H24 is strain-hardened and then stabilized. It balances strength with improved forming stability.
It is commonly used for sheet and coil that require bending or roll forming, where reduced cracking and springback risk matters.
