6110A aluminum bar is a 6xxx series aluminum alloy product, mainly composed of aluminum, magnesium, and silicon. It features high strength and ease of processing, commonly used in the automotive and industrial sectors.
6110A aluminum bar product information
| Temper | T4, T5, T6 |
| Specification | EN 755-8:2016 |
| Production processes | Extrusion, cold drawing, forging |
| Shape | Round, square, hexagonal |
| Surface | Anodizing , mill, polished, bright |
| Package | Wooden Package, Wooden Pallets |
Popular types of 6110A aluminum bar
6110A extruded aluminum round bar
2014 Aluminum Plate
Thickness:0.2mm-200mm
Width:500mm-2800mm
Features:high strength, corrosion resistance
Contact us now
Chalco's 6110A aluminum round bar is produced using reverse extrusion, resulting in uniform microstructure, superior control of coarse grain rings, and high strength.
Diameter: 8mm-120mm
Coarse grain rings: maximum 0.5mm
Main applications: engine mounts, suspension system components, and body structural parts.

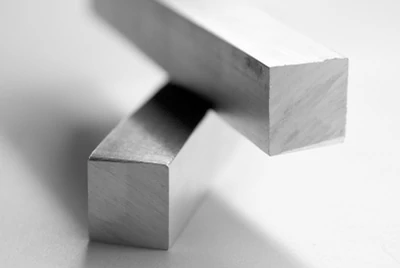

6110A extruded aluminum square bar
Chalco's 6110A aluminum square bar offers high strength and corrosion resistance, typically suitable for structures under medium loads, such as building frameworks, automotive components, and industrial equipment supports.
Contact us now
Diameter: 10mm-100mm
Application: The 6110A extruded aluminum square bar offers high strength, corrosion resistance, and good machinability, commonly used in automotive parts, construction frameworks, industrial machinery, and conveyor systems.

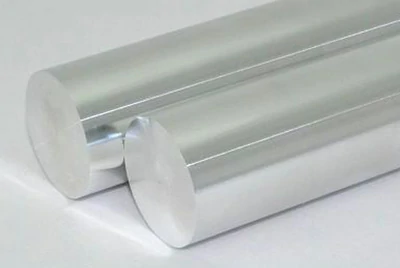

6110A cold drawn aluminum bar
Chalco's 6110A aluminum square bar offers high strength and corrosion resistance, typically suitable for structures under medium loads, such as building frameworks, automotive components, and industrial equipment supports.
Contact us now
Diameter: 6mm-100mm
Main applications: precision components

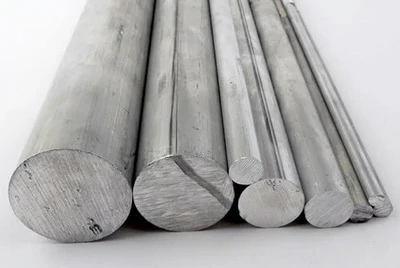

6110A forged aluminum round bar
6110A aluminum round bars produced by forging have refined internal grain structure, enhancing the alloy's strength and toughness, enabling them to withstand higher mechanical stress and impact.
Contact us now
Diameter: 200mm-800mm
Main applications: aerospace fasteners, automotive suspension system components, chassis parts.
Performance of 6110A aluminum bar
6110A aluminum alloy achieves optimal mechanical performance through heat treatment, particularly in the T6 condition. It undergoes solution heat treatment and natural aging, which enhances the material's strength and hardness.
| Temper | Tensile strength | Yield strength | Elongation | Conductivity |
| T4 | 360MPa | 250MPa | 18 % | 42 % IACS |
| T5 | 430MPa | 410MPa | 11 % | 42 % IACS |
| T6 | 470 MPa | 430 MPa | 11 % | 42 % IACS |
6110A aluminum bar chemical composition
| Element | Composition (%) |
| Aluminum (Al) | Remainder |
| Silicon (Si) | 0.7 - 1.1 |
| Magnesium (Mg) | 0.7 - 1.1 |
| Manganese (Mn) | 0.3 - 0.9 |
| Copper (Cu) | 0.3 - 0.8 |
| Iron (Fe) | 0 - 0.5 |
| Chromium (Cr) | 0.05 - 0.25 |
| Titanium (Ti) | 0 - 0.2 |
| Zirconium (Zr) | 0 - 0.2 |
| Zinc (Zn) | 0 - 0.2 |
| Other(each) | 0.05% |
| Other(total) | 0.15% |
Characteristics of 6110A aluminum bar
High strength: 6110A aluminum bar has high tensile and yield strength, making it suitable for heavy-load structural applications.
Good corrosion resistance: With its silicon and magnesium content, 6110A aluminum bar shows strong corrosion resistance in various environmental conditions, especially in humid environments.
Good machinability: The alloy can be processed through extrusion, stretching, and machining, and is easy to weld and form.
Excellent heat treatment response: It can be further strengthened through heat treatment processes like T6, enhancing its hardness and strength.
Lightweight: Compared to metals like steel, 6110A aluminum bar offers a higher strength-to-weight ratio, contributing to reduced overall product weight.

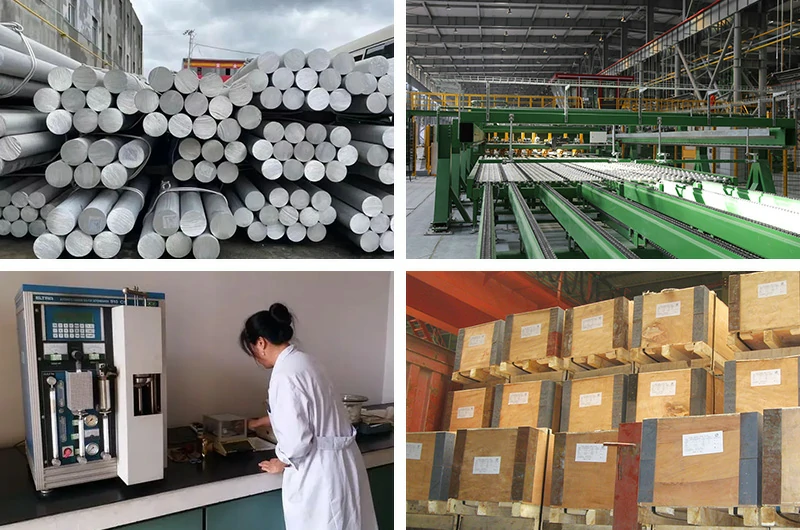

What are the production advantages of Chalco 6110A extruded aluminum bar?
Melting and Casting: For products with specific quality attributes, Chalco uses high-mesh imported ceramic filter plates, imported refining agents, and grain refiners, along with suitable process controls, ensuring high billet quality.
Extrusion: The reverse extrusion method is employed for uniform internal structure of the 6110 aluminum bar. Liquid nitrogen cooling devices are used to improve surface quality, production efficiency, and extend mold life.
Straightening: The equipment features control functions for tensile force, tensile distance, and tensile ratio settings. These controls allow for selection of appropriate tensile ratio settings based on the product, reducing residual stress.
Heat Treatment: The solution heat treatment furnace can set multi-stage process parameters, enabling automatic solution strengthening processes. The annealing furnace includes cooling rate control. Solution treatment achieves a temperature uniformity of ±2°C, while annealing treatment achieves a temperature uniformity of ±3°C.
What services can Chalco provide for you?
Diverse product specifications: Offers various diameters and lengths of 6110A aluminum bar, with customization options.
Surface treatment services: Includes anodizing, electrophoretic coating, and other treatments to enhance corrosion resistance and appearance.
Quality control: Strict quality inspection processes to ensure products meet international standards, with quality reports available.
Technical support: Provides product selection advice and technical consultation to optimize application solutions.
Fast sample provision: Quick production and delivery of samples for early testing and validation.
Environmental production: Uses eco-friendly processes and materials to comply with environmental regulations and standards.
After-sales service: Timely support and technical assistance to resolve issues during product use.
