EN-AW 5088 Aluminum Plate

Designed for lightweight upgrades in hazardous chemical tanks and pressure vessels, the EN AW-5088 (AlMg5Mn0.4) alloy combines high strength, weldability, low-temperature toughness, and corrosion resistance through Zr micro-alloying. It maintains stable performance from −273 °C to +75 °C (per EN 12392).

Chalco keeps regular stock in 3–12 mm, O/H111 temper, with EN 10204 3.1 certificates supplied. We offer coil/plate cutting, rolling, and beveling services with one-stop delivery across Europe, Japan, the Middle East, and North America.

Specifications of EN AW-5088 Aluminum Plate

Why Choose EN AW-5088 Aluminum Plate?

Lightweight & Payload Efficiency

With a density of about 2.7 g/cm³, EN AW-5088 significantly reduces overall vehicle weight compared with steel. It increases payload capacity, lowers fuel and tire consumption, and improves total cost of ownership (TCO).

Welding and Cryogenic Reliability

The Al-Mg-Mn-Zr composition enhances heat-affected zone stability and retains excellent toughness at −196 °C and below. The O/H111 temper offers a broad forming window, making rolling and butt welding easier and safer.

Corrosion Resistance & Lifecycle Cost

Highly resistant to chlorides and de-icing salts; with coating or anodizing, its pitting resistance improves further. Longer maintenance intervals, fewer shutdowns, and higher residual value lead to lower lifecycle costs.

Manufacturing Efficiency & Consistency

Supports precise cutting, rolling, beveling, and chamfering for faster assembly. Exceptional flatness ensures compatibility with automated welding lines and consistent batch performance.

Typical Applications of EN AW-5088 Aluminum Plate

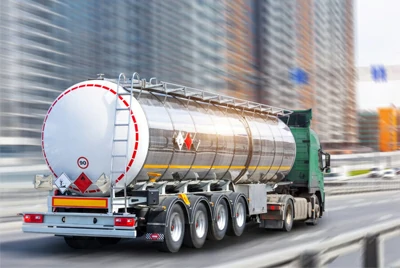

Hazardous Goods Road/Rail Transport Tanks

Used for gasoline and liquid hydrocarbon tanks, including shells, heads, and baffles.

The EN AW-5088 (O/H111) alloy ensures smooth rolling, stable welding, and long-term resistance to corrosion and salt spray. Chalco supplies cut-to-length, pre-rolled, and beveled plates with EN 10204 3.1 certification.

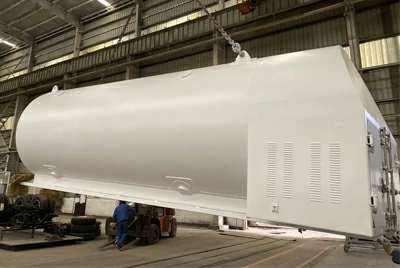

Large Mobile Vacuum-Insulated Cryogenic Containers (T-VIC)

Applied to LIN / LOX / LAR / LNG outer shells and cover plates.

Maintains toughness and weld integrity under cryogenic temperatures, suitable for long-term vacuum and insulation stability.

Pressure Equipment Shells at Ambient or Low Temperature

For buffer tanks, heat exchangers, and chemical housings.

Medium strength and high weldability simplify fabrication. Optional impact and UT tests ensure traceable quality.

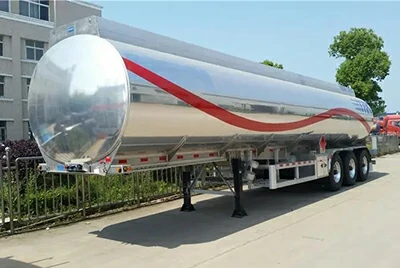

Vehicle-Mounted Aluminum Tank Lightweighting

Ideal for tank trailers and special-purpose vehicles.

With a density of 2.7 g/cm³, 5088 greatly reduces vehicle weight and improves payload efficiency. Optional coating or chamfering enhances corrosion resistance and assembly speed.

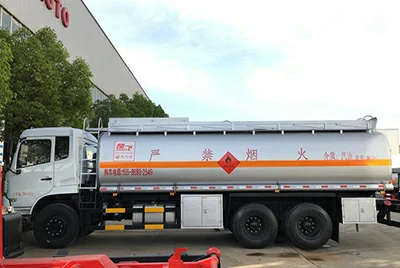

Non-Food Contact Containers and Equipment Shells

For chemical, fuel, and cryogenic systems.

5088 is not suitable for food contact, but performs well when paired with protective coating or anodizing, extending service life and reducing maintenance.

5088 vs 5182 vs 5083

For high elongation and formability (tank heads, large flanges, automotive panels), choose EN AW-5182. It offers excellent ductility, supports cold forming and welding, and has abundant coil supply for cost efficiency.

For higher strength and global compatibility (marine, offshore, international equipment), use EN AW-5083. With tensile strength around 300–340 MPa, it performs reliably under both EN and ASTM systems.

For weld stability, low-temperature toughness, and EN compliance (hazardous tanks, cryogenic or pressure vessels), select EN AW-5088. The Zr addition enhances weld-zone stability and cryogenic performance, meeting EN 12392 / EN 14286 requirements.

Instant Quote

Technical Parameters of EN AW-5088 Aluminum Plate

Chemical Composition

Mechanical Properties

Standards and Certifications of EN AW-5088 Aluminum Plate

The EN AW-5088 aluminum plate is engineered according to European standards for pressure equipment and hazardous goods transport, widely used for welded storage tanks, cryogenic containers, and chemical process equipment. Its standard framework is unified, authoritative, and traceable.

Applicable Standards

• EN 14286 – Weldable rolled products for tanks transporting dangerous goods
• EN 485-2 – Mechanical properties of aluminum and aluminum alloy sheet, strip, and plate
• EN 12392 – Aluminum and aluminum alloys for pressure equipment (defines applicable temperature range and test requirements)
• EN 10204 – Inspection documents for metallic products (3.1 certificate for delivery)

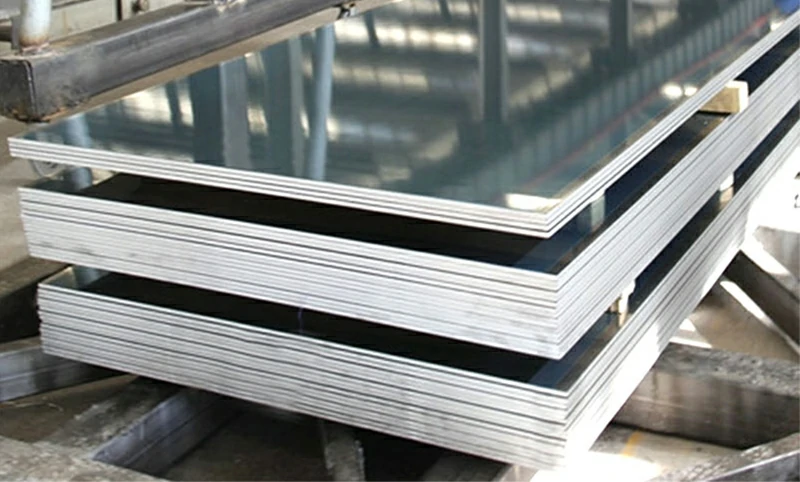

Quality and Assurance

• Manufactured under ISO 9001 / AS9100 quality management systems
• Supplied with EN 10204 3.1 material certificates and full performance reports
• Design and service temperature range per EN 12392: approx. –273 °C to +75 °C
• Compliant with PED 2014/68/EU (Pressure Equipment Directive)

Chalco Metal supplies EN 14286-compliant 5088 plates with full documentation and traceable certification, ensuring long-term reliability in hazardous goods and cryogenic equipment applications.

Production Capacity and Processing Services

Chalco Metal offers a complete in-house manufacturing chain for pressure vessels and hazardous goods storage systems, covering every step from casting to final plate delivery. This ensures the stability and batch consistency of EN AW-5088 aluminum plates.

• Advanced Equipment: Equipped with a 4500 mm SMS hot rolling line and a 2800 mm CVC cold mill, enabling closed-loop control of plate shape and thickness — ideal for cryogenic and welded container materials.
• Specification Range: Thickness mainly 3–12 mm, max width 2200 mm; custom tank plates, wide panels, and coil supply available per EN 14286.
• Processing Capabilities: One-stop service including laser cutting, waterjet, bending, panel welding, sandblasting, and anodizing.
• Delivery Efficiency: Regular stock in O / H111 tempers; samples within 5–7 days, bulk orders within 2–4 weeks, with expedited production and batch traceability reports available for critical projects.

Chalco's Advantages and Assurance

Chalco Metal is an ISO 9001 and AS9100 certified aluminum manufacturer specializing in European standard alloys such as 5083, 5059, and 5088. With extensive project experience in hazardous transport, pressure equipment, and cryogenic applications, Chalco ensures reliability from production to delivery.

• Quality Systems: Fully compliant with ISO 9001 / AS9100, following EN 14286 and EN 12392 process requirements.
• Certification Documents: Supplied with EN 10204 3.1 certificates and test reports; third-party inspection by TÜV or DNV available.
• Inventory & Flexibility: Ready stock in standard tempers and thicknesses; supports mixed-batch trials and overseas project supply.
• Technical Support: Welding feasibility studies, alloy matching, and drawing review assistance help customers pass pressure equipment inspections efficiently.

Procurement Guide

Pricing, MOQ & Lead Time

Prices are quoted by sheet, kilogram, or project, available under EXW / FOB / CIF / DDP terms. A formal quotation is provided after submitting alloy, temper, size, and quantity.

• Price Factors: Alloy / Temper / Thickness / Size / Tolerance / Processing / Quantity / Destination.
• MOQ & Samples: Supports mixed specifications and small batches; samples include MTC reports and size inspection.
• Lead Time: Samples 5–7 days, bulk 2–4 weeks, with expedited or partial shipment options available.

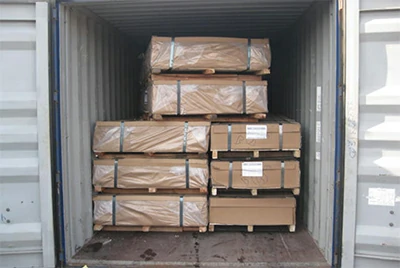

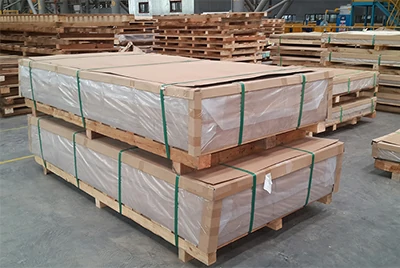

Packaging, Export & Logistics

• Packaging: PE film + anti-rust paper + foam corner guards; outer layer with fumigation-free pallet or plywood box + strapping + stretch film.
• Export Compliance: Each shipment includes MTC / inspection sheet / COO, compatible with REACH / RoHS / MSDS requirements.
• Transport Options: Supports sea, air, or rail freight, with insurance and customs documentation assistance.
• Traceability: Each batch labeled with heat number, lot, weight, and barcode; claims accepted within 48 hours of receipt.

FAQ

Can EN AW-5088 be used for food or drinking water containers?

No. It is designed for hazardous chemical and cryogenic pressure vessels and is not registered as food-grade material.

What is the operating temperature range?

Per EN 12392, it performs reliably from −273 °C to +75 °C, maintaining toughness under cryogenic and ambient pressure conditions.

What are the standard supply dimensions?

Thickness 3–12 mm, temper O or H111, standard width 1000–2200 mm; available as cut-to-size, flattened, or coiled material.

How does 5088 differ from 5083 and 5182?

5088 adds Zr for better weld stability and cryogenic toughness, suitable for hazardous and cryogenic systems.

5182 emphasizes ductility and formability, often used for automotive or non-pressure parts.

What documents are supplied with each shipment?

Each batch includes an EN 10204 3.1 certificate with chemical and mechanical test data; optional TÜV / DNV third-party witnessed sampling is available.
