Grades, temper and specifications of aluminum foil for PTP
| Alloy | Temper | Thickness/mm | Width/mm | ID of coil/mm | OD of coil/mm |
| 1100, 1200, 1235, 1145, 3003, 8006, 8011, 8011A, 8079 | O, H18 | 0.018-0.100 | 200-1500 | 75.0, 76.2 | 300-600 |
| 150.0, 152.4 | 450-1200 |
Thickness tolerance of aluminum foil for PTP
| Thickness(t) /mm | Thickness tolerance /mm | |
| High precision grade | Standard grade | |
| 0.018-0.100 | ±4%t | ±6%t |
Width tolerance of aluminum foil for PTP
| Width /mm | Width tolerance /mm |
| ≤800.0 | ±1.0 |
| >800.0 | ±1.5 |
Mechanical properties of aluminum foil for PTP
| Grades | Temper | Thickness/mm | Tensile strength/Mpa | Elongation/% |
| 1235 | O | 0.018-0.025 | 40-100 | 1 |
| >0.025~0.040 | 50-110 | 4 | ||
| >0.040-0.100 | 55-110 | 8 | ||
| 1100, 1200, 1235 | H18 | 0.018-0.100 | ≥135 | - |
| 1100, 1200 | O | 0.018-0.025 | 40-100 | 1 |
| >0.025-0.040 | 50-110 | 3 | ||
| >0.040-0.100 | 55-110 | 6 | ||
| 3003 | O | 0.018-0.025 | 80-130 | 1 |
| >0.025-0.040 | 80-130 | 4 | ||
| >0.040-0.100 | 80-130 | 8 | ||
| 8006 | O | 0.018-0.025 | 80-140 | 1 |
| >0.025-0.040 | 85-140 | 2 | ||
| >0.040-0.100 | 90-145 | 6 | ||
| H18 | 0.018-0.100 | ≥180 | 1 | |
| 8011, 8011A, 8079 | O | 0.018-0.025 | 55-105 | 1 |
| >0.025-0.040 | 60-110 | 4 | ||
| >0.040-0.100 | 60-120 | 8 | ||
| H18 | 0.018-0.100 | ≥150 | 1 |
Number and diameter of pinholes in aluminum foil
| Thickness /mm | Number of pinholes per square meter | Pinhole diameter/mm |
| 0.018-<0.020 | ≤3 | ≤0.3 |
| 0.020-0.100 | 0 | - |
The number of joints per roll of aluminum foil and the spacing between joints
| Outer diameter of the roll | Allowable number of joints per roll | Spacing between joints | |
| Thickness≤0.050mm | Thickness >0.050mm | ||
| ≤500 | ≤1 | 0 | ≥2000 |
| >500 | ≤2 | ||

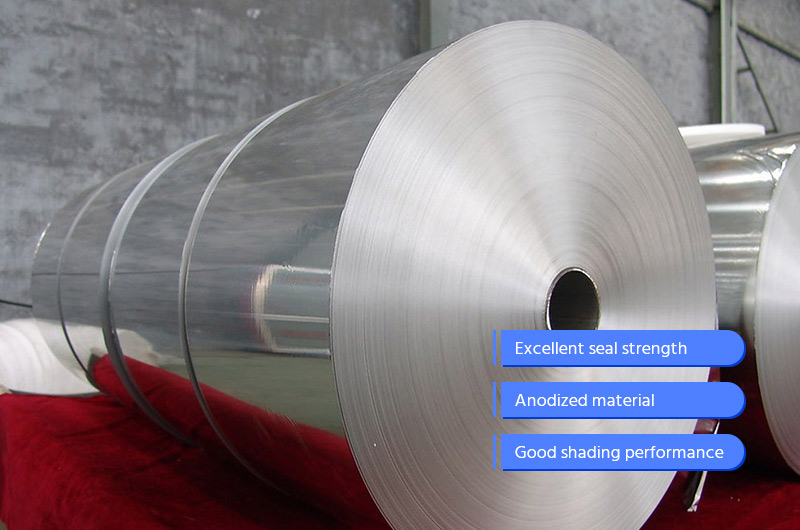

Characteristics and application of aluminum foil for PTP

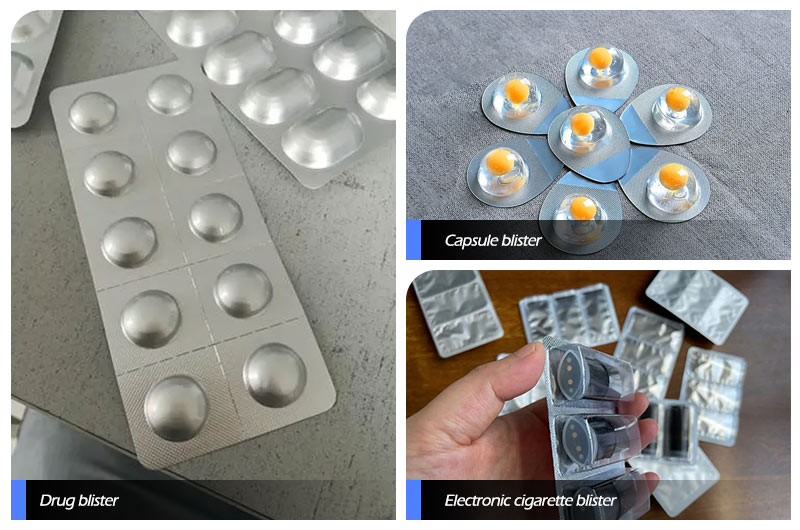

- PTP aluminum foil packaging is used for aluminum-plastic blister packaging of pharmaceutical tablets, capsules, pills, etc. It has a novel appearance and improves the image and competitiveness of pharmaceuticals.
- Excellent sealing strength compared to PVC, PVC/PVDC, PET, PP, PE, and high barrier base materials.
- Made with hard aluminum anodized material, making it easy to break the aluminum foil to access the medicine.
- PTP aluminum foil packaging provides good light-blocking, moisture resistance, gas retention, and flavor retention properties, as well as resistance to oxidation.
- Perfect printing quality with no fading after sealing.
- PTP aluminum foil exhibits exceptional mechanical strength and corrosion resistance, ensuring its suitability for high-speed pharmaceutical packaging production lines, whether at low or high temperatures.

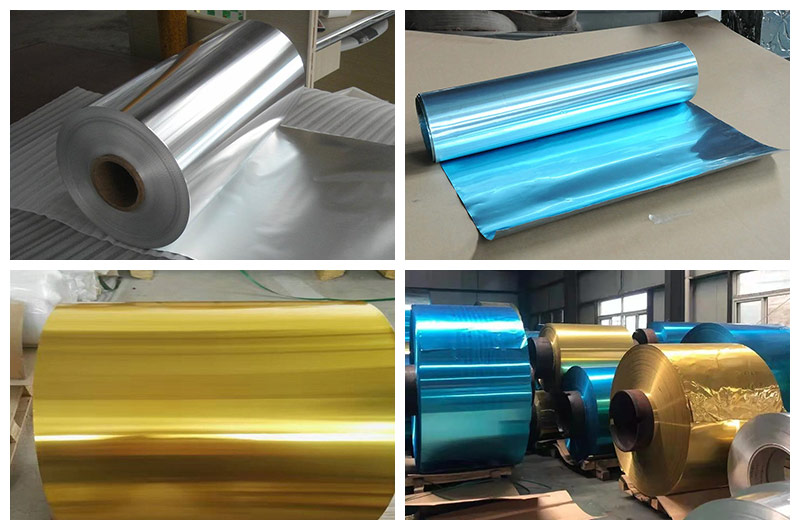

Printing aluminum foil for PTP
- Plain foil (unprinted)
- Printed foil (single-sided printing, double-sided printing, monochrome printing, two-color printing, multicolor printing, colored foil (single-sided gold, two-color gold), double-sided gold, green background, various colored backgrounds)
- Anti-counterfeit (steganography, design, positive and negative printing)
- Single-sided or double-sided printing, providing improved appearance as per requirements.
