Telescopic Tube | Round & SquareTelescopic Tubing

Telescopic tubes are extendable hollow profiles designed to slide into one another, allowing structures to extend and retract smoothly while maintaining compact storage length. This telescoping structure is widely used in adjustable supports, extendable frames, inspection poles and industrial equipment systems.

Chalco manufactures precision telescopic tubing through advanced extrusion and drawing processes. With strict dimensional control and flexible customization capability, our telescopic tubes provide smooth telescoping performance, stable structural strength and reliable sliding fit for extendable structures and mechanical systems.

• Materials: aluminum alloys (6061 · 6063 · 6005A · 7003 · 7005 · 7075), carbon steel and other metal alloys (custom materials available on request)
• Tube shapes: square · round · rectangular · oval · custom profiles
• Typical wall thickness: 0.040″ · 0.065″ · 0.105″ · 0.125″
• Manufacturing methods: extrusion · precision drawing
• Surface finishes: anodizing · powder coating · sandblasting · brushing · painting
• Processing: CNC drilling · slotting · pin holes · spring button holes · bending · assembly
• Customization: telescopic tube systems · OEM & ODM

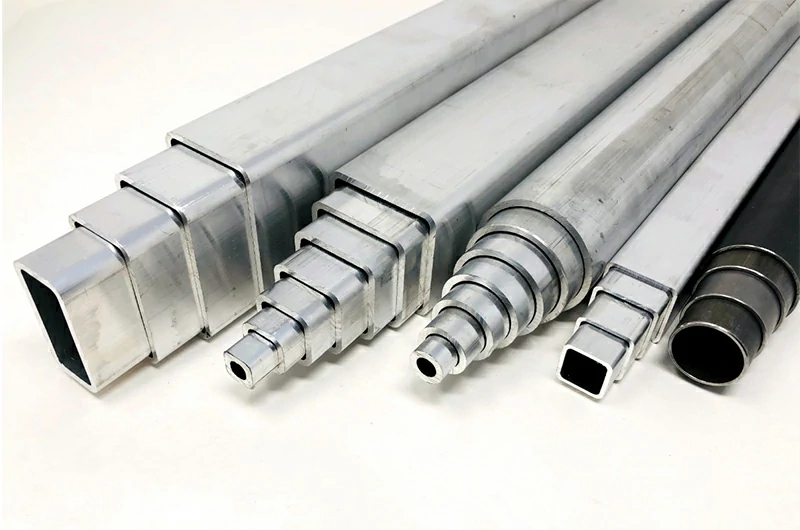

Types of telescopic tubes

Telescopic tubes are manufactured in various cross-sectional shapes to meet different structural and mechanical requirements. Chalco supplies aluminum telescopic tubing in square, round, rectangular, oval and heavy-wall configurations for extendable structures, adjustable supports and telescopic systems.

Square telescopic tubes

Square telescopic tubes provide excellent anti-rotation performance and structural stability during telescoping movement. They are widely used in adjustable frames, equipment supports, automation systems and extendable structural assemblies.

Round aluminum telescopic tubes

Round telescopic tubes are the most common telescoping structures, offering smooth sliding performance and uniform load distribution. They are widely used in extendable poles, inspection equipment, lighting stands and adjustable structural supports.

Rectangular telescopic tubes

Rectangular telescopic tubes provide higher structural rigidity and are suitable for equipment frames, industrial supports and extendable mechanical structures where greater load stability is required.

Heavy wall telescoping aluminum tubing

Heavy-wall telescopic tubes are designed for applications requiring higher strength and load-bearing capacity. The thicker wall structure improves durability and stability in demanding industrial and mechanical environments.

Oval telescopic tubes

Oval telescopic tubes feature an elliptical cross-section that provides a compact profile while maintaining telescoping functionality. They are often used in specialized equipment, display systems and space-limited structural designs.

Chalco supplies square, round, rectangular, oval and heavy-wall telescopic tubes for different structural and mechanical requirements. Custom sizes, wall thickness and telescoping combinations can be manufactured according to project needs.

Typical Sizes and Dimensional Design of Telescopic Tubes

Telescopic tubes require precise dimensional matching between outer and inner sections to ensure smooth sliding and stable extension. Proper coordination of outer diameter, inner diameter, wall thickness and corner radius helps maintain reliable telescoping clearance between tube stages.

Chalco supplies telescopic tubes in a range of standardized size combinations designed for multi-stage telescoping structures. Square and round telescopic tube systems are available in commonly used dimensions to support stable sliding performance and structural strength in extendable applications.

Square telescopic tube

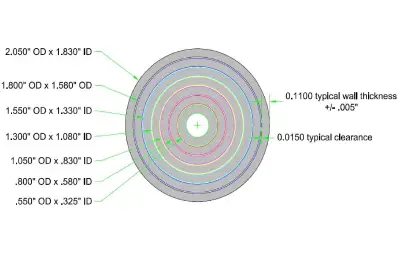

Round telescopic tube

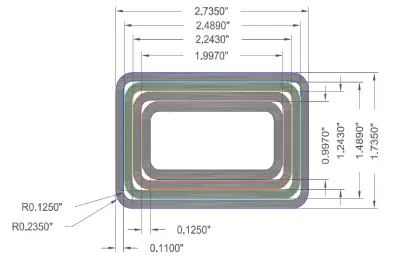

Rectangular telescopic tube

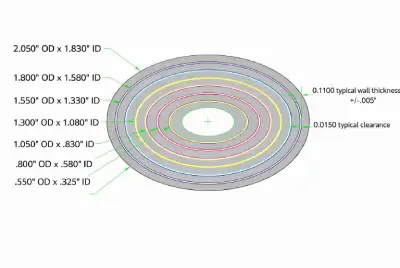

Oval telescopic tube

Chalco aluminum round telescopic tubes hot-selling size chart

Chalco aluminum square telescopic tubes hot-selling size chart

Chalco provides multiple telescopic tube size combinations to achieve stable sliding fit and structural strength. Custom length, diameter and wall thickness can also be produced based on engineering requirements.

Material Options for Telescopic Tubes

Telescopic tubes can be manufactured from a variety of metal materials depending on structural strength, weight requirements and environmental conditions. Among these materials, aluminum alloys are widely used for telescopic tubes due to their lightweight structure, corrosion resistance and excellent machinability.

Aluminum telescopic tubes provide a good balance between strength and weight, making them suitable for adjustable equipment, extendable structures, inspection poles and various mechanical systems. Chalco supplies telescopic tubes in multiple aluminum alloys to meet different structural and performance requirements.

In addition to aluminum alloys, telescopic tubes can also be manufactured from materials such as carbon steel, alloy steel (e.g., 4130) and other specialized alloys depending on strength requirements and working environments.

If you need telescopic tubes in specific materials, alloys or customized structures, please contact Chalco's technical team for material selection and engineering consultation.

Alloy Selection

Engineering Design & Quality Control for Telescopic Tubes

Reliable telescopic tube systems require precise dimensional matching, structural compatibility and stable sliding performance. Chalco controls multiple engineering factors during manufacturing to ensure smooth telescoping action, structural strength and long service life for extendable tube systems.

• Sliding clearance control: Proper clearance between outer and inner tubes is essential for smooth telescoping performance. For small-diameter telescopic tubes, a clearance of approximately 0.013″–0.015″ is typically maintained, while larger tubes may require 0.030″–0.060″ clearance to ensure stable sliding and easy extension.
• Wall thickness and strength matching: Different wall thickness configurations are used depending on structural requirements. Thin-wall telescopic tubes (0.040″–0.065″) are commonly used for lightweight equipment and adjustable supports, while thicker sections (0.105″–0.125″) provide higher structural strength for industrial frames and heavy-duty systems.
• Corner radius consistency: For square telescopic tubes, consistent corner radius (R-value) between nested sections is critical to avoid interference during sliding. Matching extrusion dies help ensure reliable corner-to-corner movement and prevent jamming during telescoping.
• Locking structure compatibility: Telescopic tubes can be integrated with various locking mechanisms such as spring buttons, plastic latches, or pin locking systems. These solutions are widely used in adjustable supports, inspection poles, equipment stands and extendable structural systems.
• Precision tolerance control: Accurate dimensional tolerance ensures stable sliding without excessive looseness. Chalco maintains strict OD tolerance control, typically within ±0.014″–±0.025″ depending on tube size and structure.

Custom Processing and System Integration for Telescopic Tubes

In addition to supplying standard telescopic tubing, Chalco provides a wide range of custom processing and fabrication services to help customers integrate telescopic tubes into complete mechanical or structural systems. Through precision machining and secondary processing, telescopic tubes can be prepared for locking mechanisms, structural connections and assembly applications.

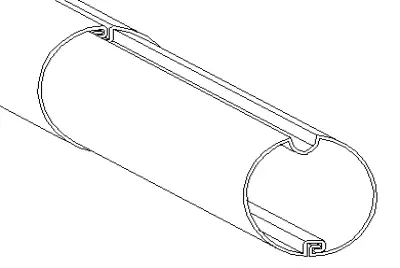

Locking System Preparation

Chalco provides precise drilling and hole positioning services to support telescopic tube locking mechanisms. Accurate hole spacing ensures stable extension and reliable adjustment in telescopic structures.

Options: spring button · locking pin · twist lock · clamp lock · positioning holes

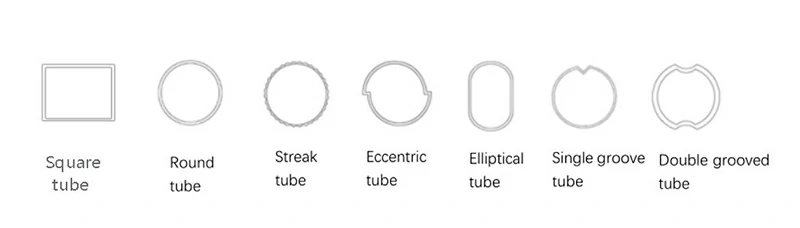

Telescopic Tube Profiles

Chalco manufactures telescopic tubes in multiple structural profiles to meet different sliding and structural requirements. Profile design ensures proper telescoping performance and structural stability.

Shapes: square · round · rectangular · custom profiles

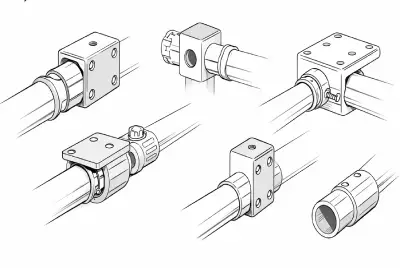

Connectors & Structural Integration

Chalco supports the integration of telescopic tubes with connectors and structural accessories. Tube ends can be prepared for mounting brackets, mechanical connections and system assembly.

Integration: connectors · mounting brackets · mechanical fittings

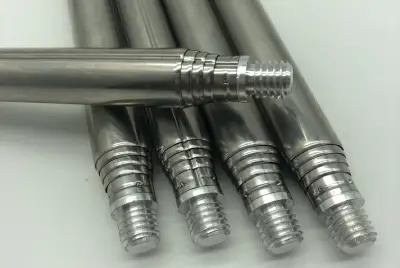

Precision Machining Services

Chalco provides precision machining services for telescopic tubes to support customized structures and system integration. Secondary processes ensure accurate fit for locking systems and assemblies.

Processes: drilling · slotting · threading · cutting · assembly

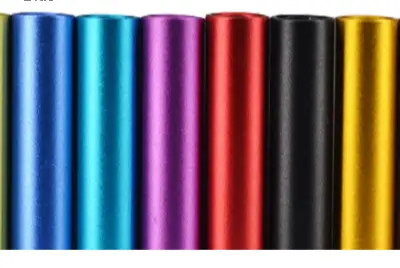

Surface Treatment Capability

Chalco offers various surface finishing options to improve corrosion resistance, durability and appearance of telescopic tubes used in outdoor or industrial environments.

Options: anodizing · powder coating · sandblasting · brushing · painting

With integrated extrusion, cutting and precision machining capabilities, Chalco supports telescopic tube production as well as secondary processing such as drilling, slotting and assembly preparation.

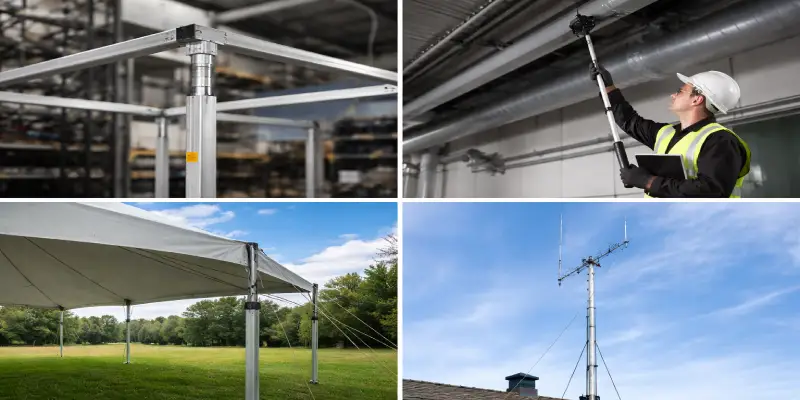

Applications of Telescopic Tubes

Telescopic tubes are widely used in adjustable structures, extendable equipment and various mechanical systems. Their lightweight structure, structural strength and smooth telescoping performance make them suitable for industrial, outdoor and equipment applications.

• Industrial Equipment: adjustable support frames, mechanical structures, equipment stands and telescopic structural components used in industrial systems.
• Inspection and Maintenance Tools: inspection poles, measurement rods, maintenance tools and extendable equipment used for high-reach inspection and maintenance operations.
• Outdoor Structures and Equipment: telescopic flagpoles, temporary structures, outdoor frames and extendable structural supports.
• Communication and Signal Systems: antenna supports, communication equipment frames and extendable signal structures used in radio and monitoring systems.

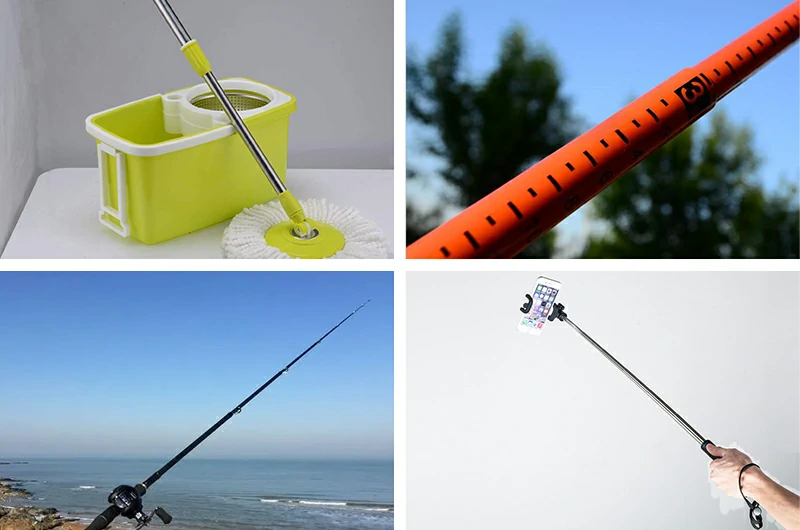

• Consumer and Portable Equipment: camera tripods, lighting stands, cleaning poles and portable adjustable structures.

Telescopic tubes can be adapted to a wide range of adjustable structures, extendable equipment and industrial systems. Our team can help evaluate your application and recommend suitable tube structures and dimensions.

FAQ – Telescopic Tubes

What materials are commonly used for telescopic tubes?

Telescopic tubes can be manufactured from several metals depending on the required strength, weight and corrosion resistance. Aluminum alloys such as 6061 and 6063 are widely used because they provide lightweight structure, good corrosion resistance and excellent machinability. Steel and alloy steel materials can also be used when higher structural strength is required. Chalco can supply telescopic tubes in aluminum and other metal materials according to project requirements.

What shapes are available for telescopic tubes?

Telescopic tubes are commonly produced in round, square and rectangular profiles. Round telescopic tubes provide smooth sliding performance, while square telescopic tubes offer better structural alignment and anti-rotation capability. Rectangular and custom profiles can also be manufactured depending on application requirements.

How do telescopic tubes slide smoothly without jamming?

Smooth telescoping movement depends on proper dimensional matching between tube stages. Key factors include outer diameter, inner diameter, wall thickness, corner radius and telescoping clearance. Accurate manufacturing tolerance ensures that inner tubes slide smoothly inside outer tubes while maintaining sufficient structural stability.

Can telescopic tubes be customized for specific projects?

Yes. Telescopic tubes can be customized according to project requirements, including tube size combinations, wall thickness, material selection and telescoping stages. Additional processing such as drilling, slotting, locking holes, surface finishing and structural assembly can also be provided.

What locking mechanisms are used for telescopic tubes?

Telescopic tubes are commonly used with mechanical locking systems to control extension length. Typical locking options include spring button mechanisms, locking pins, twist locks, clamp locks and adjustable positioning holes. The appropriate locking solution depends on the structural design and application requirements.

What is the difference between telescopic tubes and telescopic rods?

Telescopic tubes are hollow profiles designed to slide inside each other, making them suitable for lightweight extendable structures and adjustable equipment. Telescopic rods are usually solid bars used when higher structural strength is required. In most adjustable structures, telescopic tubes are preferred because they reduce weight while maintaining sufficient strength.

What industries use telescopic tubes?

Telescopic tubes are widely used in adjustable equipment, inspection poles, industrial support structures, communication equipment, outdoor frames and portable mechanical systems. Their extendable structure makes them suitable for applications that require adjustable length and compact storage.
