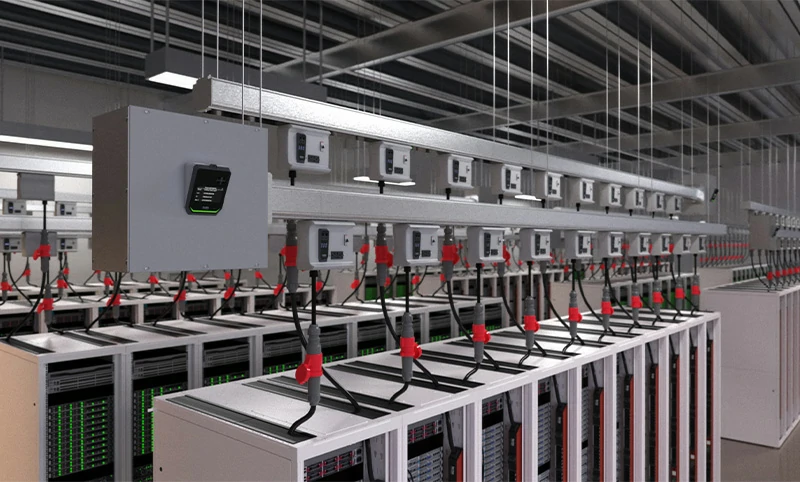

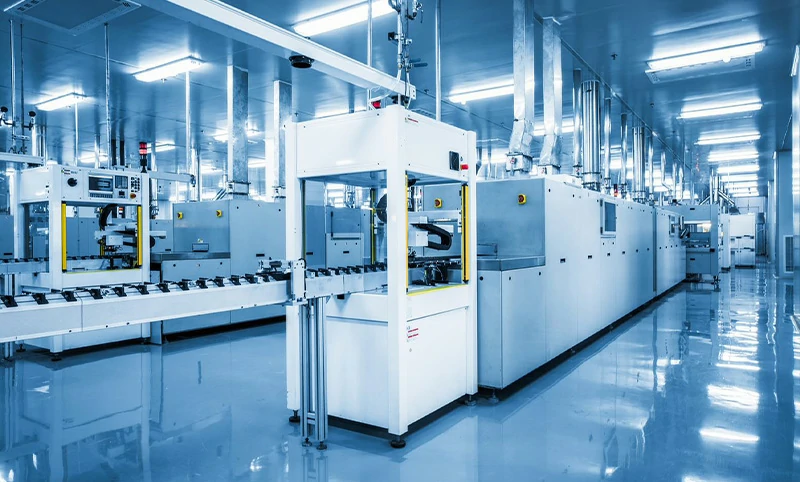

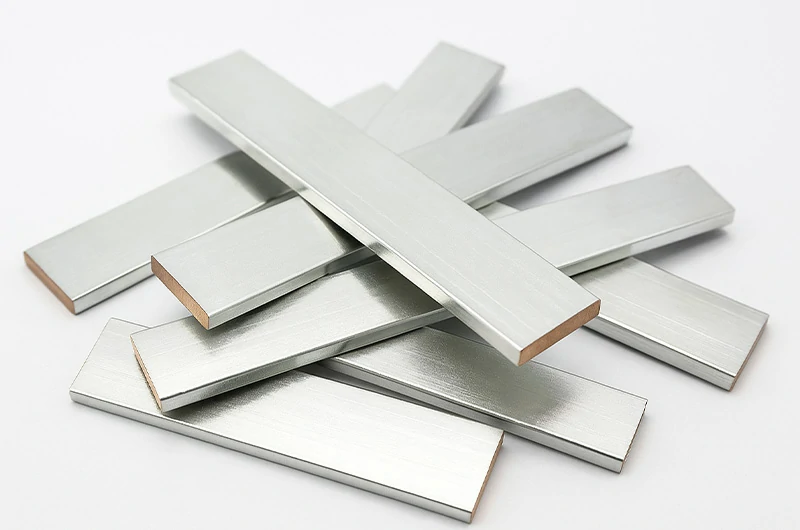

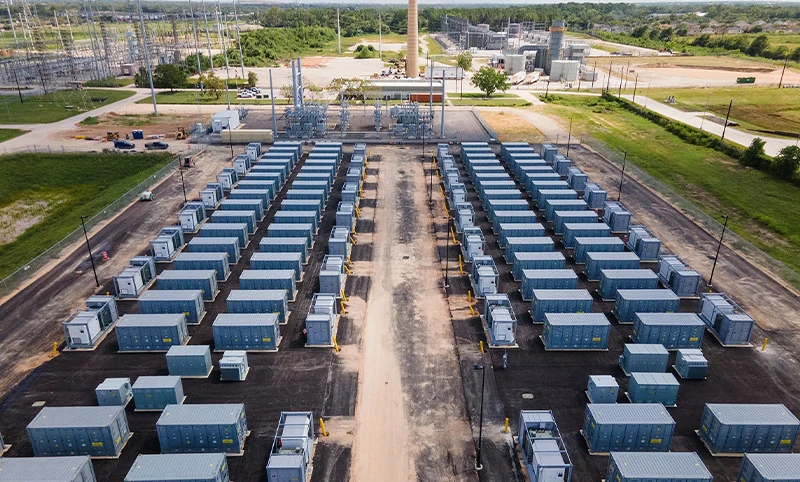

The silver-plated copper busbar uses a cyanide/non-cyanide composite process to deposit a 3-10 µm pure silver layer. The silver layer offers high conductivity, high-temperature resistance, and extremely low contact resistance. It remains stable in high-frequency, high-current scenarios between −55 °C and 200 °C, serving applications in data center bus ducts, aerospace, military, high-end energy storage, and semiconductor equipment.
Silver-Plated Copper Busbar vs. Tin-Plated/Bare Copper: Which to Choose for High-Temperature and High-Frequency Scenarios?
| Feature | Bare Copper Busbar | Tin-Plated Copper Busbar | Silver-Plated Copper Busbar |
| Conductivity (% IACS) | 100 | 97 | 105 |
| Coating Maximum Temperature (°C) | 85 | 120 | 200 |
| 72 h H₂S ΔR (µΩ) | 48 | 12 | 3 |
| High-Frequency Current Loss (10 kHz) | 1.0× | 0.96× | 0.85× |
| Cost (Bare Copper = 1) | 1 | 1.25 | 3-4 |
| Typical Industries | General Power Distribution | Energy Storage | Data Centers / Military / Aerospace |
Silver-Plated Copper Busbar Technical Specifications
| Parameter | Typical Value / Standard | Description |
| Conductivity | 105% IACS | Silver layer enhances overall conductivity |
| Coating Thickness | 3-10µm(MIL-DTL-45204 Type I) | 10 µm suitable for military-grade applications |
| Operating Temperature | −55°C ~ +200°C | Contact resistance drift <3% under high-frequency conditions |
| Contact Resistance (25 °C) | ≤ 0.2mΩ / 100A | 50% lower than tin-plated copper busbars |
| Gas Corrosion Test | H₂S 3 ppm, 72 h, ΔE < 1.5 | No discoloration, passivation optional |
| Environmental Compliance | RoHS / REACH | Lead-free, cadmium-free, North America & EU certification |
Customer Case: Using Silver-Plated Copper Busbars Saves €86, 000 in 2 Years
Location: Europe, Tier-IV Data Center Busbar Retrofit
Bare copper busbars generated heat under 10 kHz harmonic conditions, leading to a high PUE.
Replaced with 5 µm silver-plated copper busbars + phase change heat sinks.
Busbar temperature rise decreased by 4.7 °C.
Data center PUE dropped from 1.43 to 1.38.
5-year electricity savings ≈ €86, 000, payback period < 2 years.
Military-Grade Quality Control | AS9100D & XRF Full Inspection Report
XRF Coating Full Scan: 100% coverage, automatic defect rejection.
Hardness: Hv ≥ 80, meeting high-current crimping requirements.
H₂S & SO₂ Dual-Gas Composite Corrosion: ΔR ≤ 3 µΩ.
Certification Wall: ISO 9001 | AS9100D | UL 467 | NADCAP Chemical Processing
Our Silver-Plated Copper Busbar Strength: Chosen by Customers in 48 Countries
| Strength Dimension | Data / Facts | Additional Materials |
| Capacity & Delivery | Silver-plated copper monthly production: 500 km, military-grade orders delivered in 10-12 days | 4K production line delayed video |
| Process Patents | 2 continuous non-cyanide silver plating patents; 1 contact resistance drift suppression algorithm | Patent certificate numbers |
| Global Customers | Huawei Cloud / Meta DataCenter / Airbus | Logo wall |
| Industry Recognition | 2025 IPC "Best Interconnect Supplier” | Interview video clip |
Delivery & Packaging
Packaging: Anti-sulfur vacuum bags + Sulfur dioxide paper + Wooden box; includes temperature and humidity indicator card.
Risk Reversal:
- 30-Day Worry-Free Trial: Free returns and exchanges if specifications are not met.
- First Batch 20 kg Samples: Support for Letter of Credit/Net 30 payment terms.
Button A: Get Free 200 mm × 50 mm Sample
Button B: Upload BOM and Get a One-Click Silver Plating Specification Match
