Pneumatic Cylinder Supplier for Industrial Automation

A pneumatic cylinder converts compressed air into stable linear push-pull force. It typically consists of a cylinder tube (6063 aluminum extrusion or stainless steel), a piston rod, end caps, a piston, and sealing elements.

Whether you need a quick ISO standard replacement, anti-rotation for off-center loads, or a long-stroke, space-saving rodless design, we offer the right series and an order-ready parameter checklist for each option.

Quick selection navigation

Not sure which one to choose? Click based on your working condition:

ISO Standard Cylinders

General push/pull; direct ISO dimension replacement; common in EU projects (ISO 15552 / 6431 / 6432 / 21287)

Guided / Anti-Rotation Cylinders

For off-center loads or side load; need anti-rotation; more stable fixture positioning (double-rod guide / three-rod guide / frame guide / slide table)

Rodless Cylinders – Long Stroke & Space Saving

For long stroke and shorter installation length; handling and positioning (magnetic coupling / mechanical / sliding type PPV)

ISO Standard Cylinders

Guided Cylinders

Rodless Cylinders

ISO standard pneumatic cylinders

The biggest value of the ISO system is speed and fewer mistakes. When you replace an existing brand, match the standard, bore, stroke, mounting style, and port thread.

You get faster interchangeability and unified spares, with less downtime risk and lower maintenance cost.

ISO 15552 cylinders

ISO 6432 cylinders

ISO 21287 cylinders

ISO 6431 cylinders

ISO 15552 profile cylinders(DNC)

ISO 15552 is one of the most common profile cylinder standards in industrial automation.

It standardizes mounting dimensions and supports universal accessories and mounting styles. This helps reduce maintenance effort and spare parts cost.

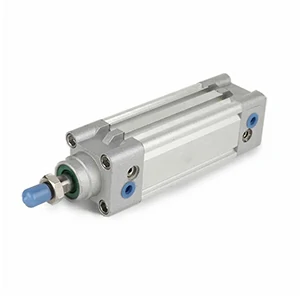

• DNC Series Pneumatic Cylinder

  DNC is our main general-purpose option. It covers common bores and mounting styles. It also has adjustable cushioning on both ends. It fits most linear push/pull, clamping, and positioning cycles.

  For brand replacement or project spare parts, DNC is often the safer, easier choice.

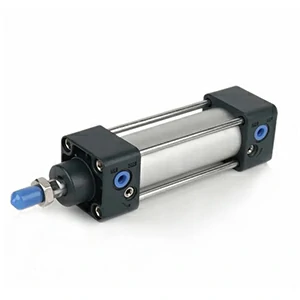

• SC Series Standard Tie Rod Pneumatic Cylinder

  SC (tie rod) is built for heavier loads and larger bores. It offers a wider bore range (up to 250 mm). It works well for long strokes, higher thrust, and harsher conditions.

  It also supports adjustable air cushioning on both ends for smoother running.

Within the ISO 15552 system, we mainly supply DNC standard profile cylinders and SC tie rod cylinders for large bores (tie rod).

Choose DNC for general replacement and standard spares. Choose SC for large-bore heavy duty and long-stroke use.

Send your current model, bore, and stroke. We will recommend a replaceable configuration and confirm mounting dimensions.

Instant Quote

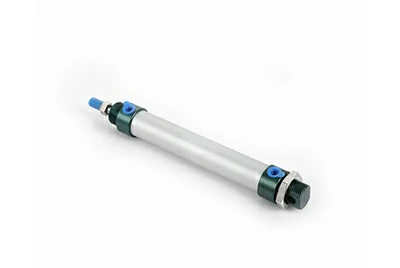

ISO 6432 stainless mini cylinders(DSNU MA6432)

When space is extremely limited, the environment is harsher, or corrosion resistance must be consistent, ISO 6432 stainless mini cylinders are a common choice.

The key benefit is not only the compact size. It is standardized mounting dimensions, a stainless steel tube, a wide temperature range, and a lubrication-free design.

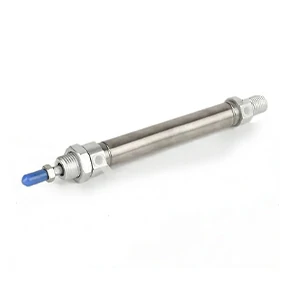

• DSNU Ma6432 Series Stainless Steel Mini Cylinder

  DSNU (MA6432) is a stainless steel mini cylinder for short-stroke reciprocating drive in space-limited automation. It features a small bore, a wide temperature range, a lubrication-free design, and optional double-acting or spring return.

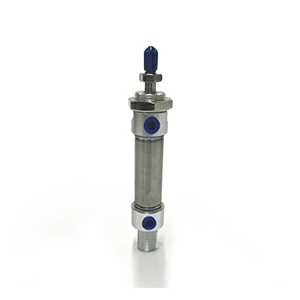

• Ma Series Pneumatic Cylinder

  MA is a small-bore mini cylinder for reciprocating clamping, pushing, and positioning in compact setups. It offers a wide pressure range, fast response, optional standard or adjustable cushioning, and multiple mounting styles.

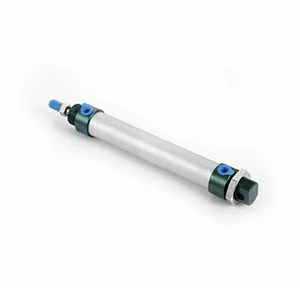

• Mal Series Pneumatic Cylinder

  MAL is a compact mini cylinder for pushing, clamping, and positioning in space-limited equipment. It covers common small bores, supports a wide speed range, offers optional anti-impact or adjustable cushioning, and comes with multiple mounting options.

MA is a more general-purpose mini cylinder. It supports a wide speed range and offers more flexible mounting styles.

It fits common clamping, pushing, and positioning tasks.

MAL is a more compact mini cylinder. It has a shorter body and can be placed closer to the mechanism's limit position. It fits tight cavities and side-by-side multi-cylinder layouts.

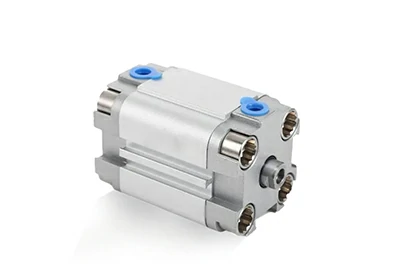

ISO 21287 compact cylinders(ADVU)

Compared with standard cylinders, ISO 21287 compact cylinders offer a shorter body and a structure with cushioning options better suited for high-cycle operation.

• ADVU Series Pneumatic Cylinder

  ADVU is a compact cylinder for high-cycle reciprocating motion in space-limited automation. It features a short body, a wide bore range, working pressure up to 1.0 MPa, a wide temperature range, and standard rubber cushioning.

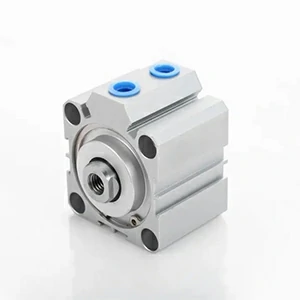

• SDA Series Pneumatic Cylinder

  SDA is a compact (short-stroke) cylinder for clamping, pushing, and positioning in space-limited equipment. It covers bores from 12–100 mm, offers double-acting or single-acting options, supports working pressure up to 0.9 MPa, uses fixed cushioning, and provides complete port thread options.

If you are replacing an existing brand, check more than bore and stroke. Confirm the mounting style, piston rod end thread, sensor/magnetic piston needs, and cushioning type.

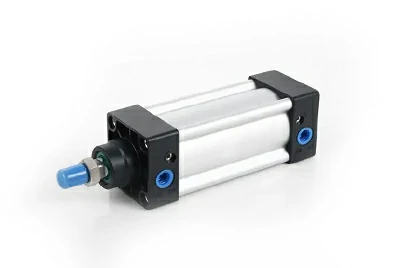

ISO 6431 profile cylinders (SI)

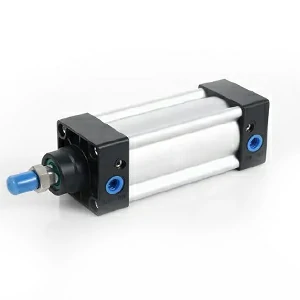

• SI Series ISO 6431 Mickey Mouse Profile Pneumatic Cylinder

  SI is an ISO 6431 standard profile cylinder (Mickey Mouse Profile). It is used for general reciprocating motion in industrial automation. It offers standardized dimensions for easy replacement, supports magnetic sensors, and has a full set of mounting accessories.

• Bore (mm): 32 / 40 / 50 / 63 / 80 / 100 / 125
• Working pressure: 0.1–1.0 MPa
• Proof pressure: 1.5 MPa
• Working temperature: 5–70°C
• Speed range: 50–800 mm/s
• Port thread: G1/8, G1/4, G3/8, G1/2 (varies by bore)
• Sensor option: magnetic switch available (by configuration)

ISO standard pneumatic cylinders replacement interchange guide

If you are using cylinders from SMC, Festo, Parker, or similar brands, you may worry about alignment, port connection, cushioning, and sensor compatibility. You may also worry about stability after replacement.

You only need to provide the following information:

• Current brand + model (a nameplate photo is best)
• Bore × stroke
• Mounting style (foot, flange, trunnion, etc., or a photo of the mounting position)
• Port thread (G/PT/NPT) and port size
• Cushioning and sensor needs (adjustable cushioning? need a magnetic switch?)
• Working pressure / temperature, and whether there is off-center load / side load

Send your current model / nameplate photo and bore × stroke.

We will first check interchangeability and confirm mounting dimensions, then quote after everything is verified.

Instant Quote

Guided pneumatic cylinders (guiding anti-rotation side load)

When your station does more than simple push-pull, you may face off-center load or side load, anti-rotation needs at the rod end, fixture positioning, or slide-table motion and alignment.

A standard cylinder can easily bind, vibrate, or drift off position. For these conditions, choose a guided cylinder or a slide-table cylinder.

Twin rod guided

Three-rod guided

Guided slide

Twin rod guided CXS TN JMGP MGG

Twin-rod guided cylinders use dual guide rods and a guide frame to transfer load into the guiding unit.

This greatly improves side-load capacity, anti-torsion performance, and repeatable positioning. It is ideal for automation stations such as clamping, pushing, handling, and loading alignment.

• CXS Series Dual Rod Pneumatic Double-Shaft Cylinders

  CXS is a compact choice for high-stability guiding. It fits clamping, pushing, and handling in tight stations. It is often used when you need a small bore but must avoid rotation and sticking.

  It also offers sliding or ball guide options, so you can balance cost and precision.

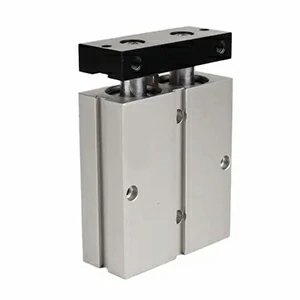

• TN Series Double-Shaft Pneumatic Cylinders

  TN is a standardized twin-rod guided clamping cylinder. It fits stations that need anti-rotation and side-load resistance, and also want fine stroke adjustment (such as positioning clamps and stoppers).

  Many customers choose TN for its compact structure, adjustable cushioning, and more stable positioning.

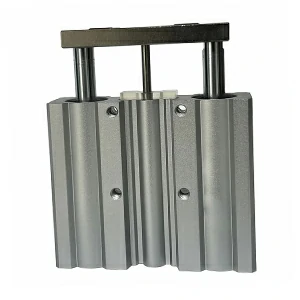

• JMGP Dual Rod Pneumatic Cylinders

  JMGP covers a larger bore range. It suits guided pushing and clamping with medium to high thrust.

  Its advantage is stable guiding with less maintenance (lubrication-free). It works well for long-term operation on automated production lines.

• MGG Guide Cylinder – Dual Rod Double Guided Pneumatic Cylinders

  MGG handles side load better. The guide unit has two built-in shock absorbers (2 pcs). It is a good fit for stations with impact or fast cycles.

  It helps solve heavy side load, strong end impact, unstable positioning, and short guide life.

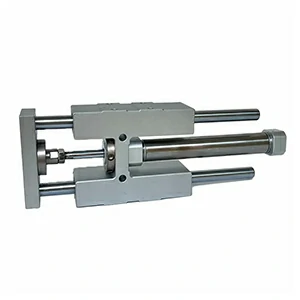

• TMIC Series Dual Rod Double Guided Pneumatic Cylinders

  TMIC is a small-bore frame-guided option. It fits automation stations that need a stiffer guiding structure and optional cushioning.

  Note before purchase: TMIC requires air filtration to 40 μm.

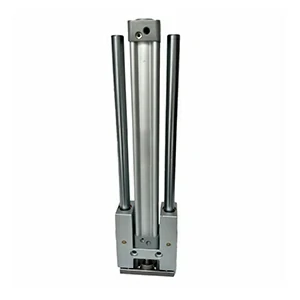

• TSAI Series Dual Rod Double Guided

  TSAI targets medium to large-bore frame-guided needs. It fits industrial automation stations that focus on stability, adjustable cushioning, and on-site thread matching (PT/G).

  It helps solve guided motion with medium to high thrust, side-load and anti-torsion needs, and mixed port thread standards on site.

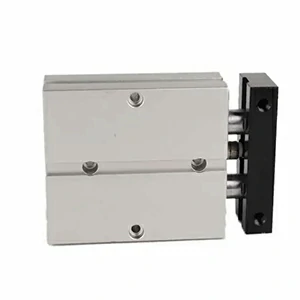

• Twin Rod Pneumatic Cylinders TN Series Double-Shaft Cylinder with Dual Rod Pneumatic Cylinders

  TN series twin-rod guided cylinders fit pushing and clamping stations that need anti-rotation, side-load resistance, and more stable positioning. It uses a double-acting design, supports adjustable cushioning and fine stroke adjustment, and suits compact automation mechanisms.

Send your bore × stroke, side load / whether there is off-center load, and your port thread type (G/PT/NPT).

We will reply with the recommended series, a configuration comparison, and a quotation. This helps you avoid wrong selection and rework.

Instant Quote

Three-rod three-axis guided MGP MGJ MGPW TB TCM TCL

A three-rod / three-axis guided structure spreads the load across multiple guide rods and guiding components.

It greatly improves anti-torsion performance, anti-rotation accuracy, side-load capacity, and repeatable positioning.

It is especially suitable for automation stations such as clamping and positioning, push-pull handling, press-fit / insertion, and slide-table linear positioning.

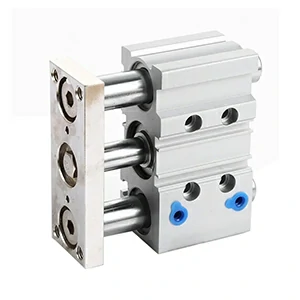

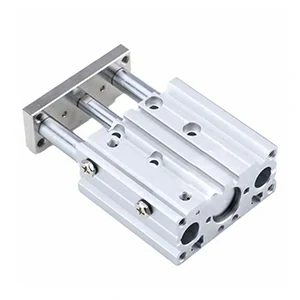

• MGP Series Three-Shaft Pneumatic Cylinder – Three-Rod Guide Actuator

  MGP is the most common general-purpose three-rod guided actuator. It fits pushing, clamping, and handling stations that need anti-rotation, side-load resistance, and more stable positioning. For buyers, the key value is broad size coverage, optional guide types (sliding / ball), and clear pressure and speed windows. This makes project standardization and spare parts planning easier.

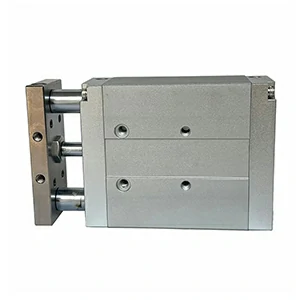

• DFM Series Three-Rod Guide Pneumatic Cylinder

  DFM suits guided stations with faster takt time and more frequent motion. Its elastic cushioning fits high-cycle reciprocation. It helps the motion run smoother and reduces impact on the mechanism. It often solves strong end impact, less smooth movement, and higher noise or vibration in high-cycle use with standard guided cylinders.

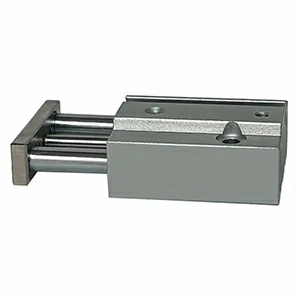

• MGJ Miniature Guide Rod Cylinder – Three-Rod Guide Pneumatic Cylinder

  MGJ is for extremely tight spaces and precise positioning. Typical uses include micro fixtures, electronics assembly, and light-load positioning and pushing. Its core benefit is stable anti-rotation even with very small bores. It is lubrication-free and uses rubber cushioning on both ends for easier maintenance.

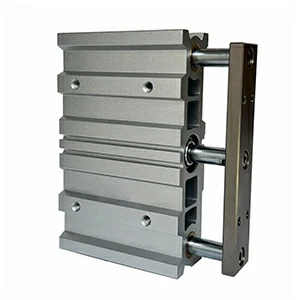

• MGPW Compact Guide Cylinder – Wide Type Three-Rod Guide Pneumatic Cylinder

  MGPW is a wide-body compact three-axis guided cylinder. It fits stations that need a more rigid fixture mount and have higher load or more obvious off-center load. If you feel a standard MGP works but want a more stable mount, a heavier fixture, and less wobble, we recommend MGPW.

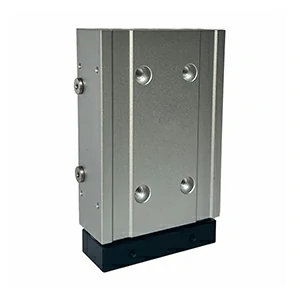

• TB Series Three-Rod Guide Pneumatic Cylinder

  TB is a slide-table style three-axis guided cylinder. It suits stations where the slide table needs to move with load and hold position. Many choose TB because they want slide-table-like motion, better side-load handling, and more stable push-pull positioning.

• TCM/TCL Series Three-Rod Guide Pneumatic Cylinder

  TCM/TCL stands out by offering clear non-rotation accuracy and tolerance figures. This is useful when you must meet a positioning requirement and include it in project acceptance criteria.

• MGP Series Three-Shaft Model Three-Rod Pneumatic Cylinder with Guide Rod

  MGP series three-axis (three-rod) guided cylinders fit automation pushing and clamping stations that need anti-rotation, side-load capacity, and more stable positioning. It is double-acting, with rubber cushioning on both ends. It also offers optional guide types (sliding bushing / ball guide) and clear anti-rotation accuracy indicators.

Guided slide table CXSW

When a station needs loaded linear sliding and positioning, a standard cylinder can bind or vibrate due to side load and limited anti-rotation.

This can cause misalignment and strong end impact.

In this case, a slide-table guided cylinder with an integrated guide block is a better choice.

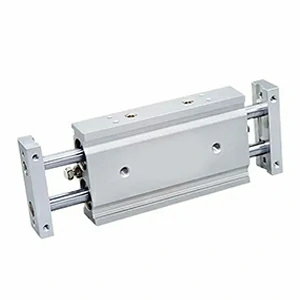

• CXSW Series Dual Rod Pneumatic Slide Cylinders

  CXSW dual rod slide cylinders fit linear sliding, positioning, and clamping stations in automation equipment. The twin-rod structure provides better anti-rotation and stability. It is double-acting, has cushioning on both ends, runs without lubrication supply, and offers clear anti-rotation accuracy indicators.

• Bore (mm): 10 / 16 / 20 / 25 / 32
• Action: Double action
• Working pressure: 0.1–1.0 MPa
• Proof pressure: 1.5 MPa
• Temperature range: 5–60°C
• Speed range (mm/s): 50–200
• Cushion: Cushioning: adjustable air cushioning (both ends)
• Oil supply: Not required (lubrication-free)
• Non-rotating accuracy: ±0.05° (10 mm) / ±0.03° (32 mm)
• Port size: M5×0.8 (small sizes) / G1/8" (larger size range)

If you are building a slide-table positioning station, send your load weight, stroke, side load / offset distance, and bore.

We can confirm whether CXSW is stable enough and quote the matching port thread and configuration.

Rodless pneumatic cylinders (rodless / long stroke / space saving)

When you need long-stroke linear handling but your machine length cannot fit a cylinder body that equals stroke plus extra clearance, a rodless cylinder delivers a longer stroke with a shorter installation length.

It is ideal for conveying, transfer, pushing, and sorting stations.

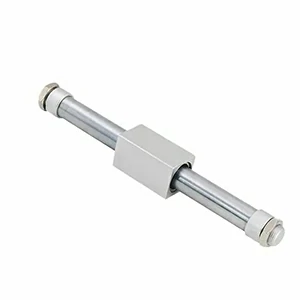

• CY3 Series Rodless Cylinder

  CY3 fits linear handling and pushing stations that need a simple structure, magnetic coupling drive, and compact installation. It is often used for medium loads where stroke and speed matter, with optional position sensing.

• OSP/OSP-P Rodless Air Cylinder Double Action Standard Long Stroke Mechanically Pneumatic Piston Rodless Air Cylinder

  OSP/OSP-P is a typical extra-long-stroke rodless cylinder. It suits continuous reciprocating handling where the stroke is very long but space is limited. Its advantage is flexibility. Options include head-end or both-end porting, seal materials (including FKM), low-speed versions, and stainless parts. You can configure it for your environment and service-life targets.

• DGC-K Mechanical Type Rodless Cylinder DGC-K-25/100/200/300/400-PPV-A-GK

  DGC-K is more for slide carriage handling and positioning. The carriage structure fits stations that move tooling, stop and locate, and run fast cycles. PPV adjustable cushioning on both ends can greatly reduce end impact. It also supports higher speeds and works with proximity switches for position sensing.

Send your stroke, load, speed / cycle rate, installation space limits, and whether you need position sensing. We will reply with the recommended series (CY3 / OSP / DGC-K), the key configuration, and a quotation.

Instant Quote

Documents inspection

Before shipment, we inspect critical dimensions, key mating surfaces, and key functions against your drawing or the relevant standard.

We provide the supporting documents to help your internal acceptance and later traceability.

• Material / traceability: Material certificates and batch information for key parts, for traceability and consistent repeat orders.
• Dimensional inspection report: Inspection of key mounting dimensions, port threads, and stroke-related sizes per drawing / standard.
• Surface treatment statement: Hard anodizing / anodizing / chemical oxidation / electrophoresis, etc. (based on your selected configuration).
• Assembly & air tightness test: Pre-shipment assembly checks and air-tightness / functional test records (to ensure no leakage and smooth action).

If your project requires a specific document format or extra clauses (such as reports based on your IQC form / inspection items), tell us in your inquiry.

Surface treatment and manufacturing risk control

A pneumatic cylinder works under internal pressure and repeated motion.

Two factors truly decide service life and stability: bore accuracy/roughness, and consistent wear resistance on the surface.

Bore accuracy and roughness: directly affect friction and seal life

If the cylinder runs smoothly and seals last longer, the key is the cylinder tube bore.

We use honing / fine grinding on the tube bore.

We inspect critical bore indicators to your drawing or standard.

The goal is:

• Low friction: smoother motion, no vibration at higher speed
• More stable seal life: less uneven wear and lower early air-leak risk
• Better consistency: easier batch assembly and less commissioning time

Surface treatment options: control wear resistance and consistency

Different conditions (high cycle, dust, light-load high speed, corrosive environments) need different surface performance.

We offer common options:

• Hard anodizing: our first choice for low friction, high wear resistance, and long service life
• Chemical oxidation: for general protection and consistent appearance
• Electrophoresis (optional): when you care more about appearance consistency and corrosion resistance

Just tell us your environment (dust / humidity / corrosion), cycle rate (high cycle / normal), and whether wear is severe. We will recommend the most suitable surface option.

Instant Quote

Related products

If you need a local assembly plan or spare parts solution, send your bore × stroke, quantity, and port thread / mounting style.

We will match a complete list of available tubes, piston rods, and kits.

Pneumatic Cylinder Tubing

Hard Chrome Piston Rods

Pneumatic Cylinder Kits

Quick quote checklist

Send us the 6 items below for fast selection and quotation (if one or two are missing, it's fine—we will complete them based on your application):

• Bore × stroke
• Standard / series: ISO 15552 / ISO 6431 / ISO 6432 / ISO 21287, or Guided / Rodless
• Mounting + port thread: G / PT / NPT
• Working pressure + temperature
• Load condition: push/pull, and whether there is off-center load; for guided types (required): side load / moment
• Options: magnetic piston / sensor, cushioning type (fixed / adjustable / PPV), and whether you need low-speed or corrosion-resistant configuration

FAQ

Q1. Which ISO standards do you support and can you help with replacement?

A: We support ISO 15552 / 6431 / 6432 / 21287 plus guided and rodless types. Send your current model + bore × stroke and we'll match an equivalent.

Q2. Do you support magnetic piston / sensors?

A: Yes—magnetic piston and sensor groove options are available on many series; tell us your sensor type/brand.

Q3. What thread types (G/PT/NPT) and port options are available?

A: G/PT/NPT are available depending on series and size; share your required thread and port position to confirm.

Q4. What documents can you provide?

A: Inspection report, material/traceability, surface treatment statement, and air-tightness/function test (as required).

Q5. MOQ & lead time?

A: MOQ depends on series/spec; standard items are faster, customized options take longer—send qty and target date.

Q6. How to choose standard vs guided vs rodless?

A: Standard for general push/pull; guided for side-load/anti-rotation; rodless for space-saving and long stroke.
