6063 aluminum angle is an extruded profile made from 6063 aluminum alloy, featuring standard 90° right-angle edges, and is typically available in two types: equal leg angle and unequal leg angle.
6063 aluminum angle is made from 6063 aluminum alloy, which is known as an architectural alloy. It offers relatively high tensile strength, excellent surface characteristics, and high corrosion resistance, making it one of the best alloys for anodizing applications. 6063 aluminum angle is commonly used in architectural decoration, structural framing, brackets, shelving, and marine applications where lightweight and attractive appearance are required. Quick Quote

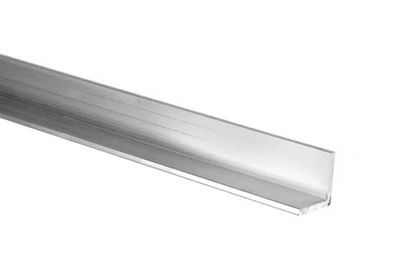

Chalco 6063 aluminum angle types

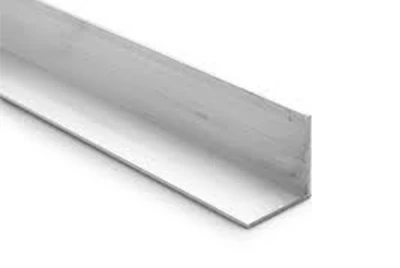

6063 equal leg aluminum angle
Equal leg aluminum angle has sides of equal length, with a symmetrical structure and uniform stress distribution. It is suitable for use in standard frames, brackets, and other general structures. With its regular shape and easy installation, it is a commonly used general-purpose profile in construction and industry.

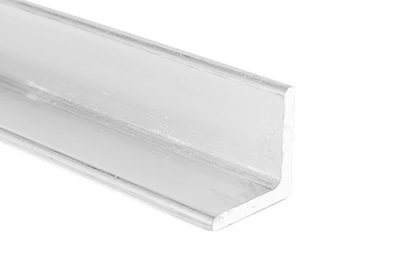

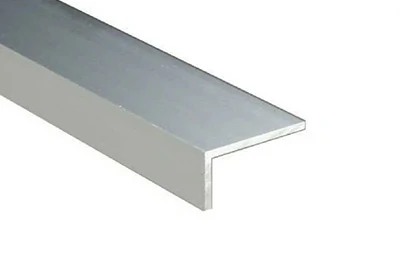

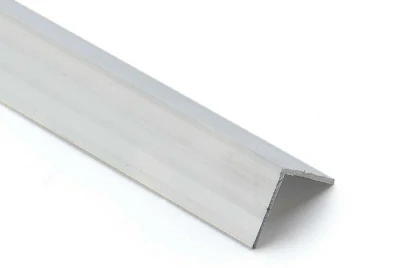

6063 unequal leg aluminum angle
Unequal leg aluminum angle has sides of different lengths, making it suitable for structures with space constraints or unidirectional force requirements, enhancing corner support strength. It is widely used in special structural applications such as machinery equipment and irregular frames.
6063 round corner aluminum angle
6063 round corner aluminum angle features arc transitions on the inner and outer edges based on the traditional right-angle design, avoiding sharp corners that may cause hand injuries or damage to products. Its appearance is smoother and more aesthetically pleasing, making it ideal for applications with higher safety and visual requirements.

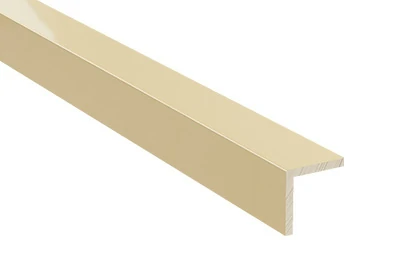

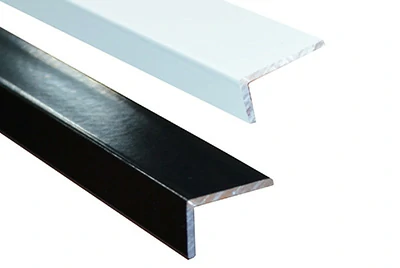

Anodized 6063 aluminum angle
Anodized aluminum angle has a surface treated through oxidation, offering strong corrosion resistance, uniform color, and excellent texture. It is commonly used in interior and exterior decoration, door and window frames, and corner protection, combining functionality with aesthetics.

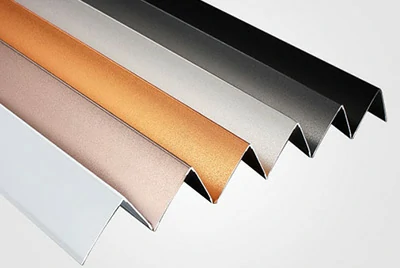

Color-coated 6063 aluminum angle
The surface of powder-coated aluminum angle is finely treated with rich colors, providing excellent weather resistance and decorative effect. It is suitable for high-end appearance applications such as furniture decoration and commercial display racks.

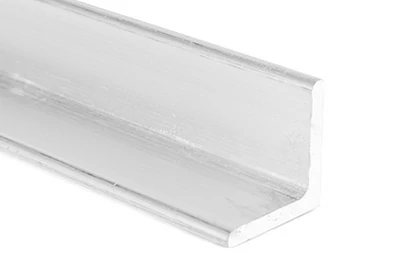

6063 extruded aluminum angle
6063 extruded aluminum angle is formed in a single process using a mold, resulting in a dense structure, high dimensional accuracy, and smooth surface. It is widely used in industrial structural components and is an ideal material for load-bearing frames.
6063 machined aluminum angle
Machined aluminum angle is customized through processes such as cutting and bending, offering high flexibility and suitability for non-standard designs. It is ideal for small batches or special structural applications, meeting personalized requirements.

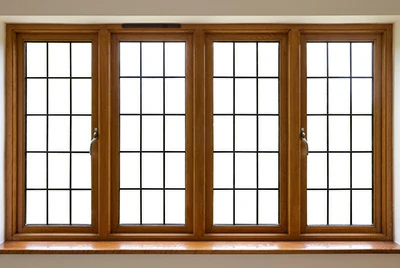

6063 architectural aluminum angle
6063 architectural aluminum angle is lightweight and corrosion-resistant, suitable for building structures such as doors, windows, curtain walls, and partitions. It not only enhances structural stability but also improves overall visual appeal.
6063 structural aluminum angle
Structural aluminum angle made from 6063 aluminum alloy offers good mechanical properties and corrosion resistance. It is commonly used in structural applications that require a certain load-bearing capacity.

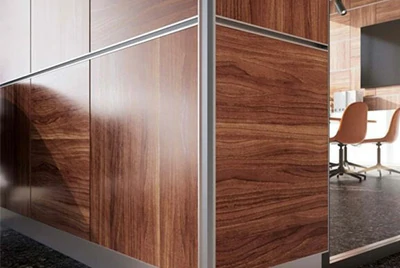

6063 furniture decorative aluminum angle
Furniture decorative aluminum angle features an attractive appearance and is widely used on edges of cabinets, display racks, and corner protection. It combines both decorative and protective function.
Chalco inventory procurement guidelines
- All inventory products are available for retail with no minimum order quantity required. Orders can be cleared and shipped within one week after confirmation.
- Our company is an original manufacturer with integrated large-scale production. The prices of products with the same quality are about 10% lower than the market price.
- We are a trusted brand with strict quality inspection to eliminate your concerns about product quality.
- If you need bulk purchases or custom orders, Chalco offers standard sizes and free mold matching.
Chalco 6063 aluminum angle stock list
-
Chalco stocks a wide range of 6063 t5 aluminum angle in various sizes, meeting AMS QQ-A-200/9 and ASTM B221 standards.
Chalco stocks a wide range of 6063 t5 aluminum angle in various sizes, meeting AMS QQ-A-200/9 and ASTM B221 standards.
| Product | H(inch) x W(inch) x T(inch) | H(mm) x W(mm) x T(mm) | Length(mm) |
| 6063-T5 Aluminum Angle | 0.39" x 0.39" x 0.04" | 10mm x 10mm x 1mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 0.39" x 0.39" x 0.08" | 10mm x 10mm x 2mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 0.39" x 0.39" x 0.12" | 10mm x 10mm x 3mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 0.47" x 0.47" x 0.04" | 12mm x 12mm x 1mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 0.47" x 0.47" x 0.12" | 12mm x 12mm x 3mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 0.47" x 0.47" x 0.08" | 12mm x 12mm x 2mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 0.59" x 0.59" x 0.04" | 15mm x 15mm x 1mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 0.59" x 0.59" x 0.08" | 15mm x 15mm x 2mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 0.59" x 0.59" x 0.12" | 15mm x 15mm x 3mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 0.79" x 0.79" x 0.04" | 20mm x 20mm x 1mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 0.79" x 0.79" x 0.08" | 20mm x 20mm x 2mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 0.79" x 0.79" x 0.12" | 20mm x 20mm x 3mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 0.79" x 0.79" x 0.16" | 20mm x 20mm x 4mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 0.79" x 0.79" x 0.2" | 20mm x 20mm x 5mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 0.98" x 0.98" x 0.04" | 25mm x 25mm x 1mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 0.98" x 0.98" x 0.08" | 25mm x 25mm x 2mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 0.98" x 0.98" x 0.12" | 25mm x 25mm x 3mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 0.98" x 0.98" x 0.16" | 25mm x 25mm x 4mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 0.98" x 0.98" x 0.2" | 25mm x 25mm x 5mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 1.18" x 1.18" x 0.04" | 30mm x 30mm x 1mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 1.18" x 1.18" x 0.06" | 30mm x 30mm x 1.5mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 1.18" x 1.18" x 0.08" | 30mm x 30mm x 2mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 1.18" x 1.18" x 0.12" | 30mm x 30mm x 3mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 1.18" x 1.18" x 0.16" | 30mm x 30mm x 4mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 1.18" x 1.18" x 0.2" | 30mm x 30mm x 5mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 1.38" x 1.38" x 0.08" | 35mm x 35mm x 2mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 1.38" x 1.38" x 0.12" | 35mm x 35mm x 3mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 1.5" x 1.5" x 0.08" | 38mm x 38mm x 2mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 1.5" x 1.5" x 0.12" | 38mm x 38mm x 3mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 1.57" x 1.57" x 0.08" | 40mm x 40mm x 2mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 1.57" x 1.57" x 0.12" | 40mm x 40mm x 3mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 1.57" x 1.57" x 0.16" | 40mm x 40mm x 4mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 1.57" x 1.57" x 0.2" | 40mm x 40mm x 5mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 1.57" x 1.57" x 0.24" | 40mm x 40mm x 6mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 1.57" x 1.57" x 0.31" | 40mm x 40mm x 8mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 1.57" x 1.57" x 0.39" | 40mm x 40mm x 10mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 1.97" x 1.97" x 0.08" | 50mm x 50mm x 2mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 1.97" x 1.97" x 0.12" | 50mm x 50mm x 3mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 1.97" x 1.97" x 0.16" | 50mm x 50mm x 4mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 1.97" x 1.97" x 0.2" | 50mm x 50mm x 5mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 1.97" x 1.97" x 0.24" | 50mm x 50mm x 6mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 1.97" x 1.97" x 0.31" | 50mm x 50mm x 8mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 1.97" x 1.97" x 0.39" | 50mm x 50mm x 10mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 1.97" x 2.95" x 0.2" | 50mm x 75mm x 5mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 1.97" x 3.94" x 0.2" | 50mm x 100mm x 5mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 2.36" x 2.36" x 0.08" | 60mm x 60mm x 2mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 2.36" x 2.36" x 0.12" | 60mm x 60mm x 3mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 2.36" x 2.36" x 0.16" | 60mm x 60mm x 4mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 2.36" x 2.36" x 0.2" | 60mm x 60mm x 5mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 2.36" x 2.36" x 0.24" | 60mm x 60mm x 6mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 2.36" x 2.36" x 0.31" | 60mm x 60mm x 8mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 2.36" x 2.36" x 0.39" | 60mm x 60mm x 10mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 2.76" x 2.76" x 0.16" | 70mm x 70mm x 4mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 2.76" x 2.76" x 0.2" | 70mm x 70mm x 5mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 2.76" x 2.76" x 0.24" | 70mm x 70mm x 6mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 2.76" x 2.76" x 0.31" | 70mm x 70mm x 8mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 2.76" x 2.76" x 0.39" | 70mm x 70mm x 10mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 2.76" x 2.76" x 0.12" | 70mm x 70mm x 3mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 3.15" x 3.15" x 0.12" | 80mm x 80mm x 3mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 3.15" x 3.15" x 0.16" | 80mm x 80mm x 4mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 3.15" x 3.15" x 0.2" | 80mm x 80mm x 5mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 3.15" x 3.15" x 0.24" | 80mm x 80mm x 6mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 3.15" x 3.15" x 0.31" | 80mm x 80mm x 8mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 3.15" x 3.15" x 0.39" | 80mm x 80mm x 10mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 3.54" x 3.54" x 0.2" | 90mm x 90mm x 5mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 3.54" x 3.54" x 0.12" | 90mm x 90mm x 3mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 3.54" x 3.54" x 0.16" | 90mm x 90mm x 4mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 3.54" x 3.54" x 0.24" | 90mm x 90mm x 6mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 3.54" x 3.54" x 0.31" | 90mm x 90mm x 8mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 3.54" x 3.54" x 0.39" | 90mm x 90mm x 10mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 3.94" x 3.94" x 0.12" | 100mm x 100mm x 3mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 3.94" x 3.94" x 0.16" | 100mm x 100mm x 4mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 3.94" x 3.94" x 0.2" | 100mm x 100mm x 5mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 3.94" x 3.94" x 0.24" | 100mm x 100mm x 6mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 3.94" x 3.94" x 0.31" | 100mm x 100mm x 8mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 3.94" x 3.94" x 0.39" | 100mm x 100mm x 10mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 4.72" x 4.72" x 0.12" | 120mm x 120mm x 3mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 4.72" x 4.72" x 0.2" | 120mm x 120mm x 5mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 4.72" x 4.72" x 0.24" | 120mm x 120mm x 6mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 4.72" x 4.72" x 0.39" | 120mm x 120mm x 10mm | 6000mm or customized |
| 6063-T5 Aluminum Angle | 5.91" x 5.91" x 0.39" | 150mm x 150mm x 10mm | 6000mm or customized |
If the above 6063 aluminum angle stock size does not meet your requirements, you can contact us directly for customization.Quick Quote
Chalco 6063 t5 t52 aluminum angle hot-selling sizes
| Product | H(inch) x W(inch) x T(inch) | Length(inch) |
| 6063-T5 Aluminum Angle | 0.5" x 0.5" x 0.0625" | 236.22" |
| 6063-T5 Aluminum Angle | 0.75" x 0.75" x 0.0625" | 236.22" |
| 6063-T5 Aluminum Angle | 0.75" x 0.75" x 0.125" | 236.22" |
| 6063-T5 Aluminum Angle | 1" x 1" x 0.0625" | 236.22" |
| 6063-T5 Aluminum Angle | 1" x 1" x 0.125" | 236.22" |
| 6063-T5 Aluminum Angle | 1.5" x 1.5" x 0.125" | 236.22" |
| 6063-T5 Aluminum Angle | 2" x 2" x 0.0625" | 236.22" |
| 6063-T5 Aluminum Angle | 2" x 2" x 0.125" | 236.22" |
| 6063-T5 Aluminum Angle | 2" x 2" x 0.25" | 236.22" |
| 6063-T52 Aluminum Angle | 0.5" x 0.5" x 0.125" | 236.22" |
| 6063-T52 Aluminum Angle | 0.5" x 0.5" x 0.062" | 236.22" |
| 6063-T52 Aluminum Angle | 0.625" x 0.625" x 0.125" | 236.22" |
| 6063-T52 Aluminum Angle | 0.75" x 0.75" x 0.125" | 236.22" |
| 6063-T52 Aluminum Angle | 0.75" x 0.75" x 0.062" | 236.22" |
| 6063-T52 Aluminum Angle | 1" x 1" x 0.125" | 236.22" |
| 6063-T52 Aluminum Angle | 1" x 1" x 0.062" | 236.22" |
| 6063-T52 Aluminum Angle | 1.25" x 1.25" x 0.125" | 236.22" |
| 6063-T52 Aluminum Angle | 1.25" x 0.5" x 0.125" | 236.22" |
| 6063-T52 Aluminum Angle | 1" x 0.75" x 0.125" | 236.22" |
| 6063-T52 Aluminum Angle | 1" x 0.5" x 0.125" | 236.22" |
| 6063-T52 Aluminum Angle | 3" x 3" x 0.25" | 236.22" |
| 6063-T52 Aluminum Angle | 4" x 2" x 0.125" | 236.22" |
| 6063-T52 Aluminum Angle | 4" x 2" x 0.25" | 236.22" |
| 6063-T52 Aluminum Angle | 3" x 3" x 0.125" | 236.22" |
| 6063-T52 Aluminum Angle | 1.25" x 1.25" x 0.1875" | 236.22" |
| 6063-T52 Aluminum Angle | 1.5" x 0.75" x 0.125" | 236.22" |
| 6063-T52 Aluminum Angle | 1.5" x 1" x 0.125" | 236.22" |
| 6063-T52 Aluminum Angle | 1.5" x 1.5" x 0.125" | 236.22" |
| 6063-T52 Aluminum Angle | 1.5" x 1.5" x 0.1875" | 236.22" |
| 6063-T52 Aluminum Angle | 1.5" x 1.5" x 0.25" | 236.22" |
| 6063-T52 Aluminum Angle | 1.75" x 1.75" x 0.125" | 236.22" |
| 6063-T52 Aluminum Angle | 2" x 1" x 0.125" | 236.22" |
| 6063-T52 Aluminum Angle | 2" x 1" x 0.1875" | 236.22" |
| 6063-T52 Aluminum Angle | 2" x 1.5" x 0.125" | 236.22" |
| 6063-T52 Aluminum Angle | 2" x 1.5" x 0.1875" | 236.22" |
| 6063-T52 Aluminum Angle | 2" x 2" x 0.125" | 236.22" |
| 6063-T52 Aluminum Angle | 2" x 2" x 0.1875" | 236.22" |
| 6063-T52 Aluminum Angle | 2" x 2" x 0.25" | 236.22" |
| 6063-T52 Aluminum Angle | 2.5" x 1.5" x 0.125" | 236.22" |
| 6063-T52 Aluminum Angle | 3" x 1" x 0.125" | 236.22" |
| 6063-T52 Aluminum Angle | 3" x 2" x 0.125" | 236.22" |
| 6063-T52 Aluminum Angle | 3" x 2" x 0.25" | 236.22" |
| 6063-T52 Aluminum Angle | 3" x 3" x 0.125" | 236.22" |
| 6063-T52 Aluminum Angle | 3" x 3" x 0.1875" | 236.22" |
| 6063-T52 Aluminum Angle | 3" x 3" x 0.25" | 236.22" |
| 6063-T52 Aluminum Angle | 4" x 2" x 0.125" | 236.22" |
| 6063-T52 Aluminum Angle | 4" x 2" x 0.25" | 236.22" |
Chalco 6063 aluminum angle introduction
| Name | 6063 aluminum angle |
| Hot selling temper | T52, T5 |
| Equivalent names | EN AW-6063, A96063, AlMg0, 7Si, H9 |
| Thickness | 2mm-15mm |
| Height & Width | 10mm-200mm |
| Length | 1-6m or customization |
| Machining | Cutting, punching, drilling, bending, welding, mill, CNC etc. |
| Surface treatment | Anodizing, Powder Coating, Electroplating, etc. Click Surface treatment to see more detail. |
| Tolerance | Click to view the 6063 aluminum angle tolerance chart |
| Specifications | AMS QQ-A-200/9 , ASTM B221 |
| Compliant | REACH , RoHS |
6063 aluminum angle vs 6061 aluminum angle
Both 6063 aluminum angle and 6061 aluminum angle are common types of aluminum angle, but what are the differences between them?
| Property | 6063 Aluminum Angle | 6061 Aluminum Angle |
| Chemical Composition | Contains 0.2–0.6% Silicon (Si) and 0.45–0.9% Magnesium (Mg). | Contains 0.4–0.8% Silicon (Si) and 0.8–1.2% Magnesium (Mg), along with higher amounts of Iron (Fe), Copper (Cu), and Chromium (Cr) compared to 6063. |
| Strength | Lower tensile strength, making it suitable for applications where high strength is not the primary requirement. | Higher tensile strength, providing greater durability and load-bearing capacity. |
| Extrudability | Excellent extrudability, allowing for the creation of complex cross-sectional shapes with smooth surfaces. | Good extrudability but less suitable for complex shapes compared to 6063. |
| Corrosion Resistance | Superior corrosion resistance, especially in environments exposed to weather or water. | Good corrosion resistance, though slightly less than 6063. |
| Surface Finish | High-quality surface finish, ideal for anodizing and applications requiring aesthetic appeal. | Acceptable surface finish but not as smooth as 6063, making it less suitable for decorative applications. |
| Applications | Commonly used in architectural applications such as window frames, door frames, and decorative trim due to its excellent surface quality and corrosion resistance. | Frequently employed in structural applications like bridges, pipelines, and aerospace components where higher strength is essential. |
6063 aluminum angle applications
6063 aluminum angle is commonly used in structural components such as window frames, door frames, curtain wall borders, and decorative strips. Its smooth and clean surface becomes even more attractive after anodizing. Its corrosion resistance ensures stability and safety during long-term outdoor use.
Contact us now
In brackets, frames, and various mechanical parts, 6063 aluminum angle is widely used for its lightweight and high-strength properties. This material not only reduces the overall structural weight but also meets the requirements for long-term load-bearing and fatigue resistance.
Contact us now6063 aluminum angle is used in furniture decoration and corner protection, enhancing the overall texture and appearance of the product. At the same time, its dimensional stability and wear resistance make the furniture more durable and reduce maintenance costs.
Contact us now
In automotive manufacturing, 6063 aluminum angle is used in body structures, chassis components, and interiors. Aluminum is lighter than steel, helping to reduce vehicle weight, improve fuel efficiency, and lower emissions.
Contact us nowChemical composition of 6063 aluminum angle
| Element | Composition (%) |
| Aluminum (Al) | 97.5% – 99.35% |
| Magnesium (Mg) | 0.45% – 0.90% |
| Silicon (Si) | 0.20% – 0.60% |
| Iron (Fe) | 0 – 0.35% |
| Chromium (Cr) | 0 – 0.10% |
| Copper (Cu) | 0 – 0.10% |
| Manganese (Mn) | 0 – 0.10% |
| Titanium (Ti) | 0 – 0.10% |
| Zinc (Zn) | 0 – 0.10% |
| Others(each) | 0-0.05% |
| Others(total) | 0 – 0.15% |
Properties of 6063 aluminum angle
| Temper | Tensile Strength | Yield Strength | Elongation |
| T52 | 25000 psi | 20000 psi | 11% |
| T5 | 27000 psi | 21000 psi | 22% |
| T6 | 35000 psi | 31000 psi | 18% |
Other questions about Chalco 6063 aluminum angle
What surface treatments can Chalco provide for 6063 aluminum angles?
Chalco offers a variety of surface treatment options for aluminum angle 6063, including anodizing, powder coating, electroplating, mechanical polishing, ceramic coating, and chemical treatment to meet your specific requirements.
Anodized black aluminum angle
Matte black aluminum angle
Silver aluminum angle
Dark gray aluminum angle trim
Aluminum angle powder coating
Bronze anodized aluminum angle
What CNC machining services can Chalco provide for aluminum angles 6063 ?
Chalco provides a full range of secondary processing services to meet your specific requirements, including punching, custom cutting, CNC milling, drilling, tapering, laser cutting, laser engraving, welding, machining, precision processing, heat treatment, bending, and forming.Quick Quote
Other aluminum angle products you may be interested in
6061 aluminum angle
2024 aluminum angle
7050 aluminum angle
Chalco 6063 aluminum angle tolerance
Chalco’s 6063 aluminum angle strictly follows the tolerances listed below. Please refer to the data table below for specific tolerance values.
| Thickness (in.) | Thickness tolerance (in.) | Leg Length (in.) | Leg tolerance (±in.) |
| ≤ 0.124" | ±0.006" | 0.250 - 0.624" | ±0.010" |
| 0.625 - 1.249" | ±0.012" | ||
| 1.250 - 2.499" | ±0.012" | ||
| 0.125 - 0.249" | ±0.007" | 0.250 - 0.624" | ±0.012" |
| 0.625 - 1.249" | ±0.014" | ||
| 1.250 - 2.499" | ±0.016" | ||
| 0.250 - 0.499" | ±0.008" | 0.250 - 0.624" | ±0.014" |
| 0.625 - 1.249" | ±0.016" | ||
| 1.250 - 2.499" | ±0.018" | ||
| 2.500 - 3.999" | ±0.020" | ||
| 0.500 - 0.749" | ±0.009" | 0.250 - 0.624" | ±0.016" |
| 0.625 - 1.249" | ±0.018" | ||
| 1.250 - 2.499" | ±0.020" | ||
| 2.500 - 3.999" | ±0.022" | ||
| 0.750 - 0.999" | ±0.010" | 0.250 - 0.624" | ±0.018" |
| 0.625 - 1.249" | ±0.020" | ||
| 1.250 - 2.499" | ±0.022" | ||
| 2.500 - 3.999" | ±0.025" | ||
| 4.000 - 5.999" | ±0.030" | ||
| 1.000 - 1.499" | ±0.012" | 0.250 - 0.624" | ±0.021" |
| 0.625 - 1.249" | ±0.023" | ||
| 1.250 - 2.499" | ±0.026" | ||
| 2.500 - 3.999" | ±0.030" | ||
| 4.000 - 5.999" | ±0.035" | ||
| 1.500 - 1.999" | ±0.014" | 0.250 - 0.624" | ±0.024" |
| 0.625 - 1.249" | ±0.026" | ||
| 1.250 - 2.499" | ±0.031" | ||
| 2.500 - 3.999" | ±0.036" | ||
| 4.000 - 5.999" | ±0.042" | ||
| 6.000 - 8.000" | ±0.050" | ||
| 2.000 - 3.999" | ±0.024" | 0.250 - 0.624" | ±0.034" |
| 0.625 - 1.249" | ±0.038" | ||
| 1.250 - 2.499" | ±0.048" | ||
| 2.500 - 3.999" | ±0.057" | ||
| 4.000 - 5.999" | ±0.068" | ||
| 6.000 - 8.000" | ±0.080" | ||
| 4.000 - 5.999" | ±0.034" | 0.250 - 0.624" | ±0.044" |
| 0.625 - 1.249" | ±0.050" | ||
| 1.250 - 2.499" | ±0.064" | ||
| 2.500 - 3.999" | ±0.078" | ||
| 4.000 - 5.999" | ±0.094" | ||
| 6.000 - 8.000" | ±0.110" | ||
| 6.000 - 7.999" | ±0.044" | 0.250 - 0.624" | ±0.054" |
| 0.625 - 1.249" | ±0.062" | ||
| 1.250 - 2.499" | ±0.082" | ||
| 2.500 - 3.999" | ±0.099" | ||
| 4.000 - 5.999" | ±0.120" | ||
| 6.000 - 8.000" | ±0.140" | ||
| 8.000 - 9.999" | ±0.054" | 0.250 - 0.624" | ±0.064" |
| 0.625 - 1.249" | ±0.074" | ||
| 1.250 - 2.499" | ±0.100" | ||
| 2.500 - 3.999" | ±0.120" | ||
| 4.000 - 5.999" | ±0.145" | ||
| 6.000 - 8.000" | ±0.170" |
6063 aluminum angle die dimension chart
| A (mm) | B (mm) | T (mm) | linear density (Kg/m) | Extrusion tonnage | Material | R corner |
| 12 | 12 | 1.5 | 0.091 | 500T | 6063-T5 | - |
| 12 | 12 | 1.59 | 0.096 | 500T | 6063-T6 | - |
| 12 | 12 | 3 | 0.17 | 500T | 6063-T5 | - |
| 12.6 | 12.6 | 1 | 0.065 | 500T | 6063-T6 | Yes |
| 9.5 | 12.7 | 1.58 | 0.088 | 500T | 6063-T5 | - |
| 12.7 | 12.7 | 0.9 | 0.059 | 500T | 6063-T5 | - |
| 12.7 | 12.7 | 1.59 | 0.102 | 500T | 6063-T5 | - |
| 15 | 15 | 1.5 | 0.115 | 500T | 6063-T6 | - |
| 19.05 | 19.05 | 0.9 | 0.09 | 500T | 6063-T5 | - |
| 19.05 | 19.05 | 1.5 | 0.148 | 500T | 6063-T6 | - |
| 12 | 20 | 1.6 | 0.131 | 500T | 6063-T5 | - |
| 12 | 20 | 3 | 0.235 | 500T | 6063-T5 | - |
| 20 | 20 | 1 | 0.105 | 500T | 6063-T6 | Yes |
| 20 | 20 | 1.5 | 0.156 | 500T | 6063-T5 | Yes |
| 20 | 20 | 1.6 | 0.166 | 500T | 6063-T5 | - |
| 20 | 20 | 3 | 0.299 | 500T | 6063-T5 | Yes |
| 18 | 21 | 2 | 0.2 | 500T | 6063-T5 | - |
| 5.8 | 22.2 | 1.6 | 0.113 | 500T | 6063-T52 | Yes |
| 22.23 | 22.23 | 3.18 | 0.354 | 660T | 6063-T6 | - |
| 12 | 25 | 3 | 0.275 | 500T | 6063-T5 | - |
| 25 | 25 | 1.1 | 0.145 | 500T | 6063-T6 | Yes |
| 25 | 25 | 1.5 | 0.196 | 500T | 6063-T5 | Yes |
| 25 | 25 | 2 | 0.257 | 500T | 6063-T6 | Yes |
| 25 | 25 | 6 | 0.713 | 880T | 6063-T6 | - |
| 12.7 | 25.4 | 1.59 | 0.157 | 500T | 6063-T6 | - |
| 12.7 | 25.4 | 3.175 | 0.299 | 500T | 6063-T52 | - |
| 19.05 | 25.4 | 3.18 | 0.354 | 660T | 6063-T6 | R0.3 |
| 25.4 | 25.4 | 0.9 | 0.121 | 500T | 6063-T5 | - |
| 25.4 | 25.4 | 1.58 | 0.21 | 500T | 6063-T5 | - |
| 25.4 | 25.4 | 1.59 | 0.211 | 500T | 6063-T5 | - |
| 25 | 27 | 3 | 0.397 | 660T | 6063-T5 | - |
| 20 | 28 | 3 | 0.365 | 660T | 6063-T5 | - |
| 30 | 30 | 2 | 0.313 | 660T | 6063-T5 | - |
| 20 | 30 | 2 | 0.252 | 500T | 6063-T6 | R4 |
| 30 | 30 | 2 | 0.306 | 660T | 6063-T6 | R4 |
| 30 | 30 | 1.2 | 0.191 | 660T | 6063-T5 | - |
| 19.05 | 31.75 | 3.17 | 0.407 | 660T | 6063-T6 | R0.3 |
| 31.75 | 31.75 | 1.59 | 0.265 | 500T | 6063-T5 | - |
| 31.75 | 31.75 | 2 | 0.332 | 660T | 6063-T6 | - |
| 32 | 32 | 1.59 | 0.268 | 500T | 6063-T6 | - |
| 12.75 | 32.5 | A=7.5/B=2.75 | 0.444 | 660T | 6063-T5 | - |
| 8 | 33.5 | 3 | 0.312 | 660T | 6063-T5 | - |
| 15 | 37 | A=2/B=1.6 | 0.233 | 500T | 6063-T5 | Yes |
| 32 | 37.5 | 2.5 | 0.439 | 660T | 6063-T6 | Yes |
| 38 | 38 | 1.59 | 0.319 | 660T | 6063-T6 | - |
| 38 | 38 | 2 | 0.4 | 660T | 6063-T6 | - |
| 38 | 38 | 3.2 | 0.629 | 880T | 6063-T5 | - |
| 38 | 38 | 4.76 | 0.916 | 880T | 6063-T5 | - |
| 38 | 38 | 6 | 1.134 | 1250T | 6063-T6 | - |
| 19.05 | 38.1 | 1.6 | 0.24 | 500T | 6063-T52 | - |
| 22.23 | 38.1 | 3.18 | 0.491 | 660T | 6063-T6 | - |
| 25.4 | 38.1 | 1.57 | 0.263 | 500T | 6063-T5 | Yes |
| 25.4 | 38.1 | 1.6 | 0.267 | 500T | 6063-T6 | Yes |
| 38.1 | 38.1 | 1.65 | 0.332 | 660T | 6063-T5 | - |
| 38.1 | 38.1 | 2.31 | 0.46 | 660T | 6063-T5 | R0.41 |
| 20 | 40 | 1.5 | 0.237 | 500T | 6063-T5 | - |
| 35 | 40 | 3 | 0.583 | 660T | 6063-T5 | - |
| 40 | 40 | 12 | 2.203 | 1800T | 6063-T6 | - |
| 30 | 40 | 2 | 0.36 | 660T | 6063-T6 | R4 |
| 17 | 42 | 3 | 0.454 | 660T | 6063-T5 | - |
| 25 | 43.42 | 2.5 | 0.445 | 660T | 6063-T6 | Yes |
| 44.45 | 44.45 | 3.18 | 0.735 | 880T | 6063-T6 | - |
| 44.45 | 44.45 | 3.18 | 0.735 | 880T | 6063-T6 | - |
| 15 | 45 | 3 | 0.462 | 660T | 6063-T6 | - |
| 18 | 45 | 3 | 0.486 | 660T | 6063-T6 | - |
| 22 | 45 | 4 | 0.68 | 880T | 6063-T5 | - |
| 30 | 45 | 4 | 0.767 | 880T | 6063-T5 | - |
| 20 | 49 | 6 | 1.021 | 1250T | 6063-T5 | - |
| 7 | 50 | 2 | 0.297 | 500T | 6063-T5 | Yes |
| 15 | 50 | 4 | 0.659 | 880T | 6063 | - |
| 20 | 50 | 5 | 0.877 | 880T | 6063-T6 | - |
| 50 | 50 | 5 | 1.277 | 1250T | 6063-T5 | Yes |
| 12.7 | 50.8 | 3.18 | 0.517 | 660T | 6063-T6 | - |
| 19.05 | 50.8 | 3.18 | 0.572 | 880T | 6063-T6 | - |
| 19.05 | 50.8 | 3.18 | 0.572 | 880T | 6063-T6 | - |
| 25.4 | 50.8 | 1.52 | 0.306 | 660T | 6063-T6 | - |
| 31.75 | 50.8 | 3.18 | 0.68 | 880T | 6063-T6 | - |
| 31.75 | 50.8 | 3.18 | 0.68 | 880T | 6063-T6 | - |
| 50.8 | 50.8 | 1.4 | 0.377 | 660T | 6063-T6 | Yes |
| 50.8 | 50.8 | 2 | 0.538 | 660T | 6063-T6 | - |
| 50.8 | 50.8 | 6.35 | 1.633 | 1250T | 6063-T5 | - |
| 18 | 53 | 2 | 0.373 | 660T | 6063-T5 | - |
| 53.5 | 53.5 | 3.5 | 0.978 | 1250T | 6063-T5 | - |
| 20 | 55 | 3 | 0.583 | 880T | 6063-T5 | - |
| 40 | 55 | 4 | 0.983 | 880T | 6063-T5 | - |
| 40 | 60 | 5 | 1.283 | 1250T | 6063-T5 | - |
| 38.1 | 63.5 | 3.18 | 0.845 | 880T | 6063-T6 | - |
| 20 | 65 | 2 | 0.448 | 660T | 6063-T5 | - |
| 24 | 66.11 | 4 | 0.93 | 880T | 6063-T6 | Yes |
| 20 | 67.52 | 6 | 1.321 | 1250T | 6063-T5 | - |
| 40 | 70 | 2.5 | 0.726 | 880T | 6063-T5 | - |
| 40 | 70 | 3 | 0.867 | 880T | 6063-T5 | - |
| 50 | 70 | 5 | 1.553 | 1250T | 6063-T5 | - |
| 70 | 70 | 3 | 1.11 | 1250T | 6063-T5 | - |
| 70 | 70 | 5 | 1.823 | 1250T | 6063-T5 | - |
| 50 | 75 | 3 | 0.988 | 880T | 6063-T6 | - |
| 75 | 75 | 3 | 1.191 | 1250T | 6063-T6 | - |
| 75 | 75 | 6 | 2.333 | 1800T | 6063-T5 | - |
| 38 | 76 | 2 | 0.605 | 880T | 6063-T6 | - |
| 38 | 76 | 2 | 0.605 | 880T | 6063-T6 | - |
| 76 | 76 | 2 | 0.81 | 880T | 6063-T6 | - |
| 76 | 76 | 3 | 1.207 | 1250T | 6063-T6 | - |
| 76 | 76 | 3 | 1.207 | 1250T | 6063-T6 | R0.3 |
| 76 | 76 | 6 | 2.365 | 2000T | 6063-T6 | - |
| 76 | 76 | 6.36 | 2.501 | 2000T | 6063-T6 | - |
| 34.93 | 76.2 | 3.18 | 0.925 | 880T | 6063-T5 | - |
| 38.1 | 76.2 | 3.18 | 0.954 | 880T | 6063-T6 | - |
| 76.2 | 76.2 | 2 | 0.812 | 880T | 6063-T6 | - |
| 70 | 80 | 4 | 1.577 | 1250T | 6063-T5 | - |
| 80 | 80 | 4 | 1.657 | 1250T | 6063-T5 | Yes |
| 38.2 | 80.2 | 12.4 | 3.578 | 2000T | 6063-T6 | Yes |
| 14 | 81.12 | 4 | 0.984 | 880T | 6063-T6 | Yes |
| 55 | 85 | 4 | 1.415 | 1250T | 6063-T5 | - |
| 38 | 90 | 1.2 | 0.409 | 880T | 6063 | Yes |
| 24 | 95 | 2 | 0.61 | 880T | 6063-T5 | Yes |
| 32 | 95 | 2 | 0.654 | 880T | 6063-T5 | Yes |
| 50 | 95 | 5 | 1.89 | 1250T | 6063-T5 | - |
| 15 | 100 | 3 | 0.905 | 880T | 6063-T6 | Yes |
| 101.6 | 101.6 | 3.175 | 1.715 | 1800T | 6063-T6 | - |
| 25.4 | 127 | 3.18 | 1.279 | 1250T | 6063-T6 | - |
| 50.8 | 127 | 2 | 0.949 | 1250T | 6063-T6 | - |
| 50.8 | 127 | 2 | 0.949 | 1250T | 6063-T6 | - |
| 15 | 150 | 5 | 2.152 | 1800T | 6063-T5 | Yes |
| 15 | 150 | 6 | 2.565 | 2000T | 6063-T5 | Yes |
| 76.2 | 152.4 | 9.53 | 5.634 | 3600T | 6063-T6 | R0.3 |
| 15 | 200 | 5 | 2.827 | 2750T | 6063-T5 | Yes |
| 15 | 200 | 6 | 3.375 | 2750T | 6063-T5 | Yes |
| 40 | 200 | 3 | 1.92 | 2750T | 6063-T66 | - |
| 40 | 220 | 3 | 2.082 | 2750T | 6063-T66 | - |
| 40 | 240 | 3 | 2.244 | 3150T | 6063-T66 | - |
