Advantages of 4A11 4032 aluminum alloy extruded rods
- Excellent Wear Rate
- Can be used in low and high-temperature
- Fair to good machinability
- Can be welded
Fine microstructure and appearance quality
Fine microstructure
The low-magnification specimen of the rod exhibits no segregation, non-metallic inclusions, cracks, coarse grains, or tailing defects. The grain size is ≤2 grade, and there is a layer present on the low-magnification specimen of the rod, with a depth not exceeding half of the diameter tolerance allowance.
Microstructure
The microstructure of the rod exhibits the presence of a small amount of primary silicon, but it is uniformly distributed. The maximum linear dimension of the primary silicon does not exceed 0.08mm.
Appearance quality
The surface of the rod is free from cracks, bubbles, and corrosion spots.
Temper and specifications of 4A11 4032 aluminum alloy extruded rods
| Temper | Diameter/mm |
| H112, F | 100-300 |
Chemical composition of 4A11 4032 aluminum alloy extruded rods
| Element | 4032 | 4A11 | |
| Si | 11.0%-13.5% | 11.5%-13.5% | |
| Fe | 1% | 1% | |
| Cu | 0.5%-1.3% | 0.5%-1.3% | |
| Mn | - | 0.2% | |
| Mg | 0.8%-1.3% | 0.8%-1.3% | |
| Cr | 0.1% | 0.1% | |
| Zn | 0.25% | 0.25% | |
| Ti | - | 0.15% | |
| Others | single | 0.05% | 0.05% |
| total | 0.15% | 0.15% | |
| Al | the rest part | the rest part | |
Diameter Tolerance of 4A11 4032 Alloy Extruded Rods
| Diameter /mm | Diameter Tolerance /mm | |
| High Precision Grade | Standard Grade | |
| 100-120 | -1.40 | -2.20 |
| >120-180 | -1.60 | -2.50 |
| >180-250 | -1.90 | -2.90 |
| >250-300 | -2.20 | -3.30 |
Length Tolerance of 4A11 4032 aluminum alloy extruded rods
| Fixed Length Tolerance | +2mm |
| Multiple Length Tolerance | Each cut leaves a sawing allowance of 5 mm |
Bending Tolerance of 4A11 4032 aluminum alloy extruded rods
| Diameter | Bending Tolerance | |
| Per Meter Length | Total Length | |
| 100-120 | ≤6.0 | ≤25 |
| >120-130 | ≤10.0 | ≤40 |
| >130-200 | ≤14.0 | ≤50 |
Oblique Cut Deviation of 4A11 4032 aluminum alloy extruded rods
The ends of the rod are cut straight, without burrs, and the cutting angle is less than 3°.
Material Properties of 4A11 4032 aluminum alloy extruded rods
| Tensile Strength | 55000 psi |
| Yield Strength | 46000 psi |
| Fatigue Endurance | 16000 psi |
| Modulus of Elasticity | 11400 psi |
| Melting Point | 990 - 1060 F |
Application of 4A11 4032 aluminum alloy extruded rods

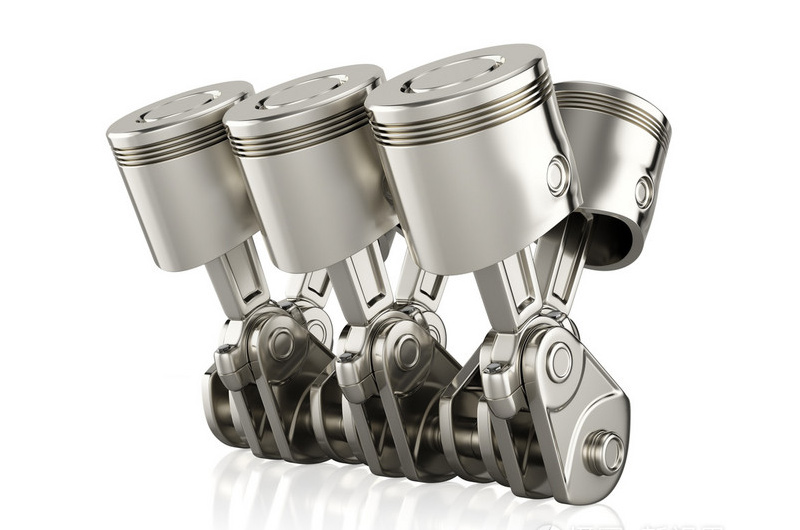

- Racing pistons
- Engine components
- Chassis components
